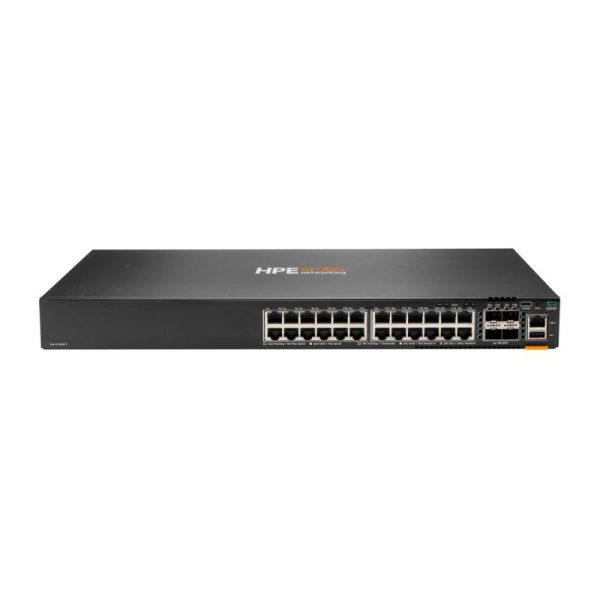

HPE Aruba Networking CX 6200F 24G 4SFP+ Switch

Switchuri

HPE Aruba Networking CX 6200F 24G 4SFP+ Switch

(0) Stoc epuizat
Vândut de RITC.ro Cod produs: JL724A

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică HPE Aruba Networking CX 6200F 24G 4SFP+ Switch Switch TP-Link TL-SF1016, 16 port, 10/100 Mbps "JetStream™ 8-Port 10GE SFP+ L2+ Managed Switch PORT: 8× 10G Switch ALLIED TELESIS GS950, 48 port, 10/100/1000 Mbps Omada 24-Port Gigabit Stackable Lite L3 Managed Switch with 4
Alte caracteristici
10G support Yes No Yes No Yes
Access Control List (ACL) Yes — Yes — Yes
AC input frequency 50 - 60 Hz 50 - 60 Hz — 50 - 60 Hz —
AC input voltage 200 - 240 V — 220 V — —
ARP inspection — — Yes — Yes
Authentication MAC-based authentication, Web-based authentication — Guest VLAN, MAC-based authentication, Port-based authentication, Web-based authentication — —
Authentication type RADIUS, TACACS+ — AAA, TACACS+ — —
Auto MDI/MDI-X Yes Yes — Yes —
Basic switching RJ-45 Ethernet ports type 24 Fast Ethernet (10/100) No 48 24
Broadcast storm control — — Yes Yes Yes
Built-in processor Yes — — — Yes
Cables included — AC AC — AC
Cloud-managed — — Yes — Yes
Compliance certificates — CE, Federal Communications Commission (FCC), RoHS — — CE, Federal Communications Commission (FCC), RoHS
Console port RJ-45/USB Type-C — RJ-45/micro-USB RJ-45 RJ-45
Copper ethernet cabling technology — 10BASE-T, 100BASE-TX — 1000BASE-T, 100BASE-TX —
Depth 442 mm 180 mm 180 mm 322 mm 180 mm
DHCP features — — DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping DHCP client DHCP relay, DHCP server
Fanless — Yes — — Yes
Flash memory 16384 MB — — 4 MB 512 MB
Flow control support Yes Yes Yes Yes —
Form factor 1U 1U — 1U —
Forwarding rate — 2.38 Mpps 119.04 Mpps — 95.23 Mpps
Harmonized System (HS) code 85176990 85176990 — 85176990 —
Head-of-line (HOL) blocking — — Yes Yes —
Heat dissipation — 7.03 BTU/h 52.75 BTU/h — 66.87 BTU/h
Height 327 mm 44 mm — 43.5 mm 44 mm
IGMP snooping Yes — Yes Yes Yes
IP-MAC-Port binding — — Yes — Yes
Jumbo frames — — 9000 — 9000
Jumbo frames support Yes — Yes Yes Yes
LAN port type — FastEthernet 10Gigabit Gigabit —
LED indicators — Yes Yes Yes Yes
Link aggregation Yes — Yes Yes Yes
MAC address filtering — — Yes Yes Yes
MAC address table 16000 entries 8000 entries 32000 entries 8000 entries 16000 entries
Management Da nu Da Da —
Management protocols — — SNMPv1/v2c/v3, SNTP IGMP, SNMP, FTP —
Mean time between failures (MTBF) — — — 263000 h 519.543 h
Memory type DDR4-SDRAM — — — DRAM
MIB support — — RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213 RFC 1213, RFC 1643, RFC 1493 —
Montare in rack Da Nu Nu Da Da
Multicast support Yes — Yes Yes Yes
Networking standards — IEEE 802.3i, IEEE 802.3u, IEEE 802.3x IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x — IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Number of VLANs — — 4000 — 4000
Operating relative humidity (H-H) 15 - 95% 10 - 90% 10 - 90% 5 - 90% 10 - 90%
Operating temperature (T-T) 0 - 45 °C 0 - 40 °C 0 - 45 °C 0 - 40 °C -5 - 45 °C
Package type — Box Box — —
Packet buffer memory 8 MB 2 MB 16 MB 6 MB 12 MB
Physical stacking (units) 8 — — — 4
PoE Nu Nu Nu Nu —
Port mirroring Yes — Yes Yes Yes
Porturi RJ 45 24-28 11-18 1-4 28+ 24-28
Porturi SFP 3-4 N/A 5-8 1-2 3-4
Power connector — DC-in jack DC-in jack DC-in jack —
Power consumption (max) — 2.23 W 15.46 W — 19.6 W
Power over Ethernet (PoE) No No No No No
Power source AC AC AC — AC
Power supply included Yes Yes Yes — Yes
Quality of Service (QoS) support Yes — Yes Yes Yes
Rack mounting Yes Yes Yes Yes Yes
Rack mount kit — Yes Yes — Yes
Rate limiting — — Yes Yes —
Security algorithms — — HTTPS, SSH, SSH-2, SSL/TLS — SNMP, SNMPv2, SNMPv3
SFP module slots quantity 4 — 8 — 4
Spanning tree protocol Yes — Yes Yes —
SSH/SSL support — — Yes — Yes
Stackable Yes No — No Yes
Static port security — — Yes Yes Yes
Storage relative humidity (H-H) 15 - 90% 5 - 90% 5 - 90% 5 - 95% 5 - 90%
Storage temperature (T-T) -40 - 70 °C -40 - 70 °C -40 - 70 °C -25 - 70 °C -40 - 70 °C
Store-and-forward — Yes — — Yes
Switching capacity 128 Gbit/s 32 Gbit/s 160 Gbit/s — 128 Gbit/s
Switch layer L3 — L2+/L3 L2 L3
Switch type Managed Unmanaged Managed Managed Managed
Throughput 95.2 Mpps — — 14.88 Mpps —
Virtual LAN features — — Private VLAN, Protocol-based VLAN, Voice VLAN — MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN
Viteza transfer Gigabit Fast Ethernet 10G+ Gigabit Gigabit
VLAN support Yes — Yes Yes Yes
Web-based management — — Yes Yes Yes
Width 43.9 mm 440 mm — 444 mm 440 mm
Laptopuri - Construcție
Culoare Black Black — Grey —
Greutate 4.36 kg — — 4.05 kg —
Laptopuri - Generale
Garanție comercială 999 36 60 24 24
Producător ARUBA NETWORKS TP-LINK TP-LINK ALLIED TELESIS TP-LINK
Laptopuri - Memorie
Capacitate memorie RAM 8000 MB — — 32 MB 2000 MB
Laptopuri - Procesor
Frecvență procesor 1800 MHz — — — 1200 MHz

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

Lifecycle

  • Obsolete Date 30-06-2025
  • End of support date 31-12-2104

Specifications

  • Power supply name Fixed power supply (200W)
  • Throughput Up to 95.2 Mpps
  • Routing/switching capacity 128 Gbps
  • Latency 1 Gbps: 2.28 μSec 10 Gbps: 1.46 μSec
  • Ports 24x ports 10/100/1000BASE-T ports 4x 1/10G SFP ports 1x USB-C Console Port 1x OOBM 1x USB Type-A Host port 1x Bluetooth Adapter to be used with Aruba CX Mobile App
  • Stacking capabilities 8 members
  • Weight 4.36 kg
  • Product dimensions (imperial) 1.73 x 17.4 x 12.9 in
  • Product dimensions (metric) 4.39 x 44.2 cm x 32.7 cm
  • Memory and processor Quad Core ARM Cortex™ A72 @ 1.8 GHz
  • Power consumption 59W at 230 VAC
  • Weight 9.61 lbs
  • Input voltage 100V-120V/200V-240V
  • Warranty Limited Lifetime Warranty, see https://www.arubanetworks.com/support-services/ product-warranties/ for warranty and support information included with your product purchase.

Quickspecs

Overview

The HPE Aruba Networking CX 6200 Switch Series is a next-gen family of stackable access switches ideal for enterprise branch offices, campuses, and SMB networks. With a cloud-centric design that combines a fully programmable OS with the HPE Aruba Network Analytics Engine, the HPE Aruba Networking CX 6200 extends industry-leading monitoring and troubleshooting capabilities to the access layer. Support of Aruba NetEdit and the Aruba CX Mobile App verify that configurations are flawless and easy to deploy. Make your network ready for tomorrow’s unpredictable demands with a powerful Aruba Gen7 ASIC architecture to deliver fast, non-blocking performance. Aruba Virtual Stacking Framework (VSF) allows for stacking of up to 8 switches, providing scale and simplified management. This series includes fixed (CX 6200F) and modular (CX 6200M) switches with built-in high speed uplinks and up to 1440W of PoE to support IoT devices such as security cameras and wireless APs.

What’s new

  • Enterprise-class connectivity with support for ACLs, robust QoS, and common protocols such as static and Access OSPF routing.
  • Scalability with 8 member VSF stacking. 24 and 48-port fixed and modular switch models can stack together for up to 384 ports.
  • Models include modular switches with 1/10GbE uplinks, LRM, and MACSec 256, fixed switches with either 1/10GbE SFP+ or 1GbE SFP uplinks, and options that support 30W to 60W of PoE per port.
  • Intelligent monitoring and visibility via Aruba Network Analytics Engine. Aruba NetEdit support for automation, configuration and verification. One touch deployment using the Aruba CX Mobile App.
  • Aruba Dynamic Segmentation enables enhanced security and simple access for users and IoT.
  • Flexible, modular switch models support hot-swappable, redundant power supplies and fans for enhanced resiliency.

Features

The HPE Aruba Networking CX 6200 Switch Series supports Aruba Dynamic Segmentation that automatically applies and enforces user, device, and application-aware policies on Aruba wired and wireless infrastructures.

Smarter Segmentation

Deploy wireless access points and IoT devices with HPE Aruba Networking CX 6200 models that support up to 1440W IEEE 802.3at Class 6 Power over Ethernet for up to 60W per port.

Aruba Virtual Switching Framework (VSF) allows you to quickly grow your network using high performance front-plane stacking. Create 8 member stacks using built-in SFP+ ports with flexibility to create stacks that span longer distances using long-range transceivers.

Switch-to-switch tunnels with VXLAN for low-latency and high performance use cases.

Flexible, modular switch models support hot-swappable, redundant power supplies and fans for enhanced resiliency.

Automation and Analytics

The HPE Aruba Networking CX 6200 Switch Series delivers unparalleled visibility with built-in analytics for real-time monitoring and troubleshooting to help fix problems faster. The Aruba Network Analytics Engine (NAE) automatically interrogates and analyzes events that can impact network health.

Advanced telemetry and automation provide the ability to easily identify and troubleshoot network, system, application, and security related issues easily through the use of Python agents and REST APIs.

The HPE Aruba Networking CX 6200 Switch Series uses a fully distributed architecture with Aruba Gen7 ASICs that delivers very low latency, increased packet buffering, and adaptive power consumption. All switching and routing are wire-speed to meet the demands of bandwidth-intensive applications.

Performance and Power

The Time Series Database (TSDB) stores configuration and operational state data, making it available to quickly resolve network issues.

Aruba NetEdit introduces automation that allows for rapid network-wide changes, and ensures policy conformance post network updates. Intelligent capabilities include search, edit, validation (including conformance checking), deployment, and audit features.

The Aruba CX Mobile App simplifies connecting, stacking, and managing HPE Aruba Networking CX 6200 switches. Switch information can be imported into Aruba NetEdit for simplified configuration management and to continuously validate the conformance of configurations anywhere in the network.

Automated device profiling, role-based access control, and Layer 7 firewall features deliver enhanced visibility and performance for a better overall experience for both IT and end-users alike.

Compatible products

Documents

Specificații tehnice 62 caracteristici
10G support
Yes
Access Control List (ACL)
Yes
Access Control List (ACL) egress
22048
Access Control List (ACL) ingress
5120
AC input frequency
50 - 60 Hz
AC input voltage
200 - 240 V
Authentication
MAC-based authentication, Web-based authentication
Authentication type
RADIUS, TACACS+
Auto MDI/MDI-X
Yes
Basic switching RJ-45 Ethernet ports type
24
Built-in processor
Yes
Console port
RJ-45/USB Type-C
Depth
442 mm
Flash memory
16384 MB
Flow control support
Yes
Form factor
1U
Harmonized System (HS) code
85176990
Height
327 mm
IGMP snooping
Yes
Jumbo frames support
Yes
Latency (1 Gbps)
2.28 µs
Latency (10 Gbps)
1.46 µs
Link aggregation
Yes
MAC address table
16000 entries
Management
Da
Memory type
DDR4-SDRAM
Montare in rack
Da
Multicast support
Yes
Operating relative humidity (H-H)
15 - 95%
Operating temperature (T-T)
0 - 45 °C
Packet buffer memory
8 MB
Physical stacking (units)
8
PoE
Nu
Port mirroring
Yes
Porturi RJ 45
24-28
Porturi SFP
3-4
Power consumption (typical)
59 W
Power over Ethernet (PoE)
No
Power source
AC
Power supply included
Yes
Quality of Service (QoS) support
Yes
Rack mounting
Yes
SFP module slots quantity
4
Spanning tree protocol
Yes
Stackable
Yes
Storage relative humidity (H-H)
15 - 90%
Storage temperature (T-T)
-40 - 70 °C
Switching capacity
128 Gbit/s
Switch layer
L3
Switch type
Managed
Throughput
95.2 Mpps
Transmission distance (max)
10 km
Viteza transfer
Gigabit
VLAN support
Yes
Width
43.9 mm
Culoare
Black
Greutate
4.36 kg
Garanție comercială
999
Producător
ARUBA NETWORKS
Capacitate memorie RAM
8000 MB
Frecvență procesor
1800 MHz
Model procesor
ARM Cortex-A72
