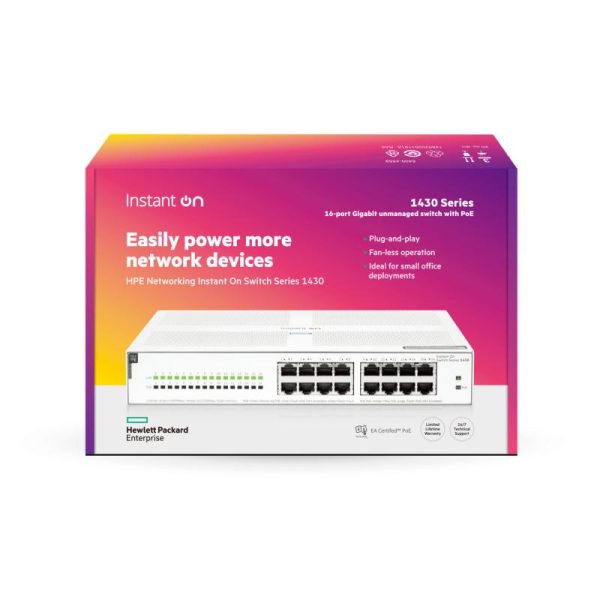

HPE Networking Instant On Switch 16p Gigabit CL4 PoE 124W

Switchuri

HPE Networking Instant On Switch 16p Gigabit CL4 PoE 124W

(0) Stoc epuizat
Vândut de RITC.ro Cod produs: R8R48A

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică HPE Networking Instant On Switch 16p Gigabit CL4 PoE 124W Switch TP-Link TL-SG1024D, 24 port, 10/100/1000 Mbps "JetStream™ 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch "JetStream™ 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch Extralink KRATOS PoE Switch 7x Gigabit PoE 1x
Alte caracteristici
10G support No No Yes Yes No
Access Control List (ACL) — — Yes Yes —
AC input frequency 50 - 60 Hz 50 - 60 Hz — — 50 - 60 Hz
ARP inspection — — Yes Yes —
Authentication — — Auto VLAN, Guest VLAN Guest VLAN, MAC-based authentication, Port-based authentication —
Auto-negotiation — Yes — — Yes
Basic switching RJ-45 Ethernet ports type 16 24 48 24 8
BPDU filtering/protection — — Yes Yes —
Broadcast storm control — — Yes Yes —
Cables included — AC AC AC —
Cable types supported — Cat3, Cat4, Cat5, Cat5e — — Cat5, Cat5e, Cat6
Cloud-managed — — Yes Yes No
Configuring Location Settings (CLI) — — Yes Yes No
Console port — — RJ-45/micro-USB RJ-45/micro-USB —
DHCP features — — DHCP client, DHCP relay, DHCP server DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping —
Flow control support — Yes Yes Yes —
Forwarding rate — 35.7 Mpps 130.9 Mpps 148.8 Mpps —
Full duplex Yes Yes — Yes —
Head-of-line (HOL) blocking — — Yes Yes —
Heat dissipation — 44.63 BTU/h 2169.2 BTU/h 2153.45 BTU/h —
IGMP snooping — — Yes Yes —
IP-MAC-Port binding — — Yes Yes —
Jumbo frames 9216 10000 9000 9000 —
Jumbo frames support Yes Yes Yes Yes —
LAN ports — 24 48 24 —
LAN port type — Gigabit Gigabit Gigabit Gigabit
Layer — Unmanaged Layer-2 Layer-2 —
LED indicators — Yes Yes Yes Yes
Link aggregation Yes — Yes Yes —
MAC address table 8192 entries 8000 entries 16000 entries 32000 entries 4096 entries
Management nu nu Da Da nu
Montare in rack Da Nu Da Da Nu
Multicast support — — Yes Yes —
Networking standards — IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x — — IEEE 802.3af
Number of fans — — 3 fan(s) 3 fan(s) —
Operating relative humidity (H-H) 15 - 95% 10 - 90% 10 - 90% 10 - 90% 10 - 80%
Operating temperature (T-T) 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C
Packet buffer memory 2 MB — 12 MB 16 MB —
PoE Da Nu Da Da Da
Port mirroring — — Yes Yes No
Porturi RJ 45 11-18 24-28 28+ 24-28 5-10
Porturi SFP N/A N/A 1-2 1-2 N/A
Power connector — DC-in jack AC-in jack — DC-in jack
Power consumption (max) 147 W 13.08 W 635.7 W 629.1 W —
Power over Ethernet (PoE) Yes No Yes Yes Yes
Power over Ethernet (PoE) power per port — — 30 W — 30 W
Power over Ethernet plus (PoE+) ports quantity — — 48 16 —
Power source AC AC AC AC/PoE AC
Power supply included Yes Yes Yes Yes Yes
Quality of Service (QoS) support Yes Yes Yes Yes No
Quick start guide — — Yes Yes —
Rackable — No Yes Yes —
Rack mounting Yes Yes Yes Yes No
Rack mount kit — Yes — Yes —
Rate limiting — — Yes Yes —
Redundant fans support — — — Yes No
Redundant PSU — Yes No Yes —
Reset button — — Yes — Yes
SFP module slots quantity — — 4 4 —
Spanning tree protocol — — Yes Yes —
SSH/SSL support — — Yes Yes —
Stackable — Yes No No No
Static port security — — Yes Yes —
Storage relative humidity (H-H) 15 - 90% 5 - 90% 5 - 90% 5 - 90% 5 - 90%
Storage temperature (T-T) -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C
Store-and-forward — Yes Yes Yes —
Switching capacity 32 Gbit/s 48 Gbit/s 176 Gbit/s 200 Gbit/s 16 Gbit/s
Switch layer L2 — — — L2
Switch type Unmanaged Unmanaged Managed Managed Unmanaged
System event log — — Yes Yes No
Total Power over Ethernet (PoE) budget 124 W — 500 W 500 W 60 W
Viteza transfer Gigabit Gigabit 10G+ 2.5G Gigabit
VLAN support — — Yes Yes —
Web-based management — — Yes Yes No
Caracteristici fizice
Greutate 2.09 kg — — — 500 g
Laptopuri - Caracteristici fizice 25.09
Adâncime 275 mm 180 mm 330 mm 330 mm 8.2 mm
Lățime 260 mm 294 mm — — 192 mm
Înălțime 44 mm 44 mm — — 27 mm
Laptopuri - Conectivitate și porturi 25.09
Viteză rețea LAN 10,100,1000 Mbit/s — — 10,100,1000,2500,10000 Mbit/s —
Laptopuri - Construcție
Culoare White Grey — — Black
Laptopuri - Generale
Garanție comercială 999 60 60 24 60
Producător ARUBA NETWORKS TP-LINK TP-LINK TP-LINK EXTRALINK
Laptopuri - Tip laptop
Construcție laptop 1U — 1U 1U 1U

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

Lifecycle

  • Obsolete Date 31-12-2099

Specifications

  • PoE capability 124W Class 4 PoE
  • Switching capacity 32 Gbps
  • Throughput 23.80 Mpps
  • Weight 4.60 lb
  • Power supply name External Power Adapter
  • Weight 2.09 kg
  • Power consumption Maximum: 147W Idle: 5W
  • Memory and processor 128Kb EEPROM; Packet buffer size: 2.0 Mb
  • Input voltage 100-127VAC / 200-240VAC, depending on model
  • Warranty Limited Lifetime Warranty with 24×7 phone support for 90 days and chat support for the entire warranty duration.
  • Management features Unmanaged
  • Ports 16 RJ-45 10/100/1000 Class 4 PoE ports
  • Product dimensions (metric) 26.0 x 27.5 x 4.4 cm
  • Operating temperature 0°C to 40°C, 32°F to 104°F
  • Product dimensions (imperial) 10.24 x 10.83 x 1.73 in

Quickspecs

Overview

The Aruba Instant On 1430 Switch Series is a plug-and-play unmanaged switch series for small businesses looking for simple, reliable, and low-cost network connectivity. These easy-to-use switches deliver Layer 2 Gigabit Ethernet switching capabilities—at an affordable price point—to help connect and share common resources like printers and access points, without any complicated network configuration. With plug-and-play operation, fully automated functions, zero ongoing maintenance, and Power over Ethernet (PoE) models, these switches deliver simple, reliable connectivity for the smallest SMBs and home offices.

What’s new

  • Up to 124W of PoE to power APs, IP Phones, and other IoT devices.
  • Fan-less design for silent deployment in office spaces.
  • Plug-and-play with fully automated functions and zero ongoing maintenance.
  • Unmanaged Layer 2 Gigabit Ethernet switch series ready to deploy in 5-, 8-, 16-, 24-and 26-port non-PoE and PoE models.
  • No configuration or management needed.

Features

Plug-and-Play Operation

Flow control provides a flow-throttling mechanism propagated through the network to prevent packet loss at a congested node.

All models are fan-less for silent operation in office settings or acoustically sensitive environments and require less power to operate.

Jumbo frame support provides up to 9216 bytes frame size to improve the performance of large data transfers.

Aruba Instant On Limited Lifetime support provides 24×7 phone support for the first 90 days and chat support for the entire warranty period. Community support is included for the life of the product.

The Aruba Instant On 1430 Switch Series supports Energy Efficient Ethernet (EEE) and is compliant with 802.3az standard requirements to save energy during periods of low data activity.

Quality of Service provides priority of time-sensitive packets (like VoIP and video) over other traffic based on DSCP or IEEE 802.1p classification.

Energy Efficiency and Traffic Optimization

Two dedicated 1G SFP fiber ports on the 26-port model can be used for uplinks and to support long distance connectivity using fiber transceivers, for a total of 28 Ethernet ports.

Install flexibility with support for table-top, under-table, wall-mount, and rack-mount options (varies per model).

Simplified cabling automatically adjusts for straight-through or crossover cables on all 10/100/1000 ports using Auto MDI/MDI-X.

With PoE models, you get up to 30W PoE per port power delivery for Class 4 PoE devices like access points, surveillance cameras and VoIP phones. The 8-port and 16-port PoE models come with the power budget of 64W and 124W respectively to support the latest IoT devices.

The Aruba Instant On 1430 Switch Series is an unmanaged Layer 2 Gigabit Ethernet switch series ready to deploy in seven models in PoE and non-PoE configurations: one (1) 5-port, two (2) 8-port, two (2) 16-port, one (1) 24-port, and one (1) 26-port model with 2 SFP uplinks models.

No configuration beyond installation of optional 1GbE SFP transceivers on 26-port model to extend connectivity with gigabit fiber.

Unmanaged Ethernet Connectivity for Small Businesses

The Aruba Instant On 1430 Switch Series models are easy to use with zero configuration and no required ongoing administration.

The unmanaged PoE models delivers fully automated support for powering compatible IP phones, video surveillance cameras, or wireless access points.

Compatible products

Documents

Specificații tehnice 46 caracteristici
10G support
No
AC input frequency
50 - 60 Hz
AC input voltage
200 - 240 V
Auto-sensing
Yes
Basic switching RJ-45 Ethernet ports type
16
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Fanless
Yes
Full duplex
Yes
Jumbo frames
9216
Jumbo frames support
Yes
Latency (1 Gbps)
1.8 µs
Latency (10-100 Mbps)
2.7 µs
Link aggregation
Yes
MAC address table
8192 entries
Management
nu
Montare in rack
Da
Number of power supply units
1
Operating relative humidity (H-H)
15 - 95%
Operating temperature (T-T)
0 - 40 °C
Packet buffer memory
2 MB
PoE
Da
Porturi RJ 45
11-18
Porturi SFP
N/A
Power consumption (max)
147 W
Power over Ethernet (PoE)
Yes
Power source
AC
Power supply included
Yes
Quality of Service (QoS) support
Yes
Rack mounting
Yes
Storage relative humidity (H-H)
15 - 90%
Storage temperature (T-T)
-40 - 70 °C
Switching capacity
32 Gbit/s
Switch layer
L2
Switch type
Unmanaged
Throughput
23.8 Mpps
Total Power over Ethernet (PoE) budget
124 W
Viteza transfer
Gigabit
Greutate
2.09 kg
Adâncime
275 mm
Lățime
260 mm
Înălțime
44 mm
Viteză rețea LAN
10,100,1000 Mbit/s
Culoare
White
Garanție comercială
999
Producător
ARUBA NETWORKS
Construcție laptop
1U
