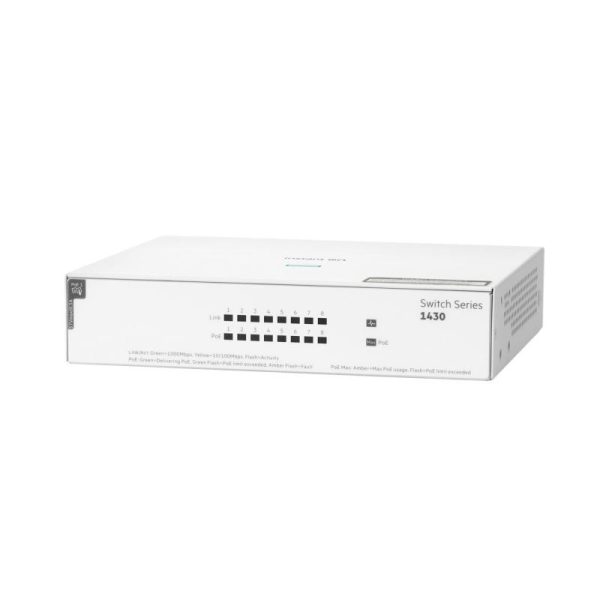

HPE Networking Instant On Switch 8p Gigabit CL4 PoE 64W

Switchuri

HPE Networking Instant On Switch 8p Gigabit CL4 PoE 64W

(0) Stoc epuizat
Vândut de RITC.ro Cod produs: R8R46A

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică HPE Networking Instant On Switch 8p Gigabit CL4 PoE 64W Switch TP-Link TL-SG1024D, 24 port, 10/100/1000 Mbps "JetStream™ 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch Extralink KRATOS PoE Switch 7x Gigabit PoE 1x Switch TP-Link TL-SF1008D, 8 port, 10/100 Mbps
Alte caracteristici
10G support No No Yes No No
AC input frequency 50 - 60 Hz 50 - 60 Hz — 50 - 60 Hz 50 - 60 Hz
Auto-negotiation — Yes — Yes Yes
Auto MDI/MDI-X — Yes — — Yes
Basic switching RJ-45 Ethernet ports type 8 24 24 8 Fast Ethernet (10/100)
Cables included — AC AC — —
Cable types supported — Cat3, Cat4, Cat5, Cat5e — Cat5, Cat5e, Cat6 —
Cloud-managed — — Yes No —
Compliance certificates — — CE, Federal Communications Commission (FCC), RoHS — CE, Federal Communications Commission (FCC), RoHS
Configuring Location Settings (CLI) — — Yes No —
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T — — — 10BASE-T, 100BASE-TX
Fanless Yes — — — Yes
Flow control support Yes Yes Yes — Yes
Forwarding rate — 35.7 Mpps 148.8 Mpps — —
Full duplex Yes Yes Yes — Yes
Half duplex Yes — Yes — Yes
Harmonized System (HS) code — 85176990 — — 85176990
Heat dissipation — 44.63 BTU/h 2153.45 BTU/h — 6.99 BTU/h
Input current — — — 2.5 A 0.6 A
Jumbo frames 9216 10000 9000 — —
Jumbo frames support Yes Yes Yes — —
LAN ports — 24 24 — —
LAN port type — Gigabit Gigabit Gigabit FastEthernet
Layer — Unmanaged Layer-2 — —
LED indicators — Yes Yes Yes Yes
MAC address table 8192 entries 8000 entries 32000 entries 4096 entries 1000 entries
Management nu nu Da nu nu
Montare in rack Nu Nu Da Nu Nu
Networking standards — IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x — IEEE 802.3af IEEE 802.3u, IEEE 802.3x
Operating relative humidity (H-H) 15 - 95% 10 - 90% 10 - 90% 10 - 80% 10 - 90%
Operating temperature (T-T) 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C
Package depth — 400 mm — — 139 mm
Package height — 80 mm — — 85 mm
Package type — Box — — Box
Package weight — 1.95 kg — — 240 g
Package width — 250 mm — — 100 mm
Packet buffer memory 2 MB — 16 MB — 2 MB
PoE Da Nu Da Da Nu
Port mirroring — — Yes No —
Porturi RJ 45 5-10 24-28 24-28 5-10 5-10
Porturi SFP N/A N/A 1-2 N/A N/A
Power connector — DC-in jack — DC-in jack DC-in jack
Power consumption (max) 90 W 13.08 W 629.1 W — 2.2 W
Power over Ethernet (PoE) Yes No Yes Yes No
Power source AC AC AC/PoE AC DC
Power supply included Yes Yes Yes Yes No
Quality of Service (QoS) support Yes Yes Yes No —
Quick start guide — — Yes — Yes
Rackable — No Yes — —
Rack mounting — Yes Yes No No
Rack mount kit — Yes Yes — —
Redundant fans support — — Yes No —
Redundant PSU — Yes Yes — —
Stackable — Yes No No No
Storage relative humidity (H-H) 15 - 90% 5 - 90% 5 - 90% 5 - 90% 5 - 95%
Storage temperature (T-T) -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C
Store-and-forward — Yes Yes — Yes
Supported network protocols — CSMA/CD, TCP/IP — — CSMA/CD, TCP/IP
Sustainability compliance — — Yes — Yes
Switching capacity 16 Gbit/s 48 Gbit/s 200 Gbit/s 16 Gbit/s 16 Gbit/s
Switch layer L2 — — L2 —
Switch type Unmanaged Unmanaged Managed Unmanaged Unmanaged
System event log — — Yes No —
Total Power over Ethernet (PoE) budget 64 W — 500 W 60 W —
Viteza transfer Gigabit Gigabit 2.5G Gigabit Fast Ethernet
Web-based management — — Yes No —
Caracteristici fizice
Greutate 770 g — — 500 g —
Laptopuri - Caracteristici fizice 25.09
Adâncime 177 mm 180 mm 330 mm 8.2 mm 7.9 mm
Lățime 150 mm 294 mm — 192 mm 134.5 mm
Înălțime 37 mm 44 mm — 27 mm 22.5 mm
Laptopuri - Conectivitate și porturi 25.09
Viteză rețea LAN 10,100,1000 Mbit/s — 10,100,1000,2500,10000 Mbit/s — —
Laptopuri - Construcție
Culoare White Grey — Black White
Laptopuri - Generale
Garanție comercială 999 60 24 60 36
Producător ARUBA NETWORKS TP-LINK TP-LINK EXTRALINK TP-LINK
Laptopuri - Tip laptop
Construcție laptop — — 1U 1U —

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

Lifecycle

  • Obsolete Date 31-12-2099

Specifications

  • PoE capability 64W Class 4 PoE
  • Switching capacity 16 Gbps
  • Weight 1.70 lb
  • Power supply name External Power Adapter
  • Weight 0.77 kg
  • Memory and processor 128Kb EEPROM; Packet buffer size: 2.0 Mb
  • Power consumption Maximum: 90W Idle: 4.1W
  • Throughput 11.90 Mpps
  • Input voltage 100-240VAC
  • Warranty Limited Lifetime Warranty with 24×7 phone support for 90 days and chat support for the entire warranty duration.
  • Ports 8 RJ-45 10/100/1000 Class 4 PoE ports
  • Management features Unmanaged
  • Product dimensions (metric) 15.0 x 17.7 x 3.7 cm
  • Operating temperature 0°C to 40°C, 32°F to 104°F
  • Product dimensions (imperial) 5.91 x 6.97 x 1.46 in

Quickspecs

Overview

The Aruba Instant On 1430 Switch Series is a plug-and-play unmanaged switch series for small businesses looking for simple, reliable, and low-cost network connectivity. These easy-to-use switches deliver Layer 2 Gigabit Ethernet switching capabilities—at an affordable price point—to help connect and share common resources like printers and access points, without any complicated network configuration. With plug-and-play operation, fully automated functions, zero ongoing maintenance, and Power over Ethernet (PoE) models, these switches deliver simple, reliable connectivity for the smallest SMBs and home offices.

What’s new

  • Up to 124W of PoE to power APs, IP Phones, and other IoT devices.
  • Fan-less design for silent deployment in office spaces.
  • Plug-and-play with fully automated functions and zero ongoing maintenance.
  • Unmanaged Layer 2 Gigabit Ethernet switch series ready to deploy in 5-, 8-, 16-, 24-and 26-port non-PoE and PoE models.
  • No configuration or management needed.

Features

Flow control provides a flow-throttling mechanism propagated through the network to prevent packet loss at a congested node.

Jumbo frame support provides up to 9216 bytes frame size to improve the performance of large data transfers.

All models are fan-less for silent operation in office settings or acoustically sensitive environments and require less power to operate.

Aruba Instant On Limited Lifetime support provides 24×7 phone support for the first 90 days and chat support for the entire warranty period. Community support is included for the life of the product.

The Aruba Instant On 1430 Switch Series supports Energy Efficient Ethernet (EEE) and is compliant with 802.3az standard requirements to save energy during periods of low data activity.

Quality of Service provides priority of time-sensitive packets (like VoIP and video) over other traffic based on DSCP or IEEE 802.1p classification.

Energy Efficiency and Traffic Optimization

Two dedicated 1G SFP fiber ports on the 26-port model can be used for uplinks and to support long distance connectivity using fiber transceivers, for a total of 28 Ethernet ports.

Install flexibility with support for table-top, under-table, wall-mount, and rack-mount options (varies per model).

Simplified cabling automatically adjusts for straight-through or crossover cables on all 10/100/1000 ports using Auto MDI/MDI-X.

With PoE models, you get up to 30W PoE per port power delivery for Class 4 PoE devices like access points, surveillance cameras and VoIP phones. The 8-port and 16-port PoE models come with the power budget of 64W and 124W respectively to support the latest IoT devices.

The Aruba Instant On 1430 Switch Series is an unmanaged Layer 2 Gigabit Ethernet switch series ready to deploy in seven models in PoE and non-PoE configurations: one (1) 5-port, two (2) 8-port, two (2) 16-port, one (1) 24-port, and one (1) 26-port model with 2 SFP uplinks models.

No configuration beyond installation of optional 1GbE SFP transceivers on 26-port model to extend connectivity with gigabit fiber.

Unmanaged Ethernet Connectivity for Small Businesses

The Aruba Instant On 1430 Switch Series models are easy to use with zero configuration and no required ongoing administration.

The unmanaged PoE models delivers fully automated support for powering compatible IP phones, video surveillance cameras, or wireless access points.

Plug-and-Play Operation

Compatible products

Documents

Specificații tehnice 44 caracteristici
10G support
No
AC input frequency
50 - 60 Hz
Auto-sensing
Yes
Basic switching RJ-45 Ethernet ports type
8
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Fanless
Yes
Flow control support
Yes
Full duplex
Yes
Half duplex
Yes
Jumbo frames
9216
Jumbo frames support
Yes
Latency (1 Gbps)
1.8 µs
Latency (10-100 Mbps)
2.7 µs
MAC address table
8192 entries
Management
nu
Montare in rack
Nu
Number of power supply units
1
Operating relative humidity (H-H)
15 - 95%
Operating temperature (T-T)
0 - 40 °C
Packet buffer memory
2 MB
PoE
Da
Porturi RJ 45
5-10
Porturi SFP
N/A
Power consumption (max)
90 W
Power over Ethernet (PoE)
Yes
Power source
AC
Power supply included
Yes
Quality of Service (QoS) support
Yes
Storage relative humidity (H-H)
15 - 90%
Storage temperature (T-T)
-40 - 70 °C
Switching capacity
16 Gbit/s
Switch layer
L2
Switch type
Unmanaged
Throughput
11.9 Mpps
Total Power over Ethernet (PoE) budget
64 W
Viteza transfer
Gigabit
Greutate
770 g
Adâncime
177 mm
Lățime
150 mm
Înălțime
37 mm
Viteză rețea LAN
10,100,1000 Mbit/s
Culoare
White
Garanție comercială
999
Producător
ARUBA NETWORKS
