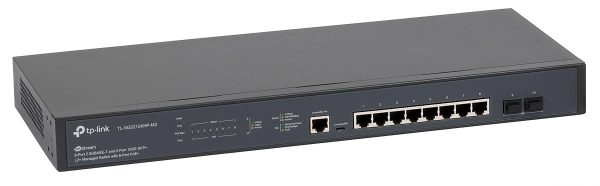

"JetStream™ 8-Port 2.5GBase-T and 2-Port 10GE SFP+ L2+ Managed Switch

Switchuri

"JetStream™ 8-Port 2.5GBase-T and 2-Port 10GE SFP+ L2+ Managed Switch

(0) În stoc
Vândut de RITC.ro Cod produs: TL-SG3210XHP-M2

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică "JetStream™ 8-Port 2.5GBase-T and 2-Port 10GE SFP+ L2+ Managed Switch Switch TP-Link TL-SG1024D, 24 port, 10/100/1000 Mbps "JetStream™ 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch "JetStream™ 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch Switch TP-Link TL-SF1008D, 8 port, 10/100 Mbps
Alte caracteristici
2.5G Ethernet (copper) ports quantity 8 — — 24 —
10G support Yes No Yes Yes No
Access Control List (ACL) Yes — Yes Yes —
AC input frequency — 50 - 60 Hz — — 50 - 60 Hz
ARP inspection Yes — Yes Yes —
Authentication MAC-based authentication, Port-based authentication — Auto VLAN, Guest VLAN Guest VLAN, MAC-based authentication, Port-based authentication —
Authentication type AAA, TACACS+ — — AAA, IEEE 802.1x, RADIUS, TACACS+ —
Auto-negotiation — Yes — — Yes
Auto MDI/MDI-X — Yes — — Yes
Basic switching RJ-45 Ethernet ports type 2.5G Ethernet (100/1000/2500) 24 48 24 Fast Ethernet (10/100)
BPDU filtering/protection Yes — Yes Yes —
Broadcast storm control Yes — Yes Yes —
Cables included AC AC AC AC —
Cloud-managed Yes — Yes Yes —
Compliance certificates — — — CE, Federal Communications Commission (FCC), RoHS CE, Federal Communications Commission (FCC), RoHS
Configuring Location Settings (CLI) Yes — Yes Yes —
Console port RJ-45/micro-USB — RJ-45/micro-USB RJ-45/micro-USB —
Depth 180 mm 180 mm 330 mm 330 mm 7.9 mm
DHCP features DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping — DHCP client, DHCP relay, DHCP server DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping —
Ethernet LAN data rates 100,1000,2500 Mbit/s — — 10,100,1000,2500,10000 Mbit/s —
Flow control support Yes Yes Yes Yes Yes
Form factor 1U — 1U 1U —
Forwarding rate 59.52 Mpps 35.7 Mpps 130.9 Mpps 148.8 Mpps —
Full duplex — Yes — Yes Yes
GARP VLAN Registration Protocol (GVRP) Yes — — Yes —
Half duplex — — — Yes Yes
Harmonized System (HS) code 85176990 85176990 — — 85176990
Head-of-line (HOL) blocking Yes — Yes Yes —
Heat dissipation 996.35 BTU/h 44.63 BTU/h 2169.2 BTU/h 2153.45 BTU/h 6.99 BTU/h
Height 44 mm 44 mm — — 22.5 mm
IGMP snooping Yes — Yes Yes —
IP-MAC-Port binding Yes — Yes Yes —
Jumbo frames 9000 10000 9000 9000 —
Jumbo frames support Yes Yes Yes Yes —
LAN ports 8 24 48 24 —
LAN port type Gigabit Gigabit Gigabit Gigabit FastEthernet
Layer Layer-2 Unmanaged Layer-2 Layer-2 —
LED indicators Yes Yes Yes Yes Yes
Link aggregation Yes — Yes Yes —
Loop protection Yes — — Yes —
MAC address filtering Yes — Yes — —
MAC address table 16000 entries 8000 entries 16000 entries 32000 entries 1000 entries
Management Da nu Da Da nu
MIB support RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213 — — RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925 —
Montare in rack Nu Nu Da Da Nu
Multicast Listener Discovery (MLD) snooping Y — — MLD v1/v2 —
Multicast support Yes — Yes Yes —
Networking standards IEEE 802.1D, IEEE 802.1s, IEEE 802.1w IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x — — IEEE 802.3u, IEEE 802.3x
Number of fans 2 fan(s) — 3 fan(s) 3 fan(s) —
Number of IP interfaces 16 — — 32 —
Number of static routes 48 — — 48 —
Operating relative humidity (H-H) 10 - 90% 10 - 90% 10 - 90% 10 - 90% 10 - 90%
Operating temperature (T-T) 0 - 45 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C
Package depth 250 mm 400 mm — — 139 mm
Package height 80 mm 80 mm — — 85 mm
Package type Box Box — — Box
Package weight 2.84 kg 1.95 kg — — 240 g
Package width 528 mm 250 mm — — 100 mm
Packet buffer memory 12 MB — 12 MB 16 MB 2 MB
Password protection Yes — — Yes —
PoE Da Nu Da Da Nu
Port mirroring Yes — Yes Yes —
Porturi RJ 45 5-10 24-28 28+ 24-28 5-10
Porturi SFP 1-2 N/A 1-2 1-2 N/A
Power connector AC-in jack DC-in jack AC-in jack — DC-in jack
Power consumption (max) 292 W 13.08 W 635.7 W 629.1 W 2.2 W
Power over Ethernet (PoE) Yes No Yes Yes No
Power over Ethernet (PoE) power per port 30 W — 30 W — —
Power over Ethernet plus (PoE+) ports quantity 8 — 48 16 —
Power source AC AC AC AC/PoE DC
Power supply included Yes Yes Yes Yes No
Quality of Service (QoS) support Yes Yes Yes Yes —
Queue scheduling algorithms SP, WRR+SP, Weighted Round Robin (WRR) — — SP, WRR+SP, Weighted Round Robin (WRR) —
Quick start guide Yes — Yes Yes Yes
Rackable No No Yes Yes —
Rack mounting Yes Yes Yes Yes No
Rack mount kit — Yes — Yes —
Rate limiting Yes — Yes Yes —
Redundant PSU Yes Yes No Yes —
Security algorithms HTTPS, SSH, SSH-2, SSL/TLS — — HTTPS, SSH, SSH-2, SSL/TLS —
SFP module slots quantity 2 — 4 4 —
Spanning tree protocol Yes — Yes Yes —
SSH/SSL support Yes — Yes Yes —
Stackable No Yes No No No
Static port security Yes — Yes Yes —
Static route Yes — — Yes —
Storage relative humidity (H-H) 5 - 90% 5 - 90% 5 - 90% 5 - 90% 5 - 95%
Storage temperature (T-T) -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C
Store-and-forward — Yes Yes Yes Yes
Supported network protocols — CSMA/CD, TCP/IP — — CSMA/CD, TCP/IP
Sustainability compliance — — — Yes Yes
Switching capacity 80 Gbit/s 48 Gbit/s 176 Gbit/s 200 Gbit/s 16 Gbit/s
Switch type Managed Unmanaged Managed Managed Unmanaged
System event log Yes — Yes Yes —
Total Power over Ethernet (PoE) budget 240 W — 500 W 500 W —
Virtual LAN features MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN — — MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Stacked VLAN, Tagged VLAN, Voice VLAN —
Viteza transfer 2.5G Gigabit 10G+ 2.5G Fast Ethernet
VLAN support Yes — Yes Yes —
Web-based management Yes — Yes Yes —
Width 440 mm 294 mm — — 134.5 mm
Laptopuri - Construcție
Culoare Black Grey — — White
Laptopuri - Generale
Garanție comercială 24 60 60 24 36
Producător TP-LINK TP-LINK TP-LINK TP-LINK TP-LINK

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

“JetStream™ 8-Port 2.5GBase-T and 2-Port 10GE SFP+ L2+ Managed Switch with 8-Port PoE+ PORT: 8× 2.5G PoE+ Ports, 2× 10G SFP+ Slots, RJ45/Micro-USB Console Port SPEC: 802.3at/af, 240 W PoE Power, 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with JetStream™ SDN Controller,Static Routing, OAM, DDM, sFlow, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6”

Specificații tehnice 98 caracteristici
2.5G Ethernet (copper) ports quantity
8
10G support
Yes
Access Control List (ACL)
Yes
ARP inspection
Yes
Authentication
MAC-based authentication, Port-based authentication
Authentication type
AAA, TACACS+
Basic switching RJ-45 Ethernet ports type
2.5G Ethernet (100/1000/2500)
BPDU filtering/protection
Yes
Broadcast storm control
Yes
Cables included
AC
Cloud-managed
Yes
Configuring Location Settings (CLI)
Yes
Console port
RJ-45/micro-USB
Depth
180 mm
DHCP features
DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Ethernet LAN data rates
100,1000,2500 Mbit/s
Flow control support
Yes
Form factor
1U
Forwarding rate
59.52 Mpps
GARP VLAN Registration Protocol (GVRP)
Yes
Harmonized System (HS) code
85176990
Head-of-line (HOL) blocking
Yes
Heat dissipation
996.35 BTU/h
Height
44 mm
IGMP snooping
Yes
IP-MAC-Port binding
Yes
IP routing
Yes
Jumbo frames
9000
Jumbo frames support
Yes
LAN ports
8
LAN port type
Gigabit
Layer
Layer-2
LED indicators
Yes
Link aggregation
Yes
Loop protection
Yes
MAC address filtering
Yes
MAC address table
16000 entries
Management
Da
Management protocols
SNMPv1/v2c/v3, SNTP
MIB support
RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213
Montare in rack
Nu
Multicast Listener Discovery (MLD) snooping
Y
Multicast support
Yes
Networking standards
IEEE 802.1D, IEEE 802.1s, IEEE 802.1w
Number of fans
2 fan(s)
Number of IP interfaces
16
Number of static routes
48
Number of VLANs
4000
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 45 °C
Package depth
250 mm
Package height
80 mm
Package type
Box
Package weight
2.84 kg
Package width
528 mm
Packet buffer memory
12 MB
Password protection
Yes
PoE
Da
Port mirroring
Yes
Porturi RJ 45
5-10
Porturi SFP
1-2
Power connector
AC-in jack
Power consumption (max)
292 W
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) power per port
30 W
Power over Ethernet plus (PoE+) ports quantity
8
Power source
AC
Power supply included
Yes
Quality of Service (QoS) support
Yes
Queue scheduling algorithms
SP, WRR+SP, Weighted Round Robin (WRR)
Quick start guide
Yes
Rackable
No
Rack mounting
Yes
Rate limiting
Yes
Redundant PSU
Yes
Security algorithms
HTTPS, SSH, SSH-2, SSL/TLS
SFP module slots quantity
2
Spanning tree protocol
Yes
SSH/SSL support
Yes
Stackable
No
Static port security
Yes
Static route
Yes
Storage relative humidity (H-H)
5 - 90%
Storage temperature (T-T)
-40 - 70 °C
Switching capacity
80 Gbit/s
Switch layer
L2
Switch type
Managed
System event log
Yes
Total Power over Ethernet (PoE) budget
240 W
Traffic classification
Yes
Virtual LAN features
MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Viteza transfer
2.5G
VLAN support
Yes
Web-based management
Yes
Width
440 mm
Culoare
Black
Garanție comercială
24
Producător
TP-LINK
