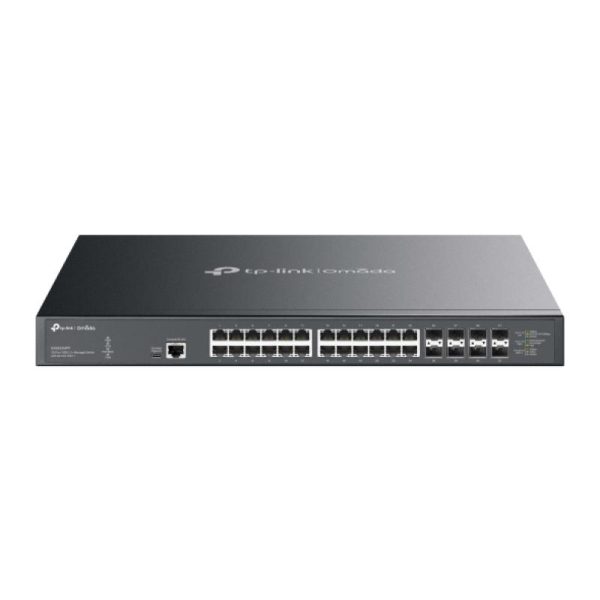

Omada 32-Port 10GE L2+ Managed Switch with 24-Port PoE++ PORT:

Switchuri

Omada 32-Port 10GE L2+ Managed Switch with 24-Port PoE++ PORT:

(0) Stoc epuizat
Vândut de RITC.ro Cod produs: SX3832MPP

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Omada 32-Port 10GE L2+ Managed Switch with 24-Port PoE++ PORT: Switch TP-Link TL-SF1008D, 8 port, 10/100 Mbps Switch TP-Link TL-SF1016, 16 port, 10/100 Mbps "JetStream™ 8-Port 10GE SFP+ L2+ Managed Switch PORT: 8× 10G Omada 24-Port Gigabit Stackable Lite L3 Managed Switch with 4
Alte caracteristici
10G support Yes No No Yes Yes
Access Control List (ACL) Yes — — Yes Yes
AC input frequency — 50 - 60 Hz 50 - 60 Hz — —
AC input voltage 110 - 240 V — — 220 V —
ARP inspection Yes — — Yes Yes
Authentication Guest VLAN — — Guest VLAN, MAC-based authentication, Port-based authentication, Web-based authentication —
Authentication type AAA, RADIUS, TACACS+ — — AAA, TACACS+ —
Auto-negotiation Yes Yes Yes — —
Auto MDI/MDI-X Yes Yes Yes — —
Basic switching RJ-45 Ethernet ports type 24 Fast Ethernet (10/100) Fast Ethernet (10/100) No 24
Broadcast storm control Yes — — Yes Yes
Cables included Power — AC AC AC
Cloud-managed Yes — — Yes Yes
Compliance certificates CE, Federal Communications Commission (FCC), RoHS CE, Federal Communications Commission (FCC), RoHS CE, Federal Communications Commission (FCC), RoHS — CE, Federal Communications Commission (FCC), RoHS
Configuring Location Settings (CLI) Yes — — Yes —
Console port RJ-45/USB Type-C — — RJ-45/micro-USB RJ-45
Copper ethernet cabling technology — 10BASE-T, 100BASE-TX 10BASE-T, 100BASE-TX — —
Depth 330 mm 7.9 mm 180 mm 180 mm 180 mm
DHCP features DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping — — DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping DHCP relay, DHCP server
Fanless No Yes Yes — Yes
Fast Ethernet (copper) ports quantity 24 8 16 — —
Firmware upgradeable Yes — — — Yes
Flow control support — Yes Yes Yes —
Form factor DIN rail — 1U — —
Forwarding rate 240 Mpps — 2.38 Mpps 119.04 Mpps 95.23 Mpps
Gigabit Ethernet (copper) ports quantity 24 — — — 24
Harmonized System (HS) code — 85176990 85176990 — —
Heat dissipation 3444.7 BTU/h 6.99 BTU/h 7.03 BTU/h 52.75 BTU/h 66.87 BTU/h
Height 44 mm 22.5 mm 44 mm — 44 mm
Housing material Metal — Metal — —
IGMP snooping Yes — — Yes Yes
IP-MAC-Port binding — — — Yes Yes
IPv4 & IPv6 features Dual stack IPv4/IPv6, IPv6 SNMP, IPv6 SSH, IPv6 TFTP, IPv6 Telnet, IPv6 ping, IPv6 tracert — — IPv6 Telnet, IPv6 ping, IPv6 tracert —
Jumbo frames 9 — — 9000 9000
Jumbo frames support Yes — — Yes Yes
LAN port type 10Gigabit FastEthernet FastEthernet 10Gigabit —
LED indicators Yes Yes Yes Yes Yes
Link aggregation Yes — — Yes Yes
MAC address filtering — — — Yes Yes
MAC address table 32000 entries 1000 entries 8000 entries 32000 entries 16000 entries
Management Da nu nu Da —
MIB support RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925 — — RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213 —
Montare in rack Da Nu Nu Nu Da
Multicast Listener Discovery (MLD) snooping Yes — — Y —
Multicast support Yes — — Yes Yes
Networking standards — IEEE 802.3u, IEEE 802.3x IEEE 802.3i, IEEE 802.3u, IEEE 802.3x IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Number of queues 8 — — 8 —
Number of VLANs 4000 — — 4000 4000
Operating relative humidity (H-H) 10 - 90% 10 - 90% 10 - 90% 10 - 90% 10 - 90%
Operating temperature (T-T) -5 - 45 °C 0 - 40 °C 0 - 40 °C 0 - 45 °C -5 - 45 °C
Package depth — 139 mm 528 mm — —
Package type — Box Box Box —
Package weight — 240 g 2.28 kg — —
Package width — 100 mm 250 mm — —
Packet buffer memory 24 MB 2 MB 2 MB 16 MB 12 MB
PoE Nu Nu Nu Nu —
Port mirroring Yes — — Yes Yes
Porturi RJ 45 24-28 5-10 11-18 1-4 24-28
Porturi SFP peste 9 N/A N/A 5-8 3-4
Power connector — DC-in jack DC-in jack DC-in jack —
Power consumption (max) 1010.2 W 2.2 W 2.23 W 15.46 W 19.6 W
Power over Ethernet (PoE) Yes No No No No
Power source AC DC AC AC AC
Power supply included No No Yes Yes Yes
Quality of Service (QoS) support Yes — — Yes Yes
Queue scheduling algorithms Strict Priority Queue (SPQ), WRR+SP, Weighted Round Robin (WRR) — — SP, WRR+SP, Weighted Round Robin (WRR) —
Quick start guide Yes Yes — Yes —
Rack mounting Yes No Yes Yes Yes
Rack mount kit Yes — Yes Yes Yes
Rate limiting Yes — — Yes —
Security algorithms HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSL/TLS — — HTTPS, SSH, SSH-2, SSL/TLS SNMP, SNMPv2, SNMPv3
SFP module slots quantity — — — 8 4
Spanning tree protocol Yes — — Yes —
SSH/SSL support — — — Yes Yes
Stackable Yes No No — Yes
Static port security Yes — — Yes Yes
Static route Yes — — Yes —
Storage relative humidity (H-H) 5 - 90% 5 - 95% 5 - 90% 5 - 90% 5 - 90%
Storage temperature (T-T) -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C
Store-and-forward — Yes Yes — Yes
Sustainability compliance — Yes Yes — —
Switching capacity 640 Gbit/s 16 Gbit/s 32 Gbit/s 160 Gbit/s 128 Gbit/s
Switch layer L2 — — L2+/L3 L3
Switch type Managed Unmanaged Unmanaged Managed Managed
System event log Yes — — Yes —
Virtual LAN features MVRP, Private VLAN, SSID-based VLAN assignment, VLAN Identifier ( VLAN ID), Voice VLAN — — Private VLAN, Protocol-based VLAN, Voice VLAN MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN
Viteza transfer 10G+ Fast Ethernet Fast Ethernet 10G+ Gigabit
VLAN support Yes — — Yes Yes
Web-based management Yes — — Yes Yes
Width 440 mm 134.5 mm 440 mm — 440 mm
Laptopuri - Construcție
Culoare Black White Black — —
Laptopuri - Generale
Garanție comercială 60 36 36 60 24
Producător TP-LINK TP-LINK TP-LINK TP-LINK TP-LINK

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

Omada 32-Port 10GE L2+ Managed Switch with 24-Port PoE++ PORT: 24× 10G RJ45 PoE++ Ports, 8× 10G SFP+ Slots, RJ45/USB Type C Console Port SPEC: 802.3bt/at/af (up to 90W/port), 770 W PoE Power, 1U 19-inch Rack- mountable Steel Case FEATURE: Integration with Omada SDN Controller, Static Routing, DHCP Server, OAM, DDM, 802.1Q VLAN, QinQ, Fast PoE, Perpetual PoE, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, ERPS, LACP, CLI, SNMP, Dual Image/Configuration, IPv6

Specificații tehnice 103 caracteristici
2.5G Ethernet (copper) ports quantity
24
10G Ethernet (copper) ports quantity
24
10G support
Yes
Access Control List (ACL)
Yes
AC input voltage
110 - 240 V
Address Resolution Protocol (ARP) entries (max)
510
ARP inspection
Yes
Authentication
Guest VLAN
Authentication type
AAA, RADIUS, TACACS+
Auto-negotiation
Yes
Auto MDI/MDI-X
Yes
Basic switching RJ-45 Ethernet ports type
24
Broadcast storm control
Yes
Cables included
Power
Cloud-managed
Yes
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
Configuring Location Settings (CLI)
Yes
Console port
RJ-45/USB Type-C
CPU defense
Yes
Depth
330 mm
Device link detection protocol (DLDP)
Yes
DHCP features
DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
DoS attack prevention
Yes
Ethernet Ring Protection Switching (ERPS)
Yes
Fanless
No
Fast Ethernet (copper) ports quantity
24
Firmware upgradeable
Yes
Form factor
DIN rail
Forwarding rate
240 Mpps
Gigabit Ethernet (copper) ports quantity
24
Heat dissipation
3444.7 BTU/h
Height
44 mm
Housing material
Metal
IGMP snooping
Yes
Installed SFP modules quantity
8
IPv4 & IPv6 features
Dual stack IPv4/IPv6, IPv6 SNMP, IPv6 SSH, IPv6 TFTP, IPv6 Telnet, IPv6 ping, IPv6 tracert
IPv4 routes
48
IPv6 routes
48
Jumbo frames
9
Jumbo frames support
Yes
LAN ports
16
LAN port type
10Gigabit
Layer
Layer-2
LED indicators
Yes
Link aggregation
Yes
MAC address table
32000 entries
Management
Da
MIB support
RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925
Montare in rack
Da
Mounting brackets included
Yes
Multicast Listener Discovery (MLD) snooping
Yes
Multicast support
Yes
Number of fans
4 fan(s)
Number of queues
8
Number of VLANs
4000
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
-5 - 45 °C
Packaging content
Console Cable
Packet buffer memory
24 MB
PoE
Nu
Port mirroring
Yes
Porturi RJ 45
24-28
Porturi SFP
peste 9
Power consumption (max)
1010.2 W
Power consumption (typical)
953.7 W
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) power per port
90 W
Power over Ethernet 4PPoE (PoE++) ports quantity
24
Power saving mode (EEE)
Yes
Power source
AC
Power supply included
No
Quality of Service (QoS) support
Yes
Queue scheduling algorithms
Strict Priority Queue (SPQ), WRR+SP, Weighted Round Robin (WRR)
Quick start guide
Yes
Rackable
No
Rack mounting
Yes
Rack mount kit
Yes
Rate limiting
Yes
Redundant PSU
Yes
Rubber feet
Yes
Screws included
Yes
Security algorithms
HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSL/TLS
Spanning tree protocol
Yes
Stackable
Yes
Static port security
Yes
Static route
Yes
Storage relative humidity (H-H)
5 - 90%
Storage temperature (T-T)
-40 - 70 °C
Sustainability organizations
Accountability
Switching capacity
640 Gbit/s
Switch layer
L2
Switch type
Managed
System event log
Yes
Total Power over Ethernet (PoE) budget
770 W
Unified static configuration
Yes
Virtual LAN features
MVRP, Private VLAN, SSID-based VLAN assignment, VLAN Identifier ( VLAN ID), Voice VLAN
Viteza transfer
10G+
VLAN support
Yes
Web-based management
Yes
Width
440 mm
Culoare
Black
Garanție comercială
60
Producător
TP-LINK
