Switch 4 porturi PoE Hikvision DS-3E1106HP-EI 4 × 100 Mbps
462,99 lei
Switch 4 porturi PoE Hikvision DS-3E1106HP-EI 4 × 100 Mbps
(0)
Stoc epuizat
Vândut de RITC.ro
Cod produs: DS-3E1106HP-EI
Livrare și beneficii
Compară cu produse similare
Switch 4 porturi PoE Hikvision DS-3E1106HP-EI 4 × 100 Mbps
Extralink KRATOS PoE Switch 7x Gigabit PoE 1x
699,99 lei
Switch TP-Link TL-SF1008D, 8 port, 10/100 Mbps
58,00 lei 89,99 lei
Switch TP-Link TL-SF1016, 16 port, 10/100 Mbps
217,99 lei 327,99 lei
Switch TP-LINK TL-SF1005P, 5 Port, 10/100 Mbps
149,99 lei 224,00 lei
Vezi comparația completă
| Caracteristică | Switch 4 porturi PoE Hikvision DS-3E1106HP-EI 4 × 100 Mbps | Extralink KRATOS PoE Switch 7x Gigabit PoE 1x | Switch TP-Link TL-SF1008D, 8 port, 10/100 Mbps | Switch TP-Link TL-SF1016, 16 port, 10/100 Mbps | Switch TP-LINK TL-SF1005P, 5 Port, 10/100 Mbps |
|---|---|---|---|---|---|
| Alte caracteristici | |||||
| 10G support | No | No | No | No | No |
| AC input frequency | — | 50 - 60 Hz | 50 - 60 Hz | 50 - 60 Hz | 50 Hz |
| Auto-negotiation | — | Yes | Yes | Yes | Yes |
| Auto MDI/MDI-X | — | — | Yes | Yes | Yes |
| Basic switching RJ-45 Ethernet ports type | 6 | 8 | Fast Ethernet (10/100) | Fast Ethernet (10/100) | Fast Ethernet (10/100) |
| Cable types supported | — | Cat5, Cat5e, Cat6 | — | Cat3, Cat4, Cat5, Cat5e | Cat3, Cat4, Cat5, Cat5e |
| Compliance certificates | CE, Federal Communications Commission (FCC), REACH, RoHS, WEEE | — | CE, Federal Communications Commission (FCC), RoHS | CE, Federal Communications Commission (FCC), RoHS | CE, Federal Communications Commission (FCC), RoHS |
| Copper ethernet cabling technology | — | — | 10BASE-T, 100BASE-TX | 10BASE-T, 100BASE-TX | 10BASE-T, 100BASE-TX |
| DC input voltage | 48 V | — | 5 V | — | 53.5 V |
| Depth | 68.5 mm | 8.2 mm | 7.9 mm | 180 mm | 98 mm |
| Ethernet LAN data rates | 10,100 Mbit/s | — | — | 10,100 Mbit/s | — |
| Fanless | — | — | Yes | Yes | Yes |
| Fast Ethernet (copper) ports quantity | 6 | — | 8 | 16 | — |
| Flow control support | Yes | — | Yes | Yes | Yes |
| Form factor | — | 1U | — | 1U | — |
| Forwarding rate | 0.8928 Mpps | — | — | 2.38 Mpps | 0.744 Mpps |
| Full duplex | — | — | Yes | — | Yes |
| Half duplex | — | — | Yes | — | Yes |
| Harmonized System (HS) code | — | — | 85176990 | 85176990 | 85176990 |
| Heat dissipation | — | — | 6.99 BTU/h | 7.03 BTU/h | 5.73 BTU/h |
| Height | 256 mm | 27 mm | 22.5 mm | 44 mm | 25 mm |
| Housing material | Metal | Metal | — | Metal | — |
| Input current | 1.35 A | 2.5 A | 0.6 A | — | 1.31 A |
| LAN port type | — | Gigabit | FastEthernet | FastEthernet | — |
| LED indicators | Yes | Yes | Yes | Yes | Yes |
| MAC address table | 2000 entries | 4096 entries | 1000 entries | 8000 entries | 2000 entries |
| Management | Da | nu | nu | nu | nu |
| Montare in rack | Nu | Nu | Nu | Nu | Nu |
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt | IEEE 802.3af | IEEE 802.3u, IEEE 802.3x | IEEE 802.3i, IEEE 802.3u, IEEE 802.3x | IEEE 802.3af, IEEE 802.3x |
| Operating relative humidity (H-H) | — | 10 - 80% | 10 - 90% | 10 - 90% | 10 - 90% |
| Operating temperature (T-T) | -10 - 55 °C | 0 - 40 °C | 0 - 40 °C | 0 - 40 °C | 0 - 40 °C |
| Package depth | — | — | 139 mm | 528 mm | 196 mm |
| Package height | — | — | 85 mm | — | 121 mm |
| Package type | — | — | Box | Box | Box |
| Package weight | 6.45 g | — | 240 g | 2.28 kg | 760 g |
| Package width | — | — | 100 mm | 250 mm | 131 mm |
| Packet buffer memory | — | — | 2 MB | 2 MB | — |
| PoE | Da | Da | Nu | Nu | Da |
| Porturi RJ 45 | 5-10 | 5-10 | 5-10 | 11-18 | 5-10 |
| Porturi SFP | N/A | N/A | N/A | N/A | N/A |
| Power connector | DC-in jack | DC-in jack | DC-in jack | DC-in jack | — |
| Power consumption (max) | 65 W | — | 2.2 W | 2.23 W | 63.51 W |
| Power over Ethernet (PoE) | Yes | Yes | No | No | Yes |
| Power over Ethernet (PoE) ports quantity | 4 | — | — | — | 4 |
| Power source | DC/PoE | AC | DC | AC | DC/PoE |
| Power supply included | — | Yes | No | Yes | Yes |
| Rack mounting | No | No | No | Yes | No |
| Stackable | No | No | No | No | No |
| Storage relative humidity (H-H) | 5 - 95% | 5 - 90% | 5 - 95% | 5 - 90% | 5 - 90% |
| Storage temperature (T-T) | -40 - 85 °C | -40 - 70 °C | -40 - 70 °C | -40 - 70 °C | -40 - 70 °C |
| Store-and-forward | Yes | — | Yes | Yes | Yes |
| Sustainability compliance | — | — | Yes | Yes | Yes |
| Switching capacity | 12 Gbit/s | 16 Gbit/s | 16 Gbit/s | 32 Gbit/s | 1 Gbit/s |
| Switch type | Managed | Unmanaged | Unmanaged | Unmanaged | Unmanaged |
| Total Power over Ethernet (PoE) budget | 60 W | 60 W | — | — | 58 W |
| Viteza transfer | Fast Ethernet | Gigabit | Fast Ethernet | Fast Ethernet | Fast Ethernet |
| Width | 145 mm | 192 mm | 134.5 mm | 440 mm | 99.8 mm |
| Laptopuri - Construcție | |||||
| Culoare | — | Black | White | Black | Black |
| Greutate | 245 g | 500 g | — | — | — |
| Laptopuri - Generale | |||||
| Garanție comercială | 36 | 60 | 36 | 36 | 60 |
| Producător | HIKVISION | EXTRALINK | TP-LINK | TP-LINK | TP-LINK |
Analiză inteligentă a produsului
Descriere oficială

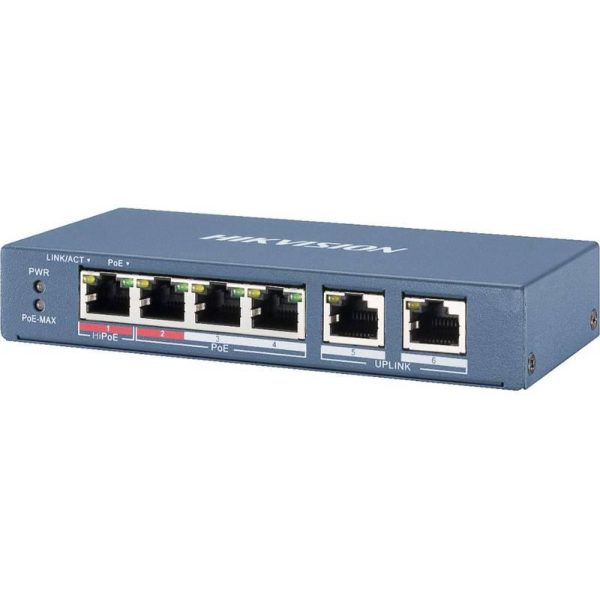

Switch 4 porturi PoE Hikvision DS-3E1106HP-EI 4 × 100 Mbps PoE RJ45 ports, 2 × 100 Mbps network RJ45 ports,IEEE 802.3at/af/bt standard for PoE ports,6 KV surge protection,AF/AT camera can reach up to 300 m in extend mode,Switching Capacity 1.2 Gbps, Packet Forwarding Rate 0.8928 Mpps,PoE Power Budget 60 W,Shell Metal material, IP40,Operating Temperature -10°C to 55°C,Dimension 145 mm × 25.6 mm × 68.45 mm, Net Weight 0.245 kg.
Specificații tehnice 45 caracteristici ⌄
- 10G support
- No
- Basic switching RJ-45 Ethernet ports type
- 6
- Compliance certificates
- CE, Federal Communications Commission (FCC), REACH, RoHS, WEEE
- DC input voltage
- 48 V
- Depth
- 68.5 mm
- Ethernet LAN data rates
- 10,100 Mbit/s
- Fast Ethernet (copper) ports quantity
- 6
- Flow control support
- Yes
- Forwarding rate
- 0.8928 Mpps
- Height
- 256 mm
- Housing material
- Metal
- Input current
- 1.35 A
- International Protection (IP) code
- IP40
- LED indicators
- Yes
- MAC address table
- 2000 entries
- Management
- Da
- Montare in rack
- Nu
- Networking standards
- IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
- Operating temperature (T-T)
- -10 - 55 °C
- Package weight
- 6.45 g
- PoE
- Da
- Porturi RJ 45
- 5-10
- Porturi SFP
- N/A
- Power connector
- DC-in jack
- Power consumption (max)
- 65 W
- Power over Ethernet (PoE)
- Yes
- Power over Ethernet (PoE) ports quantity
- 4
- Power source
- DC/PoE
- Rack mounting
- No
- Stackable
- No
- Storage relative humidity (H-H)
- 5 - 95%
- Storage temperature (T-T)
- -40 - 85 °C
- Store-and-forward
- Yes
- Surge protection
- Yes
- Surge protection voltage
- 6 kV
- Switching capacity
- 12 Gbit/s
- Switch type
- Managed
- Total Power over Ethernet (PoE) budget
- 60 W
- Transmission distance (max)
- 0.3 km
- Viteza transfer
- Fast Ethernet
- Wall mountable
- Yes
- Width
- 145 mm
- Greutate
- 245 g
- Garanție comercială
- 36
- Producător
- HIKVISION
