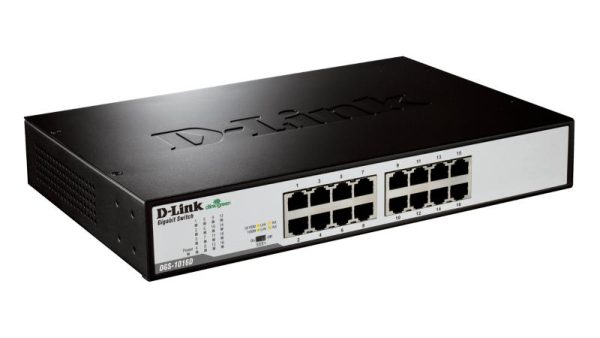

Switch D-Link DGS-1016D, 16 port, 10/100/1000 Mbps

Switchuri

Switch D-Link DGS-1016D, 16 port, 10/100/1000 Mbps

(0) În stoc
Vândut de RITC.ro Cod produs: DGS-1016D

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni Garanție producător De confirmat Producător: De confirmat

Compară cu produse similare

Vezi comparația completă
Caracteristică Switch D-Link DGS-1016D, 16 port, 10/100/1000 Mbps Switch TP-Link Omada 8-Port 2.5G L2+ Managed Switch, 2.5G, 8 porturi Switch Hikvision Fast Ethernet DS-3E0105D-O, 5 porturi Switch TP-LINK LiteWave LS106LP, Fast Ethernet, 6 porturi, PoE Switch TP-LINK JetStream TL-SG3428X-M2, 2.5G, 24 porturi
Culoare produs Black, Silver Black Black, White Black Black
2.5G Ethernet (copper) ports quantity — 8 — — 24
Access Control List (ACL) — Yes — — Yes
AC input frequency 50 - 60 Hz 50/60 Hz — 50 Hz 50/60 Hz
AC input voltage 100 - 240 V 100 - 240 V — 220 V 100 - 240 V
Active link detection Yes — — — Yes
ARP inspection — Yes — — Yes
Authentication — MAC-based authentication, Port-based authentication — — Auto VLAN, Guest VLAN, MAC-based authentication, Port-based authentication
Auto MDI/MDI-X Yes — Yes Yes —
Basic switching RJ-45 Ethernet ports type 16, Gigabit Ethernet (10/100/1000) 2.5G Ethernet (100/1000/2500), 8 5, Fast Ethernet (10/100) 6, Fast Ethernet (10/100) 2.5G Ethernet (100/1000/2500), 24
BPDU filtering/protection — Yes — — Yes
Broadcast storm control Yes Yes — — Yes
Cables included — AC — — LAN (RJ-45)
Certification cUL/UL CE LVD CCC CB BSMI CE, FCC, RoHS — CE, FCC, RoHS CE, FCC, RoHS
Cloud-managed — Yes — — Yes
Compliance certificates — — CB, CE, Industry Canada (IC), Low Voltage Directive (LVD), REACH, RoHS, WEEE — CE, Federal Communications Commission (FCC), RoHS
Configuring Location Settings (CLI) — Yes — — Yes
Console port — RJ-45/micro-USB — — RJ-45/micro-USB
Copper ethernet cabling technology 10BASE-T, 100BASE-T, 1000BASE-T — — 10BASE-T, 100BASE-TX —
DC input voltage — — 5 V 53.5 V —
DHCP features — DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping — — DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Fanless — Yes — Yes —
Flow control support Yes Yes — Yes Yes
GARP VLAN Registration Protocol (GVRP) — Yes — — Yes
Head-of-line (HOL) blocking — Yes — — Yes
Heat dissipation 34.3 BTU/h 51.18 BTU/h — 162.38 BTU/h 154.38 BTU/h
IGMP snooping — Yes — — Yes
Input current 0.2 A — 0.6 A 0.81 A —
IP-MAC-Port binding — Yes — — Yes
Jumbo frames 10000 9000 — — 9000
Jumbo frames support Yes Yes — Yes Yes
LAN port type Gigabit FastEthernet — Gigabit Gigabit
LED indicators Activity, Link, Power, Speed Yes — Yes Yes
Link aggregation — Yes — — Yes
Loop protection — Yes — — Yes
MAC address auto-aging supported Yes — Yes — —
MAC address auto-learning supported Yes — Yes — —
MAC address table 8000 entries 16000 entries 2000 entries 2000 entries 32000 entries
Management protocols — SNMPv1/v2c/v3, SNTP — — SNMP v1/v2c/v3, SNTP
MIB support — RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213 — — Yes
Multicast Listener Discovery (MLD) snooping — Y — — Y
Multicast support — Yes — — Yes
Networking standards IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x IEEE 802.1D, IEEE 802.1s, IEEE 802.1w — IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
Number of static routes — 48 — — 48
Operating relative humidity (H-H) 0 - 95% 10 - 90% — 10 - 90% 10 - 90%
Operating temperature (T-T) 0 - 40 °C 0 - 50 °C — 0 - 40 °C 0 - 40 °C
Package depth — 250 mm — — 250 mm
Package height — 80 mm — — 80 mm
Package weight — 2.84 kg — — 3 kg
Package width — 528 mm — — 528 mm
Packet buffer memory 0.5 MB 12 MB — — 16 MB
Port mirroring — Yes — — Yes
Power connector AC-in jack AC-in jack — — AC-in jack
Power consumption (max) 10.07 W — 3 W 47.76 W 45.1 W
Quick start guide — Yes — — Yes
Rate limiting — Yes — — Yes
SFP module slots quantity — 2 — — 4
Spanning tree protocol — Yes — — Yes
SSH/SSL support — Yes — — Yes
Static route — Yes — — Yes
Storage relative humidity (H-H) 0 - 95% 5 - 90% — 5 - 90% 5 - 90%
Storage temperature (T-T) -10 - 70 °C -40 - 70 °C -40 - 85 °C -40 - 70 °C -40 - 70 °C
Store-and-forward Yes — Yes Yes Yes
Switch layer — L2 — — L2
Switch type Unmanaged Managed — Unmanaged Managed
System event log — Yes — — Yes
Virtual LAN features — MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN — — Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Wall mountable — — Yes Yes —
Web-based management — Yes — — Yes
Greutate 1.02 kg — 93 g — —
Management nu nu nu nu Da
Montare in rack Nu Nu Nu Nu Da
PoE Nu Nu Nu Da Nu
Porturi RJ 45 11-18 5-10 5-10 5-10 24-28
Porturi SFP N/A 1-2 N/A N/A 3-4
Viteză transfer Gigabit 2.5G Fast Ethernet Fast Ethernet 2.5G
Sursă inclusă Yes Yes Yes Yes Yes
Sursă de alimentare — AC DC DC/PoE AC
Alimentare PoE No — — Yes No
Capacitate switching 32 Gbit/s 80 Gbit/s 1 Gbit/s 12 Gbit/s 200 Gbit/s
Metode autentificare — AAA, TACACS+ — — AAA, RADIUS, TACACS+
Montare rack Yes Yes No — Yes
Rată forwarding 23.81 Mpps 59.52 Mpps 0.74 Mpps 0.8928 Mpps 14.88 Mpps
Stivuibil Yes — No — No
Suport 10G No Yes No No Yes
Suport QoS Yes Yes — Yes Yes
Suport VLAN — Yes — — Yes
Adâncime 125 mm 180 mm 52 mm 101 mm 180 mm
Lățime 280 mm 294 mm 83 mm 158 mm 440 mm
Material carcasă Metal — Acrylonitrile butadiene styrene (ABS) — —
Înălțime 44 mm 44 mm 22 mm 25 mm 44 mm
Viteză rețea LAN — 100,1000,2500 Mbit/s 10,100 Mbit/s — —
Producător D-LINK TP-LINK HIKVISION TP-LINK TP-LINK
Construcție laptop 1U 1U — — 1U
Număr ventilatoare — 2 fan(s) — 0 fan(s) 1 fan(s)
Tipuri cabluri suportate Cat3, Cat4, Cat5, Cat5e — — Cat3, Cat4, Cat5, Cat5e —
Tip ambalare — Box — Box —

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

Numar porturi
16x RJ-45
Porturi
16x RJ45
Viteza de transfer
10/100/1000 Mbps
Compatibilitate
802.3 Ethernet
802.3u Fast Ethernet
802.3x Flow Control
802.3ab Gigabit Ethernet
Putere consumata
37.5 W
Alimentare
100- 240VAC, 50/60Hz Internal Universal Power
Dimensiuni
280 x 180 x 44mm
Greutate
1.75 Kg
Functii LED
Per Unit: Power
Per Port: Activity/Link, speed
Altele
MAC Address Table Size: 8K
32Gbps Forwarding Capacity
Store-and-forward
Packet Buffer Memory On chip 512Kbytes Buffer Memory per device
Specificații tehnice 59 caracteristici
Culoare produs
Black, Silver
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Active link detection
Yes
Auto MDI/MDI-X
Yes
Basic switching RJ-45 Ethernet ports type
16, Gigabit Ethernet (10/100/1000)
Broadcast storm control
Yes
Certification
cUL/UL CE LVD CCC CB BSMI
Copper ethernet cabling technology
10BASE-T, 100BASE-T, 1000BASE-T
Electromagnetic compatibility
ICES-003 Class A, FCC Class A, RCM Class A, BSMI Class A, CE Class A, VCCI A, CCC, KCC
Flow control support
Yes
Full duplex
Yes
Heat dissipation
34.3 BTU/h
Input current
0.2 A
Jumbo frames
10000
Jumbo frames support
Yes
LAN port type
Gigabit
LED indicators
Activity, Link, Power, Speed
MAC address auto-aging supported
Yes
MAC address auto-learning supported
Yes
MAC address table
8000 entries
Networking standards
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Number of queues
8
Operating relative humidity (H-H)
0 - 95%
Operating temperature (T-T)
0 - 40 °C
Packet buffer memory
0.5 MB
Packet forwarding rate (1 Gbps)
14880 pps
Packet forwarding rate (10 Mbps)
1488000 pps
Packet forwarding rate (100 Mbps)
148800 pps
Power connector
AC-in jack
Power consumption (max)
10.07 W
Storage relative humidity (H-H)
0 - 95%
Storage temperature (T-T)
-10 - 70 °C
Store-and-forward
Yes
Switch type
Unmanaged
Greutate
1.02 kg
Management
nu
Montare in rack
Nu
PoE
Nu
Porturi RJ 45
11-18
Porturi SFP
N/A
Viteză transfer
Gigabit
Sursă inclusă
Yes
MTBF
1882372 h
Alimentare PoE
No
Capacitate switching
32 Gbit/s
Montare rack
Yes
Rată forwarding
23.81 Mpps
Stivuibil
Yes
Suport 10G
No
Suport QoS
Yes
Adâncime
125 mm
Lățime
280 mm
Material carcasă
Metal
Înălțime
44 mm
Producător
D-LINK
Construcție laptop
1U
Nivel zgomot
0 dB
Tipuri cabluri suportate
Cat3, Cat4, Cat5, Cat5e
