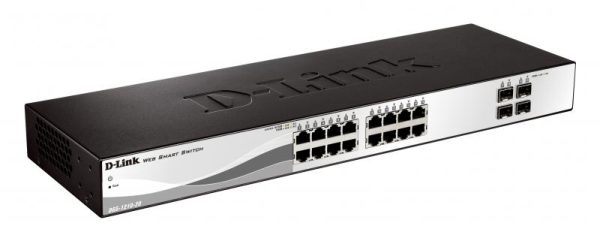

Switch D-Link DGS-1210-20, 16 port, 10/100/1000 Mbps
1.307,99 lei
Switch D-Link DGS-1210-20, 16 port, 10/100/1000 Mbps
(0)
În stoc
Vândut de RITC.ro
Cod produs: DGS-1210-20
Livrare și beneficii
Compară cu produse similare
Switch D-Link DGS-1210-20, 16 port, 10/100/1000 Mbps
Extralink KRATOS PoE Switch 7x Gigabit PoE 1x
694,99 lei
Switch TP-Link TL-SF1016, 16 port, 10/100 Mbps
217,99 lei 327,99 lei
"JetStream™ 8-Port 10GE SFP+ L2+ Managed Switch PORT: 8× 10G
1.472,99 lei 2.334,99 lei
Switch ALLIED TELESIS GS950, 48 port, 10/100/1000 Mbps
3.803,99 lei
Vezi comparația completă
| Caracteristică | Switch D-Link DGS-1210-20, 16 port, 10/100/1000 Mbps | Extralink KRATOS PoE Switch 7x Gigabit PoE 1x | Switch TP-Link TL-SF1016, 16 port, 10/100 Mbps | "JetStream™ 8-Port 10GE SFP+ L2+ Managed Switch PORT: 8× 10G | Switch ALLIED TELESIS GS950, 48 port, 10/100/1000 Mbps |
|---|---|---|---|---|---|
| Alte caracteristici | |||||
| 10G support | — | No | No | Yes | No |
| Access Control List (ACL) | Yes | — | — | Yes | — |
| AC input frequency | — | 50 - 60 Hz | 50 - 60 Hz | — | 50 - 60 Hz |
| ARP inspection | Yes | — | — | Yes | — |
| Auto-negotiation | Yes | Yes | Yes | — | — |
| Auto MDI/MDI-X | Yes | — | Yes | — | Yes |
| Basic switching RJ-45 Ethernet ports type | 16 | 8 | Fast Ethernet (10/100) | No | 48 |
| Broadcast storm control | Yes | — | — | Yes | Yes |
| Cables included | — | — | AC | AC | — |
| Cable types supported | — | Cat5, Cat5e, Cat6 | Cat3, Cat4, Cat5, Cat5e | — | — |
| Certification | — | CE, FCC | — | — | UL 1950, FCC/EN55022, VCCI, C-Tick, EN60950, EN55024, CE, CSA, CUL |
| Cloud-managed | — | No | — | Yes | — |
| Combo SFP ports quantity | 4 | — | — | — | 4 |
| Configuring Location Settings (CLI) | Yes | No | — | Yes | — |
| Console port | — | — | — | RJ-45/micro-USB | RJ-45 |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T | — | 10BASE-T, 100BASE-TX | — | 1000BASE-T, 100BASE-TX |
| Depth | 180 mm | 8.2 mm | 180 mm | 180 mm | 322 mm |
| DHCP features | DHCP server, DHCP client | — | — | DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping | DHCP client |
| Flash memory | 32 MB | — | — | — | 4 MB |
| Flow control support | Yes | — | Yes | Yes | Yes |
| Form factor | 1U | 1U | 1U | — | 1U |
| Forwarding rate | 77.4 Mpps | — | 2.38 Mpps | 119.04 Mpps | — |
| Harmonized System (HS) code | — | — | 85176990 | — | 85176990 |
| Head-of-line (HOL) blocking | Yes | — | — | Yes | Yes |
| Heat dissipation | 44.62 BTU/h | — | 7.03 BTU/h | 52.75 BTU/h | — |
| Height | 44 mm | 27 mm | 44 mm | — | 43.5 mm |
| Housing material | — | Metal | Metal | — | — |
| IGMP snooping | Yes | — | — | Yes | Yes |
| Jumbo frames | 10000 | — | — | 9000 | — |
| Jumbo frames support | Yes | — | — | Yes | Yes |
| LAN port type | Gigabit | Gigabit | FastEthernet | 10Gigabit | Gigabit |
| LED indicators | Yes | Yes | Yes | Yes | Yes |
| Link aggregation | Yes | — | — | Yes | Yes |
| Loop protection | Yes | — | — | Yes | — |
| MAC address filtering | Yes | — | — | Yes | Yes |
| MAC address table | 8000 entries | 4096 entries | 8000 entries | 32000 entries | 8000 entries |
| Management | Da | nu | nu | Da | Da |
| Management protocols | — | — | — | SNMPv1/v2c/v3, SNTP | IGMP, SNMP, FTP |
| Mean time between failures (MTBF) | 1087100 h | — | — | — | 263000 h |
| MIB support | Y | — | — | RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213 | RFC 1213, RFC 1643, RFC 1493 |
| Montare in rack | Da | Nu | Nu | Nu | Da |
| Multicast support | Yes | — | — | Yes | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x | IEEE 802.3af | IEEE 802.3i, IEEE 802.3u, IEEE 802.3x | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x | — |
| Number of VLANs | 256 | — | — | 4000 | — |
| Operating relative humidity (H-H) | 0 - 95% | 10 - 80% | 10 - 90% | 10 - 90% | 5 - 90% |
| Operating temperature (T-T) | 5 - 50 °C | 0 - 40 °C | 0 - 40 °C | 0 - 45 °C | 0 - 40 °C |
| Package type | — | — | Box | Box | — |
| Packet buffer memory | 4.1 MB | — | 2 MB | 16 MB | 6 MB |
| PoE | Nu | Da | Nu | Nu | Nu |
| Port mirroring | Yes | No | — | Yes | Yes |
| Porturi RJ 45 | 11-18 | 5-10 | 11-18 | 1-4 | 28+ |
| Porturi SFP | 3-4 | N/A | N/A | 5-8 | 1-2 |
| Power connector | AC-in jack | DC-in jack | DC-in jack | DC-in jack | DC-in jack |
| Power consumption (max) | 13.08 W | — | 2.23 W | 15.46 W | — |
| Power over Ethernet (PoE) | No | Yes | No | No | No |
| Power source | AC | AC | AC | AC | — |
| Power supply included | Yes | Yes | Yes | Yes | — |
| Quality of Service (QoS) support | Yes | No | — | Yes | Yes |
| Rack mounting | Yes | No | Yes | Yes | Yes |
| Rack mount kit | — | — | Yes | Yes | — |
| Rate limiting | — | — | — | Yes | Yes |
| Spanning tree protocol | Yes | — | — | Yes | Yes |
| Stackable | Yes | No | No | — | No |
| Static port security | — | — | — | Yes | Yes |
| Storage relative humidity (H-H) | 0 - 95% | 5 - 90% | 5 - 90% | 5 - 90% | 5 - 95% |
| Storage temperature (T-T) | -20 - 70 °C | -40 - 70 °C | -40 - 70 °C | -40 - 70 °C | -25 - 70 °C |
| Store-and-forward | Yes | — | Yes | — | — |
| Switching capacity | 40 Gbit/s | 16 Gbit/s | 32 Gbit/s | 160 Gbit/s | — |
| Switch layer | L2 | L2 | — | L2+/L3 | L2 |
| Switch type | Managed | Unmanaged | Unmanaged | Managed | Managed |
| System event log | Yes | No | — | Yes | — |
| Traffic classification | — | No | — | Yes | — |
| Viteza transfer | Gigabit | Gigabit | Fast Ethernet | 10G+ | Gigabit |
| VLAN support | Yes | — | — | Yes | Yes |
| Web-based management | Yes | No | — | Yes | Yes |
| Width | 280 mm | 192 mm | 440 mm | — | 444 mm |
| Laptopuri - Construcție | |||||
| Culoare | Black | Black | Black | — | Grey |
| Greutate | 1.75 kg | 500 g | — | — | 4.05 kg |
| Laptopuri - Generale | |||||
| Garanție comercială | 60 | 60 | 36 | 60 | 24 |
| Producător | D-LINK | EXTRALINK | TP-LINK | TP-LINK | ALLIED TELESIS |
| Laptopuri - Memorie | |||||
| Capacitate memorie RAM | 256 MB | — | — | — | 32 MB |
Analiză inteligentă a produsului
Descriere oficială
| Numar porturi |
16x RJ-45
|
| Porturi |
16x RJ45
4x SFP |
| Viteza de transfer |
10/100/1000 Mbps
|
| Putere consumata |
14.06 W
|
| Alimentare |
100 to 240 VAC 50/60 Hz internal universal power supply
|
| Dimensiuni |
440 x 140 x 44 mm
|
| Greutate |
2.2 kg
|
| Montare in rack |
1U
|
| Functii LED |
– Power (per device)
– Link/Activity/Speed (per 10/100/1000 Mbps port) – Link/Activity/Speed (per SFP port) |
| Memorie Buffer |
1 MB
|
| Adrese MAC |
16K
|
Specificații tehnice 69 caracteristici ⌄
- Access Control List (ACL)
- Yes
- ARP inspection
- Yes
- Auto-negotiation
- Yes
- Auto MDI/MDI-X
- Yes
- Basic switching RJ-45 Ethernet ports type
- 16
- Broadcast storm control
- Yes
- Combo SFP ports quantity
- 4
- Configuring Location Settings (CLI)
- Yes
- Copper ethernet cabling technology
- 10BASE-T, 100BASE-TX, 1000BASE-T
- Depth
- 180 mm
- DHCP features
- DHCP server, DHCP client
- Flash memory
- 32 MB
- Flow control support
- Yes
- Form factor
- 1U
- Forwarding rate
- 77.4 Mpps
- Full duplex
- Yes
- Head-of-line (HOL) blocking
- Yes
- Heat dissipation
- 44.62 BTU/h
- Height
- 44 mm
- IGMP snooping
- Yes
- Jumbo frames
- 10000
- Jumbo frames support
- Yes
- LAN port type
- Gigabit
- LED indicators
- Yes
- Link aggregation
- Yes
- Loop protection
- Yes
- MAC address filtering
- Yes
- MAC address table
- 8000 entries
- Management
- Da
- Mean time between failures (MTBF)
- 1087100 h
- Memory type
- DDR3-SDRAM
- MIB support
- Y
- Montare in rack
- Da
- Multicast support
- Yes
- Networking standards
- IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
- Noise level
- 0 dB
- Number of VLANs
- 256
- Operating relative humidity (H-H)
- 0 - 95%
- Operating temperature (T-T)
- 5 - 50 °C
- Packet buffer memory
- 4.1 MB
- PoE
- Nu
- Port mirroring
- Yes
- Porturi RJ 45
- 11-18
- Porturi SFP
- 3-4
- Power connector
- AC-in jack
- Power consumption (max)
- 13.08 W
- Power over Ethernet (PoE)
- No
- Power source
- AC
- Power supply included
- Yes
- Quality of Service (QoS) support
- Yes
- Rack mounting
- Yes
- Spanning tree protocol
- Yes
- Stackable
- Yes
- Storage relative humidity (H-H)
- 0 - 95%
- Storage temperature (T-T)
- -20 - 70 °C
- Store-and-forward
- Yes
- Switching capacity
- 40 Gbit/s
- Switch layer
- L2
- Switch type
- Managed
- System event log
- Yes
- Viteza transfer
- Gigabit
- VLAN support
- Yes
- Web-based management
- Yes
- Width
- 280 mm
- Culoare
- Black
- Greutate
- 1.75 kg
- Garanție comercială
- 60
- Producător
- D-LINK
- Capacitate memorie RAM
- 256 MB
