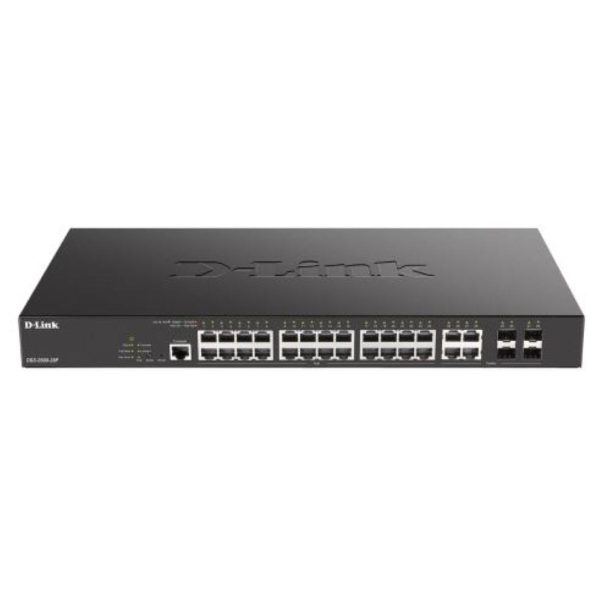

Switch D-Link DGS-2000-28, 24 port, 10/100/1000 Mbps

Switchuri

Switch D-Link DGS-2000-28, 24 port, 10/100/1000 Mbps

(0) Stoc epuizat
Vândut de RITC.ro Cod produs: DGS-2000-28

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Switch D-Link DGS-2000-28, 24 port, 10/100/1000 Mbps Switch TP-Link TL-SG1024D, 24 port, 10/100/1000 Mbps "JetStream™ 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch "JetStream™ 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch Switch TP-Link TL-SF1008D, 8 port, 10/100 Mbps
Alte caracteristici
10G support — No Yes Yes No
Access Control List (ACL) Yes — Yes Yes —
AC input frequency 50 - 60 Hz 50 - 60 Hz — — 50 - 60 Hz
ARP inspection — — Yes Yes —
Authentication — — Auto VLAN, Guest VLAN Guest VLAN, MAC-based authentication, Port-based authentication —
Auto-negotiation — Yes — — Yes
Auto MDI/MDI-X Yes Yes — — Yes
Basic switching RJ-45 Ethernet ports type 24 24 48 24 Fast Ethernet (10/100)
BPDU filtering/protection — — Yes Yes —
Broadcast storm control — — Yes Yes —
Cables included — AC AC AC —
Cloud-managed — — Yes Yes —
Compliance certificates — — — CE, Federal Communications Commission (FCC), RoHS CE, Federal Communications Commission (FCC), RoHS
Configuring Location Settings (CLI) — — Yes Yes —
Console port RJ-45 — RJ-45/micro-USB RJ-45/micro-USB —
DHCP features DHCP relay, DHCP snooping — DHCP client, DHCP relay, DHCP server DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping —
Flash memory 32 MB — — 32 MB —
Flow control support — Yes Yes Yes Yes
Forwarding rate 41.7 Mpps 35.7 Mpps 130.9 Mpps 148.8 Mpps —
Full duplex Yes Yes — Yes Yes
Half duplex Yes — — Yes Yes
Harmonized System (HS) code 85176990 85176990 — — 85176990
Head-of-line (HOL) blocking — — Yes Yes —
Heat dissipation — 44.63 BTU/h 2169.2 BTU/h 2153.45 BTU/h 6.99 BTU/h
IGMP snooping Yes — Yes Yes —
IP-MAC-Port binding Yes — Yes Yes —
Jumbo frames — 10000 9000 9000 —
Jumbo frames support — Yes Yes Yes —
LAN ports — 24 48 24 —
LAN port type Gigabit Gigabit Gigabit Gigabit FastEthernet
Layer — Unmanaged Layer-2 Layer-2 —
LED indicators Activity, Link, Power, Speed Yes Yes Yes Yes
Link aggregation — — Yes Yes —
MAC address table 8000 entries 8000 entries 16000 entries 32000 entries 1000 entries
Management Da nu Da Da nu
Memory type DDR3-SDRAM — — DRAM —
MIB support Y — — RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925 —
Montare in rack Da Nu Da Da Nu
Multicast Listener Discovery (MLD) snooping Y — — MLD v1/v2 —
Multicast support Yes — Yes Yes —
Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x — — IEEE 802.3u, IEEE 802.3x
Number of fans — — 3 fan(s) 3 fan(s) —
Operating relative humidity (H-H) 10 - 90% 10 - 90% 10 - 90% 10 - 90% 10 - 90%
Operating temperature (T-T) — 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C
Package depth — 400 mm — — 139 mm
Package height — 80 mm — — 85 mm
Package type — Box — — Box
Package weight — 1.95 kg — — 240 g
Package width — 250 mm — — 100 mm
Packet buffer memory 4.1 MB — 12 MB 16 MB 2 MB
PoE Nu Nu Da Da Nu
Port mirroring — — Yes Yes —
Porturi RJ 45 24-28 24-28 28+ 24-28 5-10
Porturi SFP 1-2 N/A 1-2 1-2 N/A
Power connector — DC-in jack AC-in jack — DC-in jack
Power consumption (max) — 13.08 W 635.7 W 629.1 W 2.2 W
Power over Ethernet (PoE) No No Yes Yes No
Power over Ethernet plus (PoE+) ports quantity — — 48 16 —
Power source — AC AC AC/PoE DC
Power supply included — Yes Yes Yes No
Quality of Service (QoS) support Yes Yes Yes Yes —
Quick start guide — — Yes Yes Yes
Rackable — No Yes Yes —
Rack mounting Yes Yes Yes Yes No
Rack mount kit — Yes — Yes —
Rate limiting — — Yes Yes —
Redundant PSU — Yes No Yes —
SFP module slots quantity — — 4 4 —
Spanning tree protocol — — Yes Yes —
SSH/SSL support Yes — Yes Yes —
Stackable — Yes No No No
Static port security Yes — Yes Yes —
Storage relative humidity (H-H) 5 - 90% 5 - 90% 5 - 90% 5 - 90% 5 - 95%
Storage temperature (T-T) -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C
Store-and-forward Yes Yes Yes Yes Yes
Supported network protocols — CSMA/CD, TCP/IP — — CSMA/CD, TCP/IP
Sustainability compliance — — — Yes Yes
Switching capacity 56 Gbit/s 48 Gbit/s 176 Gbit/s 200 Gbit/s 16 Gbit/s
Switch type Managed Unmanaged Managed Managed Unmanaged
System event log — — Yes Yes —
Total Power over Ethernet (PoE) budget — — 500 W 500 W —
Virtual LAN features Tagged VLAN — — MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Stacked VLAN, Tagged VLAN, Voice VLAN —
Viteza transfer Gigabit Gigabit 10G+ 2.5G Fast Ethernet
VLAN support Yes — Yes Yes —
Web-based management Yes — Yes Yes —
Laptopuri - Caracteristici fizice 25.09
Adâncime 250 mm 180 mm 330 mm 330 mm 7.9 mm
Lățime 440 mm 294 mm — — 134.5 mm
Înălțime 44 mm 44 mm — — 22.5 mm
Laptopuri - Conectivitate și porturi 25.09
Viteză rețea LAN 10,100,1000 Mbit/s — — 10,100,1000,2500,10000 Mbit/s —
Laptopuri - Construcție
Culoare Black Grey — — White
Laptopuri - Generale
Garanție comercială 60 60 60 24 36
Producător D-LINK TP-LINK TP-LINK TP-LINK TP-LINK
Laptopuri - Memorie
Capacitate memorie RAM 256 MB — — 256 MB —
Laptopuri - Tip laptop
Construcție laptop 1U — 1U 1U —

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

Numar porturi
24x RJ-45
Porturi
24x RJ45
4x SFP
Viteza de transfer
10/100/1000 Mbps
Management
Da
Putere consumata
17.32 W
Alimentare
100-240V AC
Dimensiuni
440 x 140 x 44 mm
Greutate
2.15 kg
Montare in rack
19 inch
Functii LED
Power, Link/Active/Speed (per port)
Memorie Buffer
4.1 MBits
Memorie
Flash 32 MB
Adrese MAC
8K
Metoda forwarding
41.7 Mpps
Routing/Switch Fabric
56 Gbps
Standarde
• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3x
• IEEE 802.3z
Altele
CPU Memory: 256 MB DDR3
Specificații tehnice 53 caracteristici
Access Control List (ACL)
Yes
AC input frequency
50 - 60 Hz
Auto MDI/MDI-X
Yes
Basic switching RJ-45 Ethernet ports type
24
Combo SFP ports quantity
4
Console port
RJ-45
DHCP features
DHCP relay, DHCP snooping
Flash memory
32 MB
Forwarding rate
41.7 Mpps
Full duplex
Yes
Half duplex
Yes
Harmonized System (HS) code
85176990
IGMP snooping
Yes
IP-MAC-Port binding
Yes
LAN port type
Gigabit
LED indicators
Activity, Link, Power, Speed
MAC address table
8000 entries
Management
Da
Memory type
DDR3-SDRAM
MIB support
Y
Montare in rack
Da
Multicast Listener Discovery (MLD) snooping
Y
Multicast support
Yes
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Operating relative humidity (H-H)
10 - 90%
Packet buffer memory
4.1 MB
PoE
Nu
Porturi RJ 45
24-28
Porturi SFP
1-2
Power over Ethernet (PoE)
No
Quality of Service (QoS) support
Yes
Rack mounting
Yes
SSH/SSL support
Yes
Static port security
Yes
Storage relative humidity (H-H)
5 - 90%
Storage temperature (T-T)
-40 - 70 °C
Store-and-forward
Yes
Switching capacity
56 Gbit/s
Switch type
Managed
Virtual LAN features
Tagged VLAN
Viteza transfer
Gigabit
VLAN support
Yes
Web-based management
Yes
Greutate
2.15 kg
Adâncime
250 mm
Lățime
440 mm
Înălțime
44 mm
Viteză rețea LAN
10,100,1000 Mbit/s
Culoare
Black
Garanție comercială
60
Producător
D-LINK
Capacitate memorie RAM
256 MB
Construcție laptop
1U
