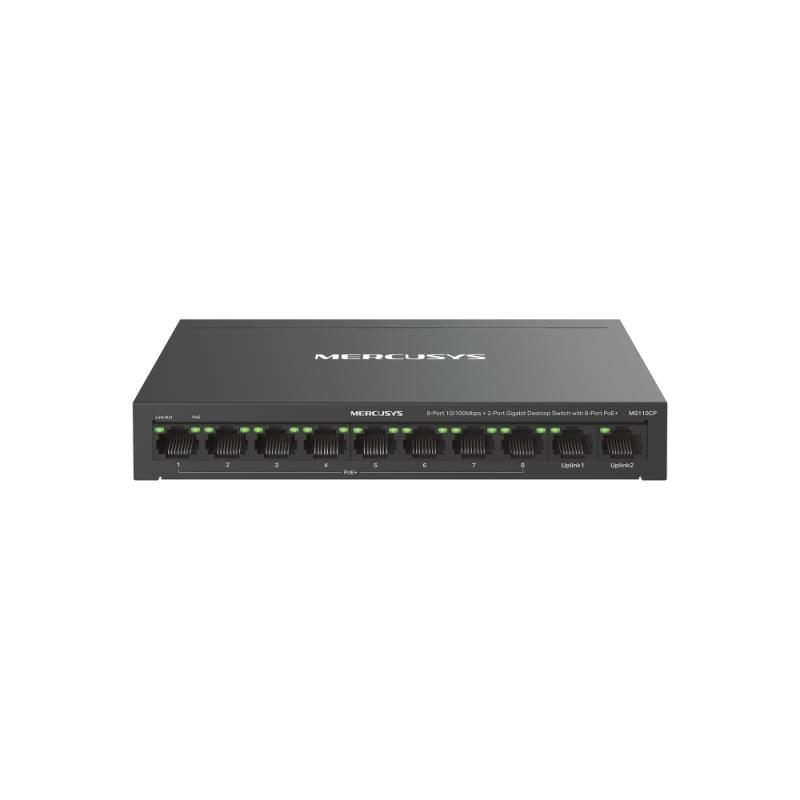

Switch desktop Mercusys 8-Port 10/100 Mbps + 2-Port Gigabit Desktop

Switchuri

Switch desktop Mercusys 8-Port 10/100 Mbps + 2-Port Gigabit Desktop

(0) Stoc epuizat
Vândut de RITC.ro Cod produs: MS110CP

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Switch desktop Mercusys 8-Port 10/100 Mbps + 2-Port Gigabit Desktop Switch TP-Link TL-SG1024D, 24 port, 10/100/1000 Mbps "JetStream™ 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch Extralink KRATOS PoE Switch 7x Gigabit PoE 1x Switch TP-Link TL-SF1008D, 8 port, 10/100 Mbps
Alte caracteristici
10G support No No Yes No No
AC input frequency 50 Hz 50 - 60 Hz — 50 - 60 Hz 50 - 60 Hz
Auto-negotiation Yes Yes — Yes Yes
Auto MDI/MDI-X Yes Yes — — Yes
Basic switching RJ-45 Ethernet ports type 10 24 24 8 Fast Ethernet (10/100)
Cables included AC AC AC — —
Cable types supported — Cat3, Cat4, Cat5, Cat5e — Cat5, Cat5e, Cat6 —
Cloud-managed — — Yes No —
Compliance certificates — — CE, Federal Communications Commission (FCC), RoHS — CE, Federal Communications Commission (FCC), RoHS
Configuring Location Settings (CLI) — — Yes No —
DC input voltage 53.5 V — — — 5 V
Flow control support Yes Yes Yes — Yes
Forwarding rate — 35.7 Mpps 148.8 Mpps — —
Full duplex Yes Yes Yes — Yes
Half duplex Yes — Yes — Yes
Harmonized System (HS) code — 85176990 — — 85176990
Heat dissipation 255.51 BTU/h 44.63 BTU/h 2153.45 BTU/h — 6.99 BTU/h
Input current 1.31 A — — 2.5 A 0.6 A
Jumbo frames 2 10000 9000 — —
Jumbo frames support Yes Yes Yes — —
LAN ports 8 24 24 — —
LAN port type FastEthernet Gigabit Gigabit Gigabit FastEthernet
Layer Unmanaged Unmanaged Layer-2 — —
LED indicators — Yes Yes Yes Yes
MAC address table 2000 entries 8000 entries 32000 entries 4096 entries 1000 entries
Management Unmanaged nu Da nu nu
Montare in rack Nu Nu Da Nu Nu
Networking standards IEEE 802.3af, IEEE 802.3at, IEEE 802.3x IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x — IEEE 802.3af IEEE 802.3u, IEEE 802.3x
Operating relative humidity (H-H) 5 - 90% 10 - 90% 10 - 90% 10 - 80% 10 - 90%
Operating temperature (T-T) — 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C
Package depth — 400 mm — — 139 mm
Package height — 80 mm — — 85 mm
Package type — Box — — Box
Package weight — 1.95 kg — — 240 g
Package width — 250 mm — — 100 mm
Packet buffer memory — — 16 MB — 2 MB
PoE Yes Nu Da Da Nu
Port mirroring — — Yes No —
Porturi RJ 45 8-Port 24-28 24-28 5-10 5-10
Porturi SFP N/A N/A 1-2 N/A N/A
Power connector — DC-in jack — DC-in jack DC-in jack
Power consumption (max) 74.93 W 13.08 W 629.1 W — 2.2 W
Power over Ethernet (PoE) Yes No Yes Yes No
Power over Ethernet plus (PoE+) ports quantity 8 — 16 — —
Power source DC/PoE AC AC/PoE AC DC
Power supply included Yes Yes Yes Yes No
Quality of Service (QoS) support — Yes Yes No —
Quick start guide Yes — Yes — Yes
Rackable No No Yes — —
Rack mounting No Yes Yes No No
Rack mount kit — Yes Yes — —
Redundant fans support — — Yes No —
Redundant PSU No Yes Yes — —
Stackable No Yes No No No
Storage relative humidity (H-H) 10 - 95% 5 - 90% 5 - 90% 5 - 90% 5 - 95%
Storage temperature (T-T) -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C
Store-and-forward — Yes Yes — Yes
Supported network protocols — CSMA/CD, TCP/IP — — CSMA/CD, TCP/IP
Sustainability compliance — — Yes — Yes
Switching capacity 5.6 Gbit/s 48 Gbit/s 200 Gbit/s 16 Gbit/s 16 Gbit/s
Switch type — Unmanaged Managed Unmanaged Unmanaged
System event log — — Yes No —
Total Power over Ethernet (PoE) budget 65 W — 500 W 60 W —
Viteza transfer Gigabit Gigabit 2.5G Gigabit Fast Ethernet
Web-based management — — Yes No —
Laptopuri - Caracteristici fizice 25.09
Adâncime 98 mm 180 mm 330 mm 8.2 mm 7.9 mm
Lățime 171 mm 294 mm — 192 mm 134.5 mm
Material carcasă Metal — — Metal —
Înălțime 27 mm 44 mm — 27 mm 22.5 mm
Laptopuri - Conectivitate și porturi 25.09
Viteză rețea LAN 10,100 Mbit/s — 10,100,1000,2500,10000 Mbit/s — —
Laptopuri - Construcție
Culoare Black Grey — Black White
Laptopuri - Generale
Garanție comercială 24 60 24 60 36
Producător MERCUSYS TP-LINK TP-LINK EXTRALINK TP-LINK
Laptopuri - Tip laptop
Construcție laptop — — 1U 1U —

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

Switch desktop Mercusys 8-Port 10/100 Mbps + 2-Port Gigabit Desktop Switch with 8-Port PoE+, IEEE 802.3x Flow Control, 5.6 Gbps, dimensiuni 6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm)

Specificații tehnice 53 caracteristici
10G support
No
AC input frequency
50 Hz
AC input voltage
220 V
Auto-negotiation
Yes
Auto MDI/MDI-X
Yes
Basic switching RJ-45 Ethernet ports type
10
Cables included
AC
DC input voltage
53.5 V
Flow control support
Yes
Full duplex
Yes
Half duplex
Yes
Heat dissipation
255.51 BTU/h
Input current
1.31 A
Jumbo frames
2
Jumbo frames support
Yes
LAN ports
8
LAN port type
FastEthernet
Layer
Unmanaged
MAC address table
2000 entries
Management
Unmanaged
Montare in rack
Nu
Networking standards
IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
Operating relative humidity (H-H)
5 - 90%
PoE
Yes
Porturi RJ 45
8-Port
Porturi SFP
N/A
Power consumption (max)
74.93 W
Power consumption (typical)
3.5 W
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) type supported
PoE+
Power over Ethernet plus (PoE+) ports quantity
8
Power source
DC/PoE
Power supply included
Yes
Quick start guide
Yes
Rackable
No
Rack mounting
No
Redundant PSU
No
Stackable
No
Storage relative humidity (H-H)
10 - 95%
Storage temperature (T-T)
-40 - 70 °C
Switching capacity
5.6 Gbit/s
Total Power over Ethernet (PoE) budget
65 W
Transmission distance (max)
0.25 km
Viteza transfer
Gigabit
Wall mountable
Yes
Adâncime
98 mm
Lățime
171 mm
Material carcasă
Metal
Înălțime
27 mm
Viteză rețea LAN
10,100 Mbit/s
Culoare
Black
Garanție comercială
24
Producător
MERCUSYS
