Switch PoE Hikvision DS-3E1552P-SI: 48 x 10/100/1000M PoE Ports, 2

Vândut de RITC.ro Cod produs: DS-3E1552P-SI

Livrare și beneficii

Compară cu produse similare

Vezi comparația completă
Caracteristică Switch PoE Hikvision DS-3E1552P-SI: 48 x 10/100/1000M PoE Ports, 2 Switch TP-Link TL-SG1024D, 24 port, 10/100/1000 Mbps "JetStream™ 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch "JetStream™ 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch Extralink KRATOS PoE Switch 7x Gigabit PoE 1x
Alte caracteristici
10G support No No Yes Yes No
Access Control List (ACL) — — Yes Yes —
AC input frequency — 50 - 60 Hz — — 50 - 60 Hz
ARP inspection — — Yes Yes —
Authentication — — Auto VLAN, Guest VLAN Guest VLAN, MAC-based authentication, Port-based authentication —
Auto-negotiation — Yes — — Yes
Auto MDI/MDI-X Yes Yes — — —
Basic switching RJ-45 Ethernet ports type 50 24 48 24 8
BPDU filtering/protection — — Yes Yes —
Broadcast storm control Yes — Yes Yes —
Cables included — AC AC AC —
Cable types supported — Cat3, Cat4, Cat5, Cat5e — — Cat5, Cat5e, Cat6
Cloud-managed — — Yes Yes No
Configuring Location Settings (CLI) — — Yes Yes No
Console port RJ-45 — RJ-45/micro-USB RJ-45/micro-USB —
DHCP features — — DHCP client, DHCP relay, DHCP server DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping —
Flow control support Yes Yes Yes Yes —
Forwarding rate 77.376 Mpps 35.7 Mpps 130.9 Mpps 148.8 Mpps —
Full duplex Yes Yes — Yes —
Gigabit Ethernet (copper) ports quantity 50 24 — — —
Head-of-line (HOL) blocking — — Yes Yes —
Heat dissipation — 44.63 BTU/h 2169.2 BTU/h 2153.45 BTU/h —
IGMP snooping — — Yes Yes —
IP-MAC-Port binding — — Yes Yes —
Jumbo frames — 10000 9000 9000 —
Jumbo frames support — Yes Yes Yes —
LAN ports — 24 48 24 —
LAN port type — Gigabit Gigabit Gigabit Gigabit
Layer — Unmanaged Layer-2 Layer-2 —
LED indicators Yes Yes Yes Yes Yes
Link aggregation Yes — Yes Yes —
MAC address table 16000 entries 8000 entries 16000 entries 32000 entries 4096 entries
Management Managed nu Da Da nu
Montare in rack Da Nu Da Da Nu
Multicast support — — Yes Yes —
Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x — — IEEE 802.3af
Number of fans — — 3 fan(s) 3 fan(s) —
Operating relative humidity (H-H) 5 - 95% 10 - 90% 10 - 90% 10 - 90% 10 - 80%
Operating temperature (T-T) 0 - 45 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C
Package weight 4.5 kg 1.95 kg — — —
Packet buffer memory — — 12 MB 16 MB —
PoE Da Nu Da Da Da
Port mirroring Yes — Yes Yes No
Porturi RJ 45 28+ 24-28 28+ 24-28 5-10
Porturi SFP 1-2 N/A 1-2 1-2 N/A
Power connector AC-in jack DC-in jack AC-in jack — DC-in jack
Power consumption (max) 500 W 13.08 W 635.7 W 629.1 W —
Power over Ethernet (PoE) Yes No Yes Yes Yes
Power over Ethernet (PoE) power per port 30 W — 30 W — 30 W
Power over Ethernet plus (PoE+) ports quantity — — 48 16 —
Power source AC AC AC AC/PoE AC
Power supply included Yes Yes Yes Yes Yes
Quality of Service (QoS) support Yes Yes Yes Yes No
Quick start guide — — Yes Yes —
Rackable — No Yes Yes —
Rack mounting Yes Yes Yes Yes No
Rack mount kit — Yes — Yes —
Rate limiting Yes — Yes Yes —
Redundant fans support — — — Yes No
Redundant PSU — Yes No Yes —
Reset button — — Yes — Yes
Security algorithms SNMP, SNMPv2, SNMPv3 — — HTTPS, SSH, SSH-2, SSL/TLS —
SFP module slots quantity — — 4 4 —
Spanning tree protocol — — Yes Yes —
SSH/SSL support — — Yes Yes —
Stackable — Yes No No No
Static port security — — Yes Yes —
Storage relative humidity (H-H) 5 - 95% 5 - 90% 5 - 90% 5 - 90% 5 - 90%
Storage temperature (T-T) -40 - 85 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C
Store-and-forward Yes Yes Yes Yes —
Switching capacity 104 Gbit/s 48 Gbit/s 176 Gbit/s 200 Gbit/s 16 Gbit/s
Switch type Managed Unmanaged Managed Managed Unmanaged
System event log — — Yes Yes No
Total Power over Ethernet (PoE) budget 470 W — 500 W 500 W 60 W
Viteza transfer Gigabit Gigabit 10G+ 2.5G Gigabit
VLAN support Yes — Yes Yes —
Web-based management — — Yes Yes No
Caracteristici fizice
Greutate 4.35 kg — — — 500 g
Laptopuri - Caracteristici fizice 25.09
Adâncime 323.8 mm 180 mm 330 mm 330 mm 8.2 mm
Lățime 440 mm 294 mm — — 192 mm
Material carcasă Metal — — — Metal
Înălțime 44 mm 44 mm — — 27 mm
Laptopuri - Construcție
Culoare Grey Grey — — Black
Laptopuri - Generale
Garanție comercială 36 60 60 24 60
Producător HIKVISION TP-LINK TP-LINK TP-LINK EXTRALINK
Laptopuri - Tip laptop
Construcție laptop 1U — 1U 1U 1U

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

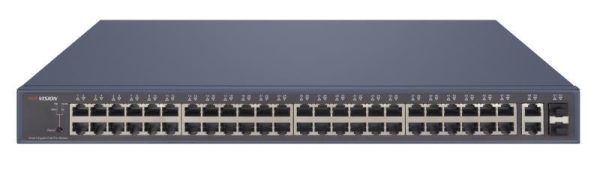

Switch PoE Hikvision DS-3E1552P-SI: 48 x 10/100/1000M PoE Ports, 2 x gigabit RJ45, 2 x gigabit SFP, buget PoE 470 W, tensiune alimentare 100 to 240 V AC, 50/60 Hz, Max. 7.5 A, dimensiuni: 440.00 mm × 44.00 mm × 323.80 mm, greutate: 4.35kg, montare in rack.

Specificații tehnice 54 caracteristici
10G support
No
AC input voltage
220 - 240 V
Auto MDI/MDI-X
Yes
Basic switching RJ-45 Ethernet ports type
50
Broadcast storm control
Yes
Console port
RJ-45
Fiber ports quantity
2
Flow control support
Yes
Forwarding rate
77.376 Mpps
Full duplex
Yes
Gigabit Ethernet (copper) ports quantity
50
L2 cache
12 MB
LED indicators
Yes
Link aggregation
Yes
MAC address table
16000 entries
Management
Managed
Montare in rack
Da
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Operating relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
0 - 45 °C
Package weight
4.5 kg
PoE
Da
Port mirroring
Yes
Porturi RJ 45
28+
Porturi SFP
1-2
Power connector
AC-in jack
Power consumption (max)
500 W
Power consumption (typical)
30 W
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
48
Power over Ethernet (PoE) power per port
30 W
Power source
AC
Power supply included
Yes
Quality of Service (QoS) support
Yes
Rack mounting
Yes
Rate limiting
Yes
Security algorithms
SNMP, SNMPv2, SNMPv3
Storage relative humidity (H-H)
5 - 95%
Storage temperature (T-T)
-40 - 85 °C
Store-and-forward
Yes
Switching capacity
104 Gbit/s
Switch type
Managed
Total Power over Ethernet (PoE) budget
470 W
Viteza transfer
Gigabit
VLAN support
Yes
Greutate
4.35 kg
Adâncime
323.8 mm
Lățime
440 mm
Material carcasă
Metal
Înălțime
44 mm
Culoare
Grey
Garanție comercială
36
Producător
HIKVISION
Construcție laptop
1U
