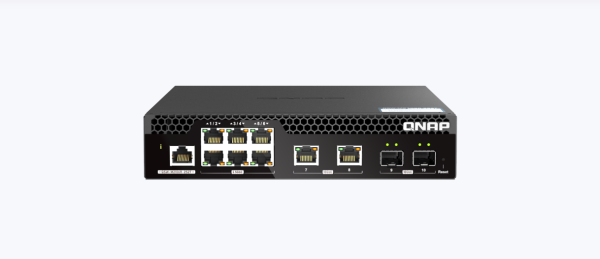

Switch QNAP M2106R CPU Marvell 98DX2528, 6 porturi 2.5Gbps, 2
2.517,99 lei 2.685,99 lei
Switch QNAP M2106R CPU Marvell 98DX2528, 6 porturi 2.5Gbps, 2
(0)
În stoc
Vândut de RITC.ro
Cod produs: QSW-M2106R-2S2T
Livrare și beneficii
Compară cu produse similare
Switch QNAP M2106R CPU Marvell 98DX2528, 6 porturi 2.5Gbps, 2
Switch TP-Link TL-SG1024D, 24 port, 10/100/1000 Mbps
447,99 lei 658,99 lei
"JetStream™ 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch
4.328,99 lei 6.096,98 lei
"JetStream™ 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch
5.348,99 lei 7.487,99 lei
Switch TP-Link TL-SF1016, 16 port, 10/100 Mbps
217,99 lei 327,99 lei
Vezi comparația completă
| Caracteristică | Switch QNAP M2106R CPU Marvell 98DX2528, 6 porturi 2.5Gbps, 2 | Switch TP-Link TL-SG1024D, 24 port, 10/100/1000 Mbps | "JetStream™ 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch | "JetStream™ 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch | Switch TP-Link TL-SF1016, 16 port, 10/100 Mbps |
|---|---|---|---|---|---|
| Alte caracteristici | |||||
| 2.5G Ethernet (copper) ports quantity | 6 | — | — | 24 | — |
| 10G support | — | No | Yes | Yes | No |
| Access Control List (ACL) | — | — | Yes | Yes | — |
| AC input frequency | 50 - 60 Hz | 50 - 60 Hz | — | — | 50 - 60 Hz |
| ARP inspection | — | — | Yes | Yes | — |
| Authentication | — | — | Auto VLAN, Guest VLAN | Guest VLAN, MAC-based authentication, Port-based authentication | — |
| Auto-negotiation | — | Yes | — | — | Yes |
| Auto MDI/MDI-X | — | Yes | — | — | Yes |
| Basic switching RJ-45 Ethernet ports type | 2 | 24 | 48 | 24 | Fast Ethernet (10/100) |
| BPDU filtering/protection | — | — | Yes | Yes | — |
| Broadcast storm control | — | — | Yes | Yes | — |
| Cables included | — | AC | AC | AC | AC |
| Cable types supported | — | Cat3, Cat4, Cat5, Cat5e | — | — | Cat3, Cat4, Cat5, Cat5e |
| Cloud-managed | — | — | Yes | Yes | — |
| Compliance certificates | CE, Federal Communications Commission (FCC) | — | — | CE, Federal Communications Commission (FCC), RoHS | CE, Federal Communications Commission (FCC), RoHS |
| Configuring Location Settings (CLI) | — | — | Yes | Yes | — |
| Console port | RJ-45 | — | RJ-45/micro-USB | RJ-45/micro-USB | — |
| DHCP features | — | — | DHCP client, DHCP relay, DHCP server | DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping | — |
| Flow control support | — | Yes | Yes | Yes | Yes |
| Forwarding rate | — | 35.7 Mpps | 130.9 Mpps | 148.8 Mpps | 2.38 Mpps |
| Full duplex | — | Yes | — | Yes | — |
| Harmonized System (HS) code | — | 85176990 | — | — | 85176990 |
| Head-of-line (HOL) blocking | — | — | Yes | Yes | — |
| Heat dissipation | — | 44.63 BTU/h | 2169.2 BTU/h | 2153.45 BTU/h | 7.03 BTU/h |
| IGMP snooping | — | — | Yes | Yes | — |
| IP-MAC-Port binding | — | — | Yes | Yes | — |
| Jumbo frames | — | 10000 | 9000 | 9000 | — |
| Jumbo frames support | — | Yes | Yes | Yes | — |
| LAN ports | — | 24 | 48 | 24 | — |
| LAN port type | Gigabit | Gigabit | Gigabit | Gigabit | FastEthernet |
| Layer | — | Unmanaged | Layer-2 | Layer-2 | — |
| LED indicators | Activity, Link, Power, Speed, Status | Yes | Yes | Yes | Yes |
| Link aggregation | — | — | Yes | Yes | — |
| MAC address table | 16000 entries | 8000 entries | 16000 entries | 32000 entries | 8000 entries |
| Management | Da | nu | Da | Da | nu |
| Montare in rack | Da | Nu | Da | Da | Nu |
| Multicast support | — | — | Yes | Yes | — |
| Networking standards | — | IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x | — | — | IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Number of fans | 2 fan(s) | — | 3 fan(s) | 3 fan(s) | — |
| Operating relative humidity (H-H) | 5 - 95% | 10 - 90% | 10 - 90% | 10 - 90% | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C | 0 - 40 °C | 0 - 40 °C | 0 - 40 °C | 0 - 40 °C |
| Package depth | 342 mm | 400 mm | — | — | 528 mm |
| Package height | 104 mm | 80 mm | — | — | — |
| Package type | Box | Box | — | — | Box |
| Package weight | 23 kg | 1.95 kg | — | — | 2.28 kg |
| Package width | 337 mm | 250 mm | — | — | 250 mm |
| Packet buffer memory | — | — | 12 MB | 16 MB | 2 MB |
| PoE | Nu | Nu | Da | Da | Nu |
| Port mirroring | — | — | Yes | Yes | — |
| Porturi RJ 45 | 1-4 | 24-28 | 28+ | 24-28 | 11-18 |
| Porturi SFP | 1-2 | N/A | 1-2 | 1-2 | N/A |
| Power connector | — | DC-in jack | AC-in jack | — | DC-in jack |
| Power consumption (max) | — | 13.08 W | 635.7 W | 629.1 W | 2.23 W |
| Power over Ethernet (PoE) | No | No | Yes | Yes | No |
| Power over Ethernet plus (PoE+) ports quantity | — | — | 48 | 16 | — |
| Power source | AC | AC | AC | AC/PoE | AC |
| Power supply included | Yes | Yes | Yes | Yes | Yes |
| Quality of Service (QoS) support | — | Yes | Yes | Yes | — |
| Quick start guide | — | — | Yes | Yes | — |
| Rackable | — | No | Yes | Yes | — |
| Rack mounting | Yes | Yes | Yes | Yes | Yes |
| Rack mount kit | — | Yes | — | Yes | Yes |
| Rate limiting | — | — | Yes | Yes | — |
| Redundant PSU | — | Yes | No | Yes | — |
| Reset button | Yes | — | Yes | — | — |
| SFP module slots quantity | — | — | 4 | 4 | — |
| Spanning tree protocol | — | — | Yes | Yes | — |
| SSH/SSL support | — | — | Yes | Yes | — |
| Stackable | Yes | Yes | No | No | No |
| Static port security | — | — | Yes | Yes | — |
| Storage relative humidity (H-H) | — | 5 - 90% | 5 - 90% | 5 - 90% | 5 - 90% |
| Storage temperature (T-T) | — | -40 - 70 °C | -40 - 70 °C | -40 - 70 °C | -40 - 70 °C |
| Store-and-forward | — | Yes | Yes | Yes | Yes |
| Sustainability compliance | Yes | — | — | Yes | Yes |
| Switching capacity | 110 Gbit/s | 48 Gbit/s | 176 Gbit/s | 200 Gbit/s | 32 Gbit/s |
| Switch type | Managed | Unmanaged | Managed | Managed | Unmanaged |
| System event log | — | — | Yes | Yes | — |
| Total Power over Ethernet (PoE) budget | — | — | 500 W | 500 W | — |
| Viteza transfer | 10G+ | Gigabit | 10G+ | 2.5G | Fast Ethernet |
| VLAN support | — | — | Yes | Yes | — |
| Web-based management | — | — | Yes | Yes | — |
| Laptopuri - Caracteristici fizice 25.09 | |||||
| Adâncime | 248.8 mm | 180 mm | 330 mm | 330 mm | 180 mm |
| Lățime | 207 mm | 294 mm | — | — | 440 mm |
| Înălțime | 433 mm | 44 mm | — | — | 44 mm |
| Laptopuri - Conectivitate și porturi 25.09 | |||||
| Viteză rețea LAN | — | — | — | 10,100,1000,2500,10000 Mbit/s | 10,100 Mbit/s |
| Laptopuri - Construcție | |||||
| Culoare | Black | Grey | — | — | Black |
| Laptopuri - Generale | |||||
| Garanție comercială | 24 | 60 | 60 | 24 | 36 |
| Producător | QNAP | TP-LINK | TP-LINK | TP-LINK | TP-LINK |
| Laptopuri - Tip laptop | |||||
| Construcție laptop | 1U | — | 1U | 1U | 1U |
Analiză inteligentă a produsului
Descriere oficială
Switch QNAP M2106R CPU Marvell 98DX2528, 6 porturi 2.5Gbps, 2 porturi 10Gbps SFP+, 2 porturi 10GbE RJ45, rackmount, web-managed, garantie2 ani
Specificații tehnice 46 caracteristici ⌄
- 2.5G Ethernet (copper) ports quantity
- 6
- AC input frequency
- 50 - 60 Hz
- Basic switching RJ-45 Ethernet ports type
- 2
- Compliance certificates
- CE, Federal Communications Commission (FCC)
- Console port
- RJ-45
- Country of origin
- Taiwan
- Electromagnetic compatibility
- CLASS B
- Installed SFP modules quantity
- 2
- LAN port type
- Gigabit
- LED indicators
- Activity, Link, Power, Speed, Status
- MAC address table
- 16000 entries
- Management
- Da
- Montare in rack
- Da
- Number of fans
- 2 fan(s)
- Operating relative humidity (H-H)
- 5 - 95%
- Operating temperature (T-T)
- 0 - 40 °C
- Package depth
- 342 mm
- Package height
- 104 mm
- Package type
- Box
- Package weight
- 23 kg
- Package width
- 337 mm
- PoE
- Nu
- Porturi RJ 45
- 1-4
- Porturi SFP
- 1-2
- Power consumption (typical)
- 40 W
- Power over Ethernet (PoE)
- No
- Power source
- AC
- Power supply included
- Yes
- Products per master (outer) case
- 7 pc(s)
- Rack mounting
- Yes
- Reset button
- Yes
- Stackable
- Yes
- Sustainability compliance
- Yes
- Switching capacity
- 110 Gbit/s
- Switch layer
- L2
- Switch type
- Managed
- Throughput
- 55 Gbit/s
- Viteza transfer
- 10G+
- Greutate
- 1.53 kg
- Adâncime
- 248.8 mm
- Lățime
- 207 mm
- Înălțime
- 433 mm
- Culoare
- Black
- Garanție comercială
- 24
- Producător
- QNAP
- Construcție laptop
- 1U
