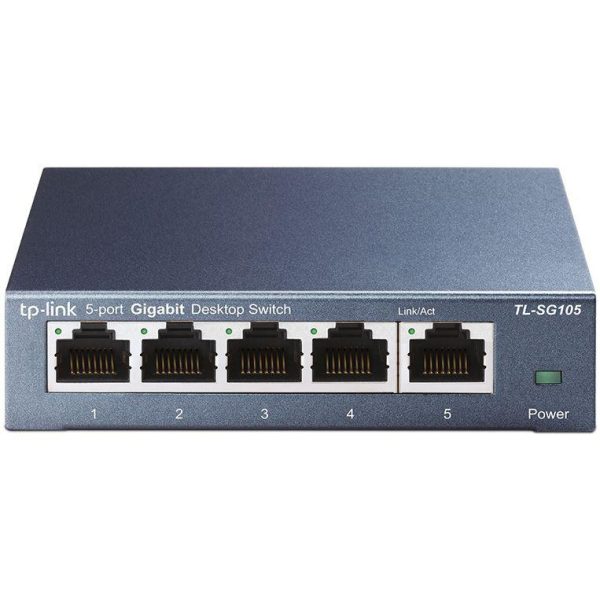

Switch TP-Link TL-SG105s, 5 port, 10/100/1000 Mbps
188,99 lei
Switch TP-Link TL-SG105s, 5 port, 10/100/1000 Mbps
(0)
Stoc epuizat
Vândut de RITC.ro
Cod produs: TL-SG105S
Livrare și beneficii
Compară cu produse similare
Switch TP-Link TL-SG105s, 5 port, 10/100/1000 Mbps
Switch TP-Link TL-SG1024D, 24 port, 10/100/1000 Mbps
447,99 lei 658,99 lei
"JetStream™ 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch
4.328,99 lei 6.096,98 lei
"JetStream™ 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch
5.348,99 lei 7.487,99 lei
Switch TP-Link TL-SF1008D, 8 port, 10/100 Mbps
58,00 lei 89,99 lei
Vezi comparația completă
| Caracteristică | Switch TP-Link TL-SG105s, 5 port, 10/100/1000 Mbps | Switch TP-Link TL-SG1024D, 24 port, 10/100/1000 Mbps | "JetStream™ 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch | "JetStream™ 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch | Switch TP-Link TL-SF1008D, 8 port, 10/100 Mbps |
|---|---|---|---|---|---|
| Alte caracteristici | |||||
| 10G support | No | No | Yes | Yes | No |
| Access Control List (ACL) | — | — | Yes | Yes | — |
| AC input frequency | 50 Hz | 50 - 60 Hz | — | — | 50 - 60 Hz |
| ARP inspection | — | — | Yes | Yes | — |
| Authentication | — | — | Auto VLAN, Guest VLAN | Guest VLAN, MAC-based authentication, Port-based authentication | — |
| Auto-negotiation | Yes | Yes | — | — | Yes |
| Auto MDI/MDI-X | Yes | Yes | — | — | Yes |
| Basic switching RJ-45 Ethernet ports type | 5 | 24 | 48 | 24 | Fast Ethernet (10/100) |
| BPDU filtering/protection | — | — | Yes | Yes | — |
| Broadcast storm control | — | — | Yes | Yes | — |
| Cables included | AC | AC | AC | AC | — |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e | Cat3, Cat4, Cat5, Cat5e | — | — | — |
| Cloud-managed | — | — | Yes | Yes | — |
| Compliance certificates | — | — | — | CE, Federal Communications Commission (FCC), RoHS | CE, Federal Communications Commission (FCC), RoHS |
| Configuring Location Settings (CLI) | — | — | Yes | Yes | — |
| Console port | — | — | RJ-45/micro-USB | RJ-45/micro-USB | — |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T | — | — | — | 10BASE-T, 100BASE-TX |
| DC input voltage | 5 V | — | — | — | 5 V |
| DHCP features | — | — | DHCP client, DHCP relay, DHCP server | DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping | — |
| Flow control support | Yes | Yes | Yes | Yes | Yes |
| Forwarding rate | 7.4 Mpps | 35.7 Mpps | 130.9 Mpps | 148.8 Mpps | — |
| Full duplex | Yes | Yes | — | Yes | Yes |
| Gigabit Ethernet (copper) ports quantity | 5 | 24 | — | — | — |
| Half duplex | — | — | — | Yes | Yes |
| Harmonized System (HS) code | 85176990 | 85176990 | — | — | 85176990 |
| Head-of-line (HOL) blocking | — | — | Yes | Yes | — |
| Heat dissipation | 7.83 BTU/h | 44.63 BTU/h | 2169.2 BTU/h | 2153.45 BTU/h | 6.99 BTU/h |
| IGMP snooping | Yes | — | Yes | Yes | — |
| Input current | 0.6 A | — | — | — | 0.6 A |
| IP-MAC-Port binding | — | — | Yes | Yes | — |
| Jumbo frames | 16000 | 10000 | 9000 | 9000 | — |
| Jumbo frames support | Yes | Yes | Yes | Yes | — |
| LAN ports | 5 | 24 | 48 | 24 | — |
| LAN port type | Gigabit | Gigabit | Gigabit | Gigabit | FastEthernet |
| Layer | Unmanaged | Unmanaged | Layer-2 | Layer-2 | — |
| LED indicators | Yes | Yes | Yes | Yes | Yes |
| Link aggregation | — | — | Yes | Yes | — |
| MAC address table | 2000 entries | 8000 entries | 16000 entries | 32000 entries | 1000 entries |
| Management | nu | nu | Da | Da | nu |
| Montare in rack | Nu | Nu | Da | Da | Nu |
| Multicast support | — | — | Yes | Yes | — |
| Networking standards | IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u | IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x | — | — | IEEE 802.3u, IEEE 802.3x |
| Number of fans | — | — | 3 fan(s) | 3 fan(s) | — |
| Operating relative humidity (H-H) | 10 - 90% | 10 - 90% | 10 - 90% | 10 - 90% | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C | 0 - 40 °C | 0 - 40 °C | 0 - 40 °C | 0 - 40 °C |
| Package depth | 192 mm | 400 mm | — | — | 139 mm |
| Package height | 107 mm | 80 mm | — | — | 85 mm |
| Package type | Box | Box | — | — | Box |
| Package weight | 360 g | 1.95 kg | — | — | 240 g |
| Package width | 107 mm | 250 mm | — | — | 100 mm |
| Packet buffer memory | 1 MB | — | 12 MB | 16 MB | 2 MB |
| PoE | Nu | Nu | Da | Da | Nu |
| Port mirroring | — | — | Yes | Yes | — |
| Porturi RJ 45 | 5-10 | 24-28 | 28+ | 24-28 | 5-10 |
| Porturi SFP | N/A | N/A | 1-2 | 1-2 | N/A |
| Power connector | DC-in jack | DC-in jack | AC-in jack | — | DC-in jack |
| Power consumption (max) | 2.3 W | 13.08 W | 635.7 W | 629.1 W | 2.2 W |
| Power over Ethernet (PoE) | No | No | Yes | Yes | No |
| Power over Ethernet plus (PoE+) ports quantity | — | — | 48 | 16 | — |
| Power source | DC | AC | AC | AC/PoE | DC |
| Power supply included | Yes | Yes | Yes | Yes | No |
| Quality of Service (QoS) support | Yes | Yes | Yes | Yes | — |
| Quick start guide | — | — | Yes | Yes | Yes |
| Rackable | No | No | Yes | Yes | — |
| Rack mounting | No | Yes | Yes | Yes | No |
| Rack mount kit | — | Yes | — | Yes | — |
| Rate limiting | — | — | Yes | Yes | — |
| Redundant PSU | No | Yes | No | Yes | — |
| SFP module slots quantity | — | — | 4 | 4 | — |
| Spanning tree protocol | — | — | Yes | Yes | — |
| SSH/SSL support | — | — | Yes | Yes | — |
| Stackable | No | Yes | No | No | No |
| Static port security | — | — | Yes | Yes | — |
| Storage relative humidity (H-H) | 5 - 90% | 5 - 90% | 5 - 90% | 5 - 90% | 5 - 95% |
| Storage temperature (T-T) | -40 - 70 °C | -40 - 70 °C | -40 - 70 °C | -40 - 70 °C | -40 - 70 °C |
| Store-and-forward | Yes | Yes | Yes | Yes | Yes |
| Supported network protocols | — | CSMA/CD, TCP/IP | — | — | CSMA/CD, TCP/IP |
| Sustainability compliance | — | — | — | Yes | Yes |
| Switching capacity | 10 Gbit/s | 48 Gbit/s | 176 Gbit/s | 200 Gbit/s | 16 Gbit/s |
| Switch type | Unmanaged | Unmanaged | Managed | Managed | Unmanaged |
| System event log | — | — | Yes | Yes | — |
| Total Power over Ethernet (PoE) budget | — | — | 500 W | 500 W | — |
| User guide | Yes | Yes | — | — | — |
| Viteza transfer | Gigabit | Gigabit | 10G+ | 2.5G | Fast Ethernet |
| VLAN support | — | — | Yes | Yes | — |
| Web-based management | — | — | Yes | Yes | — |
| Laptopuri - Caracteristici fizice 25.09 | |||||
| Adâncime | 98 mm | 180 mm | 330 mm | 330 mm | 7.9 mm |
| Lățime | 100 mm | 294 mm | — | — | 134.5 mm |
| Înălțime | 25 mm | 44 mm | — | — | 22.5 mm |
| Laptopuri - Construcție | |||||
| Culoare | Black | Grey | — | — | White |
| Laptopuri - Generale | |||||
| Garanție comercială | 60 | 60 | 60 | 24 | 36 |
| Producător | TP-LINK | TP-LINK | TP-LINK | TP-LINK | TP-LINK |
| Laptopuri - Tip laptop | |||||
| Construcție laptop | — | — | 1U | 1U | — |
Analiză inteligentă a produsului
Descriere oficială
| Numar porturi |
5x RJ-45
|
| Porturi |
5x RJ45
|
| Viteza de transfer |
10/100/1000 Mbps
|
| Putere consumata |
2.43 W
|
| Dimensiuni |
100 x 98 x 25 mm
|
| Memorie Buffer |
1 Mb
|
| Adrese MAC |
2 K
|
Specificații tehnice 72 caracteristici ⌄
- 10G support
- No
- AC input frequency
- 50 Hz
- AC input voltage
- 220 V
- Auto-negotiation
- Yes
- Auto MDI/MDI-X
- Yes
- Basic switching RJ-45 Ethernet ports type
- 5
- Cables included
- AC
- Cable types supported
- Cat3, Cat4, Cat5, Cat5e
- Copper ethernet cabling technology
- 10BASE-T, 100BASE-TX, 1000BASE-T
- DC input voltage
- 5 V
- Flow control support
- Yes
- Forwarding rate
- 7.4 Mpps
- Full duplex
- Yes
- Gigabit Ethernet (copper) ports quantity
- 5
- Harmonized System (HS) code
- 85176990
- Heat dissipation
- 7.83 BTU/h
- IGMP snooping
- Yes
- Input current
- 0.6 A
- Input voltage
- 5 V
- Jumbo frames
- 16000
- Jumbo frames support
- Yes
- LAN ports
- 5
- LAN port type
- Gigabit
- Layer
- Unmanaged
- LED indicators
- Yes
- MAC address auto-aging supported
- Yes
- MAC address auto-learning supported
- Yes
- MAC address table
- 2000 entries
- Management
- nu
- Montare in rack
- Nu
- Networking standards
- IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u
- Number of power supply units
- 1
- Operating relative humidity (H-H)
- 10 - 90%
- Operating temperature (T-T)
- 0 - 40 °C
- Output current
- 0.6 A
- Output voltage
- 9 V
- Package depth
- 192 mm
- Package height
- 107 mm
- Package type
- Box
- Package weight
- 360 g
- Package width
- 107 mm
- Packet buffer memory
- 1 MB
- Plug and Play
- Yes
- PoE
- Nu
- Porturi RJ 45
- 5-10
- Porturi SFP
- N/A
- Power connector
- DC-in jack
- Power consumption (max)
- 2.3 W
- Power over Ethernet (PoE)
- No
- Power source
- DC
- Power supply included
- Yes
- Quality of Service (QoS) support
- Yes
- Rackable
- No
- Rack mounting
- No
- Redundant PSU
- No
- Rubber feet
- Yes
- Stackable
- No
- Storage relative humidity (H-H)
- 5 - 90%
- Storage temperature (T-T)
- -40 - 70 °C
- Store-and-forward
- Yes
- Switching capacity
- 10 Gbit/s
- Switch type
- Unmanaged
- User guide
- Yes
- Viteza transfer
- Gigabit
- Wall mountable
- Yes
- Adâncime
- 98 mm
- Lățime
- 100 mm
- Material carcasă
- Steel
- Înălțime
- 25 mm
- Culoare
- Black
- Garanție comercială
- 60
- Producător
- TP-LINK
