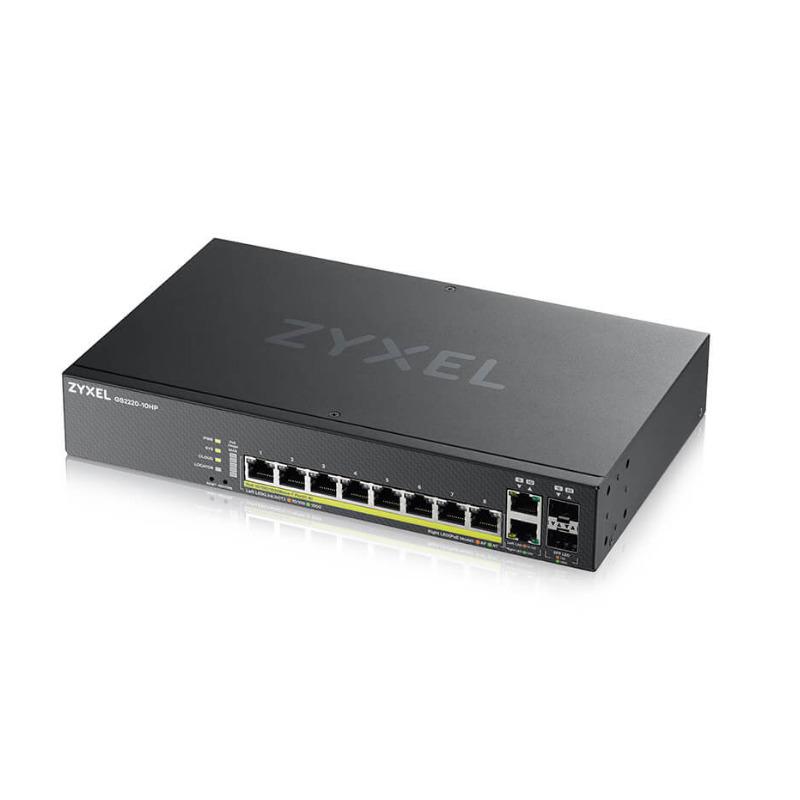

Switch ZYXEL GS2220-10, 10 port, 10/100/1000 Mbps

Switchuri

Switch ZYXEL GS2220-10, 10 port, 10/100/1000 Mbps

(0) În stoc
Vândut de RITC.ro Cod produs: GS2220-10-EU0101F

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni Garanție producător De confirmat Producător: De confirmat

Compară cu produse similare

Vezi comparația completă
Caracteristică Switch ZYXEL GS2220-10, 10 port, 10/100/1000 Mbps Switch Zyxel Gigabit GS1900-8, 8 porturi, PoE Switch Zyxel GS1920-24HPV2, Gigabit, 24 porturi, PoE Switch ZYXEL GS2220-28, 28 port, 10/100/1000 Mbps Switch TP-Link Omada 8-Port 2.5G L2+ Managed Switch, 2.5G, 8 porturi
Culoare produs Black Black Black Black Black
Access Control List (ACL) Yes — Yes Yes Yes
AC input frequency 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz 50/60 Hz
AC input voltage 100 - 240 V 100 - 240 V 100 - 240 V 100 - 240 V 100 - 240 V
ARP inspection — — Yes — Yes
Authentication Guest VLAN, MAC-based authentication — Guest VLAN, Port-based authentication Guest VLAN, MAC-based authentication MAC-based authentication, Port-based authentication
Basic switching RJ-45 Ethernet ports type 10, Gigabit Ethernet (10/100/1000) 8, Gigabit Ethernet (10/100/1000) 24, Gigabit Ethernet (10/100/1000) 24, Gigabit Ethernet (10/100/1000) 2.5G Ethernet (100/1000/2500), 8
Broadcast storm control Yes Yes — Yes Yes
Cables included AC — AC AC AC
Certification LVD, BSMI FCC 15 A, CE EMC A, BSMI ENC RoHS A — RoHS LVD, BSMI FCC 15 A, CE EMC A, BSMI ENC RoHS A CE, FCC, RoHS
Combo SFP ports quantity — — 4 4 —
Configuring Location Settings (CLI) Yes — — Yes Yes
Copper ethernet cabling technology 10BASE-TX, 1000BASE-T — 100BASE-TX, 1000BASE-T 10BASE-TX, 1000BASE-T —
DHCP features DHCP client, DHCP relay, DHCP snooping, DHCPv6 client, DHCPv6 relay DHCP client DHCP snooping, DHCP relay, DHCPv6 relay, DHCP client DHCP client, DHCP relay, DHCP snooping, DHCPv6 client, DHCPv6 relay DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Fanless Yes — — Yes Yes
Firmware upgradeable Yes — — Yes —
Flow control support Yes Yes Yes Yes Yes
Harmonized System (HS) code 85176990 — 85176990 85176990 85176990
Heat dissipation 37.51 BTU/h — 1580.54 BTU/h 76.725 BTU/h 51.18 BTU/h
IGMP snooping Yes Yes Yes Yes Yes
IP-MAC-Port binding — — Yes — Yes
Jumbo frames — 9000 — — 9000
Jumbo frames support — Yes — — Yes
LAN port type Gigabit Gigabit Gigabit — FastEthernet
LED indicators — — Yes — Yes
Link aggregation Yes — — Yes Yes
MAC address filtering Yes Yes Yes Yes Yes
MAC address table 16000 entries 8000 entries 16000 entries 16000 entries 16000 entries
Multicast support Yes Yes Yes Yes Yes
Operating relative humidity (H-H) 10 - 95% — 10 - 95% 10 - 95% 10 - 90%
Operating temperature (T-T) 0 - 50 °C — 0 - 50 °C 0 - 50 °C 0 - 50 °C
Package depth 235 mm — 355 mm 214 mm 250 mm
Package height 61 mm — 107 mm 79 mm 80 mm
Package weight 2.21 kg — 4.97 kg 29.1 kg 2.84 kg
Package width 375 mm — 616 mm 558 mm 528 mm
Packet buffer memory 1.5 MB — 1.5 MB 1.5 MB 12 MB
Power connector — DC-in jack — — AC-in jack
Power consumption (max) 11 W 5 W 463.5 W 22.5 W —
Queue scheduling algorithms — — SPQ, WFQ, Weighted Round Robin (WRR) — SP, WRR+SP, Weighted Round Robin (WRR)
Rate limiting Yes Yes Yes Yes Yes
Security algorithms SNMP, SNMPv2, SNMPv3, SSH-2, SSL/TLS 802.1x RADIUS 802.1x RADIUS, SNMP, SNMPv3 SNMP, SNMPv2, SNMPv3, SSH-2, SSL/TLS HTTPS, SSH, SSH-2, SSL/TLS
Spanning tree protocol Yes — Yes Yes Yes
Storage relative humidity (H-H) 10 - 95% — 10 - 95% 10 - 95% 5 - 90%
Storage temperature (T-T) -40 - 70 °C — -40 - 70 °C -40 - 70 °C -40 - 70 °C
Switch layer L2 L2 — L2 L2
Switch type Managed Managed Managed Managed Managed
System event log Yes — Yes Yes Yes
Virtual LAN features Port-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN — — Port-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Web-based management Yes Yes — Yes Yes
Greutate 1.3 kg 650 g 3.8 kg 2.2 kg —
Management Da Da Da Da nu
Montare in rack Da Nu Da Da Nu
PoE Nu Da Da Nu Nu
Porturi RJ 45 5-10 5-10 24-28 28+ 5-10
Porturi SFP 1-2 1-2 5-8 1-2 1-2
Viteză transfer Gigabit Gigabit Gigabit Gigabit 2.5G
Sursă inclusă — Yes — — Yes
MTBF 1213492 h — 638691 h 989157 h —
Sursă de alimentare — AC — — AC
Alimentare PoE No No Yes No —
Capacitate switching 20 Gbit/s 16 Gbit/s 56 Gbit/s 56 Gbit/s 80 Gbit/s
Metode autentificare IEEE 802.1x, RADIUS — IEEE 802.1x, RADIUS IEEE 802.1x, RADIUS AAA, TACACS+
Montare rack Yes Yes Yes Yes Yes
Rată forwarding 15 Mpps — 42 Mpps 42 Mpps 59.52 Mpps
Suport 10G No No No No Yes
Suport QoS Yes Yes Yes Yes Yes
Suport VLAN Yes Yes Yes Yes Yes
Adâncime 162 mm 104 mm 270 mm 131 mm 180 mm
Lățime 267 mm 250 mm 441 mm 441 mm 294 mm
Înălțime 44 mm 27 mm 44 mm 44 mm 44 mm
Producător ZYXEL ZYXEL ZYXEL ZYXEL TP-LINK
Nivel zgomot 0 dB — 27.2 dB 0 dB —
Protecție cu parolă — — Yes — Yes
Memorie flash 32 MB — 32 MB 32 MB —

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

Numar porturi
8x RJ-45
Porturi
8x RJ45
2x Combo(RJ45/SFP)
Viteza de transfer
10/100/1000 Mbps
Management
Da
Putere consumata
210.8W
Alimentare
100 – 240 V AC, 50/60 Hz
PoE
Da, 8 porturi PoE
PoE Budget
180 W
Dimensiuni
267 x 162 x 44 mm
Greutate
1.8 kg
Memorie Buffer
1.5 MB
Memorie
Flash: 32 MB
Ram: 256 MB
Adrese MAC
16k
Specificații tehnice 63 caracteristici
Culoare produs
Black
Access Control List (ACL)
Yes
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Authentication
Guest VLAN, MAC-based authentication
Basic switching RJ-45 Ethernet ports type
10, Gigabit Ethernet (10/100/1000)
Broadcast storm control
Yes
Cables included
AC
Certification
LVD, BSMI FCC 15 A, CE EMC A, BSMI ENC RoHS A
Configuring Location Settings (CLI)
Yes
Copper ethernet cabling technology
10BASE-TX, 1000BASE-T
DHCP features
DHCP client, DHCP relay, DHCP snooping, DHCPv6 client, DHCPv6 relay
Fanless
Yes
Firmware upgradeable
Yes
Flow control support
Yes
Harmonized System (HS) code
85176990
Heat dissipation
37.51 BTU/h
IGMP snooping
Yes
LAN port type
Gigabit
Link aggregation
Yes
MAC address filtering
Yes
MAC address table
16000 entries
Multicast support
Yes
Operating relative humidity (H-H)
10 - 95%
Operating temperature (T-T)
0 - 50 °C
Package depth
235 mm
Package height
61 mm
Package weight
2.21 kg
Package width
375 mm
Packet buffer memory
1.5 MB
Power consumption (max)
11 W
Rate limiting
Yes
Security algorithms
SNMP, SNMPv2, SNMPv3, SSH-2, SSL/TLS
Spanning tree protocol
Yes
Storage relative humidity (H-H)
10 - 95%
Storage temperature (T-T)
-40 - 70 °C
Switch layer
L2
Switch type
Managed
System event log
Yes
Virtual LAN features
Port-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN
Web-based management
Yes
Greutate
1.3 kg
Management
Da
Montare in rack
Da
PoE
Nu
Porturi RJ 45
5-10
Porturi SFP
1-2
Viteză transfer
Gigabit
MTBF
1213492 h
Alimentare PoE
No
Capacitate switching
20 Gbit/s
Metode autentificare
IEEE 802.1x, RADIUS
Montare rack
Yes
Rată forwarding
15 Mpps
Suport 10G
No
Suport QoS
Yes
Suport VLAN
Yes
Adâncime
162 mm
Lățime
267 mm
Înălțime
44 mm
Producător
ZYXEL
Nivel zgomot
0 dB
Memorie flash
32 MB
