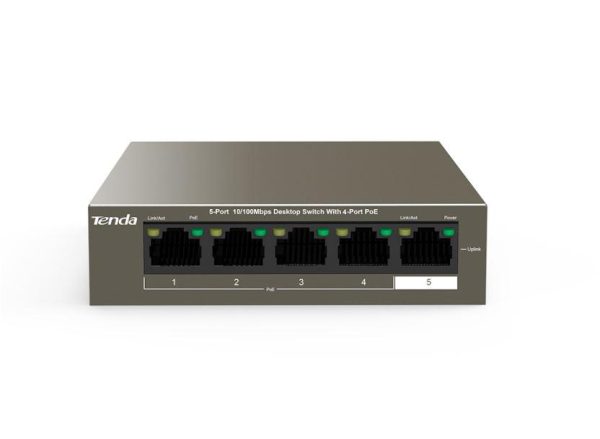

Tenda switch TEF1105P-4-38W, 5-Port 10/100Mbps, 4-porturi POE, Standarde de retea:

Switchuri

Tenda switch TEF1105P-4-38W, 5-Port 10/100Mbps, 4-porturi POE, Standarde de retea:

(0) Stoc epuizat
Vândut de RITC.ro Cod produs: TEF1105P-4-38W

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Tenda switch TEF1105P-4-38W, 5-Port 10/100Mbps, 4-porturi POE, Standarde de retea: Switch TP-Link TL-SG1024D, 24 port, 10/100/1000 Mbps "JetStream™ 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch Extralink KRATOS PoE Switch 7x Gigabit PoE 1x Switch TP-Link TL-SF1008D, 8 port, 10/100 Mbps
Alte caracteristici
10G support No No Yes No No
AC input frequency 50 - 60 Hz 50 - 60 Hz — 50 - 60 Hz 50 - 60 Hz
Auto-negotiation — Yes — Yes Yes
Auto MDI/MDI-X — Yes — — Yes
Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100) 24 24 8 Fast Ethernet (10/100)
Cables included — AC AC — —
Cable types supported — Cat3, Cat4, Cat5, Cat5e — Cat5, Cat5e, Cat6 —
Cloud-managed — — Yes No —
Compliance certificates — — CE, Federal Communications Commission (FCC), RoHS — CE, Federal Communications Commission (FCC), RoHS
Configuring Location Settings (CLI) — — Yes No —
Copper ethernet cabling technology 10BASE-T, 100BASE-TX — — — 10BASE-T, 100BASE-TX
Depth 100 mm 180 mm 330 mm 8.2 mm 7.9 mm
Fast Ethernet (copper) ports quantity 5 — — — 8
Flow control support Yes Yes Yes — Yes
Form factor — — 1U 1U —
Forwarding rate — 35.7 Mpps 148.8 Mpps — —
Full duplex Yes Yes Yes — Yes
Half duplex — — Yes — Yes
Harmonized System (HS) code 85176990 85176990 — — 85176990
Heat dissipation — 44.63 BTU/h 2153.45 BTU/h — 6.99 BTU/h
Height 26 mm 44 mm — 27 mm 22.5 mm
Input current — — — 2.5 A 0.6 A
Jumbo frames — 10000 9000 — —
Jumbo frames support — Yes Yes — —
LAN ports — 24 24 — —
LAN port type FastEthernet Gigabit Gigabit Gigabit FastEthernet
Layer — Unmanaged Layer-2 — —
LED indicators Yes Yes Yes Yes Yes
MAC address table 1024 entries 8000 entries 32000 entries 4096 entries 1000 entries
Management nu nu Da nu nu
Montare in rack Nu Nu Da Nu Nu
Networking standards IEEE 802.3, IEEE 802.3af, IEEE 802.3u IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x — IEEE 802.3af IEEE 802.3u, IEEE 802.3x
Operating relative humidity (H-H) 10 - 90% 10 - 90% 10 - 90% 10 - 80% 10 - 90%
Operating temperature (T-T) 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C
Package depth — 400 mm — — 139 mm
Package height — 80 mm — — 85 mm
Package type — Box — — Box
Package weight — 1.95 kg — — 240 g
Package width — 250 mm — — 100 mm
Packet buffer memory — — 16 MB — 2 MB
PoE Da Nu Da Da Nu
Port mirroring — — Yes No —
Porturi RJ 45 5-10 24-28 24-28 5-10 5-10
Porturi SFP N/A N/A 1-2 N/A N/A
Power connector — DC-in jack — DC-in jack DC-in jack
Power consumption (max) 38 W 13.08 W 629.1 W — 2.2 W
Power over Ethernet (PoE) Yes No Yes Yes No
Power over Ethernet (PoE) power per port 15 W — — 30 W —
Power source — AC AC/PoE AC DC
Power supply included — Yes Yes Yes No
Quality of Service (QoS) support — Yes Yes No —
Quick start guide — — Yes — Yes
Rackable — No Yes — —
Rack mounting No Yes Yes No No
Rack mount kit — Yes Yes — —
Redundant fans support — — Yes No —
Redundant PSU — Yes Yes — —
Stackable — Yes No No No
Storage relative humidity (H-H) 5 - 90% 5 - 90% 5 - 90% 5 - 90% 5 - 95%
Storage temperature (T-T) -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C
Store-and-forward Yes Yes Yes — Yes
Supported network protocols — CSMA/CD, TCP/IP — — CSMA/CD, TCP/IP
Sustainability compliance — — Yes — Yes
Switching capacity 1 Gbit/s 48 Gbit/s 200 Gbit/s 16 Gbit/s 16 Gbit/s
Switch layer L2 — — L2 —
Switch type Unmanaged Unmanaged Managed Unmanaged Unmanaged
System event log — — Yes No —
Total Power over Ethernet (PoE) budget — — 500 W 60 W —
Viteza transfer Fast Ethernet Gigabit 2.5G Gigabit Fast Ethernet
Web-based management — — Yes No —
Width 100 mm 294 mm — 192 mm 134.5 mm
Laptopuri - Construcție
Culoare Grey Grey — Black White
Laptopuri - Generale
Garanție comercială 36 60 24 60 36
Producător TENDA TP-LINK TP-LINK EXTRALINK TP-LINK

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

Tenda switch TEF1105P-4-38W, 5-Port 10/100Mbps, 4-porturi POE, Standarde de retea: IEEE 802.3、 IEEE 802.3u、IEEE 802.3x、 IEEE 802.3af, interfata: 4*10/100 Base-TX Ethernet Ports(Data/Power), 1*10/100 Base-TX Ethernet Port(Data), Dimensiuni: 100.0mmx100.0mmx26.0mm, Switch capacity: 1Gbps, buget POE: 35W.

Specificații tehnice 39 caracteristici
10G support
No
AC input frequency
50 - 60 Hz
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Copper ethernet cabling technology
10BASE-T, 100BASE-TX
Depth
100 mm
Fast Ethernet (copper) ports quantity
5
Flow control support
Yes
Full duplex
Yes
Harmonized System (HS) code
85176990
Height
26 mm
LAN port type
FastEthernet
LED indicators
Yes
MAC address table
1024 entries
Management
nu
Montare in rack
Nu
Networking standards
IEEE 802.3, IEEE 802.3af, IEEE 802.3u
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
PoE
Da
Porturi RJ 45
5-10
Porturi SFP
N/A
Power consumption (max)
38 W
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
4
Power over Ethernet (PoE) power per port
15 W
Rack mounting
No
Storage relative humidity (H-H)
5 - 90%
Storage temperature (T-T)
-40 - 70 °C
Store-and-forward
Yes
Surge protection
Yes
Surge protection voltage
6 kV
Switching capacity
1 Gbit/s
Switch layer
L2
Switch type
Unmanaged
Viteza transfer
Fast Ethernet
Width
100 mm
Culoare
Grey
Garanție comercială
36
Producător
TENDA
