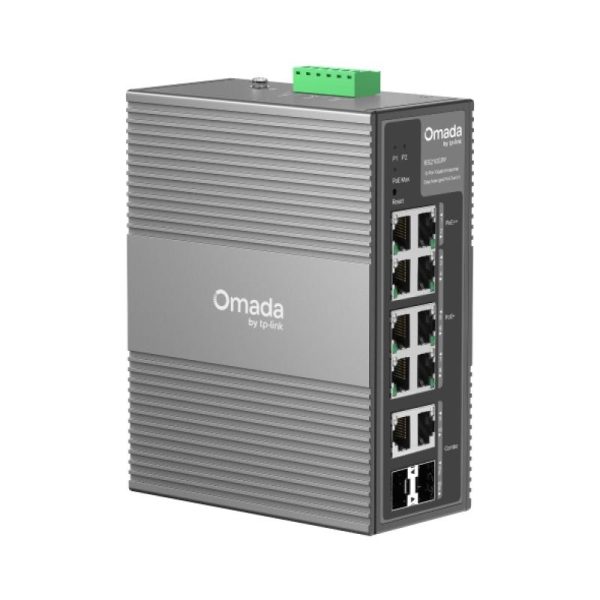

TP-Link Omada IES210GPP. Switch type: Managed. Basic switching RJ-45 Ethernet

Switchuri

TP-Link Omada IES210GPP. Switch type: Managed. Basic switching RJ-45 Ethernet

(0) Stoc epuizat
Vândut de RITC.ro Cod produs: IES210GPP(UN)

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică TP-Link Omada IES210GPP. Switch type: Managed. Basic switching RJ-45 Ethernet Switch TP-Link TL-SG1024D, 24 port, 10/100/1000 Mbps "JetStream™ 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch "JetStream™ 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch "JetStream™ 8-Port 10GE SFP+ L2+ Managed Switch PORT: 8× 10G
Alte caracteristici
10G support No No Yes Yes Yes
Access Control List (ACL) — — Yes Yes Yes
ARP inspection — — Yes Yes Yes
Authentication — — Auto VLAN, Guest VLAN Guest VLAN, MAC-based authentication, Port-based authentication Guest VLAN, MAC-based authentication, Port-based authentication, Web-based authentication
Authentication type — — — AAA, IEEE 802.1x, RADIUS, TACACS+ AAA, TACACS+
Auto-negotiation Yes Yes — — —
Auto MDI/MDI-X Yes Yes — — —
Basic switching RJ-45 Ethernet ports type 8 24 48 24 No
BPDU filtering/protection — — Yes Yes Yes
Broadcast storm control Yes — Yes Yes Yes
Cables included — AC AC AC AC
Cloud-managed Yes — Yes Yes Yes
Configuring Location Settings (CLI) — — Yes Yes Yes
Console port — — RJ-45/micro-USB RJ-45/micro-USB RJ-45/micro-USB
DHCP features DHCP client — DHCP client, DHCP relay, DHCP server DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Flow control support Yes Yes Yes Yes Yes
Forwarding rate 14.88 Mpps 35.7 Mpps 130.9 Mpps 148.8 Mpps 119.04 Mpps
Full duplex — Yes — Yes —
Head-of-line (HOL) blocking — — Yes Yes Yes
Heat dissipation — 44.63 BTU/h 2169.2 BTU/h 2153.45 BTU/h 52.75 BTU/h
IGMP snooping Yes — Yes Yes Yes
IP-MAC-Port binding — — Yes Yes Yes
IPv4 & IPv6 features — — — IPv4/IPv6 access-control list (ACL), IPv6 ping, IPv6 portal, IPv6 tracert IPv6 Telnet, IPv6 ping, IPv6 tracert
Jumbo frames 15000 10000 9000 9000 9000
Jumbo frames support Yes Yes Yes Yes Yes
LAN ports — 24 48 24 —
LAN port type — Gigabit Gigabit Gigabit 10Gigabit
Layer — Unmanaged Layer-2 Layer-2 —
LED indicators Yes Yes Yes Yes Yes
Link aggregation Yes — Yes Yes Yes
Loop protection Yes — — Yes Yes
MAC address filtering — — Yes — Yes
MAC address table 8000 entries 8000 entries 16000 entries 32000 entries 32000 entries
Management — nu Da Da Da
MIB support — — — RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925 RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213
Montare in rack Da Nu Da Da Nu
Multicast Listener Discovery (MLD) snooping — — — MLD v1/v2 Y
Multicast support Yes — Yes Yes Yes
Networking standards IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x — — IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x
Number of fans — — 3 fan(s) 3 fan(s) —
Number of queues — — — 8 8
Number of VLANs 4000 — — — 4000
Operating relative humidity (H-H) — 10 - 90% 10 - 90% 10 - 90% 10 - 90%
Operating temperature (T-T) — 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 45 °C
Package type — Box — — Box
Packet buffer memory 4000 MB — 12 MB 16 MB 16 MB
PoE — Nu Da Da Nu
Port mirroring Yes — Yes Yes Yes
Porturi RJ 45 5-10 24-28 28+ 24-28 1-4
Porturi SFP 1-2 N/A 1-2 1-2 5-8
Power connector — DC-in jack AC-in jack — DC-in jack
Power consumption (max) — 13.08 W 635.7 W 629.1 W 15.46 W
Power over Ethernet (PoE) Yes No Yes Yes No
Power over Ethernet 4PPoE (PoE++) ports quantity 2 — — 8 —
Power over Ethernet plus (PoE+) ports quantity 6 — 48 16 —
Power source DC AC AC AC/PoE AC
Power supply included — Yes Yes Yes Yes
Quality of Service (QoS) support Yes Yes Yes Yes Yes
Queue scheduling algorithms — — — SP, WRR+SP, Weighted Round Robin (WRR) SP, WRR+SP, Weighted Round Robin (WRR)
Quick start guide — — Yes Yes Yes
Rackable — No Yes Yes —
Rack mounting Yes Yes Yes Yes Yes
Rack mount kit — Yes — Yes Yes
Rate limiting — — Yes Yes Yes
Redundant PSU — Yes No Yes —
Security algorithms — — — HTTPS, SSH, SSH-2, SSL/TLS HTTPS, SSH, SSH-2, SSL/TLS
SFP module slots quantity — — 4 4 8
Spanning tree protocol — — Yes Yes Yes
SSH/SSL support — — Yes Yes Yes
Stackable — Yes No No —
Static port security — — Yes Yes Yes
Static route — — — Yes Yes
Storage relative humidity (H-H) — 5 - 90% 5 - 90% 5 - 90% 5 - 90%
Storage temperature (T-T) — -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C
Store-and-forward Yes Yes Yes Yes —
Switching capacity 20 Gbit/s 48 Gbit/s 176 Gbit/s 200 Gbit/s 160 Gbit/s
Switch type Managed Unmanaged Managed Managed Managed
System event log — — Yes Yes Yes
Total Power over Ethernet (PoE) budget 240 W — 500 W 500 W —
Virtual LAN features — — — MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Stacked VLAN, Tagged VLAN, Voice VLAN Private VLAN, Protocol-based VLAN, Voice VLAN
Viteza transfer Gigabit Gigabit 10G+ 2.5G 10G+
VLAN support Yes — Yes Yes Yes
Web-based management Yes — Yes Yes Yes
Laptopuri - Caracteristici fizice 25.09
Adâncime 120 mm 180 mm 330 mm 330 mm 180 mm
Lățime 155 mm 294 mm — — —
Înălțime 60 mm 44 mm — — —
Laptopuri - Conectivitate și porturi 25.09
Viteză rețea LAN 10,100,1000 Mbit/s — — 10,100,1000,2500,10000 Mbit/s —
Laptopuri - Construcție
Culoare Grey Grey — — —
Laptopuri - Generale
Garanție comercială 24 60 60 24 60
Producător TP-LINK TP-LINK TP-LINK TP-LINK TP-LINK
Laptopuri - Tip laptop
Construcție laptop DIN rail — 1U 1U —

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

TP-Link Omada IES210GPP. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt. DC input voltage: 12 – 57 V. Power over Ethernet (PoE). Rack mounting, Form factor: DIN rail

Specificații tehnice 47 caracteristici
10G support
No
Auto-negotiation
Yes
Auto MDI/MDI-X
Yes
Basic switching RJ-45 Ethernet ports type
8
Broadcast storm control
Yes
Cloud-managed
Yes
Combo SFP ports quantity
2
DC input voltage
12 - 57 V
DHCP features
DHCP client
Flow control support
Yes
Forwarding rate
14.88 Mpps
IGMP snooping
Yes
Jumbo frames
15000
Jumbo frames support
Yes
LED indicators
Yes
Link aggregation
Yes
Loop protection
Yes
MAC address table
8000 entries
Montare in rack
Da
Multicast support
Yes
Networking standards
IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Number of VLANs
4000
Packet buffer memory
4000 MB
Port mirroring
Yes
Porturi RJ 45
5-10
Porturi SFP
1-2
Power over Ethernet (PoE)
Yes
Power over Ethernet 4PPoE (PoE++) ports quantity
2
Power over Ethernet plus (PoE+) ports quantity
6
Power source
DC
Quality of Service (QoS) support
Yes
Rack mounting
Yes
Store-and-forward
Yes
Switching capacity
20 Gbit/s
Switch type
Managed
Total Power over Ethernet (PoE) budget
240 W
Viteza transfer
Gigabit
VLAN support
Yes
Web-based management
Yes
Adâncime
120 mm
Lățime
155 mm
Înălțime
60 mm
Viteză rețea LAN
10,100,1000 Mbit/s
Culoare
Grey
Garanție comercială
24
Producător
TP-LINK
Construcție laptop
DIN rail
