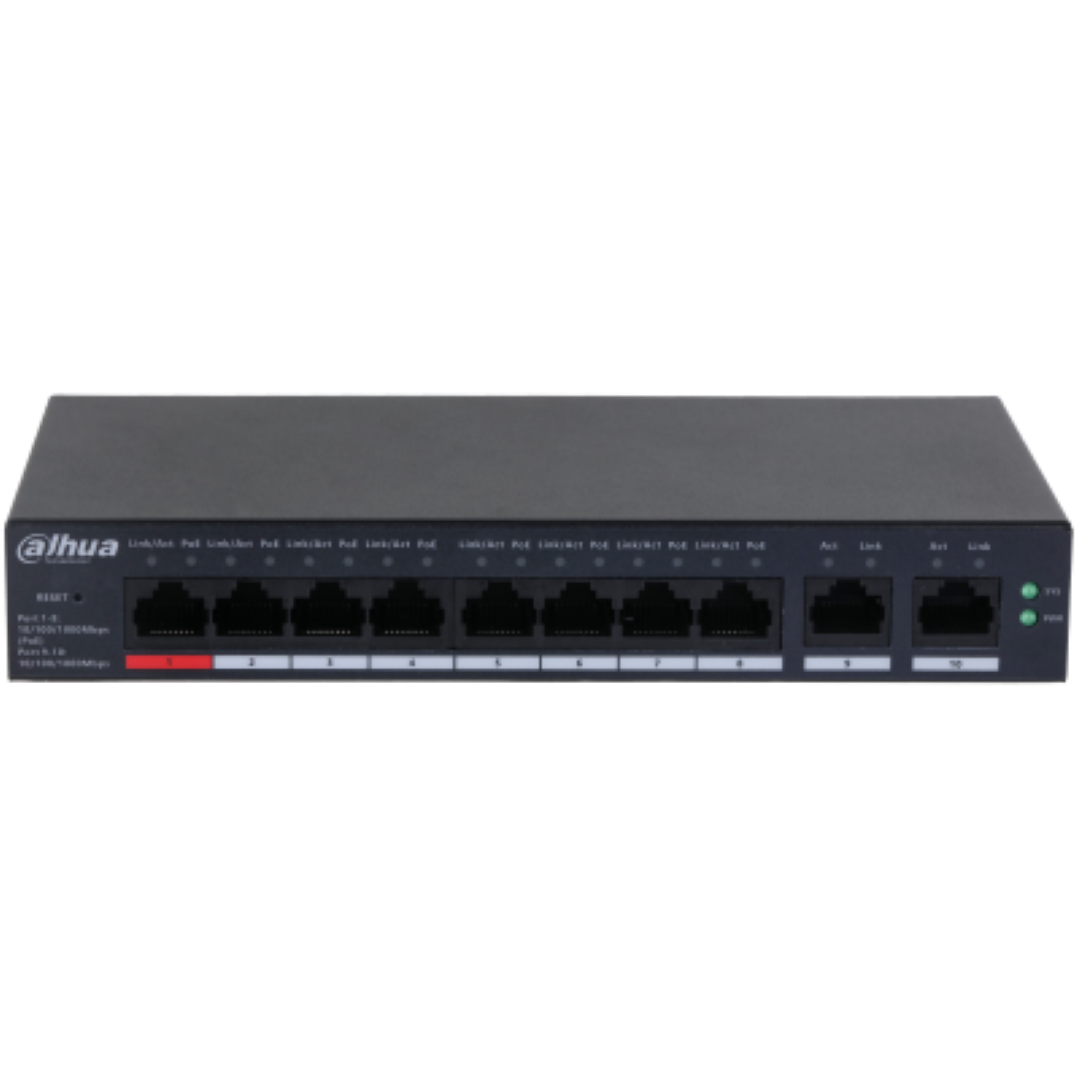

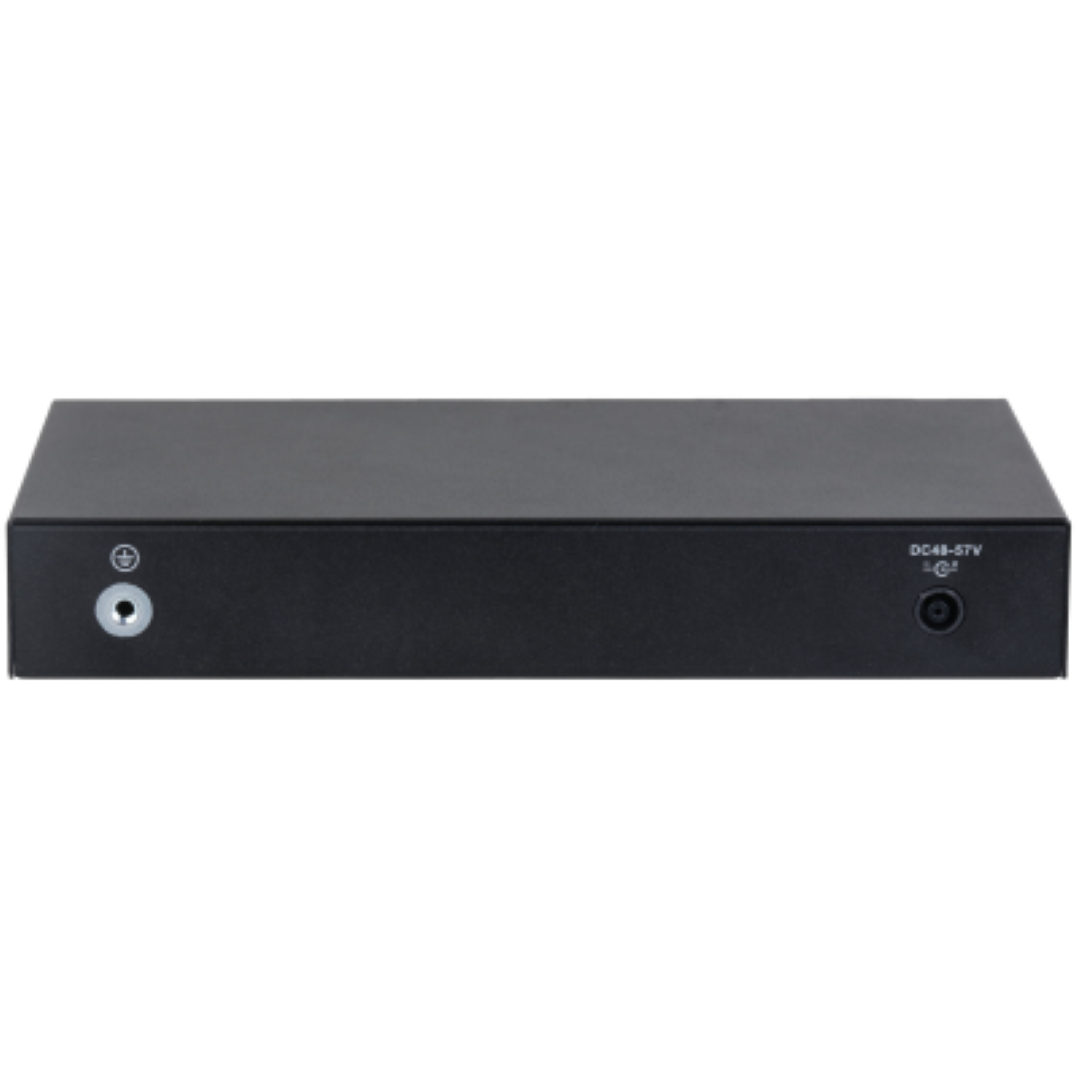

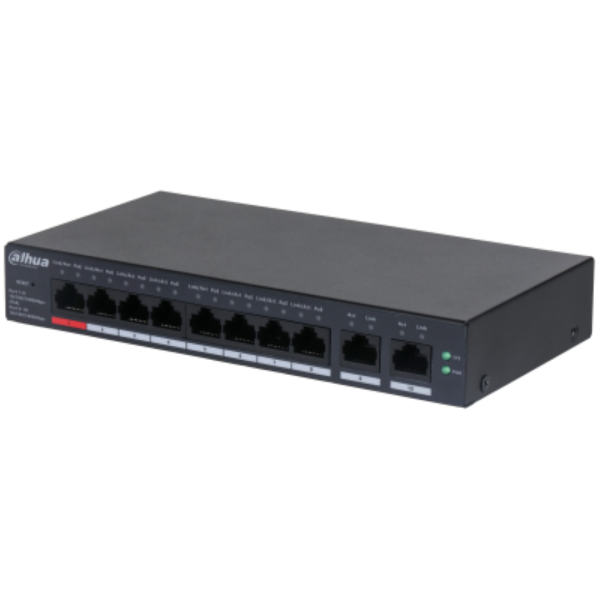

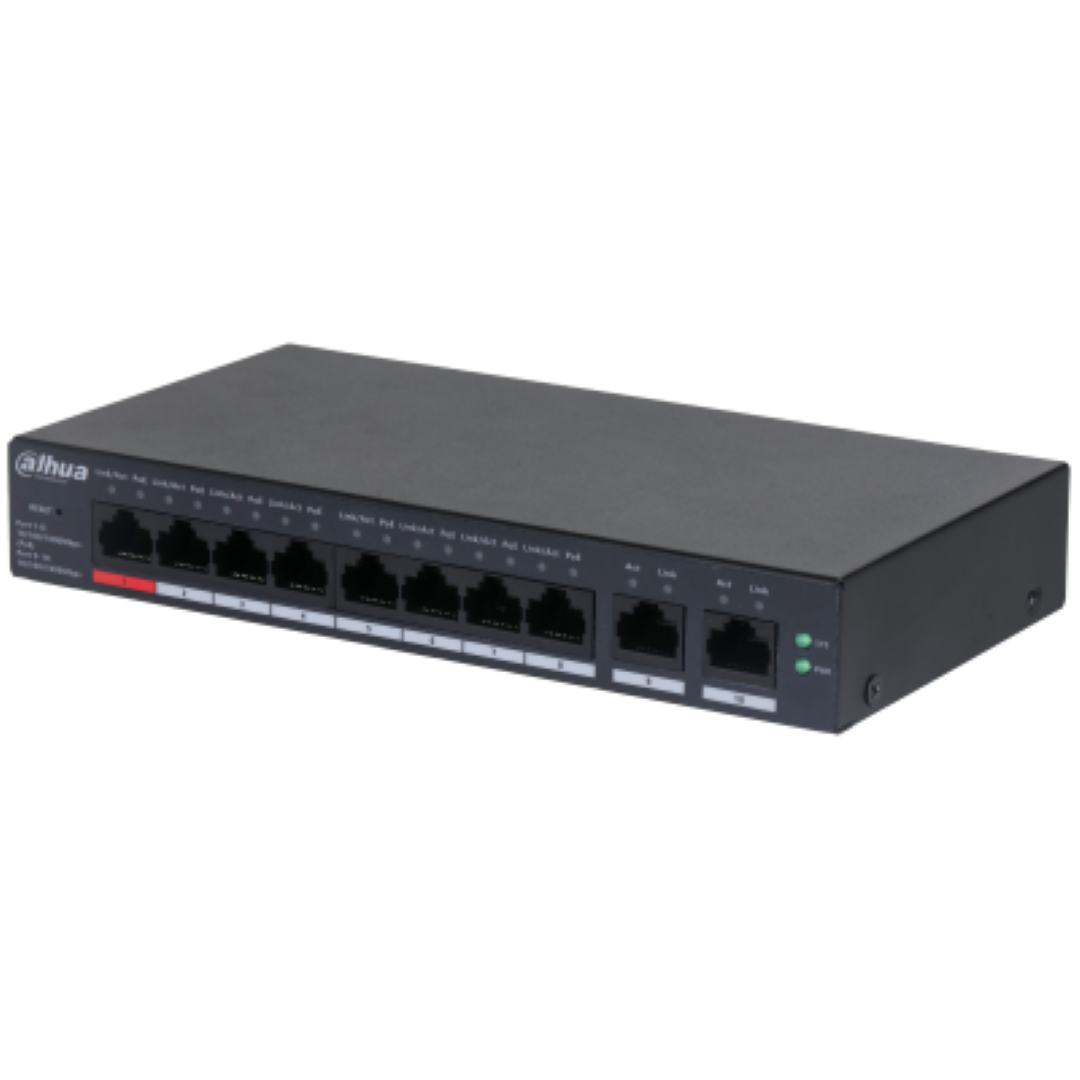

Dahua 10 Port Cloud managed POE switch CS4010-8ET-110, Interfata: Port

Switchuri

Dahua 10 Port Cloud managed POE switch CS4010-8ET-110, Interfata: Port

(0) Stoc epuizat
Vândut de RITC.ro Cod produs: CS4010-8ET-110

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Dahua 10 Port Cloud managed POE switch CS4010-8ET-110, Interfata: Port Extralink KRATOS PoE Switch 7x Gigabit PoE 1x Switch TP-Link TL-SF1008D, 8 port, 10/100 Mbps Switch TP-Link TL-SF1016, 16 port, 10/100 Mbps "JetStream™ 8-Port 10GE SFP+ L2+ Managed Switch PORT: 8× 10G
Alte caracteristici
10G support No No No No Yes
AC input frequency — 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz —
Auto-negotiation — Yes Yes Yes —
Auto MDI/MDI-X — — Yes Yes —
Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100) 8 Fast Ethernet (10/100) Fast Ethernet (10/100) No
Cables included — — — AC AC
Cable types supported — Cat5, Cat5e, Cat6 — Cat3, Cat4, Cat5, Cat5e —
Cloud-managed Yes No — — Yes
Compliance certificates CE — CE, Federal Communications Commission (FCC), RoHS CE, Federal Communications Commission (FCC), RoHS —
Configuring Location Settings (CLI) — No — — Yes
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T — 10BASE-T, 100BASE-TX 10BASE-T, 100BASE-TX —
DC input voltage 54 V — 5 V — —
Depth 106 mm 8.2 mm 7.9 mm 180 mm 180 mm
DHCP features DHCP client — — — DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Ethernet LAN data rates 10,100,1000 Mbit/s — — 10,100 Mbit/s —
Fanless — — Yes Yes —
Fast Ethernet (copper) ports quantity 8 — 8 16 —
Flow control support Yes — Yes Yes Yes
Form factor — 1U — 1U —
Forwarding rate 41.7 Mpps — — 2.38 Mpps 119.04 Mpps
Garantie 36 60 36 36 60
Harmonized System (HS) code — — 85176990 85176990 —
Heat dissipation — — 6.99 BTU/h 7.03 BTU/h 52.75 BTU/h
Height 30 mm 27 mm 22.5 mm 44 mm —
Housing material Metal Metal — Metal —
Input current 2.22 A 2.5 A 0.6 A — —
Jumbo frames 9216 — — — 9000
Jumbo frames support Yes — — — Yes
LAN port type — Gigabit FastEthernet FastEthernet 10Gigabit
LED indicators Yes Yes Yes Yes Yes
MAC address table 8000 entries 4096 entries 1000 entries 8000 entries 32000 entries
Management Da nu nu nu Da
Montare in rack Nu Nu Nu Nu Nu
Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x IEEE 802.3af IEEE 802.3u, IEEE 802.3x IEEE 802.3i, IEEE 802.3u, IEEE 802.3x IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x
Number of VLANs 32 — — — 4000
Operating relative humidity (H-H) 5 - 95% 10 - 80% 10 - 90% 10 - 90% 10 - 90%
Operating temperature (T-T) -10 - 55 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 45 °C
Package depth 244 mm — 139 mm 528 mm —
Package height 87 mm — 85 mm — —
Package type — — Box Box Box
Package weight 12.5 kg — 240 g 2.28 kg —
Package width 256 mm — 100 mm 250 mm —
Packet buffer memory 0.5 MB — 2 MB 2 MB 16 MB
PoE Da Da Nu Nu Nu
Port mirroring — No — — Yes
Porturi RJ 45 5-10 5-10 5-10 11-18 1-4
Porturi SFP N/A N/A N/A N/A 5-8
Power connector — DC-in jack DC-in jack DC-in jack DC-in jack
Power consumption (max) 110 W — 2.2 W 2.23 W 15.46 W
Power over Ethernet (PoE) Yes Yes No No No
Power source DC/PoE AC DC AC AC
Power supply included Yes Yes No Yes Yes
Product colour Black Black White Black —
Quality of Service (QoS) support Yes No — — Yes
Quick start guide — — Yes — Yes
Rack mounting No No No Yes Yes
Rack mount kit — — — Yes Yes
Reset button Yes Yes — — —
Stackable — No No No —
Storage relative humidity (H-H) 5 - 95% 5 - 90% 5 - 95% 5 - 90% 5 - 90%
Storage temperature (T-T) -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C
Store-and-forward — — Yes Yes —
Sustainability compliance Yes — Yes Yes —
Switching capacity 56 Gbit/s 16 Gbit/s 16 Gbit/s 32 Gbit/s 160 Gbit/s
Switch layer L2 L2 — — L2+/L3
Switch type Managed Unmanaged Unmanaged Unmanaged Managed
System event log — No — — Yes
Traffic classification — No — — Yes
Virtual LAN features Port-based VLAN — — — Private VLAN, Protocol-based VLAN, Voice VLAN
Viteza transfer Gigabit Gigabit Fast Ethernet Fast Ethernet 10G+
VLAN support Yes — — — Yes
Web-based management Yes No — — Yes
Weight 500 g 500 g — — —
Width 190 mm 192 mm 134.5 mm 440 mm —
Producator DAHUA EXTRALINK TP-LINK TP-LINK TP-LINK

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

Dahua 10 Port Cloud managed POE switch CS4010-8ET-110, Interfata: Port 1-8: 8 × RJ-45 10/100 Mbps (PoE); Port 9-10: 2 × RJ-45 10/100/1000 Mbps（uplink）, Managed, Layer 2, Switching Capacity: 5.6 Gbps, Packet Forwarding Rate: 4.17 Mpps, Standarde retea: IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab, Dimensiuni: 190 mm × 106 mm × 30 mm, Carcasa metal.

Specificații tehnice 58 caracteristici
10G support
No
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Cloud-managed
Yes
Compliance certificates
CE
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
DC input voltage
54 V
Depth
106 mm
DHCP features
DHCP client
Ethernet LAN data rates
10,100,1000 Mbit/s
Fast Ethernet (copper) ports quantity
8
Flow control support
Yes
Forwarding rate
41.7 Mpps
Garantie
36
Gigabit Ethernet (copper) ports quantity
2
Height
30 mm
Housing material
Metal
Input current
2.22 A
Jumbo frames
9216
Jumbo frames support
Yes
LED indicators
Yes
MAC address table
8000 entries
Management
Da
Montare in rack
Nu
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x
Number of VLANs
32
Operating relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
-10 - 55 °C
Package depth
244 mm
Package height
87 mm
Package weight
12.5 kg
Package width
256 mm
Packet buffer memory
0.5 MB
PoE
Da
Porturi RJ 45
5-10
Porturi SFP
N/A
Power consumption (max)
110 W
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
8
Power source
DC/PoE
Power supply included
Yes
Product colour
Black
Quality of Service (QoS) support
Yes
Rack mounting
No
Redundant power supply (RPS) support
Yes
Reset button
Yes
Storage relative humidity (H-H)
5 - 95%
Storage temperature (T-T)
-40 - 70 °C
Sustainability compliance
Yes
Switching capacity
56 Gbit/s
Switch layer
L2
Switch type
Managed
Virtual LAN features
Port-based VLAN
Viteza transfer
Gigabit
VLAN support
Yes
Web-based management
Yes
Weight
500 g
Width
190 mm
Producator
DAHUA
