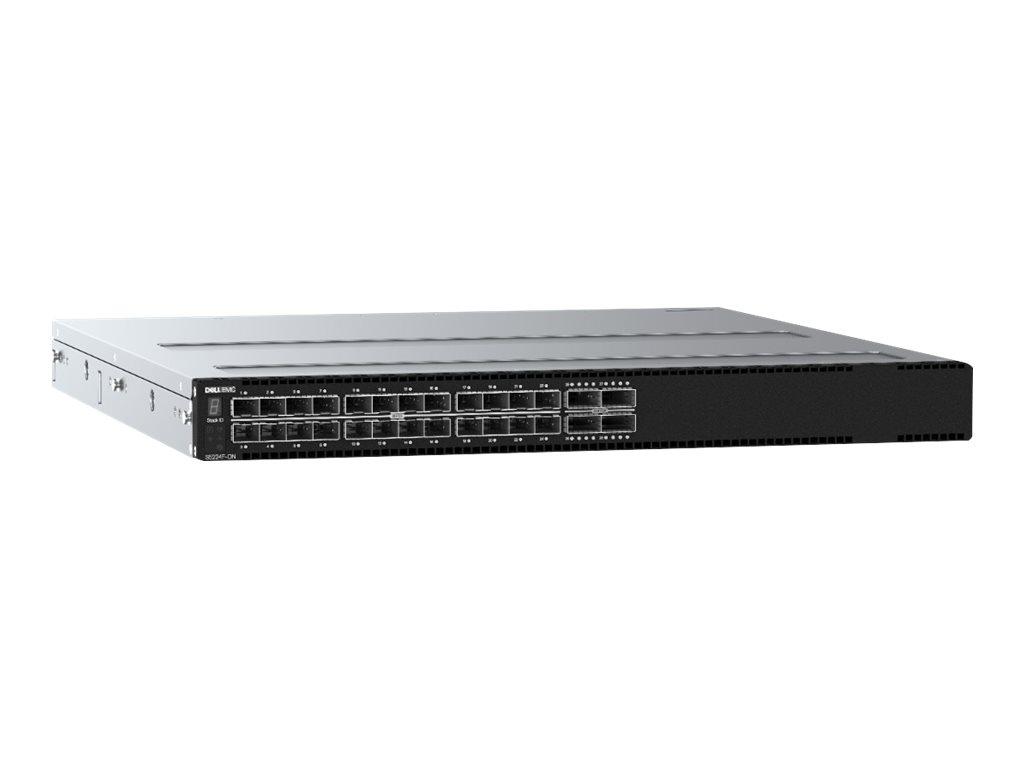

Dell EMC S5224F-ON SWITCH 24X 25GBE SFP28 4X 100GBE QSFP28
53.412,99 lei 60.088,00 lei
Dell EMC S5224F-ON SWITCH 24X 25GBE SFP28 4X 100GBE QSFP28
(0)
Stoc epuizat
Vândut de RITC.ro
Cod produs: 210-APHQ
Livrare și beneficii
Compară cu produse similare
Dell EMC S5224F-ON SWITCH 24X 25GBE SFP28 4X 100GBE QSFP28
"JetStream™ 8-Port 10GE SFP+ L2+ Managed Switch PORT: 8× 10G
1.472,99 lei 2.334,99 lei
Switch ALLIED TELESIS GS950, 48 port, 10/100/1000 Mbps
3.796,99 lei
Omada 24-Port Gigabit Stackable Lite L3 Managed Switch with 4
2.315,99 lei 3.781,00 lei
Switch Ubiquiti UniFi USW-24-POE, 24 port, 10/100/1000 Mbps
2.250,00 lei 3.247,99 lei
Vezi comparația completă
| Caracteristică | Dell EMC S5224F-ON SWITCH 24X 25GBE SFP28 4X 100GBE QSFP28 | "JetStream™ 8-Port 10GE SFP+ L2+ Managed Switch PORT: 8× 10G | Switch ALLIED TELESIS GS950, 48 port, 10/100/1000 Mbps | Omada 24-Port Gigabit Stackable Lite L3 Managed Switch with 4 | Switch Ubiquiti UniFi USW-24-POE, 24 port, 10/100/1000 Mbps |
|---|---|---|---|---|---|
| Alte caracteristici | |||||
| 10G support | Yes | Yes | No | Yes | — |
| Access Control List (ACL) | — | Yes | — | Yes | — |
| AC input frequency | — | — | 50 - 60 Hz | — | 50 - 60 Hz |
| ARP inspection | — | Yes | — | Yes | — |
| Authentication type | — | AAA, TACACS+ | — | — | IEEE 802.1x, RADIUS |
| Auto MDI/MDI-X | — | — | Yes | — | Yes |
| Basic switching RJ-45 Ethernet ports type | No | No | 48 | 24 | 24 |
| Broadcast storm control | — | Yes | Yes | Yes | — |
| Built-in processor | Yes | — | — | Yes | — |
| Cables included | — | AC | — | AC | — |
| Certification | — | — | UL 1950, FCC/EN55022, VCCI, C-Tick, EN60950, EN55024, CE, CSA, CUL | — | CE, FCC, IC |
| Cloud-managed | — | Yes | — | Yes | — |
| Console port | RJ-45/micro-USB | RJ-45/micro-USB | RJ-45 | RJ-45 | — |
| Depth | 460 mm | 180 mm | 322 mm | 180 mm | 200 mm |
| DHCP features | — | DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping | DHCP client | DHCP relay, DHCP server | — |
| Flash memory | — | — | 4 MB | 512 MB | — |
| Flow control support | — | Yes | Yes | — | Yes |
| Form factor | 1U | — | 1U | — | 1U |
| Forwarding rate | 14.88 Mpps | 119.04 Mpps | — | 95.23 Mpps | 38.69 Mpps |
| Garantie | 12 | 60 | 24 | 24 | 24 |
| Gigabit Ethernet (copper) ports quantity | 1 | — | — | 24 | — |
| Harmonized System (HS) code | 85176990 | — | 85176990 | — | 85176990 |
| Head-of-line (HOL) blocking | — | Yes | Yes | — | — |
| Heat dissipation | — | 52.75 BTU/h | — | 66.87 BTU/h | — |
| Height | 436 mm | — | 43.5 mm | 44 mm | 43.7 mm |
| IGMP snooping | — | Yes | Yes | Yes | — |
| Internal memory | 16000 MB | — | 32 MB | 2000 MB | — |
| IP-MAC-Port binding | — | Yes | — | Yes | — |
| Jumbo frames | — | 9000 | — | 9000 | — |
| Jumbo frames support | — | Yes | Yes | Yes | Yes |
| LAN ports | — | — | 48 | — | 24 |
| LAN port type | — | 10Gigabit | Gigabit | — | 10Gigabit |
| Layer | — | — | Layer-2 | — | Layer-2 |
| LED indicators | Yes | Yes | Yes | Yes | Activity, Link, PoE, Speed, System |
| Link aggregation | — | Yes | Yes | Yes | — |
| MAC address filtering | — | Yes | Yes | Yes | — |
| MAC address table | 160000 entries | 32000 entries | 8000 entries | 16000 entries | — |
| Management | Da | Da | Da | — | Da |
| Management protocols | CLI, SNMP, REST, API’s | SNMPv1/v2c/v3, SNTP | IGMP, SNMP, FTP | — | — |
| Mean time between failures (MTBF) | — | — | 263000 h | 519.543 h | — |
| Memory type | SDRAM | — | — | DRAM | — |
| MIB support | — | RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213 | RFC 1213, RFC 1643, RFC 1493 | — | — |
| Montare in rack | Da | Nu | Da | Da | Da |
| Multicast support | Yes | Yes | Yes | Yes | — |
| Networking standards | IEEE 802.3 | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x | — | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt | IEEE 802.3af, IEEE 802.3at |
| Number of VLANs | — | 4000 | — | 4000 | — |
| Operating relative humidity (H-H) | — | 10 - 90% | 5 - 90% | 10 - 90% | 10 - 90% |
| Operating temperature (T-T) | — | 0 - 45 °C | 0 - 40 °C | -5 - 45 °C | — |
| Packet buffer memory | 32 MB | 16 MB | 6 MB | 12 MB | — |
| PoE | Nu | Nu | Nu | — | Da |
| Port mirroring | — | Yes | Yes | Yes | Yes |
| Porturi RJ 45 | 24-28 | 1-4 | 28+ | 24-28 | 24-28 |
| Porturi SFP | 5-8 | 5-8 | 1-2 | 3-4 | 1-2 |
| Power connector | AC-in jack | DC-in jack | DC-in jack | — | — |
| Power consumption (max) | 45.5 W | 15.46 W | — | 19.6 W | — |
| Power over Ethernet (PoE) | No | No | No | No | Yes |
| Power source | — | AC | — | AC | — |
| Power supply included | Yes | Yes | — | Yes | Yes |
| Product colour | — | — | Grey | — | Silver |
| Quality of Service (QoS) support | Yes | Yes | Yes | Yes | — |
| Rackable | — | — | Yes | — | Yes |
| Rack mounting | Yes | Yes | Yes | Yes | Yes |
| Rack mount kit | — | Yes | — | Yes | — |
| Rate limiting | — | Yes | Yes | — | — |
| Redundant PSU | — | — | No | — | No |
| Security algorithms | — | HTTPS, SSH, SSH-2, SSL/TLS | — | SNMP, SNMPv2, SNMPv3 | — |
| SFP module slots quantity | — | 8 | — | 4 | 2 |
| Spanning tree protocol | — | Yes | Yes | — | Yes |
| SSH/SSL support | — | Yes | — | Yes | — |
| Stackable | Yes | — | No | Yes | Yes |
| Static port security | — | Yes | Yes | Yes | — |
| Static route | — | Yes | — | — | Yes |
| Storage relative humidity (H-H) | — | 5 - 90% | 5 - 95% | 5 - 90% | — |
| Storage temperature (T-T) | — | -40 - 70 °C | -25 - 70 °C | -40 - 70 °C | — |
| Switching capacity | 2160 Gbit/s | 160 Gbit/s | — | 128 Gbit/s | 52 Gbit/s |
| Switch layer | — | L2+/L3 | L2 | L3 | — |
| Switch type | Managed | Managed | Managed | Managed | Managed |
| Throughput | — | — | 14.88 Mpps | — | 26000 Mpps |
| USB 2.0 ports quantity | 1 | — | — | 1 | — |
| Virtual LAN features | — | Private VLAN, Protocol-based VLAN, Voice VLAN | — | MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN | — |
| Viteza transfer | 10G+ | 10G+ | Gigabit | Gigabit | Gigabit |
| VLAN support | Yes | Yes | Yes | Yes | Yes |
| Web-based management | — | Yes | Yes | Yes | — |
| Weight | 9.7 kg | — | 4.05 kg | — | 3 kg |
| Width | 434 mm | — | 444 mm | 440 mm | 442.4 mm |
| Producator | DELL | TP-LINK | ALLIED TELESIS | TP-LINK | UBIQUITI |
Analiză inteligentă a produsului
Descriere oficială
Dell EMC S5224F-ON SWITCH 24X 25GBE SFP28 4X 100GBE QSFP28 PORTS IO TO PSU AIR 2X PSU OS10, 1Yr
Specificații tehnice 50 caracteristici ⌄
- 10G support
- Yes
- Airflow direction
- Front-to-back airflow
- Basic switching RJ-45 Ethernet ports type
- No
- Built-in processor
- Yes
- Compatible operating systems
- OS10
- Console port
- RJ-45/micro-USB
- Depth
- 460 mm
- Form factor
- 1U
- Forwarding rate
- 14.88 Mpps
- Garantie
- 12
- GARP VLAN Registration Protocol (GVRP)
- Yes
- Gigabit Ethernet (copper) ports quantity
- 1
- Harmonized System (HS) code
- 85176990
- Height
- 436 mm
- Internal memory
- 16000 MB
- Latency
- 881
- LED indicators
- Yes
- List of RFCs
- IP, IPv4, IPv6, RIP, OSPF, IS-IS, BGP
- MAC address table
- 160000 entries
- Management
- Da
- Management protocols
- CLI, SNMP, REST, API’s
- Memory type
- SDRAM
- Montare in rack
- Da
- Multicast support
- Yes
- Networking standards
- IEEE 802.3
- Number of power supply units
- 2
- Packet buffer memory
- 32 MB
- PoE
- Nu
- Porturi RJ 45
- 24-28
- Porturi SFP
- 5-8
- Power connector
- AC-in jack
- Power consumption (max)
- 45.5 W
- Power management
- Yes
- Power over Ethernet (PoE)
- No
- Power supply included
- Yes
- QSFP28 ports quantity
- 24
- Quality of Service (QoS) support
- Yes
- Rack mounting
- Yes
- Redundant power supply (RPS) support
- Yes
- Reset button
- Yes
- SFP28 ports quantity
- 4
- Stackable
- Yes
- Switching capacity
- 2160 Gbit/s
- Switch type
- Managed
- USB 2.0 ports quantity
- 1
- Viteza transfer
- 10G+
- VLAN support
- Yes
- Weight
- 9.7 kg
- Width
- 434 mm
- Producator
- DELL
