Switchuri

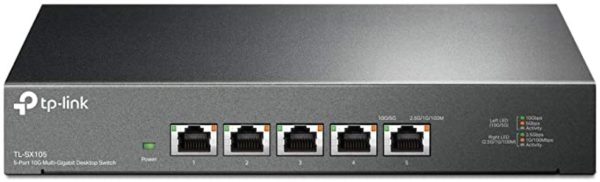

"5-Port 10G Multi-Gigabit Desktop Switch PORT: 5× 10G RJ45 Ports

Vândut de RITC.ro Cod produs: TL-SX105

Livrare și beneficii

Compară cu produse similare

Vezi comparația completă
Caracteristică "5-Port 10G Multi-Gigabit Desktop Switch PORT: 5× 10G RJ45 Ports Switch TP-Link TL-SG1024D, 24 port, 10/100/1000 Mbps "JetStream™ 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch "JetStream™ 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch Switch TP-Link TL-SF1008D, 8 port, 10/100 Mbps
Alte caracteristici
10G support Yes No Yes Yes No
Access Control List (ACL) — — Yes Yes —
AC input frequency — 50 - 60 Hz — — 50 - 60 Hz
ARP inspection — — Yes Yes —
Authentication — — Auto VLAN, Guest VLAN Guest VLAN, MAC-based authentication, Port-based authentication —
Auto-negotiation Yes Yes — — Yes
Auto MDI/MDI-X Yes Yes — — Yes
Basic switching RJ-45 Ethernet ports type 5 24 48 24 Fast Ethernet (10/100)
BPDU filtering/protection — — Yes Yes —
Broadcast storm control — — Yes Yes —
Cables included AC AC AC AC —
Cloud-managed — — Yes Yes —
Compliance certificates — — — CE, Federal Communications Commission (FCC), RoHS CE, Federal Communications Commission (FCC), RoHS
Configuring Location Settings (CLI) — — Yes Yes —
Console port — — RJ-45/micro-USB RJ-45/micro-USB —
DHCP features — — DHCP client, DHCP relay, DHCP server DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping —
Fanless Yes — — — Yes
Flow control support — Yes Yes Yes Yes
Forwarding rate 74.4 Mpps 35.7 Mpps 130.9 Mpps 148.8 Mpps —
Full duplex — Yes — Yes Yes
Half duplex — — — Yes Yes
Harmonized System (HS) code 85176990 85176990 — — 85176990
Head-of-line (HOL) blocking — — Yes Yes —
Heat dissipation — 44.63 BTU/h 2169.2 BTU/h 2153.45 BTU/h 6.99 BTU/h
IGMP snooping — — Yes Yes —
Input current 2 A — — — 0.6 A
IP-MAC-Port binding — — Yes Yes —
Jumbo frames 10000 10000 9000 9000 —
Jumbo frames support Yes Yes Yes Yes —
LAN ports — 24 48 24 —
LAN port type 10Gigabit Gigabit Gigabit Gigabit FastEthernet
Layer — Unmanaged Layer-2 Layer-2 —
LED indicators Yes Yes Yes Yes Yes
Link aggregation — — Yes Yes —
MAC address table 32000 entries 8000 entries 16000 entries 32000 entries 1000 entries
Management nu nu Da Da nu
Montare in rack Nu Nu Da Da Nu
Multicast support — — Yes Yes —
Networking standards IEEE 802.1p, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x — — IEEE 802.3u, IEEE 802.3x
Number of fans — — 3 fan(s) 3 fan(s) —
Operating relative humidity (H-H) 10 - 90% 10 - 90% 10 - 90% 10 - 90% 10 - 90%
Operating temperature (T-T) 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C
Package depth 315 mm 400 mm — — 139 mm
Package height 70 mm 80 mm — — 85 mm
Package type Box Box — — Box
Package weight 1.58 kg 1.95 kg — — 240 g
Package width 240 mm 250 mm — — 100 mm
Packet buffer memory 16 MB — 12 MB 16 MB 2 MB
PoE Nu Nu Da Da Nu
Port mirroring — — Yes Yes —
Porturi RJ 45 5-10 24-28 28+ 24-28 5-10
Porturi SFP N/A N/A 1-2 1-2 N/A
Power connector — DC-in jack AC-in jack — DC-in jack
Power consumption (max) 21.4 W 13.08 W 635.7 W 629.1 W 2.2 W
Power over Ethernet (PoE) No No Yes Yes No
Power over Ethernet plus (PoE+) ports quantity — — 48 16 —
Power source DC AC AC AC/PoE DC
Power supply included Yes Yes Yes Yes No
Quality of Service (QoS) support — Yes Yes Yes —
Quick start guide — — Yes Yes Yes
Rackable — No Yes Yes —
Rack mounting No Yes Yes Yes No
Rack mount kit — Yes — Yes —
Rate limiting — — Yes Yes —
Redundant PSU — Yes No Yes —
SFP module slots quantity — — 4 4 —
Spanning tree protocol — — Yes Yes —
SSH/SSL support — — Yes Yes —
Stackable — Yes No No No
Static port security — — Yes Yes —
Storage relative humidity (H-H) 5 - 90% 5 - 90% 5 - 90% 5 - 90% 5 - 95%
Storage temperature (T-T) -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C
Store-and-forward Yes Yes Yes Yes Yes
Supported network protocols — CSMA/CD, TCP/IP — — CSMA/CD, TCP/IP
Sustainability compliance — — — Yes Yes
Switching capacity 100 Gbit/s 48 Gbit/s 176 Gbit/s 200 Gbit/s 16 Gbit/s
Switch type Unmanaged Unmanaged Managed Managed Unmanaged
System event log — — Yes Yes —
Total Power over Ethernet (PoE) budget — — 500 W 500 W —
Viteza transfer 10G+ Gigabit 10G+ 2.5G Fast Ethernet
VLAN support — — Yes Yes —
Web-based management — — Yes Yes —
Laptopuri - Caracteristici fizice 25.09
Adâncime 131 mm 180 mm 330 mm 330 mm 7.9 mm
Lățime 226 mm 294 mm — — 134.5 mm
Înălțime 35 mm 44 mm — — 22.5 mm
Laptopuri - Construcție
Culoare Black Grey — — White
Laptopuri - Generale
Garanție comercială 60 60 60 24 36
Producător TP-LINK TP-LINK TP-LINK TP-LINK TP-LINK
Laptopuri - Tip laptop
Construcție laptop — — 1U 1U —

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

“5-Port 10G Multi-Gigabit Desktop Switch PORT: 5× 10G RJ45 Ports SPEC: Desktop Steel Case FEATURE: Plug and Play”

Specificații tehnice 49 caracteristici
10G Ethernet (copper) ports quantity
5
10G support
Yes
Auto-negotiation
Yes
Auto MDI/MDI-X
Yes
Basic switching RJ-45 Ethernet ports type
5
Cables included
AC
Fanless
Yes
Forwarding rate
74.4 Mpps
Harmonized System (HS) code
85176990
Input current
2 A
Input voltage
12 V
Jumbo frames
10000
Jumbo frames support
Yes
LAN port type
10Gigabit
LED indicators
Yes
MAC address table
32000 entries
Management
nu
Manual
Yes
Montare in rack
Nu
Networking standards
IEEE 802.1p, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Package depth
315 mm
Package height
70 mm
Package type
Box
Package weight
1.58 kg
Package width
240 mm
Packet buffer memory
16 MB
PoE
Nu
Porturi RJ 45
5-10
Porturi SFP
N/A
Power consumption (max)
21.4 W
Power over Ethernet (PoE)
No
Power source
DC
Power supply included
Yes
Rack mounting
No
Storage relative humidity (H-H)
5 - 90%
Storage temperature (T-T)
-40 - 70 °C
Store-and-forward
Yes
Switching capacity
100 Gbit/s
Switch type
Unmanaged
Viteza transfer
10G+
Wall mountable
Yes
Adâncime
131 mm
Lățime
226 mm
Înălțime
35 mm
Culoare
Black
Garanție comercială
60
Producător
TP-LINK
