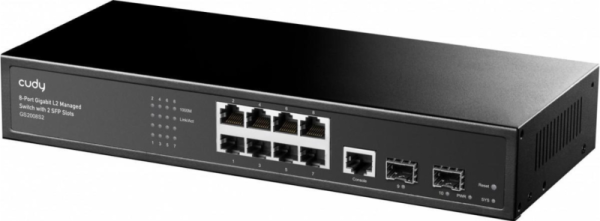

CUDY Switch Managed 8-Port Layer 2 10/100/1000M, 8x porturi Gigabit

Switchuri

CUDY Switch Managed 8-Port Layer 2 10/100/1000M, 8x porturi Gigabit

(0) Stoc epuizat
Vândut de RITC.ro Cod produs: GS2008S2

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică CUDY Switch Managed 8-Port Layer 2 10/100/1000M, 8x porturi Gigabit Switch TP-Link TL-SG1024D, 24 port, 10/100/1000 Mbps "JetStream™ 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch "JetStream™ 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch Extralink KRATOS PoE Switch 7x Gigabit PoE 1x
Alte caracteristici
10G support — No Yes Yes No
Access Control List (ACL) — — Yes Yes —
AC input frequency — 50 - 60 Hz — — 50 - 60 Hz
ARP inspection — — Yes Yes —
Authentication Port-based authentication — Auto VLAN, Guest VLAN Guest VLAN, MAC-based authentication, Port-based authentication —
Authentication type RADIUS, TACACS+ — — AAA, IEEE 802.1x, RADIUS, TACACS+ —
Auto-negotiation — Yes — — Yes
Basic switching RJ-45 Ethernet ports type 8 24 48 24 8
BPDU filtering/protection — — Yes Yes —
Broadcast storm control Yes — Yes Yes —
Cables included — AC AC AC —
Cable types supported Cat3, Cat4, Cat5 Cat3, Cat4, Cat5, Cat5e — — Cat5, Cat5e, Cat6
Cloud-managed — — Yes Yes No
Configuring Location Settings (CLI) — — Yes Yes No
Console port RJ-45 — RJ-45/micro-USB RJ-45/micro-USB —
DHCP features DHCP Option 82, DHCP server, DHCP snooping — DHCP client, DHCP relay, DHCP server DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping —
Flash memory 16 MB — — 32 MB —
Flow control support Yes Yes Yes Yes —
Forwarding rate 41.66 Mpps 35.7 Mpps 130.9 Mpps 148.8 Mpps —
Full duplex — Yes — Yes —
Gigabit Ethernet (copper) ports quantity 8 24 — — —
Head-of-line (HOL) blocking — — Yes Yes —
Heat dissipation — 44.63 BTU/h 2169.2 BTU/h 2153.45 BTU/h —
IGMP snooping Yes — Yes Yes —
IP-MAC-Port binding Yes — Yes Yes —
IPv4 & IPv6 features IPv6 Telnet — — IPv4/IPv6 access-control list (ACL), IPv6 ping, IPv6 portal, IPv6 tracert —
Jumbo frames 9.6 10000 9000 9000 —
Jumbo frames support Yes Yes Yes Yes —
LAN ports 8 24 48 24 —
LAN port type Gigabit Gigabit Gigabit Gigabit Gigabit
Layer Layer-2 Unmanaged Layer-2 Layer-2 —
LED indicators Activity, Link, Power, System Yes Yes Yes Yes
Link aggregation Yes — Yes Yes —
MAC address table 8000 entries 8000 entries 16000 entries 32000 entries 4096 entries
Management nu nu Da Da nu
Memory type DDR-SDRAM — — DRAM —
Montare in rack Da Nu Da Da Nu
Multicast support Yes — Yes Yes —
Networking standards IEEE 802.11j, IEEE 802.11k, IEEE 802.1Qav IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x — — IEEE 802.3af
Number of fans — — 3 fan(s) 3 fan(s) —
Operating relative humidity (H-H) 10 - 90% 10 - 90% 10 - 90% 10 - 90% 10 - 80%
Operating temperature (T-T) -10 - 50 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C
Package depth 262 mm 400 mm — — —
Package height 84 mm 80 mm — — —
Package type Box Box — — —
Package weight 1.54 kg 1.95 kg — — —
Package width 312 mm 250 mm — — —
Packet buffer memory 0.5 MB — 12 MB 16 MB —
PoE Nu Nu Da Da Da
Port mirroring Yes — Yes Yes No
Porturi RJ 45 5-10 24-28 28+ 24-28 5-10
Porturi SFP 1-2 N/A 1-2 1-2 N/A
Power connector — DC-in jack AC-in jack — DC-in jack
Power consumption (max) — 13.08 W 635.7 W 629.1 W —
Power over Ethernet (PoE) — No Yes Yes Yes
Power over Ethernet (PoE) power per port — — 30 W — 30 W
Power over Ethernet plus (PoE+) ports quantity — — 48 16 —
Power source AC AC AC AC/PoE AC
Power supply included Yes Yes Yes Yes Yes
Quality of Service (QoS) support Yes Yes Yes Yes No
Quick start guide — — Yes Yes —
Rackable No No Yes Yes —
Rack mounting Yes Yes Yes Yes No
Rack mount kit — Yes — Yes —
Rate limiting Yes — Yes Yes —
Redundant fans support — — — Yes No
Redundant PSU No Yes No Yes —
Reset button — — Yes — Yes
SFP module slots quantity — — 4 4 —
Spanning tree protocol Yes — Yes Yes —
SSH/SSL support Yes — Yes Yes —
Stackable Yes Yes No No No
Static port security — — Yes Yes —
Static route Yes — — Yes —
Storage relative humidity (H-H) 5 - 90% 5 - 90% 5 - 90% 5 - 90% 5 - 90%
Storage temperature (T-T) -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C
Store-and-forward — Yes Yes Yes —
Switching capacity 56 Gbit/s 48 Gbit/s 176 Gbit/s 200 Gbit/s 16 Gbit/s
Switch layer L2 — — — L2
Switch type Managed Unmanaged Managed Managed Unmanaged
System event log Yes — Yes Yes No
Total Power over Ethernet (PoE) budget — — 500 W 500 W 60 W
Traffic classification Yes — — — No
Virtual LAN features Voice VLAN — — MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Stacked VLAN, Tagged VLAN, Voice VLAN —
Viteza transfer Gigabit Gigabit 10G+ 2.5G Gigabit
VLAN support Yes — Yes Yes —
Web-based management Yes — Yes Yes No
Caracteristici fizice
Greutate 1.01 kg — — — 500 g
Laptopuri - Caracteristici fizice 25.09
Adâncime 181 mm 180 mm 330 mm 330 mm 8.2 mm
Lățime 268 mm 294 mm — — 192 mm
Înălțime 44 mm 44 mm — — 27 mm
Laptopuri - Conectivitate și porturi 25.09
Viteză rețea LAN 10,100,1000 Mbit/s — — 10,100,1000,2500,10000 Mbit/s —
Laptopuri - Construcție
Culoare Black Grey — — Black
Laptopuri - Generale
Garanție comercială 24 60 60 24 60
Producător CUDY TP-LINK TP-LINK TP-LINK EXTRALINK
Laptopuri - Memorie
Capacitate memorie RAM 128 MB — — 256 MB —
Laptopuri - Tip laptop
Construcție laptop 1U — 1U 1U 1U

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

CUDY Switch Managed 8-Port Layer 2 10/100/1000M, 8x porturi Gigabit Ethernet + 2x porturi Gigabit SFP + 1 port management, backplane bandwidth 20Gbps, suporta dial-up VLAN, extensie 250 metri, functie Layer 2 network management, suport routare, DHCP, VLAN, MAC address, ACL Access control, QOS, multicast, storm suppression, IPV4/IPV6 si alte functii de business, suporta autentificarea 802.1X, ARP intrusion detection, protectie sursa IP, protectie DoS si alte politici de control de securitate, suporta STP/RSTP/MSTP protocol spanning tree, functii dinamice/Network protection precum static link aggregation, suporta Web/Telnet/CLI/SSH management si metode de mentenanta

Specificații tehnice 76 caracteristici
Authentication
Port-based authentication
Authentication type
RADIUS, TACACS+
Basic switching RJ-45 Ethernet ports type
8
Broadcast storm control
Yes
Cable types supported
Cat3, Cat4, Cat5
Console port
RJ-45
DHCP features
DHCP Option 82, DHCP server, DHCP snooping
Fiber type
Multi-mode
Flash memory
16 MB
Flow control support
Yes
Forwarding rate
41.66 Mpps
Gigabit Ethernet (copper) ports quantity
8
IGMP snooping
Yes
Installed SFP modules quantity
2
IP-MAC-Port binding
Yes
IPv4 & IPv6 features
IPv6 Telnet
Jumbo frames
9.6
Jumbo frames support
Yes
LAN ports
8
LAN port type
Gigabit
Layer
Layer-2
LED indicators
Activity, Link, Power, System
Link aggregation
Yes
MAC address auto-aging supported
Yes
MAC address auto-learning supported
Yes
MAC address table
8000 entries
Management
nu
Memory type
DDR-SDRAM
Montare in rack
Da
Multicast support
Yes
Networking standards
IEEE 802.11j, IEEE 802.11k, IEEE 802.1Qav
Number of VLANs
4096
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
-10 - 50 °C
Package depth
262 mm
Package height
84 mm
Package type
Box
Package weight
1.54 kg
Package width
312 mm
Packet buffer memory
0.5 MB
PoE
Nu
Port mirroring
Yes
Porturi RJ 45
5-10
Porturi SFP
1-2
Power source
AC
Power supply included
Yes
Quality of Service (QoS) support
Yes
Rackable
No
Rack mounting
Yes
Rate limiting
Yes
Redundant PSU
No
Spanning tree protocol
Yes
SSH/SSL support
Yes
Stackable
Yes
Static route
Yes
Storage relative humidity (H-H)
5 - 90%
Storage temperature (T-T)
-40 - 70 °C
Switching capacity
56 Gbit/s
Switch layer
L2
Switch type
Managed
System event log
Yes
Traffic classification
Yes
Virtual LAN features
Voice VLAN
Viteza transfer
Gigabit
VLAN support
Yes
Web-based management
Yes
Greutate
1.01 kg
Adâncime
181 mm
Lățime
268 mm
Înălțime
44 mm
Viteză rețea LAN
10,100,1000 Mbit/s
Culoare
Black
Garanție comercială
24
Producător
CUDY
Capacitate memorie RAM
128 MB
Construcție laptop
1U
