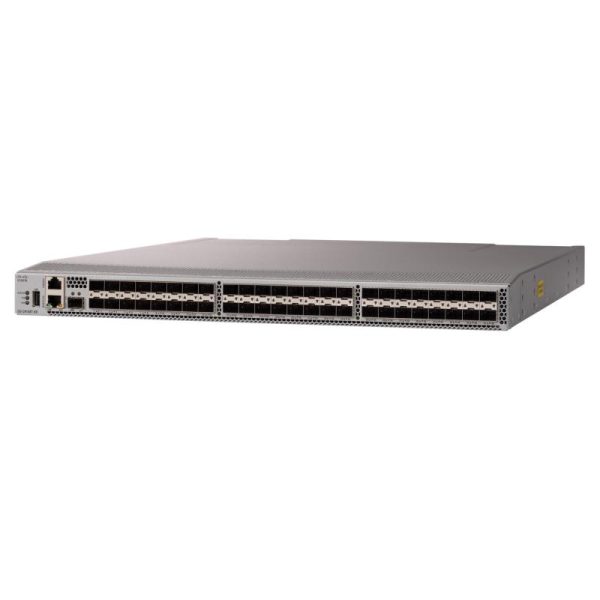

HPE SN6620C 32Gb 48-port 32Gb SFP+ Fibre Channel Switch

Switchuri

HPE SN6620C 32Gb 48-port 32Gb SFP+ Fibre Channel Switch

(0) Stoc epuizat
Vândut de RITC.ro Cod produs: R0P14A

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică HPE SN6620C 32Gb 48-port 32Gb SFP+ Fibre Channel Switch Switch TP-Link TL-SG1024D, 24 port, 10/100/1000 Mbps "JetStream™ 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch "JetStream™ 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch Switch Uniview NSW2020-8T2GT-POE-IN; Porturi:8×100Mbps network ports (RJ45)+2×1000Mbps ports, including 8
Alte caracteristici
10G support — No Yes Yes —
Access Control List (ACL) — — Yes Yes —
ARP inspection — — Yes Yes —
Authentication — — Auto VLAN, Guest VLAN Guest VLAN, MAC-based authentication, Port-based authentication —
Basic switching RJ-45 Ethernet ports type — 24 48 24 —
BPDU filtering/protection — — Yes Yes —
Broadcast storm control — — Yes Yes —
Cables included — AC AC AC —
Cloud-managed — — Yes Yes —
Configuring Location Settings (CLI) — — Yes Yes —
Console port — — RJ-45/micro-USB RJ-45/micro-USB —
Depth — 180 mm 330 mm 330 mm —
DHCP features — — DHCP client, DHCP relay, DHCP server DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping —
Flow control support — Yes Yes Yes —
Form factor — — 1U 1U —
Forwarding rate — 35.7 Mpps 130.9 Mpps 148.8 Mpps —
Full duplex — Yes — Yes —
Head-of-line (HOL) blocking — — Yes Yes —
Heat dissipation — 44.63 BTU/h 2169.2 BTU/h 2153.45 BTU/h —
IGMP snooping — — Yes Yes —
IP-MAC-Port binding — — Yes Yes —
Jumbo frames — 10000 9000 9000 —
Jumbo frames support — Yes Yes Yes —
LAN ports — 24 48 24 —
LAN port type — Gigabit Gigabit Gigabit —
Layer — Unmanaged Layer-2 Layer-2 —
LED indicators — Yes Yes Yes —
Link aggregation — — Yes Yes —
MAC address table — 8000 entries 16000 entries 32000 entries —
Management — nu Da Da Unmanaged
Montare in rack — Nu Da Da Nu
Multicast support — — Yes Yes —
Number of fans — — 3 fan(s) 3 fan(s) —
Operating relative humidity (H-H) — 10 - 90% 10 - 90% 10 - 90% —
Operating temperature (T-T) — 0 - 40 °C 0 - 40 °C 0 - 40 °C —
Packet buffer memory — — 12 MB 16 MB —
PoE — Nu Da Da Da
Port mirroring — — Yes Yes —
Porturi RJ 45 — 24-28 28+ 24-28 8×100Mbps network ports (RJ45)
Porturi SFP — N/A 1-2 1-2 1-2
Power connector — DC-in jack AC-in jack — —
Power consumption (max) — 13.08 W 635.7 W 629.1 W —
Power over Ethernet (PoE) — No Yes Yes —
Power over Ethernet plus (PoE+) ports quantity — — 48 16 —
Power source — AC AC AC/PoE —
Power supply included — Yes Yes Yes —
Quality of Service (QoS) support — Yes Yes Yes —
Quick start guide — — Yes Yes —
Rackable — No Yes Yes —
Rack mounting — Yes Yes Yes —
Rack mount kit — Yes — Yes —
Rate limiting — — Yes Yes —
Redundant PSU — Yes No Yes —
SFP module slots quantity — — 4 4 —
Spanning tree protocol — — Yes Yes —
SSH/SSL support — — Yes Yes —
Stackable — Yes No No —
Static port security — — Yes Yes —
Storage relative humidity (H-H) — 5 - 90% 5 - 90% 5 - 90% —
Storage temperature (T-T) — -40 - 70 °C -40 - 70 °C -40 - 70 °C —
Store-and-forward — Yes Yes Yes —
Switching capacity — 48 Gbit/s 176 Gbit/s 200 Gbit/s —
Switch type — Unmanaged Managed Managed —
System event log — — Yes Yes —
Total Power over Ethernet (PoE) budget — — 500 W 500 W —
Viteza transfer — Gigabit 10G+ 2.5G Gigabit
VLAN support — — Yes Yes —
Web-based management — — Yes Yes —
Laptopuri - Generale
Garanție comercială 12 60 60 24 24
Producător HPE TP-LINK TP-LINK TP-LINK UNIVIEW

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

Lifecycle

  • Obsolete Date 31-12-2028
  • End of support date 31-03-2030

Specifications

  • Management software SMI-S compliant; Command Line Interface (CLI); Cisco DCNM/NDFC web services API
  • Aggregate switch bandwidth 1536 Gbps, maximum
  • Ports 48-port active with 48 32Gb SW transceivers
  • Protocol supported Fibre Channel
  • Weight 16.7 lb
  • Media types Supports 32 Gb, 16 Gb, and 8 Gb transceivers
  • Upgradability All ports active
  • Encryption capability SNMP V3 implementing AES, Cisco TrustSec payload encryption
  • Product dimensions (imperial) 1.72 x 17.3 x 22.3 in
  • Product dimensions (metric) 4.37 x 43.9 x 56.6 cm
  • Software (optional) Enterprise Package license, Cisco Data Center Network Manager (DCNM) license, SAN Insights (1/3/5 years), Advantage license (1/3/5 years), and Premier license (1/3/5 years)
  • Weight 8.5 kg
  • Availability features Non-disruptive software upgrades, hot-swappable and dual redundant power supplies, hot-swappable fan module, hot-swappable SFP+ optics, stateful process restart
  • Form factor 1U
  • Port speed 32 Gb
  • Warranty The Hardware Warranty is 1-year parts, 1-year on-site (standard business hours, next business day response) and 1-year labor. For more information, refer to the HPE website at https://hpe.com/support.

Quickspecs

Overview

Are you looking for a high-speed Fibre Channel connectivity for NVMe/All-Flash arrays? HPE Storage Fibre Channel Switch C-series SN6620C delivers 32 Gbps FC switching providing high-speed FC connectivity from the server rack to the SAN core. It empowers small, midsize, and large enterprises that are rapidly deploying cloud-scale applications providing the benefits of greater bandwidth, scale, and consolidation. The switch allows seamless transition to Fibre Channel Non-Volatile Memory Express (FC-NVMe) workloads whenever available without any hardware upgrade in the SAN. For flexibility, the HPE Storage Fibre Channel Switch C-series SN6620C scales from 24-48 ports. Additionally, investing in this switch for the lower speed (8 or 16 Gbps) server rack gives you the flexibility to upgrade to 32 Gbps performance in the future.

What’s new

  • New subscription-based Advantage and Premier license bundles with Cisco DCNM / Cisco Nexus Dashboard Fabric Controller (NDFC), Enterprise and SAN Analytics.

Features

HPE C-series SAN Insights (Cisco SAN Analytics) delivers deep visibility into I/O traffic between the compute and the storage infrastructure. This information is in addition to the already-available visibility obtained from individual ports, switches, servers, virtual machines, and storage arrays.

Allow users to deploy them with 32 Gb, 16 Gb, or 8 Gb optics to accommodate their budget while being fully prepared for tomorrow.

HPE Storage Fibre Channel Switch C-series SN6620C provides an option to deploy as few as 24, 32 Gbps FC ports in the entry-level variant, which can grow in increments of 8 ports to 48 ports.

High-speed Fibre Channel Connectivity for NVMe/All-Flash Arrays

HPE Storage Fibre Channel Switch C-series SN6620C provides consistent 32 Gbps low-latency performance across every FC port on the switch.

Delivers increased performance with an aggregate bandwidth of 1536 Gbps for growing and dynamic workloads.

Supports the performance and scale required to deploy a dedicated and standalone FC SAN connecting both initiators and targets without requiring any other switching infrastructure.

Powered by the same high-performance 32 Gbps ASIC that powers the HPE Storage Director Switch C-series SN8500C  portfolio.

More Flexibility

HPE Storage Fibre Channel Switch C-series SN6620C supports slow-drain detection and isolation, VSAN technology, access control lists for hardware-based intelligent frame processing, smart zoning, and other various services.

Provides visibility into all virtual machines that are accessing the storage LUNs in the fabric and provide an end-to-end view for analytics.

Intelligent Network Services for SAN

Starting from release 12.0.1a, DCNM is renamed as Cisco Nexus Dashboard Fabric Controller (NDFC).

Cisco® Data Center Network Manager (Essentials Edition) software, included with the switch, provides a centralized management tool with task-based wizards that simplifies management of switches and fabrics. Additional advanced features are available with the DCNM licensed version, sold separately.

HPE Storage Fibre Channel Switch C-series SN6620C supports enhanced diagnostic features such as inter-switch link (ISL) and host-bus-adapter (HBA) diagnostics, read diagnostic parameter, link cable beacon, and advanced reliability features such as forward error correction (FEC) with HBA ports.

Easy Manageability

Increased fabric scalability provides more flexibility for a variety of SAN architectures.

Delivers powerful Representational State Transfer (REST) and NX-API capabilities to enable flexible and rapid programming of utilities for the SAN.

FC-NVMe-ready SAN switch with enhanced buffer-to-buffer (B2B) credits connecting both storage and host ports and FC link encryption.
