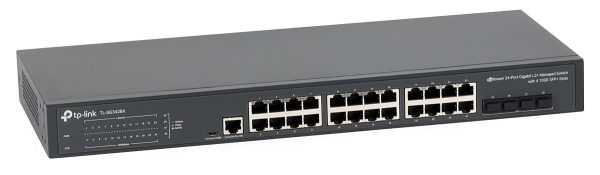

"JetStream™ 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+
1.384,99 lei 2.138,99 lei
"JetStream™ 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+
(0)
Stoc epuizat
Vândut de RITC.ro
Cod produs: TL-SG3428X
Livrare și beneficii
Compară cu produse similare
"JetStream™ 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+
Switch TP-Link TL-SG1024D, 24 port, 10/100/1000 Mbps
447,99 lei 658,99 lei
"JetStream™ 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch
4.328,99 lei 6.096,98 lei
"JetStream™ 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch
5.348,99 lei 7.487,99 lei
Switch TP-Link TL-SF1008D, 8 port, 10/100 Mbps
58,00 lei 89,99 lei
Vezi comparația completă
| Caracteristică | "JetStream™ 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ | Switch TP-Link TL-SG1024D, 24 port, 10/100/1000 Mbps | "JetStream™ 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch | "JetStream™ 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch | Switch TP-Link TL-SF1008D, 8 port, 10/100 Mbps |
|---|---|---|---|---|---|
| Alte caracteristici | |||||
| 10G support | Yes | No | Yes | Yes | No |
| Access Control List (ACL) | Yes | — | Yes | Yes | — |
| AC input frequency | — | 50 - 60 Hz | — | — | 50 - 60 Hz |
| ARP inspection | Yes | — | Yes | Yes | — |
| Authentication | Guest VLAN, MAC-based authentication, Port-based authentication | — | Auto VLAN, Guest VLAN | Guest VLAN, MAC-based authentication, Port-based authentication | — |
| Authentication type | AAA, RADIUS, TACACS+ | — | — | AAA, IEEE 802.1x, RADIUS, TACACS+ | — |
| Auto-negotiation | — | Yes | — | — | Yes |
| Auto MDI/MDI-X | — | Yes | — | — | Yes |
| Basic switching RJ-45 Ethernet ports type | 24 | 24 | 48 | 24 | Fast Ethernet (10/100) |
| BPDU filtering/protection | Yes | — | Yes | Yes | — |
| Broadcast storm control | Yes | — | Yes | Yes | — |
| Cables included | LAN (RJ-45) | AC | AC | AC | — |
| Cloud-managed | Yes | — | Yes | Yes | — |
| Compliance certificates | — | — | — | CE, Federal Communications Commission (FCC), RoHS | CE, Federal Communications Commission (FCC), RoHS |
| Configuring Location Settings (CLI) | Yes | — | Yes | Yes | — |
| Console port | RJ-45/micro-USB | — | RJ-45/micro-USB | RJ-45/micro-USB | — |
| DHCP features | DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping | — | DHCP client, DHCP relay, DHCP server | DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping | — |
| Fanless | Yes | — | — | — | Yes |
| Flow control support | Yes | Yes | Yes | Yes | Yes |
| Forwarding rate | 95.23 Mpps | 35.7 Mpps | 130.9 Mpps | 148.8 Mpps | — |
| Full duplex | — | Yes | — | Yes | Yes |
| GARP VLAN Registration Protocol (GVRP) | Yes | — | — | Yes | — |
| Gigabit Ethernet (copper) ports quantity | 24 | 24 | — | — | — |
| Half duplex | — | — | — | Yes | Yes |
| Harmonized System (HS) code | 85176990 | 85176990 | — | — | 85176990 |
| Head-of-line (HOL) blocking | Yes | — | Yes | Yes | — |
| Heat dissipation | 80.353 BTU/h | 44.63 BTU/h | 2169.2 BTU/h | 2153.45 BTU/h | 6.99 BTU/h |
| IGMP snooping | Yes | — | Yes | Yes | — |
| IP-MAC-Port binding | Yes | — | Yes | Yes | — |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert | — | — | IPv4/IPv6 access-control list (ACL), IPv6 ping, IPv6 portal, IPv6 tracert | — |
| IPv4 routes | 48 | — | — | 48 | — |
| IPv6 routes | 48 | — | — | 48 | — |
| Jumbo frames | 9000 | 10000 | 9000 | 9000 | — |
| Jumbo frames support | Yes | Yes | Yes | Yes | — |
| LAN ports | — | 24 | 48 | 24 | — |
| LAN port type | Gigabit | Gigabit | Gigabit | Gigabit | FastEthernet |
| Layer | — | Unmanaged | Layer-2 | Layer-2 | — |
| LED indicators | Yes | Yes | Yes | Yes | Yes |
| Link aggregation | Yes | — | Yes | Yes | — |
| Loop protection | Yes | — | — | Yes | — |
| MAC address table | 16000 entries | 8000 entries | 16000 entries | 32000 entries | 1000 entries |
| Management | Da | nu | Da | Da | nu |
| MIB support | Yes | — | — | RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925 | — |
| Montare in rack | Da | Nu | Da | Da | Nu |
| Multicast Listener Discovery (MLD) snooping | Y | — | — | MLD v1/v2 | — |
| Multicast support | Yes | — | Yes | Yes | — |
| Networking standards | IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z | IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x | — | — | IEEE 802.3u, IEEE 802.3x |
| Number of fans | 0 fan(s) | — | 3 fan(s) | 3 fan(s) | — |
| Number of static routes | 48 | — | — | 48 | — |
| Operating relative humidity (H-H) | 10 - 90% | 10 - 90% | 10 - 90% | 10 - 90% | 10 - 90% |
| Operating temperature (T-T) | 0 - 45 °C | 0 - 40 °C | 0 - 40 °C | 0 - 40 °C | 0 - 40 °C |
| Package depth | 250 mm | 400 mm | — | — | 139 mm |
| Package height | 80 mm | 80 mm | — | — | 85 mm |
| Package type | — | Box | — | — | Box |
| Package weight | 2.69 kg | 1.95 kg | — | — | 240 g |
| Package width | 528 mm | 250 mm | — | — | 100 mm |
| Packet buffer memory | 12 MB | — | 12 MB | 16 MB | 2 MB |
| PoE | Nu | Nu | Da | Da | Nu |
| Port mirroring | Yes | — | Yes | Yes | — |
| Porturi RJ 45 | 24-28 | 24-28 | 28+ | 24-28 | 5-10 |
| Porturi SFP | 3-4 | N/A | 1-2 | 1-2 | N/A |
| Power connector | AC-in jack | DC-in jack | AC-in jack | — | DC-in jack |
| Power consumption (max) | 23.6 W | 13.08 W | 635.7 W | 629.1 W | 2.2 W |
| Power over Ethernet (PoE) | No | No | Yes | Yes | No |
| Power over Ethernet plus (PoE+) ports quantity | — | — | 48 | 16 | — |
| Power source | AC | AC | AC | AC/PoE | DC |
| Power supply included | Yes | Yes | Yes | Yes | No |
| Quality of Service (QoS) support | Yes | Yes | Yes | Yes | — |
| Quick start guide | Yes | — | Yes | Yes | Yes |
| Rackable | — | No | Yes | Yes | — |
| Rack mounting | Yes | Yes | Yes | Yes | No |
| Rack mount kit | — | Yes | — | Yes | — |
| Rate limiting | Yes | — | Yes | Yes | — |
| Redundant PSU | — | Yes | No | Yes | — |
| SFP module slots quantity | 4 | — | 4 | 4 | — |
| Spanning tree protocol | Yes | — | Yes | Yes | — |
| SSH/SSL support | Yes | — | Yes | Yes | — |
| Stackable | — | Yes | No | No | No |
| Static port security | — | — | Yes | Yes | — |
| Static route | Yes | — | — | Yes | — |
| Storage relative humidity (H-H) | 5 - 90% | 5 - 90% | 5 - 90% | 5 - 90% | 5 - 95% |
| Storage temperature (T-T) | -40 - 70 °C | -40 - 70 °C | -40 - 70 °C | -40 - 70 °C | -40 - 70 °C |
| Store-and-forward | Yes | Yes | Yes | Yes | Yes |
| Supported network protocols | — | CSMA/CD, TCP/IP | — | — | CSMA/CD, TCP/IP |
| Sustainability compliance | — | — | — | Yes | Yes |
| Switching capacity | 128 Gbit/s | 48 Gbit/s | 176 Gbit/s | 200 Gbit/s | 16 Gbit/s |
| Switch type | Managed | Unmanaged | Managed | Managed | Unmanaged |
| System event log | Yes | — | Yes | Yes | — |
| Total Power over Ethernet (PoE) budget | — | — | 500 W | 500 W | — |
| Virtual LAN features | Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN | — | — | MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Stacked VLAN, Tagged VLAN, Voice VLAN | — |
| Viteza transfer | Gigabit | Gigabit | 10G+ | 2.5G | Fast Ethernet |
| VLAN support | Yes | — | Yes | Yes | — |
| Web-based management | Yes | — | Yes | Yes | — |
| Laptopuri - Caracteristici fizice 25.09 | |||||
| Adâncime | 180 mm | 180 mm | 330 mm | 330 mm | 7.9 mm |
| Lățime | 440 mm | 294 mm | — | — | 134.5 mm |
| Înălțime | 44 mm | 44 mm | — | — | 22.5 mm |
| Laptopuri - Conectivitate și porturi 25.09 | |||||
| Viteză rețea LAN | 10,100,1000 Mbit/s | — | — | 10,100,1000,2500,10000 Mbit/s | — |
| Laptopuri - Construcție | |||||
| Culoare | Black | Grey | — | — | White |
| Laptopuri - Generale | |||||
| Garanție comercială | 24 | 60 | 60 | 24 | 36 |
| Producător | TP-LINK | TP-LINK | TP-LINK | TP-LINK | TP-LINK |
| Laptopuri - Tip laptop | |||||
| Construcție laptop | 1U | — | 1U | 1U | — |
Analiză inteligentă a produsului
Descriere oficială
“JetStream™ 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots PORT: 24× Gigabit RJ45 Ports, 4× 10G SFP+ Slots, RJ45/Micro-USB Console Port SPEC: 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with Omada SDN Controller, Static Routing, OAM, sFlow, DDM, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6 “
Specificații tehnice 87 caracteristici ⌄
- 10G support
- Yes
- Access Control List (ACL)
- Yes
- Active link detection
- Yes
- ARP inspection
- Yes
- Authentication
- Guest VLAN, MAC-based authentication, Port-based authentication
- Authentication type
- AAA, RADIUS, TACACS+
- Basic switching RJ-45 Ethernet ports type
- 24
- BPDU filtering/protection
- Yes
- Broadcast storm control
- Yes
- Cables included
- LAN (RJ-45)
- Cloud-managed
- Yes
- Configuring Location Settings (CLI)
- Yes
- Console port
- RJ-45/micro-USB
- DHCP features
- DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
- Fanless
- Yes
- Flow control support
- Yes
- Forwarding rate
- 95.23 Mpps
- GARP VLAN Registration Protocol (GVRP)
- Yes
- Gigabit Ethernet (copper) ports quantity
- 24
- Harmonized System (HS) code
- 85176990
- Head-of-line (HOL) blocking
- Yes
- Heat dissipation
- 80.353 BTU/h
- IGMP snooping
- Yes
- IP-MAC-Port binding
- Yes
- IPv4 & IPv6 features
- IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert
- IPv4 routes
- 48
- IPv6 routes
- 48
- Jumbo frames
- 9000
- Jumbo frames support
- Yes
- LAN port type
- Gigabit
- LED indicators
- Yes
- Link aggregation
- Yes
- Loop protection
- Yes
- MAC address table
- 16000 entries
- Management
- Da
- Management protocols
- SNMPv1/v2c/v3, SNTP
- MIB support
- Yes
- Montare in rack
- Da
- Multicast Listener Discovery (MLD) snooping
- Y
- Multicast support
- Yes
- Networking standards
- IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
- Number of fans
- 0 fan(s)
- Number of static routes
- 48
- Number of VLANs
- 4000
- Operating relative humidity (H-H)
- 10 - 90%
- Operating temperature (T-T)
- 0 - 45 °C
- Package depth
- 250 mm
- Package height
- 80 mm
- Package weight
- 2.69 kg
- Package width
- 528 mm
- Packet buffer memory
- 12 MB
- PoE
- Nu
- Policy-based routing
- Yes
- Port mirroring
- Yes
- Porturi RJ 45
- 24-28
- Porturi SFP
- 3-4
- Power connector
- AC-in jack
- Power consumption (max)
- 23.6 W
- Power over Ethernet (PoE)
- No
- Power source
- AC
- Power supply included
- Yes
- Quality of Service (QoS) support
- Yes
- Quick start guide
- Yes
- Rack mounting
- Yes
- Rate limiting
- Yes
- SFP module slots quantity
- 4
- Spanning tree protocol
- Yes
- SSH/SSL support
- Yes
- Static route
- Yes
- Storage relative humidity (H-H)
- 5 - 90%
- Storage temperature (T-T)
- -40 - 70 °C
- Store-and-forward
- Yes
- Switching capacity
- 128 Gbit/s
- Switch type
- Managed
- System event log
- Yes
- Virtual LAN features
- Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
- Viteza transfer
- Gigabit
- VLAN support
- Yes
- Web-based management
- Yes
- Adâncime
- 180 mm
- Lățime
- 440 mm
- Înălțime
- 44 mm
- Viteză rețea LAN
- 10,100,1000 Mbit/s
- Culoare
- Black
- Garanție comercială
- 24
- Producător
- TP-LINK
- Construcție laptop
- 1U
