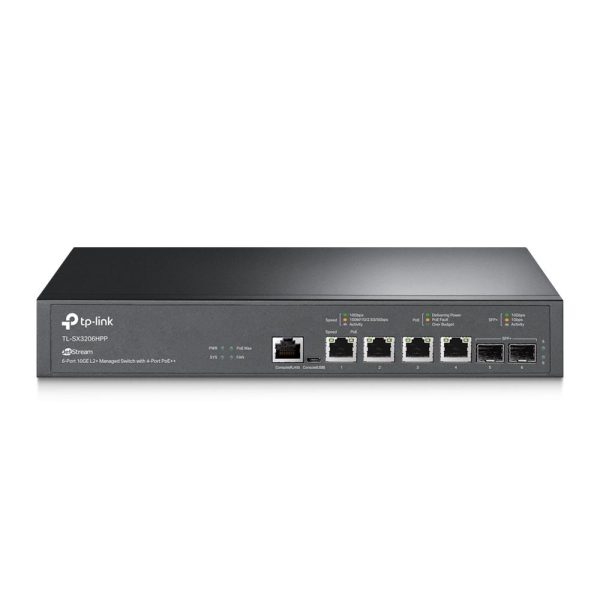

"JetStream™ 4-Port 10GBase-T and 2-Port 10GE SFP+ L2+ Managed Switch

Switchuri

"JetStream™ 4-Port 10GBase-T and 2-Port 10GE SFP+ L2+ Managed Switch

(0) Stoc epuizat
Vândut de RITC.ro Cod produs: TL-SX3206HPP

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică "JetStream™ 4-Port 10GBase-T and 2-Port 10GE SFP+ L2+ Managed Switch Switch TP-Link TL-SG1024D, 24 port, 10/100/1000 Mbps "JetStream™ 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch "JetStream™ 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch Switch TP-Link TL-SF1008D, 8 port, 10/100 Mbps
Alte caracteristici
10G support Yes No Yes Yes No
Access Control List (ACL) Yes — Yes Yes —
AC input frequency — 50 - 60 Hz — — 50 - 60 Hz
ARP inspection Yes — Yes Yes —
Authentication Guest VLAN — Auto VLAN, Guest VLAN Guest VLAN, MAC-based authentication, Port-based authentication —
Authentication type AAA, RADIUS, TACACS+ — — AAA, IEEE 802.1x, RADIUS, TACACS+ —
Auto-negotiation — Yes — — Yes
Auto MDI/MDI-X — Yes — — Yes
Basic switching RJ-45 Ethernet ports type 10G Ethernet (100/1000/10000) 24 48 24 Fast Ethernet (10/100)
BPDU filtering/protection Yes — Yes Yes —
Broadcast storm control Yes — Yes Yes —
Cables included AC AC AC AC —
Cloud-managed Yes — Yes Yes —
Compliance certificates — — — CE, Federal Communications Commission (FCC), RoHS CE, Federal Communications Commission (FCC), RoHS
Configuring Location Settings (CLI) Yes — Yes Yes —
Console port RJ-45/micro-USB — RJ-45/micro-USB RJ-45/micro-USB —
Depth 180 mm 180 mm 330 mm 330 mm 7.9 mm
DHCP features DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client — DHCP client, DHCP relay, DHCP server DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping —
Flow control support Yes Yes Yes Yes Yes
Form factor — — 1U 1U —
Forwarding rate 89.28 Mpps 35.7 Mpps 130.9 Mpps 148.8 Mpps —
Full duplex — Yes — Yes Yes
Half duplex — — — Yes Yes
Harmonized System (HS) code 85176990 85176990 — — 85176990
Head-of-line (HOL) blocking Yes — Yes Yes —
Heat dissipation 835.67 BTU/h 44.63 BTU/h 2169.2 BTU/h 2153.45 BTU/h 6.99 BTU/h
Height 44 mm 44 mm — — 22.5 mm
IGMP snooping Yes — Yes Yes —
IP-MAC-Port binding — — Yes Yes —
Jumbo frames 9000 10000 9000 9000 —
Jumbo frames support Yes Yes Yes Yes —
LAN ports — 24 48 24 —
LAN port type 10Gigabit Gigabit Gigabit Gigabit FastEthernet
Layer — Unmanaged Layer-2 Layer-2 —
LED indicators Yes Yes Yes Yes Yes
Link aggregation Yes — Yes Yes —
Loop protection Yes — — Yes —
MAC address table 32000 entries 8000 entries 16000 entries 32000 entries 1000 entries
Management Da nu Da Da nu
MIB support Yes — — RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925 —
Montare in rack Nu Nu Da Da Nu
Multicast Listener Discovery (MLD) snooping MLD v1/v2 — — MLD v1/v2 —
Multicast support Yes — Yes Yes —
Networking standards — IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x — — IEEE 802.3u, IEEE 802.3x
Number of fans 2 fan(s) — 3 fan(s) 3 fan(s) —
Number of static routes 48 — — 48 —
Operating relative humidity (H-H) 10 - 90% 10 - 90% 10 - 90% 10 - 90% 10 - 90%
Operating temperature (T-T) 0 - 50 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C
Package depth 250 mm 400 mm — — 139 mm
Package height 80 mm 80 mm — — 85 mm
Package type — Box — — Box
Package weight 2.62 kg 1.95 kg — — 240 g
Package width 400 mm 250 mm — — 100 mm
Packet buffer memory 16 MB — 12 MB 16 MB 2 MB
PoE Da Nu Da Da Nu
Port mirroring Yes — Yes Yes —
Porturi RJ 45 1-4 24-28 28+ 24-28 5-10
Porturi SFP 1-2 N/A 1-2 1-2 N/A
Power connector AC-in jack DC-in jack AC-in jack — DC-in jack
Power consumption (max) 244.9 W 13.08 W 635.7 W 629.1 W 2.2 W
Power over Ethernet (PoE) Yes No Yes Yes No
Power over Ethernet (PoE) power per port 60 W — 30 W — —
Power over Ethernet plus (PoE+) ports quantity 4 — 48 16 —
Power source AC AC AC AC/PoE DC
Power supply included Yes Yes Yes Yes No
Quality of Service (QoS) support Yes Yes Yes Yes —
Quick start guide Yes — Yes Yes Yes
Rackable — No Yes Yes —
Rack mounting Yes Yes Yes Yes No
Rack mount kit Yes Yes — Yes —
Rate limiting Yes — Yes Yes —
Redundant PSU — Yes No Yes —
Security algorithms HTTPS, SSL/TLS — — HTTPS, SSH, SSH-2, SSL/TLS —
SFP module slots quantity 2 — 4 4 —
Spanning tree protocol Yes — Yes Yes —
SSH/SSL support Yes — Yes Yes —
Stackable — Yes No No No
Static port security — — Yes Yes —
Static route Yes — — Yes —
Storage relative humidity (H-H) 5 - 95% 5 - 90% 5 - 90% 5 - 90% 5 - 95%
Storage temperature (T-T) -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C
Store-and-forward — Yes Yes Yes Yes
Supported network protocols — CSMA/CD, TCP/IP — — CSMA/CD, TCP/IP
Sustainability compliance — — — Yes Yes
Switching capacity 120 Gbit/s 48 Gbit/s 176 Gbit/s 200 Gbit/s 16 Gbit/s
Switch type Managed Unmanaged Managed Managed Unmanaged
System event log Yes — Yes Yes —
Total Power over Ethernet (PoE) budget 200 W — 500 W 500 W —
Virtual LAN features Private VLAN, Tagged VLAN, VLAN mapping, Voice VLAN — — MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Stacked VLAN, Tagged VLAN, Voice VLAN —
Viteza transfer 10G+ Gigabit 10G+ 2.5G Fast Ethernet
VLAN support Yes — Yes Yes —
Web-based management Yes — Yes Yes —
Width 294 mm 294 mm — — 134.5 mm
Laptopuri - Construcție
Culoare Black Grey — — White
Laptopuri - Generale
Garanție comercială 24 60 60 24 36
Producător TP-LINK TP-LINK TP-LINK TP-LINK TP-LINK

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

“JetStream™ 4-Port 10GBase-T and 2-Port 10GE SFP+ L2+ Managed Switch with 4-Port PoE++ PORT: 4× 10G PoE++ Ports, 2× 10G SFP+ Slots, RJ45/Micro-USB Console Port SPEC: 802.3bt/at/af, 200 W PoE Power, 1U 13-inch Rack-mountable Steel Case FEATURE: Integration with JetStream™ SDN Controller,Static Routing, OAM, DDM, sFlow, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6”

Specificații tehnice 82 caracteristici
10G support
Yes
Access Control List (ACL)
Yes
ARP inspection
Yes
Authentication
Guest VLAN
Authentication type
AAA, RADIUS, TACACS+
Basic switching RJ-45 Ethernet ports type
10G Ethernet (100/1000/10000)
BPDU filtering/protection
Yes
Broadcast storm control
Yes
Cables included
AC
Cloud-managed
Yes
Configuring Location Settings (CLI)
Yes
Console port
RJ-45/micro-USB
Depth
180 mm
DHCP features
DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client
Flow control support
Yes
Forwarding rate
89.28 Mpps
Harmonized System (HS) code
85176990
Head-of-line (HOL) blocking
Yes
Heat dissipation
835.67 BTU/h
Height
44 mm
IGMP snooping
Yes
IP routing
Yes
Jumbo frames
9000
Jumbo frames support
Yes
LAN port type
10Gigabit
LED indicators
Yes
Link aggregation
Yes
Loop protection
Yes
MAC address table
32000 entries
Management
Da
Management protocols
SNMP v1/v2c/v3
MIB support
Yes
Montare in rack
Nu
Multicast Listener Discovery (MLD) snooping
MLD v1/v2
Multicast support
Yes
Number of fans
2 fan(s)
Number of static routes
48
Number of VLANs
4000
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 50 °C
Package depth
250 mm
Package height
80 mm
Package weight
2.62 kg
Package width
400 mm
Packet buffer memory
16 MB
PoE
Da
Port mirroring
Yes
Porturi RJ 45
1-4
Porturi SFP
1-2
Power connector
AC-in jack
Power consumption (max)
244.9 W
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) power per port
60 W
Power over Ethernet plus (PoE+) ports quantity
4
Power source
AC
Power supply included
Yes
Quality of Service (QoS) support
Yes
Quick start guide
Yes
Rack mounting
Yes
Rack mount kit
Yes
Rate limiting
Yes
Routing entries
512
Security algorithms
HTTPS, SSL/TLS
SFP module slots quantity
2
Spanning tree protocol
Yes
SSH/SSL support
Yes
Static route
Yes
Storage relative humidity (H-H)
5 - 95%
Storage temperature (T-T)
-40 - 70 °C
Switching capacity
120 Gbit/s
Switch layer
L2
Switch type
Managed
System event log
Yes
Total Power over Ethernet (PoE) budget
200 W
Virtual LAN features
Private VLAN, Tagged VLAN, VLAN mapping, Voice VLAN
Viteza transfer
10G+
VLAN support
Yes
Web-based management
Yes
Width
294 mm
Culoare
Black
Garanție comercială
24
Producător
TP-LINK
