Mikrotik Cloud Router Switch, CRS317-1G-16S+RM; 1 x Gigabit LAN, 16

Switchuri

Mikrotik Cloud Router Switch, CRS317-1G-16S+RM; 1 x Gigabit LAN, 16

(0) Stoc epuizat
Vândut de RITC.ro Cod produs: CRS317-1G-16S+RM

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Mikrotik Cloud Router Switch, CRS317-1G-16S+RM; 1 x Gigabit LAN, 16 Switch TP-Link TL-SF1016, 16 port, 10/100 Mbps "JetStream™ 8-Port 10GE SFP+ L2+ Managed Switch PORT: 8× 10G Switch ALLIED TELESIS GS950, 48 port, 10/100/1000 Mbps Omada 24-Port Gigabit Stackable Lite L3 Managed Switch with 4
Alte caracteristici
10G support Yes No Yes No Yes
Access Control List (ACL) — — Yes — Yes
AC input frequency — 50 - 60 Hz — 50 - 60 Hz —
AC input voltage 110 - 240 V — 220 V — —
ARP inspection — — Yes — Yes
Auto MDI/MDI-X — Yes — Yes —
Basic switching RJ-45 Ethernet ports type No Fast Ethernet (10/100) No 48 24
Broadcast storm control Yes — Yes Yes Yes
Built-in processor Yes — — — Yes
Cables included AC AC AC — AC
Cloud-managed — — Yes — Yes
Compliance certificates — CE, Federal Communications Commission (FCC), RoHS — — CE, Federal Communications Commission (FCC), RoHS
Console port RJ-45 — RJ-45/micro-USB RJ-45 RJ-45
Copper ethernet cabling technology — 10BASE-T, 100BASE-TX — 1000BASE-T, 100BASE-TX —
Depth 224 mm 180 mm 180 mm 322 mm 180 mm
DHCP features — — DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping DHCP client DHCP relay, DHCP server
Fanless — Yes — — Yes
Flash memory 1000 MB — — 4 MB 512 MB
Flow control support — Yes Yes Yes —
Form factor 1U 1U — 1U —
Forwarding rate — 2.38 Mpps 119.04 Mpps — 95.23 Mpps
Gigabit Ethernet (copper) ports quantity 1 — — — 24
Harmonized System (HS) code 85176990 85176990 — 85176990 —
Head-of-line (HOL) blocking — — Yes Yes —
Heat dissipation — 7.03 BTU/h 52.75 BTU/h — 66.87 BTU/h
Height 44 mm 44 mm — 43.5 mm 44 mm
IGMP snooping — — Yes Yes Yes
IP-MAC-Port binding — — Yes — Yes
Jumbo frames — — 9000 — 9000
Jumbo frames support — — Yes Yes Yes
LAN port type Gigabit FastEthernet 10Gigabit Gigabit —
LED indicators Yes Yes Yes Yes Yes
Link aggregation Yes — Yes Yes Yes
MAC address filtering — — Yes Yes Yes
MAC address table — 8000 entries 32000 entries 8000 entries 16000 entries
Management Da nu Da Da —
Management protocols — — SNMPv1/v2c/v3, SNTP IGMP, SNMP, FTP —
Mean time between failures (MTBF) — — — 263000 h 519.543 h
Memory type Flash — — — DRAM
MIB support — — RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213 RFC 1213, RFC 1643, RFC 1493 —
Montare in rack Nu Nu Nu Da Da
Multicast support — — Yes Yes Yes
Networking standards IEEE 802.1Q IEEE 802.3i, IEEE 802.3u, IEEE 802.3x IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x — IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Number of VLANs 4000 — 4000 — 4000
Operating relative humidity (H-H) — 10 - 90% 10 - 90% 5 - 90% 10 - 90%
Operating temperature (T-T) -20 - 60 °C 0 - 40 °C 0 - 45 °C 0 - 40 °C -5 - 45 °C
Package type — Box Box — —
Packet buffer memory — 2 MB 16 MB 6 MB 12 MB
PoE Nu Nu Nu Nu —
Port mirroring Yes — Yes Yes Yes
Porturi RJ 45 11-18 11-18 1-4 28+ 24-28
Porturi SFP peste 9 N/A 5-8 1-2 3-4
Power connector DC-in jack DC-in jack DC-in jack DC-in jack —
Power consumption (max) 42 W 2.23 W 15.46 W — 19.6 W
Power over Ethernet (PoE) No No No No No
Power source — AC AC — AC
Power supply included — Yes Yes — Yes
Quality of Service (QoS) support — — Yes Yes Yes
Rack mounting Yes Yes Yes Yes Yes
Rack mount kit — Yes Yes — Yes
Rate limiting — — Yes Yes —
Security algorithms SNMPv2, SNMPv3 — HTTPS, SSH, SSH-2, SSL/TLS — SNMP, SNMPv2, SNMPv3
SFP module slots quantity 16 — 8 — 4
Spanning tree protocol Yes — Yes Yes —
SSH/SSL support — — Yes — Yes
Stackable — No — No Yes
Static port security — — Yes Yes Yes
Storage relative humidity (H-H) — 5 - 90% 5 - 90% 5 - 95% 5 - 90%
Storage temperature (T-T) — -40 - 70 °C -40 - 70 °C -25 - 70 °C -40 - 70 °C
Store-and-forward — Yes — — Yes
Switching capacity — 32 Gbit/s 160 Gbit/s — 128 Gbit/s
Switch layer L3 — L2+/L3 L2 L3
Switch type Managed Unmanaged Managed Managed Managed
Virtual LAN features — — Private VLAN, Protocol-based VLAN, Voice VLAN — MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN
Viteza transfer Gigabit Fast Ethernet 10G+ Gigabit Gigabit
VLAN support Yes — Yes Yes Yes
Web-based management Yes — Yes Yes Yes
Width 443 mm 440 mm — 444 mm 440 mm
Laptopuri - Construcție
Culoare Grey Black — Grey —
Laptopuri - Generale
Garanție comercială 24 36 60 24 24
Producător MIKROTIK TP-LINK TP-LINK ALLIED TELESIS TP-LINK
Laptopuri - Memorie
Capacitate memorie RAM 16 MB — — 32 MB 2000 MB
Laptopuri - Procesor
Frecvență procesor 800 MHz — — — 1200 MHz

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

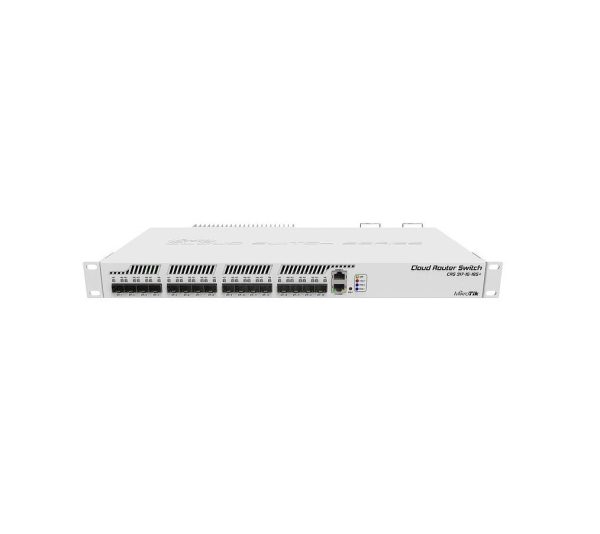

Mikrotik Cloud Router Switch, CRS317-1G-16S+RM; 1 x Gigabit LAN, 16 xSFP+ cages, Dual Core 800MHz CPU, 1GB RAM, 1U rackmount passive coolingcase, Dual Power Supplies;

Specificații tehnice 49 caracteristici
10G support
Yes
AC input voltage
110 - 240 V
Basic switching RJ-45 Ethernet ports type
No
Broadcast storm control
Yes
Built-in processor
Yes
Cables included
AC
Console port
RJ-45
Depth
224 mm
Flash memory
1000 MB
Form factor
1U
Gigabit Ethernet (copper) ports quantity
1
Harmonized System (HS) code
85176990
Height
44 mm
LAN port type
Gigabit
LED indicators
Yes
Link aggregation
Yes
Management
Da
Memory type
Flash
Montare in rack
Nu
Mounting brackets included
Yes
Networking standards
IEEE 802.1Q
Number of fans
2 fan(s)
Number of power supply units
2
Number of VLANs
4000
Operating temperature (T-T)
-20 - 60 °C
PoE
Nu
Port mirroring
Yes
Porturi RJ 45
11-18
Porturi SFP
peste 9
Power connector
DC-in jack
Power consumption (max)
42 W
Power over Ethernet (PoE)
No
Rack mounting
Yes
Reset button
Yes
Security algorithms
SNMPv2, SNMPv3
SFP module slots quantity
16
Spanning tree protocol
Yes
Switch layer
L3
Switch type
Managed
User guide
Yes
Viteza transfer
Gigabit
VLAN support
Yes
Web-based management
Yes
Width
443 mm
Culoare
Grey
Garanție comercială
24
Producător
MIKROTIK
Capacitate memorie RAM
16 MB
Frecvență procesor
800 MHz
