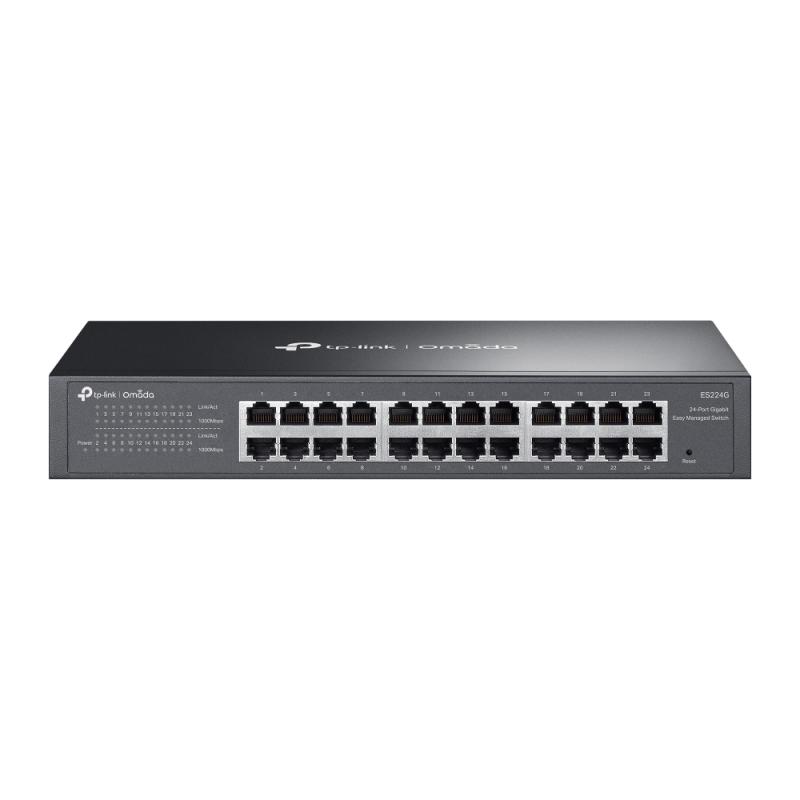

Omada 24-Port Gigabit Easy Managed Switch PORT: 24× Gigabit RJ45

Switchuri

Omada 24-Port Gigabit Easy Managed Switch PORT: 24× Gigabit RJ45

(0) În stoc
Vândut de RITC.ro Cod produs: ES224G

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Omada 24-Port Gigabit Easy Managed Switch PORT: 24× Gigabit RJ45 Switch TP-Link TL-SG1024D, 24 port, 10/100/1000 Mbps "JetStream™ 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch "JetStream™ 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch Switch TP-Link TL-SF1008D, 8 port, 10/100 Mbps
Alte caracteristici
10G support — No Yes Yes No
Access Control List (ACL) — — Yes Yes —
AC input frequency — 50 - 60 Hz — — 50 - 60 Hz
ARP inspection — — Yes Yes —
Authentication — — Auto VLAN, Guest VLAN Guest VLAN, MAC-based authentication, Port-based authentication —
Auto-negotiation Yes Yes — — Yes
Auto MDI/MDI-X Yes Yes — — Yes
Basic switching RJ-45 Ethernet ports type 24 24 48 24 Fast Ethernet (10/100)
BPDU filtering/protection — — Yes Yes —
Broadcast storm control Yes — Yes Yes —
Cables included AC AC AC AC —
Cloud-managed Yes — Yes Yes —
Compliance certificates CE, Federal Communications Commission (FCC), RoHS — — CE, Federal Communications Commission (FCC), RoHS CE, Federal Communications Commission (FCC), RoHS
Configuring Location Settings (CLI) — — Yes Yes —
Console port — — RJ-45/micro-USB RJ-45/micro-USB —
Depth 140 mm 180 mm 330 mm 330 mm 7.9 mm
DHCP features DHCP client — DHCP client, DHCP relay, DHCP server DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping —
Fanless Yes — — — Yes
Flow control support Yes Yes Yes Yes Yes
Form factor — — 1U 1U —
Forwarding rate 35.7 Mpps 35.7 Mpps 130.9 Mpps 148.8 Mpps —
Full duplex — Yes — Yes Yes
Gigabit Ethernet (copper) ports quantity 24 24 — — —
Half duplex — — — Yes Yes
Harmonized System (HS) code — 85176990 — — 85176990
Head-of-line (HOL) blocking — — Yes Yes —
Heat dissipation — 44.63 BTU/h 2169.2 BTU/h 2153.45 BTU/h 6.99 BTU/h
Height 44 mm 44 mm — — 22.5 mm
IGMP snooping Yes — Yes Yes —
IP-MAC-Port binding — — Yes Yes —
Jumbo frames 15000 10000 9000 9000 —
Jumbo frames support Yes Yes Yes Yes —
LAN ports 8 24 48 24 —
LAN port type FastEthernet Gigabit Gigabit Gigabit FastEthernet
Layer — Unmanaged Layer-2 Layer-2 —
LED indicators — Yes Yes Yes Yes
Link aggregation Yes — Yes Yes —
MAC address table 8000 entries 8000 entries 16000 entries 32000 entries 1000 entries
Management — nu Da Da nu
Montare in rack Da Nu Da Da Nu
Multicast support Yes — Yes Yes —
Networking standards — IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x — — IEEE 802.3u, IEEE 802.3x
Number of fans — — 3 fan(s) 3 fan(s) —
Operating relative humidity (H-H) 10 - 90% 10 - 90% 10 - 90% 10 - 90% 10 - 90%
Operating temperature (T-T) — 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C
Package depth — 400 mm — — 139 mm
Package height — 80 mm — — 85 mm
Package type — Box — — Box
Package weight — 1.95 kg — — 240 g
Package width — 250 mm — — 100 mm
Packet buffer memory 4 MB — 12 MB 16 MB 2 MB
PoE — Nu Da Da Nu
Port mirroring Yes — Yes Yes —
Porturi RJ 45 24-28 24-28 28+ 24-28 5-10
Porturi SFP N/A N/A 1-2 1-2 N/A
Power connector — DC-in jack AC-in jack — DC-in jack
Power consumption (max) — 13.08 W 635.7 W 629.1 W 2.2 W
Power over Ethernet (PoE) — No Yes Yes No
Power over Ethernet plus (PoE+) ports quantity — — 48 16 —
Power source AC AC AC AC/PoE DC
Power supply included Yes Yes Yes Yes No
Quality of Service (QoS) support Yes Yes Yes Yes —
Queue scheduling algorithms Weighted Round Robin (WRR) — — SP, WRR+SP, Weighted Round Robin (WRR) —
Quick start guide — — Yes Yes Yes
Rackable No No Yes Yes —
Rack mounting Yes Yes Yes Yes No
Rack mount kit No Yes — Yes —
Rate limiting — — Yes Yes —
Redundant PSU No Yes No Yes —
SFP module slots quantity — — 4 4 —
Spanning tree protocol — — Yes Yes —
SSH/SSL support — — Yes Yes —
Stackable No Yes No No No
Static port security — — Yes Yes —
Storage relative humidity (H-H) 5 - 90% 5 - 90% 5 - 90% 5 - 90% 5 - 95%
Storage temperature (T-T) -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C
Store-and-forward Yes Yes Yes Yes Yes
Supported network protocols — CSMA/CD, TCP/IP — — CSMA/CD, TCP/IP
Sustainability compliance — — — Yes Yes
Switching capacity 48 Gbit/s 48 Gbit/s 176 Gbit/s 200 Gbit/s 16 Gbit/s
Switch type Managed Unmanaged Managed Managed Unmanaged
System event log — — Yes Yes —
Total Power over Ethernet (PoE) budget — — 500 W 500 W —
User guide Yes Yes — — —
Virtual LAN features MTU VLAN, Port-based VLAN — — MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Stacked VLAN, Tagged VLAN, Voice VLAN —
Viteza transfer Gigabit Gigabit 10G+ 2.5G Fast Ethernet
VLAN support Yes — Yes Yes —
Web-based management Yes — Yes Yes —
Width 294 mm 294 mm — — 134.5 mm
Laptopuri - Construcție
Culoare Black Grey — — White
Laptopuri - Generale
Garanție comercială 36 60 60 24 36
Producător TP-LINK TP-LINK TP-LINK TP-LINK TP-LINK

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

Omada 24-Port Gigabit Easy Managed Switch PORT: 24× Gigabit RJ45 Ports SPEC: 1U 13-inch Rack-mountable Steel Case FEATURE: Integration with Omada SDN Controller and Omada Cloud Essentials, Flow Control, Loopback Detection, Port Isolation, Port Mirroring, LAG, VLAN, IGMP Snooping, QoS, Storm Control

Specificații tehnice 58 caracteristici
Auto-negotiation
Yes
Auto MDI/MDI-X
Yes
Basic switching RJ-45 Ethernet ports type
24
Broadcast storm control
Yes
Cables included
AC
Cloud-managed
Yes
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
Depth
140 mm
DHCP features
DHCP client
Fanless
Yes
Fast leave
Yes
Firmware upgradeable
Yes
Flow control support
Yes
Forwarding rate
35.7 Mpps
Gigabit Ethernet (copper) ports quantity
24
Height
44 mm
IGMP snooping
Yes
Jumbo frames
15000
Jumbo frames support
Yes
LAN ports
8
LAN port type
FastEthernet
Link aggregation
Yes
MAC address table
8000 entries
Montare in rack
Da
Multicast support
Yes
Number of VLANs
32
Operating relative humidity (H-H)
10 - 90%
Packet buffer memory
4 MB
Port mirroring
Yes
Porturi RJ 45
24-28
Porturi SFP
N/A
Power source
AC
Power supply included
Yes
Quality of Service (QoS) support
Yes
Queue scheduling algorithms
Weighted Round Robin (WRR)
Rackable
No
Rack mounting
Yes
Rack mount kit
No
Redundant PSU
No
Stackable
No
Storage relative humidity (H-H)
5 - 90%
Storage temperature (T-T)
-40 - 70 °C
Store-and-forward
Yes
Surge protection
Yes
Surge protection voltage
6 kV
Switching capacity
48 Gbit/s
Switch layer
L2
Switch type
Managed
Unified static configuration
Yes
User guide
Yes
Virtual LAN features
MTU VLAN, Port-based VLAN
Viteza transfer
Gigabit
VLAN support
Yes
Web-based management
Yes
Width
294 mm
Culoare
Black
Garanție comercială
36
Producător
TP-LINK
