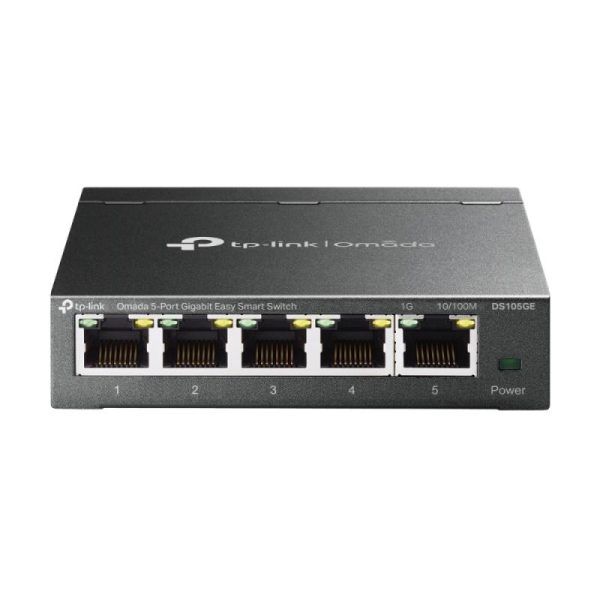

Omada 5-Port Gigabit Easy Smart Switch PORT: 5× Gigabit RJ45

Switchuri

Omada 5-Port Gigabit Easy Smart Switch PORT: 5× Gigabit RJ45

(0) Stoc epuizat
Vândut de RITC.ro Cod produs: DS105GE

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Omada 5-Port Gigabit Easy Smart Switch PORT: 5× Gigabit RJ45 Switch TP-Link TL-SG1024D, 24 port, 10/100/1000 Mbps "JetStream™ 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch "JetStream™ 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch Switch TP-Link TL-SF1008D, 8 port, 10/100 Mbps
Alte caracteristici
10G support No No Yes Yes No
Access Control List (ACL) — — Yes Yes —
AC input frequency — 50 - 60 Hz — — 50 - 60 Hz
ARP inspection — — Yes Yes —
Authentication — — Auto VLAN, Guest VLAN Guest VLAN, MAC-based authentication, Port-based authentication —
Auto-negotiation Yes Yes — — Yes
Auto MDI/MDI-X Yes Yes — — Yes
Basic switching RJ-45 Ethernet ports type 5 24 48 24 Fast Ethernet (10/100)
BPDU filtering/protection — — Yes Yes —
Broadcast storm control Yes — Yes Yes —
Cables included Power AC AC AC —
Cloud-managed — — Yes Yes —
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC), RoHS — — CE, Federal Communications Commission (FCC), RoHS CE, Federal Communications Commission (FCC), RoHS
Configuring Location Settings (CLI) — — Yes Yes —
Console port — — RJ-45/micro-USB RJ-45/micro-USB —
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T — — — 10BASE-T, 100BASE-TX
DC input voltage 5 V — — — 5 V
DHCP features — — DHCP client, DHCP relay, DHCP server DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping —
Fanless Yes — — — Yes
Flow control support — Yes Yes Yes Yes
Forwarding rate 7.4 Mpps 35.7 Mpps 130.9 Mpps 148.8 Mpps —
Full duplex — Yes — Yes Yes
Half duplex — — — Yes Yes
Harmonized System (HS) code — 85176990 — — 85176990
Head-of-line (HOL) blocking — — Yes Yes —
Heat dissipation 9.62 BTU/h 44.63 BTU/h 2169.2 BTU/h 2153.45 BTU/h 6.99 BTU/h
IGMP snooping Yes — Yes Yes —
Input current 0.6 A — — — 0.6 A
IP-MAC-Port binding — — Yes Yes —
Jumbo frames 16 10000 9000 9000 —
Jumbo frames support Yes Yes Yes Yes —
LAN ports — 24 48 24 —
LAN port type FastEthernet Gigabit Gigabit Gigabit FastEthernet
Layer — Unmanaged Layer-2 Layer-2 —
LED indicators Activity, Link, Power Yes Yes Yes Yes
Link aggregation Yes — Yes Yes —
Loop protection Yes — — Yes —
MAC address table 2000 entries 8000 entries 16000 entries 32000 entries 1000 entries
Management nu nu Da Da nu
Montare in rack Nu Nu Da Da Nu
Multicast support — — Yes Yes —
Networking standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x — — IEEE 802.3u, IEEE 802.3x
Number of fans — — 3 fan(s) 3 fan(s) —
Number of queues 4 — — 8 —
Operating relative humidity (H-H) — 10 - 90% 10 - 90% 10 - 90% 10 - 90%
Operating temperature (T-T) 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C
Package depth — 400 mm — — 139 mm
Package height — 80 mm — — 85 mm
Package type — Box — — Box
Package weight — 1.95 kg — — 240 g
Package width — 250 mm — — 100 mm
Packet buffer memory 1 MB — 12 MB 16 MB 2 MB
PoE Nu Nu Da Da Nu
Port mirroring Yes — Yes Yes —
Porturi RJ 45 5-10 24-28 28+ 24-28 5-10
Porturi SFP N/A N/A 1-2 1-2 N/A
Power connector DC-in jack DC-in jack AC-in jack — DC-in jack
Power consumption (max) 2.82 W 13.08 W 635.7 W 629.1 W 2.2 W
Power over Ethernet (PoE) No No Yes Yes No
Power over Ethernet plus (PoE+) ports quantity — — 48 16 —
Power source AC/DC AC AC AC/PoE DC
Power supply included Yes Yes Yes Yes No
Quality of Service (QoS) support Yes Yes Yes Yes —
Queue scheduling algorithms Priority queuing (PQ) — — SP, WRR+SP, Weighted Round Robin (WRR) —
Quick start guide — — Yes Yes Yes
Rackable — No Yes Yes —
Rack mounting No Yes Yes Yes No
Rack mount kit — Yes — Yes —
Rate limiting Yes — Yes Yes —
Redundant PSU — Yes No Yes —
Reset button Yes — Yes — —
SFP module slots quantity — — 4 4 —
Spanning tree protocol — — Yes Yes —
SSH/SSL support — — Yes Yes —
Stackable — Yes No No No
Static port security — — Yes Yes —
Storage relative humidity (H-H) 5 - 90% 5 - 90% 5 - 90% 5 - 90% 5 - 95%
Storage temperature (T-T) — -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C
Store-and-forward Yes Yes Yes Yes Yes
Supported network protocols — CSMA/CD, TCP/IP — — CSMA/CD, TCP/IP
Sustainability compliance — — — Yes Yes
Switching capacity 10 Gbit/s 48 Gbit/s 176 Gbit/s 200 Gbit/s 16 Gbit/s
Switch type Managed Unmanaged Managed Managed Unmanaged
System event log — — Yes Yes —
Total Power over Ethernet (PoE) budget — — 500 W 500 W —
Virtual LAN features Port-based VLAN, Tagged VLAN — — MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Stacked VLAN, Tagged VLAN, Voice VLAN —
Viteza transfer Gigabit Gigabit 10G+ 2.5G Fast Ethernet
VLAN support — — Yes Yes —
Web-based management — — Yes Yes —
Laptopuri - Caracteristici fizice 25.09
Adâncime 98 mm 180 mm 330 mm 330 mm 7.9 mm
Lățime 100 mm 294 mm — — 134.5 mm
Înălțime 25 mm 44 mm — — 22.5 mm
Laptopuri - Conectivitate și porturi 25.09
Viteză rețea LAN 10,100,1000 Mbit/s — — 10,100,1000,2500,10000 Mbit/s —
Laptopuri - Construcție
Culoare — Grey — — White
Laptopuri - Generale
Garanție comercială 36 60 60 24 36
Producător TP-LINK TP-LINK TP-LINK TP-LINK TP-LINK
Laptopuri - Tip laptop
Construcție laptop — — 1U 1U —

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

Omada 5-Port Gigabit Easy Smart Switch PORT: 5× Gigabit RJ45 Ports SPEC: Desktop Steel Case FEATURE: MTU/Port/Tag-based VLAN, QoS, IGMP Snooping, Web/Utility Management, Plug and Play

Specificații tehnice 56 caracteristici
10G support
No
Auto-negotiation
Yes
Auto MDI/MDI-X
Yes
Basic switching RJ-45 Ethernet ports type
5
Broadcast storm control
Yes
Cables included
Power
Compliance certificates
CE, Federal Communications Commission (FCC), Industry Canada (IC), RoHS
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
DC input voltage
5 V
Fanless
Yes
Forwarding rate
7.4 Mpps
Heat dissipation
9.62 BTU/h
IGMP snooping
Yes
Input current
0.6 A
Jumbo frames
16
Jumbo frames support
Yes
LAN port type
FastEthernet
LED indicators
Activity, Link, Power
Link aggregation
Yes
Loop protection
Yes
MAC address table
2000 entries
Management
nu
Montare in rack
Nu
Networking standards
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Number of queues
4
Number of VLANs
32
Operating temperature (T-T)
0 - 40 °C
Packet buffer memory
1 MB
PoE
Nu
Port mirroring
Yes
Porturi RJ 45
5-10
Porturi SFP
N/A
Power connector
DC-in jack
Power consumption (max)
2.82 W
Power over Ethernet (PoE)
No
Power source
AC/DC
Power supply included
Yes
Quality of Service (QoS) support
Yes
Queue scheduling algorithms
Priority queuing (PQ)
Rack mounting
No
Rate limiting
Yes
Reset button
Yes
Storage relative humidity (H-H)
5 - 90%
Store-and-forward
Yes
Switching capacity
10 Gbit/s
Switch layer
L2
Switch type
Managed
Virtual LAN features
Port-based VLAN, Tagged VLAN
Viteza transfer
Gigabit
Adâncime
98 mm
Lățime
100 mm
Material carcasă
Steel
Înălțime
25 mm
Viteză rețea LAN
10,100,1000 Mbit/s
Garanție comercială
36
Producător
TP-LINK
