Omada 8-Port 2.5GBASE-T and 2-Port 10GE SFP+ Smart Switch with

Switchuri

Omada 8-Port 2.5GBASE-T and 2-Port 10GE SFP+ Smart Switch with

(0) În stoc
Vândut de RITC.ro Cod produs: SG2210XMP-M2

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Omada 8-Port 2.5GBASE-T and 2-Port 10GE SFP+ Smart Switch with Switch TP-Link TL-SG1024D, 24 port, 10/100/1000 Mbps "JetStream™ 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch "JetStream™ 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch Switch TP-Link TL-SF1008D, 8 port, 10/100 Mbps
Alte caracteristici
10G support No No Yes Yes No
Access Control List (ACL) Yes — Yes Yes —
AC input frequency — 50 - 60 Hz — — 50 - 60 Hz
ARP inspection Yes — Yes Yes —
Authentication MAC-based authentication, Port-based authentication — Auto VLAN, Guest VLAN Guest VLAN, MAC-based authentication, Port-based authentication —
Authentication type RADIUS — — AAA, IEEE 802.1x, RADIUS, TACACS+ —
Auto-negotiation — Yes — — Yes
Auto MDI/MDI-X — Yes — — Yes
Basic switching RJ-45 Ethernet ports type 2.5G Ethernet (100/1000/2500) 24 48 24 Fast Ethernet (10/100)
BPDU filtering/protection — — Yes Yes —
Broadcast storm control Yes — Yes Yes —
Cables included — AC AC AC —
Cloud-managed Yes — Yes Yes —
Compliance certificates CE, Federal Communications Commission (FCC), RoHS — — CE, Federal Communications Commission (FCC), RoHS CE, Federal Communications Commission (FCC), RoHS
Configuring Location Settings (CLI) Yes — Yes Yes —
Console port — — RJ-45/micro-USB RJ-45/micro-USB —
Depth 131 mm 180 mm 330 mm 330 mm 7.9 mm
DHCP features DHCP relay, DHCP server, DHCPv6 client, DHCPv6 snooping — DHCP client, DHCP relay, DHCP server DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping —
Ethernet LAN data rates 10,100,1000,2500 Mbit/s — — 10,100,1000,2500,10000 Mbit/s —
Flow control support Yes Yes Yes Yes Yes
Form factor Desktop/Wall-Mounting — 1U 1U —
Forwarding rate 59.52 Mpps 35.7 Mpps 130.9 Mpps 148.8 Mpps —
Full duplex — Yes — Yes Yes
Half duplex — — — Yes Yes
Harmonized System (HS) code — 85176990 — — 85176990
Head-of-line (HOL) blocking — — Yes Yes —
Heat dissipation 614.58 BTU/h 44.63 BTU/h 2169.2 BTU/h 2153.45 BTU/h 6.99 BTU/h
Height 35 mm 44 mm — — 22.5 mm
IGMP snooping Yes — Yes Yes —
IP-MAC-Port binding — — Yes Yes —
Jumbo frames 9000 10000 9000 9000 —
Jumbo frames support Yes Yes Yes Yes —
LAN ports 8 24 48 24 —
LAN port type FastEthernet Gigabit Gigabit Gigabit FastEthernet
Layer — Unmanaged Layer-2 Layer-2 —
LED indicators Yes Yes Yes Yes Yes
Link aggregation Yes — Yes Yes —
Loop protection Yes — — Yes —
MAC address table 16000 entries 8000 entries 16000 entries 32000 entries 1000 entries
Management Da nu Da Da nu
MIB support Y — — RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925 —
Montare in rack Da Nu Da Da Nu
Multicast support Yes — Yes Yes —
Networking standards IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3x IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x — — IEEE 802.3u, IEEE 802.3x
Number of fans — — 3 fan(s) 3 fan(s) —
Operating relative humidity (H-H) 10 - 90% 10 - 90% 10 - 90% 10 - 90% 10 - 90%
Operating temperature (T-T) 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C
Package depth — 400 mm — — 139 mm
Package height — 80 mm — — 85 mm
Package type — Box — — Box
Package weight — 1.95 kg — — 240 g
Package width — 250 mm — — 100 mm
Packet buffer memory 9 MB — 12 MB 16 MB 2 MB
PoE Nu Nu Da Da Nu
Port mirroring Yes — Yes Yes —
Porturi RJ 45 5-10 24-28 28+ 24-28 5-10
Porturi SFP 1-2 N/A 1-2 1-2 N/A
Power connector AC/DC DC-in jack AC-in jack — DC-in jack
Power consumption (max) 180.1 W 13.08 W 635.7 W 629.1 W 2.2 W
Power over Ethernet (PoE) Yes No Yes Yes No
Power over Ethernet plus (PoE+) ports quantity 8 — 48 16 —
Power source AC AC AC AC/PoE DC
Power supply included Yes Yes Yes Yes No
Quality of Service (QoS) support Yes Yes Yes Yes —
Quick start guide Yes — Yes Yes Yes
Rackable No No Yes Yes —
Rack mounting Yes Yes Yes Yes No
Rack mount kit — Yes — Yes —
Rate limiting Yes — Yes Yes —
Redundant PSU No Yes No Yes —
Reset button Yes — Yes — —
Security algorithms SNMP, SNMPv2, SNMPv3 — — HTTPS, SSH, SSH-2, SSL/TLS —
SFP module slots quantity 2 — 4 4 —
Spanning tree protocol Yes — Yes Yes —
SSH/SSL support — — Yes Yes —
Stackable No Yes No No No
Static port security — — Yes Yes —
Static route Yes — — Yes —
Storage relative humidity (H-H) 5 - 90% 5 - 90% 5 - 90% 5 - 90% 5 - 95%
Storage temperature (T-T) -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C
Store-and-forward — Yes Yes Yes Yes
Supported network protocols — CSMA/CD, TCP/IP — — CSMA/CD, TCP/IP
Sustainability compliance Yes — — Yes Yes
Switching capacity 80 Gbit/s 48 Gbit/s 176 Gbit/s 200 Gbit/s 16 Gbit/s
Switch type Managed Unmanaged Managed Managed Unmanaged
System event log Yes — Yes Yes —
Total Power over Ethernet (PoE) budget 160 W — 500 W 500 W —
Virtual LAN features Protocol-based VLAN, Tagged VLAN, Voice VLAN — — MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Stacked VLAN, Tagged VLAN, Voice VLAN —
Viteza transfer 10G+ Gigabit 10G+ 2.5G Fast Ethernet
VLAN support Yes — Yes Yes —
Web-based management Yes — Yes Yes —
Width 226 mm 294 mm — — 134.5 mm
Laptopuri - Construcție
Culoare Black Grey — — White
Laptopuri - Generale
Garanție comercială 36 60 60 24 36
Producător TP-LINK TP-LINK TP-LINK TP-LINK TP-LINK

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

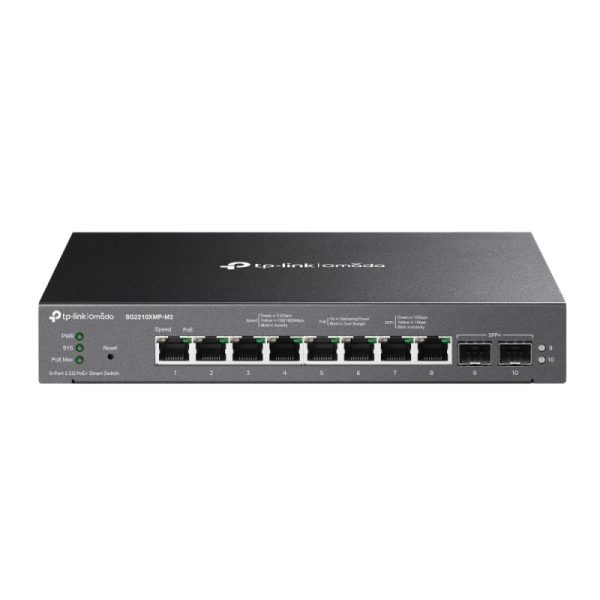

Omada 8-Port 2.5GBASE-T and 2-Port 10GE SFP+ Smart Switch with 8-Port PoE+ PORT: 8× 2.5G PoE+ Ports, 2× 10G SFP+ Slots SPEC: 802.3at/af, 160 W PoE Power, Desktop & Fanless Steel Case FEATURE: Integration with Omada SDN Controller, Static Routing, 802.1Q VLAN, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image, IPv6

Specificații tehnice 75 caracteristici
10G support
No
Access Control List (ACL)
Yes
ARP inspection
Yes
Authentication
MAC-based authentication, Port-based authentication
Authentication type
RADIUS
Basic switching RJ-45 Ethernet ports type
2.5G Ethernet (100/1000/2500)
Broadcast storm control
Yes
Cloud-managed
Yes
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
Configuring Location Settings (CLI)
Yes
Depth
131 mm
DHCP features
DHCP relay, DHCP server, DHCPv6 client, DHCPv6 snooping
Ethernet LAN data rates
10,100,1000,2500 Mbit/s
Flow control support
Yes
Form factor
Desktop/Wall-Mounting
Forwarding rate
59.52 Mpps
Heat dissipation
614.58 BTU/h
Height
35 mm
IGMP snooping
Yes
Jumbo frames
9000
Jumbo frames support
Yes
LAN ports
8
LAN port type
FastEthernet
LED indicators
Yes
Link aggregation
Yes
Loop protection
Yes
MAC address table
16000 entries
Management
Da
MIB support
Y
Montare in rack
Da
Multicast support
Yes
Networking standards
IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3x
Number of VLANs
4000
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Packet buffer memory
9 MB
PoE
Nu
Port mirroring
Yes
Porturi RJ 45
5-10
Porturi SFP
1-2
Power connector
AC/DC
Power consumption (max)
180.1 W
Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
8
Power source
AC
Power supply included
Yes
Quality of Service (QoS) support
Yes
Quick start guide
Yes
Rackable
No
Rack mounting
Yes
Rate limiting
Yes
Redundant PSU
No
Reset button
Yes
Security algorithms
SNMP, SNMPv2, SNMPv3
SFP module slots quantity
2
Spanning tree protocol
Yes
Stackable
No
Static route
Yes
Storage relative humidity (H-H)
5 - 90%
Storage temperature (T-T)
-40 - 70 °C
Sustainability compliance
Yes
Switching capacity
80 Gbit/s
Switch layer
L2/L2+
Switch type
Managed
System event log
Yes
Total Power over Ethernet (PoE) budget
160 W
Virtual LAN features
Protocol-based VLAN, Tagged VLAN, Voice VLAN
Viteza transfer
10G+
VLAN support
Yes
Wall mountable
Yes
Web-based management
Yes
Width
226 mm
Culoare
Black
Garanție comercială
36
Producător
TP-LINK
