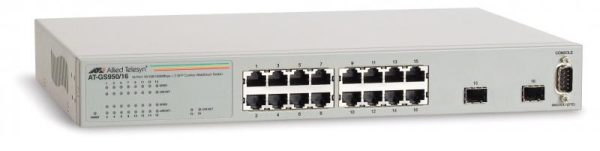

Switch ALLIED TELESIS GS950, 16 port, 10/100/1000 Mbps

Switchuri

Switch ALLIED TELESIS GS950, 16 port, 10/100/1000 Mbps

(0) În stoc
Vândut de RITC.ro Cod produs: AT-GS950/16-50

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Switch ALLIED TELESIS GS950, 16 port, 10/100/1000 Mbps Switch ALLIED TELESIS GS950, 48 port, 10/100/1000 Mbps Switch TP-Link TL-SG1024D, 24 port, 10/100/1000 Mbps "JetStream™ 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch "JetStream™ 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch
Alte caracteristici
10G support — No No Yes Yes
Access Control List (ACL) — — — Yes Yes
AC input frequency 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz — —
ARP inspection — — — Yes Yes
Authentication — — — Auto VLAN, Guest VLAN Guest VLAN, MAC-based authentication, Port-based authentication
Auto MDI/MDI-X Yes Yes Yes — —
Basic switching RJ-45 Ethernet ports type 16 48 24 48 24
BPDU filtering/protection — — — Yes Yes
Broadcast storm control — Yes — Yes Yes
Cables included — — AC AC AC
Certification UL 1950 FCC/EN55022 VCCI C-Tick EN60950 (TUV) EN55024 CE UL 1950, FCC/EN55022, VCCI, C-Tick, EN60950, EN55024, CE, CSA, CUL — — —
Cloud-managed — — — Yes Yes
Combo SFP ports quantity 2 4 — — —
Configuring Location Settings (CLI) — — — Yes Yes
Connectivity technology — Wired Wired — —
Console port RJ-45 RJ-45 — RJ-45/micro-USB RJ-45/micro-USB
Copper ethernet cabling technology 1000BASE-T, 100BASE-T, 10GBASE-T 1000BASE-T, 100BASE-TX — — —
DHCP features — DHCP client — DHCP client, DHCP relay, DHCP server DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Dimensions (WxDxH) — 444 x 322 x 43.5 mm 294 x 180 x 44 mm — —
Flash memory 2 MB 4 MB — — 32 MB
Flow control support Yes Yes Yes Yes Yes
Forwarding rate — — 35.7 Mpps 130.9 Mpps 148.8 Mpps
Full duplex — — Yes — Yes
Harmonized System (HS) code 85176990 85176990 85176990 — —
Head-of-line (HOL) blocking — Yes — Yes Yes
Heat dissipation — — 44.63 BTU/h 2169.2 BTU/h 2153.45 BTU/h
IGMP snooping — Yes — Yes Yes
IP-MAC-Port binding — — — Yes Yes
Jumbo frames — — 10000 9000 9000
Jumbo frames support — Yes Yes Yes Yes
LAN ports — 48 24 48 24
LAN port type Gigabit Gigabit Gigabit Gigabit Gigabit
Layer — Layer-2 Unmanaged Layer-2 Layer-2
LED indicators Yes Yes Yes Yes Yes
Link aggregation Yes Yes — Yes Yes
MAC address filtering — Yes — Yes —
MAC address table 8000 entries 8000 entries 8000 entries 16000 entries 32000 entries
Management Da Da nu Da Da
Maximum data transfer rate — 1 Gbit/s 1 Gbit/s — —
MIB support — RFC 1213, RFC 1643, RFC 1493 — — RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925
Montare in rack Da Da Nu Da Da
Multicast support — Yes — Yes Yes
Number of fans — — — 3 fan(s) 3 fan(s)
Operating relative humidity (H-H) 5 - 90% 5 - 90% 10 - 90% 10 - 90% 10 - 90%
Operating temperature (T-T) 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C
Packet buffer memory 0.5 MB 6 MB — 12 MB 16 MB
PoE Nu Nu Nu Da Da
Port mirroring Yes Yes — Yes Yes
Porturi RJ 45 11-18 28+ 24-28 28+ 24-28
Porturi SFP 1-2 1-2 N/A 1-2 1-2
Power connector DC-in jack DC-in jack DC-in jack AC-in jack —
Power consumption (max) — — 13.08 W 635.7 W 629.1 W
Power over Ethernet (PoE) No No No Yes Yes
Power over Ethernet plus (PoE+) ports quantity — — — 48 16
Power requirements — 100-240V AC, 50/60Hz 100 - 240V, 50/60Hz — —
Power source — — AC AC AC/PoE
Power supply included — — Yes Yes Yes
Quality of Service (QoS) support Yes Yes Yes Yes Yes
Quick start guide — — — Yes Yes
Rackable — Yes No Yes Yes
Rack mounting Yes Yes Yes Yes Yes
Rack mount kit — — Yes — Yes
Rate limiting — Yes — Yes Yes
Redundant PSU — No Yes No Yes
SFP module slots quantity — — — 4 4
Spanning tree protocol — Yes — Yes Yes
SSH/SSL support — — — Yes Yes
Stackable No No Yes No No
Static port security — Yes — Yes Yes
Storage relative humidity (H-H) 5 - 95% 5 - 95% 5 - 90% 5 - 90% 5 - 90%
Storage temperature (T-T) -25 - 70 °C -25 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C
Store-and-forward — — Yes Yes Yes
Supported data transfer rates — 10/100/1000 Mbps 10/100/100 Mbps — —
Switching capacity — — 48 Gbit/s 176 Gbit/s 200 Gbit/s
Switch layer L2 L2 — — —
Switch type Managed Managed Unmanaged Managed Managed
System event log — — — Yes Yes
Throughput 14.88 Mpps 14.88 Mpps — — —
Total Power over Ethernet (PoE) budget — — — 500 W 500 W
Viteza transfer Gigabit Gigabit Gigabit 10G+ 2.5G
VLAN support — Yes — Yes Yes
Web-based management Yes Yes — Yes Yes
Caracteristici fizice
Greutate 2.38 kg 4.05 kg — — —
Laptopuri - Caracteristici fizice 25.09
Adâncime 256 mm 322 mm 180 mm 330 mm 330 mm
Lățime 352 mm 444 mm 294 mm — —
Înălțime 43.2 mm 43.5 mm 44 mm — —
Laptopuri - Construcție
Culoare White Grey Grey — —
Laptopuri - Generale
Garanție comercială 24 24 60 60 24
Producător ALLIED TELESIS ALLIED TELESIS TP-LINK TP-LINK TP-LINK
Laptopuri - Memorie
Capacitate memorie RAM 8 MB 32 MB — — 256 MB
Laptopuri - Tip laptop
Construcție laptop 1U 1U — 1U 1U

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

Numar porturi
16x RJ-45
Viteza de transfer
10/100/1000 Mbps
Putere consumata
21.8W
Dimensiuni
430 x 250 x 44 mm
Greutate
3.56 kg
Montare in rack
19 inch
Memorie Buffer
1MB
Memorie
DRAM: 64MB
Flash: 16MB
Adrese MAC
8K
Altele
2x SFP combo
8x PoE delivering up to 30 W per port
Specificații tehnice 45 caracteristici
AC input frequency
50 - 60 Hz
Auto MDI/MDI-X
Yes
Basic switching RJ-45 Ethernet ports type
16
Certification
UL 1950 FCC/EN55022 VCCI C-Tick EN60950 (TUV) EN55024 CE
Combo SFP ports quantity
2
Console port
RJ-45
Copper ethernet cabling technology
1000BASE-T, 100BASE-T, 10GBASE-T
Flash memory
2 MB
Flow control support
Yes
Harmonized System (HS) code
85176990
Input current
0.3 A
LAN port type
Gigabit
LED indicators
Yes
Link aggregation
Yes
MAC address table
8000 entries
Management
Da
Montare in rack
Da
Operating relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
0 - 40 °C
Packet buffer memory
0.5 MB
PoE
Nu
Port mirroring
Yes
Porturi RJ 45
11-18
Porturi SFP
1-2
Power connector
DC-in jack
Power over Ethernet (PoE)
No
Quality of Service (QoS) support
Yes
Rack mounting
Yes
Stackable
No
Storage relative humidity (H-H)
5 - 95%
Storage temperature (T-T)
-25 - 70 °C
Switch layer
L2
Switch type
Managed
Throughput
14.88 Mpps
Viteza transfer
Gigabit
Web-based management
Yes
Greutate
2.38 kg
Adâncime
256 mm
Lățime
352 mm
Înălțime
43.2 mm
Culoare
White
Garanție comercială
24
Producător
ALLIED TELESIS
Capacitate memorie RAM
8 MB
Construcție laptop
1U
