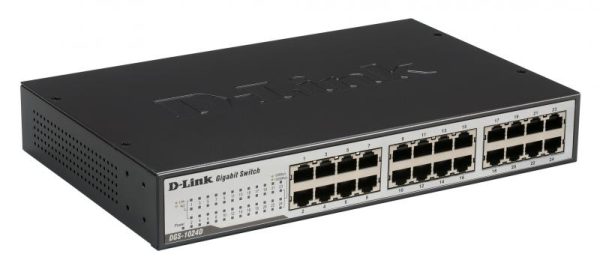

Switch D-Link DGS-1024D, 24 port, 10/100/1000 Mbps
539,99 lei 930,99 lei
Switch D-Link DGS-1024D, 24 port, 10/100/1000 Mbps
(0)
În stoc
Vândut de RITC.ro
Cod produs: DGS-1024D
Livrare și beneficii
Compară cu produse similare
Switch D-Link DGS-1024D, 24 port, 10/100/1000 Mbps
Switch TP-Link TL-SG1024D, 24 port, 10/100/1000 Mbps
447,99 lei 658,99 lei
"JetStream™ 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch
4.328,99 lei 6.096,98 lei
"JetStream™ 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch
5.348,99 lei 7.487,99 lei
Extralink KRATOS PoE Switch 7x Gigabit PoE 1x
699,99 lei
Vezi comparația completă
| Caracteristică | Switch D-Link DGS-1024D, 24 port, 10/100/1000 Mbps | Switch TP-Link TL-SG1024D, 24 port, 10/100/1000 Mbps | "JetStream™ 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch | "JetStream™ 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch | Extralink KRATOS PoE Switch 7x Gigabit PoE 1x |
|---|---|---|---|---|---|
| Alte caracteristici | |||||
| 10G support | No | No | Yes | Yes | No |
| Access Control List (ACL) | — | — | Yes | Yes | — |
| AC input frequency | 50 - 60 Hz | 50 - 60 Hz | — | — | 50 - 60 Hz |
| ARP inspection | — | — | Yes | Yes | — |
| Authentication | — | — | Auto VLAN, Guest VLAN | Guest VLAN, MAC-based authentication, Port-based authentication | — |
| Auto-negotiation | — | Yes | — | — | Yes |
| Auto MDI/MDI-X | Yes | Yes | — | — | — |
| Basic switching RJ-45 Ethernet ports type | 24 | 24 | 48 | 24 | 8 |
| BPDU filtering/protection | — | — | Yes | Yes | — |
| Broadcast storm control | Yes | — | Yes | Yes | — |
| Cables included | — | AC | AC | AC | — |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e | Cat3, Cat4, Cat5, Cat5e | — | — | Cat5, Cat5e, Cat6 |
| Certification | cUL/UL CE LVD CCC CB BSMI | — | — | — | CE, FCC |
| Cloud-managed | — | — | Yes | Yes | No |
| Configuring Location Settings (CLI) | — | — | Yes | Yes | No |
| Console port | — | — | RJ-45/micro-USB | RJ-45/micro-USB | — |
| DHCP features | — | — | DHCP client, DHCP relay, DHCP server | DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping | — |
| Dimensions (WxDxH) | 280 x 180 x 44 mm | 294 x 180 x 44 mm | — | — | — |
| Flow control support | Yes | Yes | Yes | Yes | — |
| Forwarding rate | 35.71 Mpps | 35.7 Mpps | 130.9 Mpps | 148.8 Mpps | — |
| Full duplex | Yes | Yes | — | Yes | — |
| Harmonized System (HS) code | 85176990 | 85176990 | — | — | — |
| Head-of-line (HOL) blocking | — | — | Yes | Yes | — |
| Heat dissipation | 45.35 BTU/h | 44.63 BTU/h | 2169.2 BTU/h | 2153.45 BTU/h | — |
| IGMP snooping | — | — | Yes | Yes | — |
| Input current | 0.3 A | — | — | — | 2.5 A |
| IP-MAC-Port binding | — | — | Yes | Yes | — |
| Jumbo frames | 10000 | 10000 | 9000 | 9000 | — |
| Jumbo frames support | Yes | Yes | Yes | Yes | — |
| LAN ports | — | 24 | 48 | 24 | — |
| LAN port type | Gigabit | Gigabit | Gigabit | Gigabit | Gigabit |
| Layer | — | Unmanaged | Layer-2 | Layer-2 | — |
| LED indicators | Activity, Link, Power, Speed | Yes | Yes | Yes | Yes |
| Link aggregation | — | — | Yes | Yes | — |
| MAC address table | 8000 entries | 8000 entries | 16000 entries | 32000 entries | 4096 entries |
| Management | nu | nu | Da | Da | nu |
| Maximum data transfer rate | 1 Gbit/s | 1 Gbit/s | — | — | — |
| Montare in rack | Da | Nu | Da | Da | Nu |
| Multicast support | — | — | Yes | Yes | — |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x | IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x | — | — | IEEE 802.3af |
| Number of fans | — | — | 3 fan(s) | 3 fan(s) | — |
| Number of queues | 8 | — | — | 8 | — |
| Operating relative humidity (H-H) | 0 - 95% | 10 - 90% | 10 - 90% | 10 - 90% | 10 - 80% |
| Operating temperature (T-T) | 0 - 40 °C | 0 - 40 °C | 0 - 40 °C | 0 - 40 °C | 0 - 40 °C |
| Package depth | 391 mm | 400 mm | — | — | — |
| Package height | 102 mm | 80 mm | — | — | — |
| Package weight | 2.43 kg | 1.95 kg | — | — | — |
| Package width | 262 mm | 250 mm | — | — | — |
| Packet buffer memory | 0.5 MB | — | 12 MB | 16 MB | — |
| PoE | Nu | Nu | Da | Da | Da |
| Port mirroring | — | — | Yes | Yes | No |
| Porturi RJ 45 | 24-28 | 24-28 | 28+ | 24-28 | 5-10 |
| Porturi SFP | N/A | N/A | 1-2 | 1-2 | N/A |
| Power connector | AC-in jack | DC-in jack | AC-in jack | — | DC-in jack |
| Power consumption (max) | 13.3 W | 13.08 W | 635.7 W | 629.1 W | — |
| Power over Ethernet (PoE) | No | No | Yes | Yes | Yes |
| Power over Ethernet (PoE) power per port | — | — | 30 W | — | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | — | — | 48 | 16 | — |
| Power source | — | AC | AC | AC/PoE | AC |
| Power supply included | Yes | Yes | Yes | Yes | Yes |
| Quality of Service (QoS) support | Yes | Yes | Yes | Yes | No |
| Quick start guide | — | — | Yes | Yes | — |
| Rackable | — | No | Yes | Yes | — |
| Rack mounting | Yes | Yes | Yes | Yes | No |
| Rack mount kit | — | Yes | — | Yes | — |
| Rate limiting | — | — | Yes | Yes | — |
| Redundant fans support | — | — | — | Yes | No |
| Redundant PSU | — | Yes | No | Yes | — |
| Reset button | — | — | Yes | — | Yes |
| SFP module slots quantity | — | — | 4 | 4 | — |
| Spanning tree protocol | — | — | Yes | Yes | — |
| SSH/SSL support | — | — | Yes | Yes | — |
| Stackable | Yes | Yes | No | No | No |
| Static port security | — | — | Yes | Yes | — |
| Storage relative humidity (H-H) | 0 - 95% | 5 - 90% | 5 - 90% | 5 - 90% | 5 - 90% |
| Storage temperature (T-T) | — | -40 - 70 °C | -40 - 70 °C | -40 - 70 °C | -40 - 70 °C |
| Store-and-forward | Yes | Yes | Yes | Yes | — |
| Switching capacity | 48 Gbit/s | 48 Gbit/s | 176 Gbit/s | 200 Gbit/s | 16 Gbit/s |
| Switch type | Unmanaged | Unmanaged | Managed | Managed | Unmanaged |
| System event log | — | — | Yes | Yes | No |
| Total Power over Ethernet (PoE) budget | — | — | 500 W | 500 W | 60 W |
| Viteza transfer | Gigabit | Gigabit | 10G+ | 2.5G | Gigabit |
| VLAN support | — | — | Yes | Yes | — |
| Web-based management | — | — | Yes | Yes | No |
| Caracteristici fizice | |||||
| Greutate | 1.3 kg | — | — | — | 500 g |
| Laptopuri - Caracteristici fizice 25.09 | |||||
| Adâncime | 180 mm | 180 mm | 330 mm | 330 mm | 8.2 mm |
| Lățime | 280 mm | 294 mm | — | — | 192 mm |
| Material carcasă | Metal | — | — | — | Metal |
| Înălțime | 44 mm | 44 mm | — | — | 27 mm |
| Laptopuri - Construcție | |||||
| Culoare | Black, Silver | Grey | — | — | Black |
| Laptopuri - Generale | |||||
| Garanție comercială | 24 | 60 | 60 | 24 | 60 |
| Producător | D-LINK | TP-LINK | TP-LINK | TP-LINK | EXTRALINK |
| Laptopuri - Tip laptop | |||||
| Construcție laptop | 1U | — | 1U | 1U | 1U |
Analiză inteligentă a produsului
Descriere oficială
| Numar porturi |
24x RJ-45
|
| Porturi |
24x RJ45
|
| Viteza de transfer |
10/100/1000 Mbps
|
| Compatibilitate |
802.3 Ethernet
802.3u Fast Ethernet 802.3x Flow Control 802.3ab Gigabit Ethernet 802.1p Priority Queuing |
| Putere consumata |
27.5W
|
| Alimentare |
100- 240VAC, 50/60Hz Internal Universal Power
|
| Dimensiuni |
280 x 180 x 44mm
|
| Greutate |
1.81 Kg
|
| Functii LED |
Per Unit: Power
Per Port: Activity/Link, speed |
| Altele |
MAC Address Table Size: 8K
48Gbps Forwarding Capacity Store-and-forward On chip 500Kbytes Buffer Memory per device |
Specificații tehnice 81 caracteristici ⌄
- 10G support
- No
- AC input frequency
- 50 - 60 Hz
- Active link detection
- Yes
- Auto MDI/MDI-X
- Yes
- Basic switching RJ-45 Ethernet ports type
- 24
- Broadcast storm control
- Yes
- Cable types supported
- Cat3, Cat4, Cat5, Cat5e
- Certification
- cUL/UL CE LVD CCC CB BSMI
- Copper ethernet cabling technology
- 10BASE-T, 100BASE-T, 1000BASE-T
- Dimensions (WxDxH)
- 280 x 180 x 44 mm
- Electromagnetic compatibility
- ICES-003 Class A, FCC Class A, RCM Class A, BSMI Class A, CE Class A, VCCI A, CCC, KCC
- Flow control support
- Yes
- Forwarding rate
- 35.71 Mpps
- Full duplex
- Yes
- Harmonized System (HS) code
- 85176990
- Heat dissipation
- 45.35 BTU/h
- Input current
- 0.3 A
- Jumbo frames
- 10000
- Jumbo frames support
- Yes
- LAN port type
- Gigabit
- LED indicators
- Activity, Link, Power, Speed
- MAC address auto-aging supported
- Yes
- MAC address auto-learning supported
- Yes
- MAC address table
- 8000 entries
- Management
- nu
- Master (outer) cases per pallet
- 32 pc(s)
- Maximum data transfer rate
- 1 Gbit/s
- Mean time between failures (MTBF)
- 863100 h
- Montare in rack
- Da
- Networking standards
- IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
- Noise level
- 0 dB
- Number of queues
- 8
- Operating relative humidity (H-H)
- 0 - 95%
- Operating temperature (T-T)
- 0 - 40 °C
- Package depth
- 391 mm
- Package height
- 102 mm
- Package weight
- 2.43 kg
- Package width
- 262 mm
- Packet buffer memory
- 0.5 MB
- Packet forwarding rate (1 Gbps)
- 14880 pps
- Packet forwarding rate (10 Mbps)
- 1488000 pps
- Packet forwarding rate (100 Mbps)
- 148800 pps
- Pallet gross length
- 110 cm
- Pallet gross weight (air)
- 435.8 kg
- Pallet gross weight (sea)
- 435.8 kg
- Pallet gross width
- 120 cm
- Pallet height (air)
- 185.9 cm
- Pallet height (sea)
- 185.9 cm
- PoE
- Nu
- Porturi RJ 45
- 24-28
- Porturi SFP
- N/A
- Power connector
- AC-in jack
- Power consumption (max)
- 13.3 W
- Power consumption (typical)
- 26.7 W
- Power over Ethernet (PoE)
- No
- Power supply included
- Yes
- Products per pallet (air)
- 160 pc(s)
- Products per pallet (sea)
- 160 pc(s)
- Products per shipping (inner) case
- 5 pc(s)
- Quality of Service (QoS) support
- Yes
- Rack mounting
- Yes
- Shipping (inner) case gross weight
- 13 kg
- Shipping (inner) case height
- 43.1 cm
- Shipping (inner) case length
- 54.3 cm
- Shipping (inner) case net weight
- 8.53 kg
- Shipping (inner) case width
- 28.4 cm
- Stackable
- Yes
- Storage relative humidity (H-H)
- 0 - 95%
- Store-and-forward
- Yes
- Switching capacity
- 48 Gbit/s
- Switch type
- Unmanaged
- Viteza transfer
- Gigabit
- Greutate
- 1.3 kg
- Adâncime
- 180 mm
- Lățime
- 280 mm
- Material carcasă
- Metal
- Înălțime
- 44 mm
- Culoare
- Black, Silver
- Garanție comercială
- 24
- Producător
- D-LINK
- Construcție laptop
- 1U
