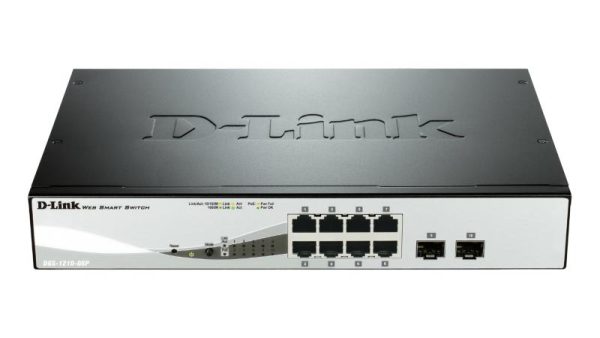

Switch D-Link DGS-1210-08P, 8 port, 10/100/1000 Mbps

Switchuri

Switch D-Link DGS-1210-08P, 8 port, 10/100/1000 Mbps

(0) În stoc
Vândut de RITC.ro Cod produs: DGS-1210-08P

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni Garanție producător De confirmat Producător: De confirmat

Compară cu produse similare

Vezi comparația completă
Caracteristică Switch D-Link DGS-1210-08P, 8 port, 10/100/1000 Mbps Switch TP-Link Omada 8-Port 2.5G L2+ Managed Switch, 2.5G, 8 porturi Switch TP-LINK LiteWave LS106LP, Fast Ethernet, 6 porturi, PoE Switch TP-LINK JetStream TL-SG3428X-M2, 2.5G, 24 porturi Switch Ubiquiti UniFi PRO USW-PRO-24-POE, 24 port, 10/100/1000 Mbps
Culoare produs Black Black Black Black Silver
2.5G Ethernet (copper) ports quantity — 8 — 24 —
Access Control List (ACL) Yes Yes — Yes —
AC input frequency — 50/60 Hz 50 Hz 50/60 Hz 50 - 60 Hz
AC input voltage — 100 - 240 V 220 V 100 - 240 V 100 - 240 V
ARP inspection — Yes — Yes —
Authentication — MAC-based authentication, Port-based authentication — Auto VLAN, Guest VLAN, MAC-based authentication, Port-based authentication —
Auto MDI/MDI-X Yes — Yes — —
Basic switching RJ-45 Ethernet ports type 8, Gigabit Ethernet (10/100/1000) 2.5G Ethernet (100/1000/2500), 8 6, Fast Ethernet (10/100) 2.5G Ethernet (100/1000/2500), 24 24, Gigabit Ethernet (10/100/1000)
BPDU filtering/protection — Yes — Yes —
Broadcast storm control Yes Yes — Yes Yes
Cables included — AC — LAN (RJ-45) —
Certification CE Class A CE, FCC, RoHS CE, FCC, RoHS CE, FCC, RoHS CE, FCC, IC
Cloud-managed — Yes — Yes —
Configuring Location Settings (CLI) — Yes — Yes —
Console port — RJ-45/micro-USB — RJ-45/micro-USB —
Copper ethernet cabling technology 10BASE-T, 100BASE-T, 1000BASE-T — 10BASE-T, 100BASE-TX — —
DHCP features DHCP server, DHCP client DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping — DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping DHCP relay, DHCP server, DHCP snooping
Fanless — Yes Yes — —
Flow control support Yes Yes Yes Yes Yes
Full duplex Yes — — — Yes
GARP VLAN Registration Protocol (GVRP) — Yes — Yes —
Harmonized System (HS) code 85176990 85176990 — — 85176990
Head-of-line (HOL) blocking Yes Yes — Yes —
Heat dissipation 279.59 BTU/h 51.18 BTU/h 162.38 BTU/h 154.38 BTU/h —
IGMP snooping Yes Yes — Yes Yes
IP-MAC-Port binding — Yes — Yes —
IPv4 routes — — — 48 64
Jumbo frames 10000 9000 — 9000 —
Jumbo frames support Yes Yes Yes Yes Yes
LAN port type Gigabit FastEthernet Gigabit Gigabit 10Gigabit
Layer — — — Layer-2 Layer-2
LED indicators Yes Yes Yes Yes Activity, Link, PoE, Speed, System
Link aggregation Yes Yes — Yes Yes
Loop protection — Yes — Yes —
MAC address filtering Yes Yes — — —
MAC address table 8000 entries 16000 entries 2000 entries 32000 entries 16000 entries
Management protocols SNMP, RMON SNMPv1/v2c/v3, SNTP — SNMP v1/v2c/v3, SNTP —
MIB support — RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213 — Yes —
Multicast Listener Discovery (MLD) snooping — Y — Y —
Multicast support Yes Yes — Yes —
Networking standards IEEE 802.1D, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3af IEEE 802.1D, IEEE 802.1s, IEEE 802.1w IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z IEEE 802.3af, IEEE 802.3at
Number of static routes — 48 — 48 —
Number of VLANs — 4000 — — 1000
Operating relative humidity (H-H) 0 - 95% 10 - 90% 10 - 90% 10 - 90% 10 - 90%
Operating temperature (T-T) -5 - 50 °C 0 - 50 °C 0 - 40 °C 0 - 40 °C -5 - 40 °C
Package depth 331 mm 250 mm — 250 mm —
Package height 72 mm 80 mm — 80 mm —
Package weight 2.17 kg 2.84 kg — 3 kg —
Package width 288 mm 528 mm — 528 mm —
Packet buffer memory 4.1 MB 12 MB — 16 MB 2 MB
Port mirroring Yes Yes — Yes Yes
Power connector — AC-in jack — AC-in jack AC-in jack
Power consumption (max) 81.9 W — 47.76 W 45.1 W 450 W
Power consumption (typical) 2.5 W 15 W — — —
Power over Ethernet (PoE) power per port — — 15.4 W — 64 W
Power over Ethernet plus (PoE+) ports quantity 8 — — — 16
Quick start guide — Yes — Yes —
Rackable — — — Yes Yes
Rate limiting — Yes — Yes Yes
Redundant PSU — — — Yes No
SFP module slots quantity 2 2 — 4 2
Spanning tree protocol Yes Yes — Yes —
SSH/SSL support Yes Yes — Yes —
Static port security Yes Yes — — —
Static route — Yes — Yes Yes
Storage relative humidity (H-H) 0 - 95% 5 - 90% 5 - 90% 5 - 90% —
Storage temperature (T-T) -20 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C —
Store-and-forward Yes — Yes Yes —
Switch layer L2/L3 L2 — L2 L2/L3
Switch type Managed Managed Unmanaged Managed Managed
System event log Yes Yes — Yes Yes
Virtual LAN features — MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN — Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN —
Web-based management Yes Yes — Yes Yes
Greutate 950 g — — — 4.3 kg
Management Da nu nu Da Da
Montare in rack Da Nu Nu Da Da
PoE Da Nu Da Nu Da
Porturi LAN — — — 24 24
Porturi RJ 45 5-10 5-10 5-10 24-28 24-28
Porturi SFP 1-2 1-2 N/A 3-4 1-2
Viteză transfer Gigabit 2.5G Fast Ethernet 2.5G Gigabit
Sursă inclusă — Yes Yes Yes Yes
Sursă de alimentare DC AC DC/PoE AC AC
Alimentare PoE Yes — Yes No Yes
Buget total PoE 65 W — — — 400 W
Capacitate switching 20 Gbit/s 80 Gbit/s 12 Gbit/s 200 Gbit/s 8.8 Gbit/s
Metode autentificare — AAA, TACACS+ — AAA, RADIUS, TACACS+ IEEE 802.1x, RADIUS
Montare rack Yes Yes — Yes Yes
Rată forwarding 14.88 Mpps 59.52 Mpps 0.8928 Mpps 14.88 Mpps 65.472 Mpps
Stivuibil Yes — — No Yes
Suport 10G Yes Yes No Yes Yes
Suport QoS Yes Yes Yes Yes Yes
Suport VLAN Yes Yes — Yes Yes
Adâncime 126 mm 180 mm 101 mm 180 mm 285.4 mm
Lățime 280 mm 294 mm 158 mm 440 mm 442.4 mm
Înălțime 44 mm 44 mm 25 mm 44 mm 43.7 mm
Producător D-LINK TP-LINK TP-LINK TP-LINK UBIQUITI
Construcție laptop — 1U — 1U 1U
Număr ventilatoare — 2 fan(s) 0 fan(s) 1 fan(s) —
Tip ambalare — Box Box — —

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

Numar porturi
8x RJ-45
Porturi
8x RJ45
2x SFP
Viteza de transfer
10/100/1000 Mbps
Putere consumata
60W
Alimentare
10 to 240 VAC
PoE
Da
PoE Budget
45 W
Dimensiuni
280 x 180 x 44 mm
Montare in rack
19 inch
Functii LED
– Power (per device)
– Link/Activity/Speed/PoE (per 10/100/1000Base-T port)
– Link/Activity/Speed (per SFP port)
– Button to switch LED display mode between PoE and Link/Activity
Memorie Buffer
6MB
Adrese MAC
16K
Specificații tehnice 90 caracteristici
Culoare produs
Black
Access Control List (ACL)
Yes
Auto MDI/MDI-X
Yes
Basic switching RJ-45 Ethernet ports type
8, Gigabit Ethernet (10/100/1000)
Broadcast storm control
Yes
Certification
CE Class A
Copper ethernet cabling technology
10BASE-T, 100BASE-T, 1000BASE-T
Data link protocols
IP
DHCP features
DHCP server, DHCP client
Flow control support
Yes
Full duplex
Yes
Half duplex
Yes
Harmonized System (HS) code
85176990
Head-of-line (HOL) blocking
Yes
Heat dissipation
279.59 BTU/h
IGMP snooping
Yes
Input voltage
54 V
Jumbo frames
10000
Jumbo frames support
Yes
LAN port type
Gigabit
LED indicators
Yes
Link aggregation
Yes
MAC address filtering
Yes
MAC address table
8000 entries
Management protocols
SNMP, RMON
Master (outer) cases per pallet
36 pc(s), 54 pc(s)
Multicast support
Yes
Networking standards
IEEE 802.1D, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3af
Operating relative humidity (H-H)
0 - 95%
Operating temperature (T-T)
-5 - 50 °C
Package depth
331 mm
Package height
72 mm
Package weight
2.17 kg
Package width
288 mm
Packet buffer memory
4.1 MB
Packet transfer speed
14.9 Mp/s
Pallet gross length
110 cm
Pallet gross weight (air)
436.1 kg
Pallet gross weight (sea)
644.9 kg
Pallet gross width
120 cm
Pallet height (air)
140.3 cm
Pallet height (sea)
2.04 m
Port mirroring
Yes
Power consumption (max)
81.9 W
Power consumption (typical)
2.5 W
Power LED
Yes
Power over Ethernet plus (PoE+) ports quantity
8
Products per pallet (air)
180 pc(s)
Products per pallet (sea)
270 pc(s)
Products per shipping (inner) case
5 pc(s)
Safety
cUL, LVD
SFP module slots quantity
2
Shipping (inner) case gross weight
11.6 kg
Shipping (inner) case height
31.7 cm
Shipping (inner) case length
38.2 cm
Shipping (inner) case net weight
10.8 kg
Shipping (inner) case width
34.6 cm
Spanning tree protocol
Yes
SSH/SSL support
Yes
Static port security
Yes
Storage relative humidity (H-H)
0 - 95%
Storage temperature (T-T)
-20 - 70 °C
Store-and-forward
Yes
Switch layer
L2/L3
Switch type
Managed
System event log
Yes
Web-based management
Yes
Greutate
950 g
Management
Da
Montare in rack
Da
PoE
Da
Porturi RJ 45
5-10
Porturi SFP
1-2
Viteză transfer
Gigabit
MTBF
729258 h
Gestionare cabluri
Yes
Sursă de alimentare
DC
Alimentare PoE
Yes
Buget total PoE
65 W
Capacitate switching
20 Gbit/s
Montare rack
Yes
Rată forwarding
14.88 Mpps
Stivuibil
Yes
Suport 10G
Yes
Suport QoS
Yes
Suport VLAN
Yes
Adâncime
126 mm
Lățime
280 mm
Înălțime
44 mm
Producător
D-LINK
