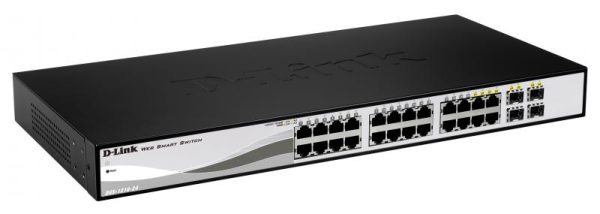

Switch D-Link DGS-1210-24, 24 port, 10/100/1000 Mbps

Switchuri

Switch D-Link DGS-1210-24, 24 port, 10/100/1000 Mbps

(0) Stoc epuizat
Vândut de RITC.ro Cod produs: DGS-1210-24

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Switch D-Link DGS-1210-24, 24 port, 10/100/1000 Mbps Switch TP-Link TL-SG1024D, 24 port, 10/100/1000 Mbps "JetStream™ 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch "JetStream™ 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch Extralink KRATOS PoE Switch 7x Gigabit PoE 1x
Alte caracteristici
10G support No No Yes Yes No
Access Control List (ACL) Yes — Yes Yes —
AC input frequency — 50 - 60 Hz — — 50 - 60 Hz
ARP inspection Yes — Yes Yes —
Authentication — — Auto VLAN, Guest VLAN Guest VLAN, MAC-based authentication, Port-based authentication —
Auto-negotiation Yes Yes — — Yes
Auto MDI/MDI-X Yes Yes — — —
Basic switching RJ-45 Ethernet ports type 24 24 48 24 8
BPDU filtering/protection — — Yes Yes —
Broadcast storm control Yes — Yes Yes —
Cables included — AC AC AC —
Cable types supported Cat5, Cat5e Cat3, Cat4, Cat5, Cat5e — — Cat5, Cat5e, Cat6
Certification CE Class A, cUL, CE LVD — — — CE, FCC
Cloud-managed — — Yes Yes No
Configuring Location Settings (CLI) Yes — Yes Yes No
Console port — — RJ-45/micro-USB RJ-45/micro-USB —
DHCP features DHCP server, DHCP client — DHCP client, DHCP relay, DHCP server DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping —
Flash memory 32 MB — — 32 MB —
Flow control support Yes Yes Yes Yes —
Forwarding rate 41.7 Mpps 35.7 Mpps 130.9 Mpps 148.8 Mpps —
Full duplex Yes Yes — Yes —
Head-of-line (HOL) blocking Yes — Yes Yes —
Heat dissipation 59.09 BTU/h 44.63 BTU/h 2169.2 BTU/h 2153.45 BTU/h —
IGMP snooping Yes — Yes Yes —
IP-MAC-Port binding — — Yes Yes —
Jumbo frames 10000 10000 9000 9000 —
Jumbo frames support Yes Yes Yes Yes —
LAN ports — 24 48 24 —
LAN port type Gigabit Gigabit Gigabit Gigabit Gigabit
Layer — Unmanaged Layer-2 Layer-2 —
LED indicators Yes Yes Yes Yes Yes
Link aggregation Yes — Yes Yes —
Loop protection Yes — — Yes —
MAC address filtering Yes — Yes — —
MAC address table 8000 entries 8000 entries 16000 entries 32000 entries 4096 entries
Management Da nu Da Da nu
Memory type DDR3-SDRAM — — DRAM —
MIB support Y — — RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925 —
Montare in rack Da Nu Da Da Nu
Multicast support Yes — Yes Yes —
Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x — — IEEE 802.3af
Number of fans — — 3 fan(s) 3 fan(s) —
Operating relative humidity (H-H) 0 - 95% 10 - 90% 10 - 90% 10 - 90% 10 - 80%
Operating temperature (T-T) — 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C
Package depth 493 mm 400 mm — — —
Package height 72 mm 80 mm — — —
Package weight 3.24 kg 1.95 kg — — —
Package width 249 mm 250 mm — — —
Packet buffer memory 4.1 MB — 12 MB 16 MB —
PoE Nu Nu Da Da Da
Port mirroring Yes — Yes Yes No
Porturi RJ 45 N/A 24-28 28+ 24-28 5-10
Porturi SFP 1-2 N/A 1-2 1-2 N/A
Power connector AC-in jack DC-in jack AC-in jack — DC-in jack
Power consumption (max) 17.32 W 13.08 W 635.7 W 629.1 W —
Power over Ethernet (PoE) No No Yes Yes Yes
Power over Ethernet (PoE) power per port — — 30 W — 30 W
Power over Ethernet plus (PoE+) ports quantity — — 48 16 —
Power source AC AC AC AC/PoE AC
Power supply included Yes Yes Yes Yes Yes
Quality of Service (QoS) support Yes Yes Yes Yes No
Quick start guide — — Yes Yes —
Rackable — No Yes Yes —
Rack mounting Yes Yes Yes Yes No
Rack mount kit — Yes — Yes —
Rate limiting — — Yes Yes —
Redundant fans support — — — Yes No
Redundant PSU — Yes No Yes —
Reset button — — Yes — Yes
SFP module slots quantity — — 4 4 —
Spanning tree protocol Yes — Yes Yes —
SSH/SSL support — — Yes Yes —
Stackable Yes Yes No No No
Static port security — — Yes Yes —
Storage relative humidity (H-H) 0 - 95% 5 - 90% 5 - 90% 5 - 90% 5 - 90%
Storage temperature (T-T) -20 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C
Store-and-forward Yes Yes Yes Yes —
Switching capacity 56 Gbit/s 48 Gbit/s 176 Gbit/s 200 Gbit/s 16 Gbit/s
Switch layer L2 — — — L2
Switch type Managed Unmanaged Managed Managed Unmanaged
System event log Yes — Yes Yes No
Total Power over Ethernet (PoE) budget — — 500 W 500 W 60 W
Viteza transfer Gigabit Gigabit 10G+ 2.5G Gigabit
VLAN support Yes — Yes Yes —
Web-based management Yes — Yes Yes No
Caracteristici fizice
Greutate 2.15 kg — — — 500 g
Laptopuri - Caracteristici fizice 25.09
Adâncime 140 mm 180 mm 330 mm 330 mm 8.2 mm
Lățime 440 mm 294 mm — — 192 mm
Înălțime 44 mm 44 mm — — 27 mm
Laptopuri - Construcție
Culoare Black Grey — — Black
Laptopuri - Generale
Garanție comercială 60 60 60 24 60
Producător D-LINK TP-LINK TP-LINK TP-LINK EXTRALINK
Laptopuri - Memorie
Capacitate memorie RAM 128 MB — — 256 MB —
Laptopuri - Tip laptop
Construcție laptop 1U — 1U 1U 1U

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

Numar porturi

24x RJ-45

Porturi

24x RJ45
4x SFP

Viteza de transfer

10/100/1000 Mbps

Management

Da

Putere consumata

24.1W

Alimentare

100 – 240VAC, 50/60HZ

Dimensiuni

440 x 210 x 44 mm

Greutate

2.9kg

Montare in rack

19 inch

Functii LED

Power (per device)
Fan Error (per device, optional)
Link/Activity/Speed (per 10/100/1000Mbps port, per SFP port)

Memorie Buffer

512KB per device

Adrese MAC

Table: 8000
Update: Up to 256 static MAC entries
Enable/disable auto-learning of MAC addresses

Altele

QoS
Specificații tehnice 75 caracteristici
10G support
No
Access Control List (ACL)
Yes
ARP inspection
Yes
Auto-negotiation
Yes
Auto MDI/MDI-X
Yes
Basic switching RJ-45 Ethernet ports type
24
Broadcast storm control
Yes
Cable types supported
Cat5, Cat5e
Certification
CE Class A, cUL, CE LVD
Combo SFP ports quantity
4
Configuring Location Settings (CLI)
Yes
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
DHCP features
DHCP server, DHCP client
Flash memory
32 MB
Flow control support
Yes
Forwarding rate
41.7 Mpps
Full duplex
Yes
Head-of-line (HOL) blocking
Yes
Heat dissipation
59.09 BTU/h
IGMP snooping
Yes
Jumbo frames
10000
Jumbo frames support
Yes
LAN port type
Gigabit
LED indicators
Yes
Link aggregation
Yes
Loop protection
Yes
MAC address filtering
Yes
MAC address table
8000 entries
Management
Da
Mean time between failures (MTBF)
992594 h
Memory type
DDR3-SDRAM
MIB support
Y
Montare in rack
Da
Multicast support
Yes
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Noise level
0 dB
Number of VLANs
256
Operating relative humidity (H-H)
0 - 95%
Package depth
493 mm
Package height
72 mm
Package weight
3.24 kg
Package width
249 mm
Packet buffer memory
4.1 MB
PoE
Nu
Port mirroring
Yes
Porturi RJ 45
N/A
Porturi SFP
1-2
Power connector
AC-in jack
Power consumption (max)
17.32 W
Power over Ethernet (PoE)
No
Power source
AC
Power supply included
Yes
Quality of Service (QoS) support
Yes
Rack mounting
Yes
Spanning tree protocol
Yes
Stackable
Yes
Storage relative humidity (H-H)
0 - 95%
Storage temperature (T-T)
-20 - 70 °C
Store-and-forward
Yes
Switching capacity
56 Gbit/s
Switch layer
L2
Switch type
Managed
System event log
Yes
Viteza transfer
Gigabit
VLAN support
Yes
Web-based management
Yes
Greutate
2.15 kg
Adâncime
140 mm
Lățime
440 mm
Înălțime
44 mm
Culoare
Black
Garanție comercială
60
Producător
D-LINK
Capacitate memorie RAM
128 MB
Construcție laptop
1U
