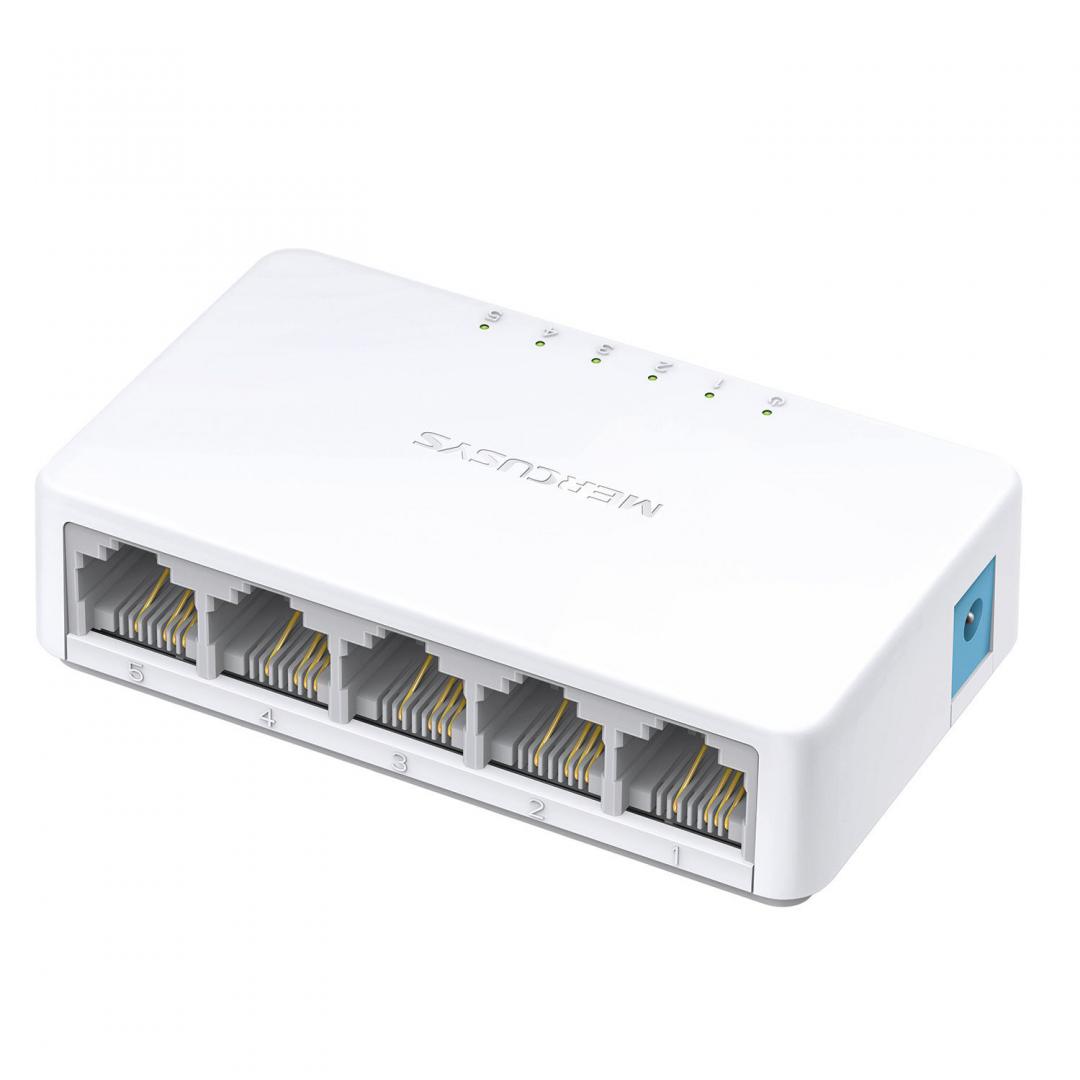

Switch Mercusys MS105, 5 Port, 10/100 Mbps

Switchuri

Switch Mercusys MS105, 5 Port, 10/100 Mbps

(0) În stoc
Vândut de RITC.ro Cod produs: MS105

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Switch Mercusys MS105, 5 Port, 10/100 Mbps Switch TP-Link TL-SG1024D, 24 port, 10/100/1000 Mbps "JetStream™ 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch "JetStream™ 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch Extralink KRATOS PoE Switch 7x Gigabit PoE 1x
Alte caracteristici
10G support No No Yes Yes No
Access Control List (ACL) — — Yes Yes —
AC input frequency — 50 - 60 Hz — — 50 - 60 Hz
ARP inspection — — Yes Yes —
Authentication — — Auto VLAN, Guest VLAN Guest VLAN, MAC-based authentication, Port-based authentication —
Auto-negotiation Yes Yes — — Yes
Auto MDI/MDI-X Yes Yes — — —
Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100) 24 48 24 8
BPDU filtering/protection — — Yes Yes —
Broadcast storm control — — Yes Yes —
Cables included — AC AC AC —
Cable types supported — Cat3, Cat4, Cat5, Cat5e — — Cat5, Cat5e, Cat6
Certification CE, RoHS — — — CE, FCC
Cloud-managed — — Yes Yes No
Configuring Location Settings (CLI) — — Yes Yes No
Console port — — RJ-45/micro-USB RJ-45/micro-USB —
DHCP features — — DHCP client, DHCP relay, DHCP server DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping —
Flow control support — Yes Yes Yes —
Forwarding rate — 35.7 Mpps 130.9 Mpps 148.8 Mpps —
Full duplex Yes Yes — Yes —
Half duplex Yes — — Yes —
Head-of-line (HOL) blocking — — Yes Yes —
Heat dissipation — 44.63 BTU/h 2169.2 BTU/h 2153.45 BTU/h —
IGMP snooping — — Yes Yes —
Input current 0.6 A — — — 2.5 A
IP-MAC-Port binding — — Yes Yes —
Jumbo frames 2000 10000 9000 9000 —
Jumbo frames support Yes Yes Yes Yes —
LAN ports 5 24 48 24 —
LAN port type — Gigabit Gigabit Gigabit Gigabit
Layer Unmanaged Unmanaged Layer-2 Layer-2 —
LED indicators LAN, Power Yes Yes Yes Yes
Link aggregation — — Yes Yes —
MAC address table — 8000 entries 16000 entries 32000 entries 4096 entries
Management nu nu Da Da nu
Montare in rack Nu Nu Da Da Nu
Multicast support — — Yes Yes —
Networking standards IEEE 802.3, IEEE 802.3u, IEEE 802.3x IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x — — IEEE 802.3af
Number of fans — — 3 fan(s) 3 fan(s) —
Operating relative humidity (H-H) 10 - 90% 10 - 90% 10 - 90% 10 - 90% 10 - 80%
Operating temperature (T-T) 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C
Package depth 80 mm 400 mm — — —
Package height 57 mm 80 mm — — —
Package weight 140 g 1.95 kg — — —
Package width 87 mm 250 mm — — —
Packet buffer memory 0.768 MB — 12 MB 16 MB —
PoE Nu Nu Da Da Da
Port mirroring — — Yes Yes No
Porturi RJ 45 5-10 24-28 28+ 24-28 5-10
Porturi SFP N/A N/A 1-2 1-2 N/A
Power connector DC-in jack DC-in jack AC-in jack — DC-in jack
Power consumption (max) — 13.08 W 635.7 W 629.1 W —
Power over Ethernet (PoE) No No Yes Yes Yes
Power over Ethernet (PoE) power per port — — 30 W — 30 W
Power over Ethernet plus (PoE+) ports quantity — — 48 16 —
Power source DC AC AC AC/PoE AC
Power supply included Yes Yes Yes Yes Yes
Quality of Service (QoS) support — Yes Yes Yes No
Quick start guide Yes — Yes Yes —
Rackable No No Yes Yes —
Rack mounting No Yes Yes Yes No
Rack mount kit — Yes — Yes —
Rate limiting — — Yes Yes —
Redundant fans support — — — Yes No
Redundant PSU No Yes No Yes —
Reset button — — Yes — Yes
SFP module slots quantity — — 4 4 —
Spanning tree protocol — — Yes Yes —
SSH/SSL support — — Yes Yes —
Stackable No Yes No No No
Static port security — — Yes Yes —
Storage relative humidity (H-H) 5 - 90% 5 - 90% 5 - 90% 5 - 90% 5 - 90%
Storage temperature (T-T) -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C
Store-and-forward Yes Yes Yes Yes —
Switching capacity — 48 Gbit/s 176 Gbit/s 200 Gbit/s 16 Gbit/s
Switch type Unmanaged Unmanaged Managed Managed Unmanaged
System event log — — Yes Yes No
Total Power over Ethernet (PoE) budget — — 500 W 500 W 60 W
Viteza transfer Fast Ethernet Gigabit 10G+ 2.5G Gigabit
VLAN support — — Yes Yes —
Web-based management — — Yes Yes No
Laptopuri - Caracteristici fizice 25.09
Adâncime 49 mm 180 mm 330 mm 330 mm 8.2 mm
Lățime 82 mm 294 mm — — 192 mm
Înălțime 21 mm 44 mm — — 27 mm
Laptopuri - Construcție
Culoare White Grey — — Black
Laptopuri - Generale
Garanție comercială 12 60 60 24 60
Producător MERCUSYS TP-LINK TP-LINK TP-LINK EXTRALINK
Laptopuri - Tip laptop
Construcție laptop — — 1U 1U 1U

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

Numar porturi
5x RJ-45
Porturi
5x RJ45
Viteza de transfer
10/100 Mbps
Alimentare
DC 5V / 0.6A
Dimensiuni
82 x 49 x 21 mm
Memorie Buffer
768Kb
Routing/Switch Fabric
1 Gbps
Specificații tehnice 47 caracteristici
10G support
No
Auto-negotiation
Yes
Auto MDI/MDI-X
Yes
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Certification
CE, RoHS
Full duplex
Yes
Half duplex
Yes
Input current
0.6 A
Input voltage
5 V
Jumbo frames
2000
Jumbo frames support
Yes
LAN ports
5
Layer
Unmanaged
LED indicators
LAN, Power
Management
nu
Montare in rack
Nu
Networking standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Package depth
80 mm
Package height
57 mm
Package weight
140 g
Package width
87 mm
Packet buffer memory
0.768 MB
PoE
Nu
Porturi RJ 45
5-10
Porturi SFP
N/A
Power connector
DC-in jack
Power over Ethernet (PoE)
No
Power source
DC
Power supply included
Yes
Quick start guide
Yes
Rackable
No
Rack mounting
No
Redundant PSU
No
Stackable
No
Storage relative humidity (H-H)
5 - 90%
Storage temperature (T-T)
-40 - 70 °C
Store-and-forward
Yes
Switch type
Unmanaged
Viteza transfer
Fast Ethernet
Adâncime
49 mm
Lățime
82 mm
Înălțime
21 mm
Culoare
White
Garanție comercială
12
Producător
MERCUSYS
