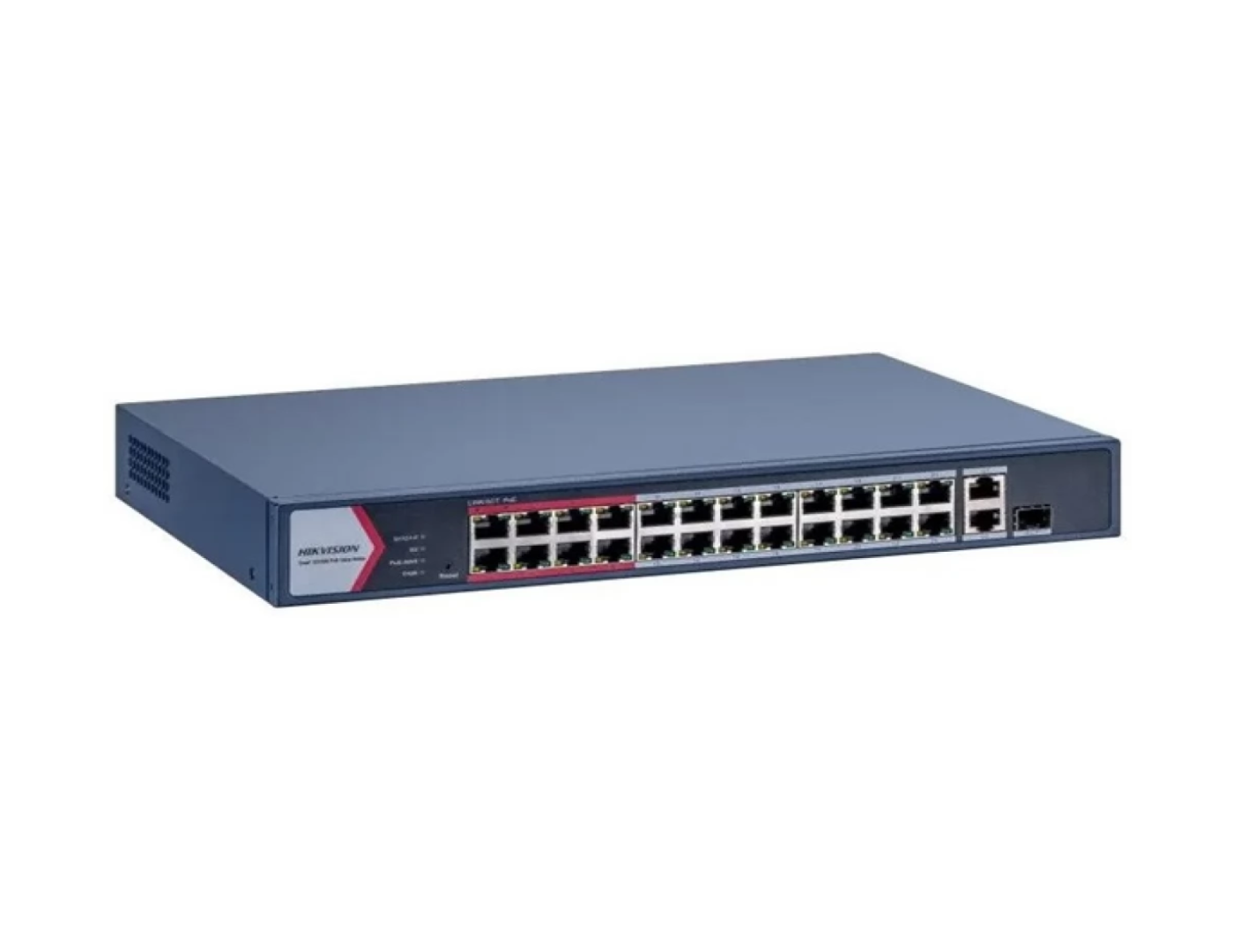

Switch PoE Hikvision DS-3E1326P-EI/M: 24 × 10/100 Mbps PoE port,1
2.160,00 lei
Switch PoE Hikvision DS-3E1326P-EI/M: 24 × 10/100 Mbps PoE port,1
(0)
Stoc Furnizor. Pentru validare stoc vă rugăm să ne contactați.
Vândut de RITC.ro
Cod produs: DS-3E1326P-EI/M
Livrare și beneficii
Compară cu produse similare
Switch PoE Hikvision DS-3E1326P-EI/M: 24 × 10/100 Mbps PoE port,1
"JetStream™ 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch
4.328,99 lei 6.096,98 lei
"JetStream™ 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch
5.348,99 lei 7.487,99 lei
Switch TP-Link TL-SF1008D, 8 port, 10/100 Mbps
58,00 lei 89,99 lei
Switch TP-Link TL-SF1016, 16 port, 10/100 Mbps
217,99 lei 327,99 lei
Vezi comparația completă
| Caracteristică | Switch PoE Hikvision DS-3E1326P-EI/M: 24 × 10/100 Mbps PoE port,1 | "JetStream™ 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch | "JetStream™ 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch | Switch TP-Link TL-SF1008D, 8 port, 10/100 Mbps | Switch TP-Link TL-SF1016, 16 port, 10/100 Mbps |
|---|---|---|---|---|---|
| Alte caracteristici | |||||
| 10G support | No | Yes | Yes | No | No |
| Access Control List (ACL) | — | Yes | Yes | — | — |
| AC input frequency | — | — | — | 50 - 60 Hz | 50 - 60 Hz |
| ARP inspection | — | Yes | Yes | — | — |
| Authentication | — | Auto VLAN, Guest VLAN | Guest VLAN, MAC-based authentication, Port-based authentication | — | — |
| Auto-negotiation | — | — | — | Yes | Yes |
| Auto MDI/MDI-X | — | — | — | Yes | Yes |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) | 48 | 24 | Fast Ethernet (10/100) | Fast Ethernet (10/100) |
| BPDU filtering/protection | — | Yes | Yes | — | — |
| Broadcast storm control | — | Yes | Yes | — | — |
| Cables included | AC | AC | AC | — | AC |
| Cloud-managed | — | Yes | Yes | — | — |
| Compliance certificates | CB, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD), REACH, RoHS, UL, WEEE | — | CE, Federal Communications Commission (FCC), RoHS | CE, Federal Communications Commission (FCC), RoHS | CE, Federal Communications Commission (FCC), RoHS |
| Configuring Location Settings (CLI) | — | Yes | Yes | — | — |
| Console port | — | RJ-45/micro-USB | RJ-45/micro-USB | — | — |
| Copper ethernet cabling technology | — | — | — | 10BASE-T, 100BASE-TX | 10BASE-T, 100BASE-TX |
| DHCP features | — | DHCP client, DHCP relay, DHCP server | DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping | — | — |
| Fanless | — | — | — | Yes | Yes |
| Fast Ethernet (copper) ports quantity | 24 | — | — | 8 | 16 |
| Flow control support | — | Yes | Yes | Yes | Yes |
| Forwarding rate | 11.01 Mpps | 130.9 Mpps | 148.8 Mpps | — | 2.38 Mpps |
| Full duplex | — | — | Yes | Yes | — |
| Half duplex | — | — | Yes | Yes | — |
| Harmonized System (HS) code | — | — | — | 85176990 | 85176990 |
| Head-of-line (HOL) blocking | — | Yes | Yes | — | — |
| Heat dissipation | — | 2169.2 BTU/h | 2153.45 BTU/h | 6.99 BTU/h | 7.03 BTU/h |
| IGMP snooping | — | Yes | Yes | — | — |
| Input current | 6.5 A | — | — | 0.6 A | — |
| IP-MAC-Port binding | — | Yes | Yes | — | — |
| Jumbo frames | — | 9000 | 9000 | — | — |
| Jumbo frames support | — | Yes | Yes | — | — |
| LAN ports | — | 48 | 24 | — | — |
| LAN port type | — | Gigabit | Gigabit | FastEthernet | FastEthernet |
| Layer | — | Layer-2 | Layer-2 | — | — |
| LED indicators | — | Yes | Yes | Yes | Yes |
| Link aggregation | Yes | Yes | Yes | — | — |
| MAC address table | 16000 entries | 16000 entries | 32000 entries | 1000 entries | 8000 entries |
| Management | Da | Da | Da | nu | nu |
| Montare in rack | Nu | Da | Da | Nu | Nu |
| Multicast support | — | Yes | Yes | — | — |
| Networking standards | IEEE 802.3af, IEEE 802.3at | — | — | IEEE 802.3u, IEEE 802.3x | IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Number of fans | — | 3 fan(s) | 3 fan(s) | — | — |
| Operating relative humidity (H-H) | — | 10 - 90% | 10 - 90% | 10 - 90% | 10 - 90% |
| Operating temperature (T-T) | — | 0 - 40 °C | 0 - 40 °C | 0 - 40 °C | 0 - 40 °C |
| Package depth | — | — | — | 139 mm | 528 mm |
| Package type | — | — | — | Box | Box |
| Package weight | 31 kg | — | — | 240 g | 2.28 kg |
| Package width | — | — | — | 100 mm | 250 mm |
| Packet buffer memory | 4 MB | 12 MB | 16 MB | 2 MB | 2 MB |
| PoE | Da | Da | Da | Nu | Nu |
| Port mirroring | — | Yes | Yes | — | — |
| Porturi RJ 45 | 1-4 | 28+ | 24-28 | 5-10 | 11-18 |
| Porturi SFP | N/A | 1-2 | 1-2 | N/A | N/A |
| Power connector | — | AC-in jack | — | DC-in jack | DC-in jack |
| Power consumption (max) | — | 635.7 W | 629.1 W | 2.2 W | 2.23 W |
| Power over Ethernet (PoE) | Yes | Yes | Yes | No | No |
| Power over Ethernet (PoE) power per port | 30 W | 30 W | — | — | — |
| Power over Ethernet plus (PoE+) ports quantity | — | 48 | 16 | — | — |
| Power source | AC/PoE | AC | AC/PoE | DC | AC |
| Power supply included | — | Yes | Yes | No | Yes |
| Quality of Service (QoS) support | — | Yes | Yes | — | — |
| Quick start guide | Yes | Yes | Yes | Yes | — |
| Rackable | — | Yes | Yes | — | — |
| Rack mounting | Yes | Yes | Yes | No | Yes |
| Rack mount kit | — | — | Yes | — | Yes |
| Rate limiting | — | Yes | Yes | — | — |
| Redundant PSU | — | No | Yes | — | — |
| SFP module slots quantity | — | 4 | 4 | — | — |
| Spanning tree protocol | — | Yes | Yes | — | — |
| SSH/SSL support | — | Yes | Yes | — | — |
| Stackable | — | No | No | No | No |
| Static port security | — | Yes | Yes | — | — |
| Storage relative humidity (H-H) | 5 - 95% | 5 - 90% | 5 - 90% | 5 - 95% | 5 - 90% |
| Storage temperature (T-T) | -40 - 85 °C | -40 - 70 °C | -40 - 70 °C | -40 - 70 °C | -40 - 70 °C |
| Store-and-forward | — | Yes | Yes | Yes | Yes |
| Sustainability compliance | Yes | — | Yes | Yes | Yes |
| Switching capacity | 14.8 Gbit/s | 176 Gbit/s | 200 Gbit/s | 16 Gbit/s | 32 Gbit/s |
| Switch type | Managed | Managed | Managed | Unmanaged | Unmanaged |
| System event log | Yes | Yes | Yes | — | — |
| Total Power over Ethernet (PoE) budget | 230 W | 500 W | 500 W | — | — |
| Viteza transfer | Fast Ethernet | 10G+ | 2.5G | Fast Ethernet | Fast Ethernet |
| VLAN support | — | Yes | Yes | — | — |
| Web-based management | — | Yes | Yes | — | — |
| Laptopuri - Caracteristici fizice 25.09 | |||||
| Adâncime | 226 mm | 330 mm | 330 mm | 7.9 mm | 180 mm |
| Lățime | 335 mm | — | — | 134.5 mm | 440 mm |
| Material carcasă | Metal | — | — | — | Metal |
| Înălțime | 44.5 mm | — | — | 22.5 mm | 44 mm |
| Laptopuri - Conectivitate și porturi 25.09 | |||||
| Viteză rețea LAN | — | — | 10,100,1000,2500,10000 Mbit/s | — | 10,100 Mbit/s |
| Laptopuri - Construcție | |||||
| Culoare | — | — | — | White | Black |
| Laptopuri - Generale | |||||
| Garanție comercială | 36 | 60 | 24 | 36 | 36 |
| Producător | HIKVISION | TP-LINK | TP-LINK | TP-LINK | TP-LINK |
| Laptopuri - Tip laptop | |||||
| Construcție laptop | — | 1U | 1U | — | 1U |
Analiză inteligentă a produsului
Descriere oficială
Switch PoE Hikvision DS-3E1326P-EI/M: 24 × 10/100 Mbps PoE port,1 × Gigabit combo,1 × Gigabit RJ45 port, 24 porturi PoE maxim 30W, buget PoE 230W, tensiune alimentara: 100-240 VAC, 50/60 Hz, Max. 4 A, dimensiuni: 335.00 mm × 44.50 mm × 226.00 mm, greutate: 2.13kg.
Specificații tehnice 44 caracteristici ⌄
- 10G support
- No
- Basic switching RJ-45 Ethernet ports type
- Fast Ethernet (10/100)
- Cables included
- AC
- Combo SFP ports quantity
- 2
- Compliance certificates
- CB, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD), REACH, RoHS, UL, WEEE
- Fast Ethernet (copper) ports quantity
- 24
- Forwarding rate
- 11.01 Mpps
- Gigabit Ethernet (copper) ports quantity
- 1
- Input current
- 6.5 A
- Link aggregation
- Yes
- MAC address table
- 16000 entries
- Management
- Da
- Montare in rack
- Nu
- Networking standards
- IEEE 802.3af, IEEE 802.3at
- Package weight
- 31 kg
- Packet buffer memory
- 4 MB
- PoE
- Da
- Porturi RJ 45
- 1-4
- Porturi SFP
- N/A
- Power consumption (typical)
- 250 W
- Power over Ethernet (PoE)
- Yes
- Power over Ethernet (PoE) ports quantity
- 24
- Power over Ethernet (PoE) power per port
- 30 W
- Power protection features
- Surge protection
- Power source
- AC/PoE
- Quick start guide
- Yes
- Rack mounting
- Yes
- Storage relative humidity (H-H)
- 5 - 95%
- Storage temperature (T-T)
- -40 - 85 °C
- Surge protection
- Yes
- Surge protection voltage
- 6 kV
- Sustainability compliance
- Yes
- Switching capacity
- 14.8 Gbit/s
- Switch type
- Managed
- System event log
- Yes
- Total Power over Ethernet (PoE) budget
- 230 W
- Viteza transfer
- Fast Ethernet
- Adâncime
- 226 mm
- Lățime
- 335 mm
- Material carcasă
- Metal
- Înălțime
- 44.5 mm
- Greutate
- 21.3 kg
- Garanție comercială
- 36
- Producător
- HIKVISION
