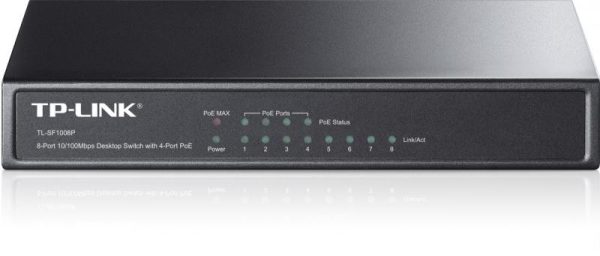

Switch TP-Link TL-SF1008P, 8 port, 10/100 Mbps

Switchuri

Switch TP-Link TL-SF1008P, 8 port, 10/100 Mbps

(0) În stoc
Vândut de RITC.ro Cod produs: TL-SF1008P

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Switch TP-Link TL-SF1008P, 8 port, 10/100 Mbps Switch TP-Link TL-SG1024D, 24 port, 10/100/1000 Mbps "JetStream™ 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch "JetStream™ 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch Switch TP-Link TL-SF1008D, 8 port, 10/100 Mbps
Alte caracteristici
10G support No No Yes Yes No
Access Control List (ACL) Yes — Yes Yes —
AC input frequency 50 Hz 50 - 60 Hz — — 50 - 60 Hz
ARP inspection — — Yes Yes —
Authentication — — Auto VLAN, Guest VLAN Guest VLAN, MAC-based authentication, Port-based authentication —
Auto-negotiation Yes Yes — — Yes
Auto MDI/MDI-X Yes Yes — — Yes
Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100) 24 48 24 Fast Ethernet (10/100)
BPDU filtering/protection — — Yes Yes —
Broadcast storm control — — Yes Yes —
Cables included — AC AC AC —
Cable types supported Cat3, Cat4, Cat5, Cat5e Cat3, Cat4, Cat5, Cat5e — — —
Cloud-managed — — Yes Yes —
Compliance certificates CE, Federal Communications Commission (FCC), RoHS — — CE, Federal Communications Commission (FCC), RoHS CE, Federal Communications Commission (FCC), RoHS
Configuring Location Settings (CLI) — — Yes Yes —
Console port — — RJ-45/micro-USB RJ-45/micro-USB —
Copper ethernet cabling technology 10GBASE-T, 100BASE-TX — — — 10BASE-T, 100BASE-TX
DC input voltage 48 V — — — 5 V
DHCP features DHCPv6 relay — DHCP client, DHCP relay, DHCP server DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping —
Fanless Yes — — — Yes
Fast Ethernet (copper) ports quantity 8 — — — 8
Flow control support Yes Yes Yes Yes Yes
Forwarding rate 1.1904 Mpps 35.7 Mpps 130.9 Mpps 148.8 Mpps —
Full duplex Yes Yes — Yes Yes
GARP VLAN Registration Protocol (GVRP) Yes — — Yes —
Half duplex Yes — — Yes Yes
Harmonized System (HS) code 85176990 85176990 — — 85176990
Head-of-line (HOL) blocking — — Yes Yes —
Heat dissipation 248.93 BTU/h 44.63 BTU/h 2169.2 BTU/h 2153.45 BTU/h 6.99 BTU/h
IGMP snooping — — Yes Yes —
Input current 1.31 A — — — 0.6 A
IP-MAC-Port binding — — Yes Yes —
IPv4 & IPv6 features IPv6 portal — — IPv4/IPv6 access-control list (ACL), IPv6 ping, IPv6 portal, IPv6 tracert —
Jumbo frames — 10000 9000 9000 —
Jumbo frames support — Yes Yes Yes —
LAN ports — 24 48 24 —
LAN port type FastEthernet Gigabit Gigabit Gigabit FastEthernet
Layer — Unmanaged Layer-2 Layer-2 —
LED indicators Yes Yes Yes Yes Yes
Link aggregation — — Yes Yes —
MAC address table 2000 entries 8000 entries 16000 entries 32000 entries 1000 entries
Management nu nu Da Da nu
Memory type DRAM — — DRAM —
Montare in rack Nu Nu Da Da Nu
Multicast support — — Yes Yes —
Networking standards IEEE 802.1Qbb IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x — — IEEE 802.3u, IEEE 802.3x
Number of fans 0 fan(s) — 3 fan(s) 3 fan(s) —
Operating relative humidity (H-H) 10 - 90% 10 - 90% 10 - 90% 10 - 90% 10 - 90%
Operating temperature (T-T) 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C
Package depth 280 mm 400 mm — — 139 mm
Package height 68 mm 80 mm — — 85 mm
Package type Box Box — — Box
Package weight 970 g 1.95 kg — — 240 g
Package width 223 mm 250 mm — — 100 mm
Packet buffer memory — — 12 MB 16 MB 2 MB
PoE Da Nu Da Da Nu
Port mirroring — — Yes Yes —
Porturi RJ 45 5-10 24-28 28+ 24-28 5-10
Porturi SFP N/A N/A 1-2 1-2 N/A
Power connector DC-in jack DC-in jack AC-in jack — DC-in jack
Power consumption (max) 66 W 13.08 W 635.7 W 629.1 W 2.2 W
Power over Ethernet (PoE) Yes No Yes Yes No
Power over Ethernet plus (PoE+) ports quantity 8 — 48 16 —
Power source DC/PoE AC AC AC/PoE DC
Power supply included No Yes Yes Yes No
Quality of Service (QoS) support — Yes Yes Yes —
Quick start guide — — Yes Yes Yes
Rackable — No Yes Yes —
Rack mounting No Yes Yes Yes No
Rack mount kit — Yes — Yes —
Rate limiting — — Yes Yes —
Redundant PSU — Yes No Yes —
SFP module slots quantity — — 4 4 —
Spanning tree protocol — — Yes Yes —
SSH/SSL support — — Yes Yes —
Stackable No Yes No No No
Static port security — — Yes Yes —
Storage relative humidity (H-H) 5 - 90% 5 - 90% 5 - 90% 5 - 90% 5 - 95%
Storage temperature (T-T) -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C
Store-and-forward Yes Yes Yes Yes Yes
Supported network protocols — CSMA/CD, TCP/IP — — CSMA/CD, TCP/IP
Sustainability compliance Yes — — Yes Yes
Switching capacity 16 Gbit/s 48 Gbit/s 176 Gbit/s 200 Gbit/s 16 Gbit/s
Switch type Unmanaged Unmanaged Managed Managed Unmanaged
System event log — — Yes Yes —
Total Power over Ethernet (PoE) budget 60.2 W — 500 W 500 W —
User guide Yes Yes — — —
Viteza transfer Fast Ethernet Gigabit 10G+ 2.5G Fast Ethernet
VLAN support — — Yes Yes —
Web-based management — — Yes Yes —
Laptopuri - Caracteristici fizice 25.09
Adâncime 98 mm 180 mm 330 mm 330 mm 7.9 mm
Lățime 171 mm 294 mm — — 134.5 mm
Înălțime 27 mm 44 mm — — 22.5 mm
Laptopuri - Conectivitate și porturi 25.09
Viteză rețea LAN 100 Mbit/s — — 10,100,1000,2500,10000 Mbit/s —
Laptopuri - Construcție
Culoare Olive Grey — — White
Laptopuri - Generale
Garanție comercială 60 60 60 24 36
Producător TP-LINK TP-LINK TP-LINK TP-LINK TP-LINK
Laptopuri - Tip laptop
Construcție laptop — — 1U 1U —

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

General
Numar porturi
8x RJ-45
Porturi
8x RJ45
Viteza de transfer
10/100 Mbps
Putere consumata
5.8 watts (max. no PD connected)
58 watts (max. with 53w PD connected)
Alimentare
External Power Adapter(Output: 48VDC / 1.25A)
PoE
Da
Dimensiuni
171 x 98 x 27 mm
Adrese MAC
8k
Metoda forwarding
Store-And-Forward
Altele
4x PoE Ports (RJ45)
Specificații tehnice 75 caracteristici
10G support
No
Access Control List (ACL)
Yes
AC input frequency
50 Hz
AC input voltage
220 V
Auto-negotiation
Yes
Auto MDI/MDI-X
Yes
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Built-in processor
Yes
Cable types supported
Cat3, Cat4, Cat5, Cat5e
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
Copper ethernet cabling technology
10GBASE-T, 100BASE-TX
DC input voltage
48 V
DHCP features
DHCPv6 relay
Expansion module support
Yes
Fanless
Yes
Fast Ethernet (copper) ports quantity
8
Fiber ethernet cabling technology
40GBASE-SR4
Flow control support
Yes
Forwarding rate
1.1904 Mpps
Full duplex
Yes
GARP VLAN Registration Protocol (GVRP)
Yes
Half duplex
Yes
Harmonized System (HS) code
85176990
Heat dissipation
248.93 BTU/h
Input current
1.31 A
IPv4 & IPv6 features
IPv6 portal
LAN port type
FastEthernet
LED indicators
Yes
MAC address auto-aging supported
Yes
MAC address auto-learning supported
Yes
MAC address table
2000 entries
Management
nu
Memory type
DRAM
Montare in rack
Nu
Networking standards
IEEE 802.1Qbb
Number of fans
0 fan(s)
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Package depth
280 mm
Package height
68 mm
Package type
Box
Package weight
970 g
Package width
223 mm
PoE
Da
Porturi RJ 45
5-10
Porturi SFP
N/A
Power connector
DC-in jack
Power consumption (max)
66 W
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
4
Power over Ethernet plus (PoE+) ports quantity
8
Power source
DC/PoE
Power supply included
No
Rack mounting
No
Routing protocols
OSPF
Stackable
No
Storage relative humidity (H-H)
5 - 90%
Storage temperature (T-T)
-40 - 70 °C
Store-and-forward
Yes
Sustainability compliance
Yes
Switching capacity
16 Gbit/s
Switch type
Unmanaged
Total Power over Ethernet (PoE) budget
60.2 W
User guide
Yes
Viteza transfer
Fast Ethernet
Wall mountable
Yes
Adâncime
98 mm
Lățime
171 mm
Material carcasă
Metal
Înălțime
27 mm
Viteză rețea LAN
100 Mbit/s
Culoare
Olive
Garanție comercială
60
Producător
TP-LINK
Producător procesor
Broadcom
