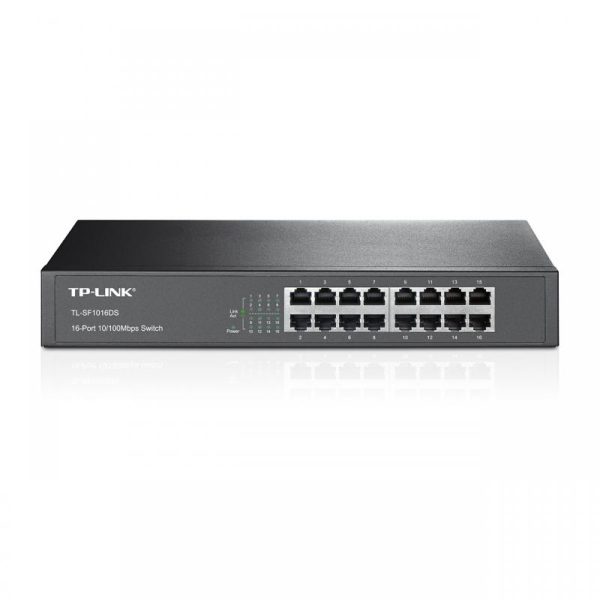

Switch TP-Link TL-SF1016DS, 16 port, 10/100Mbps

Switchuri

Switch TP-Link TL-SF1016DS, 16 port, 10/100Mbps

(0) În stoc
Vândut de RITC.ro Cod produs: TL-SF1016DS

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Switch TP-Link TL-SF1016DS, 16 port, 10/100Mbps Switch TP-Link TL-SG1024D, 24 port, 10/100/1000 Mbps "JetStream™ 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch "JetStream™ 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch Switch TP-Link TL-SF1008D, 8 port, 10/100 Mbps
Alte caracteristici
10G support No No Yes Yes No
Access Control List (ACL) — — Yes Yes —
AC input frequency — 50 - 60 Hz — — 50 - 60 Hz
ARP inspection — — Yes Yes —
Authentication — — Auto VLAN, Guest VLAN Guest VLAN, MAC-based authentication, Port-based authentication —
Auto-negotiation Yes Yes — — Yes
Auto MDI/MDI-X Yes Yes — — Yes
Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100) 24 48 24 Fast Ethernet (10/100)
BPDU filtering/protection — — Yes Yes —
Broadcast storm control — — Yes Yes —
Cables included AC AC AC AC —
Cable types supported Cat3, Cat4, Cat5, Cat5e Cat3, Cat4, Cat5, Cat5e — — —
Cloud-managed — — Yes Yes —
Compliance certificates CE, Federal Communications Commission (FCC), RoHS — — CE, Federal Communications Commission (FCC), RoHS CE, Federal Communications Commission (FCC), RoHS
Configuring Location Settings (CLI) — — Yes Yes —
Console port — — RJ-45/micro-USB RJ-45/micro-USB —
Copper ethernet cabling technology 10BASE-T, 100BASE-T — — — 10BASE-T, 100BASE-TX
DHCP features — — DHCP client, DHCP relay, DHCP server DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping —
Fanless Yes — — — Yes
Fast Ethernet (copper) ports quantity 16 — — — 8
Flow control support Yes Yes Yes Yes Yes
Forwarding rate — 35.7 Mpps 130.9 Mpps 148.8 Mpps —
Full duplex — Yes — Yes Yes
Half duplex — — — Yes Yes
Harmonized System (HS) code — 85176990 — — 85176990
Head-of-line (HOL) blocking — — Yes Yes —
Heat dissipation 7.03 BTU/h 44.63 BTU/h 2169.2 BTU/h 2153.45 BTU/h 6.99 BTU/h
IGMP snooping — — Yes Yes —
IP-MAC-Port binding — — Yes Yes —
Jumbo frames — 10000 9000 9000 —
Jumbo frames support — Yes Yes Yes —
LAN ports — 24 48 24 —
LAN port type FastEthernet Gigabit Gigabit Gigabit FastEthernet
Layer — Unmanaged Layer-2 Layer-2 —
LED indicators — Yes Yes Yes Yes
Link aggregation — — Yes Yes —
MAC address table 8000 entries 8000 entries 16000 entries 32000 entries 1000 entries
Management nu nu Da Da nu
Montare in rack Nu Nu Da Da Nu
Multicast support — — Yes Yes —
Networking standards IEEE 802.3i, IEEE 802.3u, IEEE 802.3x IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x — — IEEE 802.3u, IEEE 802.3x
Number of fans 0 fan(s) — 3 fan(s) 3 fan(s) —
Operating relative humidity (H-H) 10 - 90% 10 - 90% 10 - 90% 10 - 90% 10 - 90%
Operating temperature (T-T) 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C
Package depth 400 mm 400 mm — — 139 mm
Package height 80 mm 80 mm — — 85 mm
Package type — Box — — Box
Package weight 1.95 kg 1.95 kg — — 240 g
Package width 250 mm 250 mm — — 100 mm
Packet buffer memory 2 MB — 12 MB 16 MB 2 MB
PoE Nu Nu Da Da Nu
Port mirroring — — Yes Yes —
Porturi RJ 45 11-18 24-28 28+ 24-28 5-10
Porturi SFP N/A N/A 1-2 1-2 N/A
Power connector — DC-in jack AC-in jack — DC-in jack
Power consumption (max) 2.06 W 13.08 W 635.7 W 629.1 W 2.2 W
Power over Ethernet (PoE) No No Yes Yes No
Power over Ethernet plus (PoE+) ports quantity — — 48 16 —
Power source AC AC AC AC/PoE DC
Power supply included Yes Yes Yes Yes No
Quality of Service (QoS) support — Yes Yes Yes —
Quick start guide — — Yes Yes Yes
Rackable — No Yes Yes —
Rack mounting Yes Yes Yes Yes No
Rack mount kit Yes Yes — Yes —
Rate limiting — — Yes Yes —
Redundant fans support Yes — — Yes —
Redundant PSU — Yes No Yes —
SFP module slots quantity — — 4 4 —
Spanning tree protocol — — Yes Yes —
SSH/SSL support — — Yes Yes —
Stackable No Yes No No No
Static port security Yes — Yes Yes —
Storage relative humidity (H-H) 5 - 90% 5 - 90% 5 - 90% 5 - 90% 5 - 95%
Storage temperature (T-T) -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C
Store-and-forward Yes Yes Yes Yes Yes
Supported network protocols TCP/IP CSMA/CD, TCP/IP — — CSMA/CD, TCP/IP
Sustainability compliance Yes — — Yes Yes
Switching capacity 32 Gbit/s 48 Gbit/s 176 Gbit/s 200 Gbit/s 16 Gbit/s
Switch type Unmanaged Unmanaged Managed Managed Unmanaged
System event log — — Yes Yes —
Total Power over Ethernet (PoE) budget — — 500 W 500 W —
User guide Yes Yes — — —
Viteza transfer Fast Ethernet Gigabit 10G+ 2.5G Fast Ethernet
VLAN support — — Yes Yes —
Web-based management — — Yes Yes —
Laptopuri - Caracteristici fizice 25.09
Adâncime 180 mm 180 mm 330 mm 330 mm 7.9 mm
Lățime 294 mm 294 mm — — 134.5 mm
Înălțime 44 mm 44 mm — — 22.5 mm
Laptopuri - Conectivitate și porturi 25.09
Viteză rețea LAN 10,100 Mbit/s — — 10,100,1000,2500,10000 Mbit/s —
Laptopuri - Construcție
Culoare Black Grey — — White
Laptopuri - Generale
Garanție comercială 36 60 60 24 36
Producător TP-LINK TP-LINK TP-LINK TP-LINK TP-LINK
Laptopuri - Tip laptop
Construcție laptop 1U — 1U 1U —

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

Numar porturi
16x RJ-45
Porturi
16x RJ45
Viteza de transfer
10/100 Mbps
Functii
Wire-speed Performance
MAC Address Auto-Learning and Auto-aging
IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode
Dimensiuni
200 x 142 x 40 mm
Functii LED
Power, Link/Act (1-16)
Adrese MAC
Table: 1000
Specificații tehnice 58 caracteristici
10G support
No
Auto-negotiation
Yes
Auto MDI/MDI-X
Yes
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Cables included
AC
Cable types supported
Cat3, Cat4, Cat5, Cat5e
Certification
FCC, RoHS
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
Copper ethernet cabling technology
10BASE-T, 100BASE-T
Fanless
Yes
Fast Ethernet (copper) ports quantity
16
Flow control support
Yes
Heat dissipation
7.03 BTU/h
LAN port type
FastEthernet
MAC address table
8000 entries
Management
nu
Montare in rack
Nu
Networking standards
IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Number of fans
0 fan(s)
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Package depth
400 mm
Package height
80 mm
Package weight
1.95 kg
Package width
250 mm
Packet buffer memory
2 MB
PoE
Nu
Porturi RJ 45
11-18
Porturi SFP
N/A
Power consumption (max)
2.06 W
Power over Ethernet (PoE)
No
Power source
AC
Power supply included
Yes
Rack mounting
Yes
Rack mount kit
Yes
Redundant fans support
Yes
Rubber feet
Yes
Stackable
No
Static port security
Yes
Storage relative humidity (H-H)
5 - 90%
Storage temperature (T-T)
-40 - 70 °C
Store-and-forward
Yes
Supported network protocols
TCP/IP
Sustainability compliance
Yes
Switching capacity
32 Gbit/s
Switch type
Unmanaged
Throughput
2.38 Mpps
User guide
Yes
Viteza transfer
Fast Ethernet
Adâncime
180 mm
Lățime
294 mm
Material carcasă
Metal
Înălțime
44 mm
Viteză rețea LAN
10,100 Mbit/s
Culoare
Black
Garanție comercială
36
Producător
TP-LINK
Construcție laptop
1U
