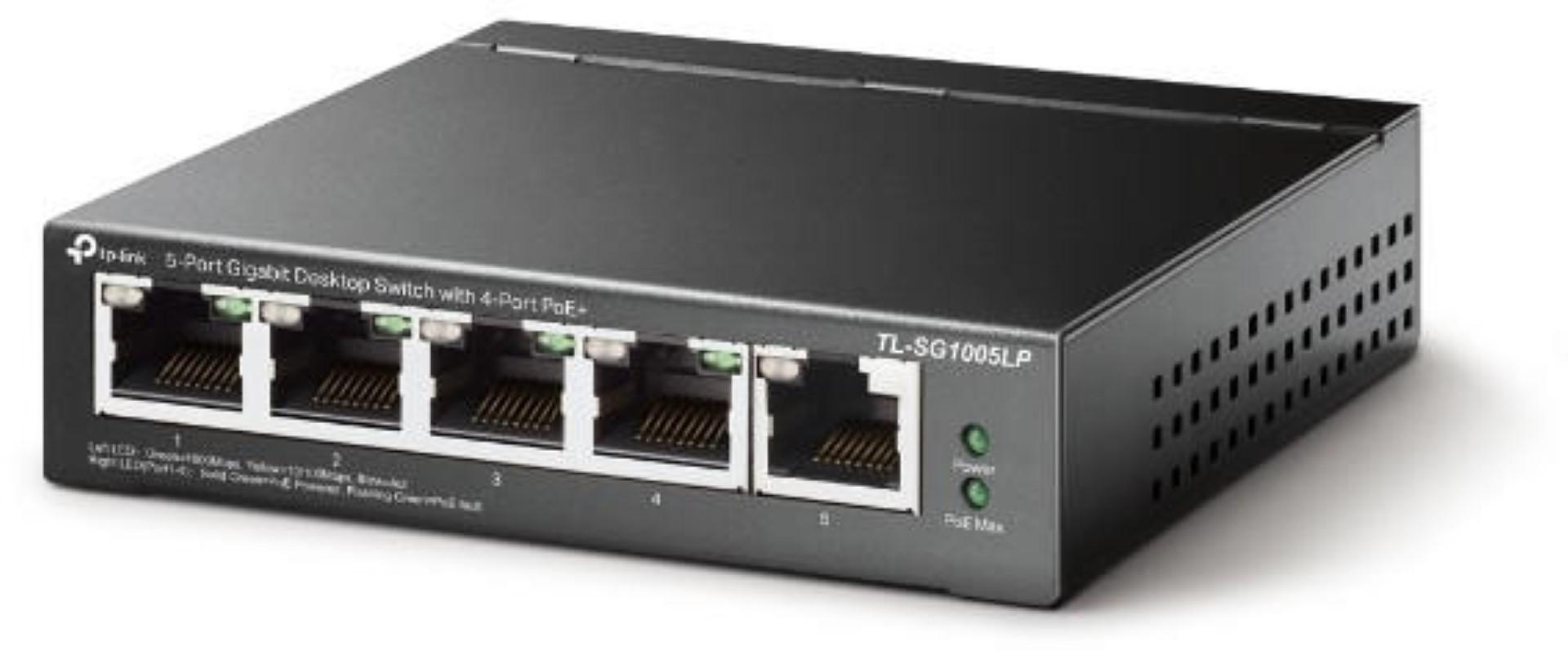

Switch TP-LINK TL-SG1005LP, 5 port, 10/100/1000 Mbps

Switchuri

Switch TP-LINK TL-SG1005LP, 5 port, 10/100/1000 Mbps

(0) Stoc epuizat
Vândut de RITC.ro Cod produs: TL-SG1005LP

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Switch TP-LINK TL-SG1005LP, 5 port, 10/100/1000 Mbps Switch TP-Link TL-SG1024D, 24 port, 10/100/1000 Mbps "JetStream™ 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch "JetStream™ 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch Switch TP-Link TL-SF1008D, 8 port, 10/100 Mbps
Alte caracteristici
10G support No No Yes Yes No
Access Control List (ACL) — — Yes Yes —
AC input frequency — 50 - 60 Hz — — 50 - 60 Hz
ARP inspection — — Yes Yes —
Authentication — — Auto VLAN, Guest VLAN Guest VLAN, MAC-based authentication, Port-based authentication —
Auto-negotiation Yes Yes — — Yes
Auto MDI/MDI-X Yes Yes — — Yes
Basic switching RJ-45 Ethernet ports type 5 24 48 24 Fast Ethernet (10/100)
BPDU filtering/protection — — Yes Yes —
Broadcast storm control — — Yes Yes —
Cables included — AC AC AC —
Cable types supported Cat3, Cat4, Cat5, Cat5e, Cat6 Cat3, Cat4, Cat5, Cat5e — — —
Cloud-managed — — Yes Yes —
Compliance certificates CE, Federal Communications Commission (FCC), RoHS — — CE, Federal Communications Commission (FCC), RoHS CE, Federal Communications Commission (FCC), RoHS
Configuring Location Settings (CLI) — — Yes Yes —
Console port — — RJ-45/micro-USB RJ-45/micro-USB —
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T — — — 10BASE-T, 100BASE-TX
DC input voltage 53.5 V — — — 5 V
DHCP features — — DHCP client, DHCP relay, DHCP server DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping —
Fanless Yes — — — Yes
Flow control support Yes Yes Yes Yes Yes
Forwarding rate 7.44 Mpps 35.7 Mpps 130.9 Mpps 148.8 Mpps —
Full duplex — Yes — Yes Yes
Gigabit Ethernet (copper) ports quantity 5 24 — — —
Half duplex — — — Yes Yes
Harmonized System (HS) code 85176990 85176990 — — 85176990
Head-of-line (HOL) blocking — — Yes Yes —
Heat dissipation 161.98 BTU/h 44.63 BTU/h 2169.2 BTU/h 2153.45 BTU/h 6.99 BTU/h
IGMP snooping Yes — Yes Yes —
Input current 0.81 A — — — 0.6 A
IP-MAC-Port binding — — Yes Yes —
Jumbo frames 16000 10000 9000 9000 —
Jumbo frames support Yes Yes Yes Yes —
LAN ports 5 24 48 24 —
LAN port type Gigabit Gigabit Gigabit Gigabit FastEthernet
Layer Unmanaged Unmanaged Layer-2 Layer-2 —
LED indicators — Yes Yes Yes Yes
Link aggregation — — Yes Yes —
MAC address table 2000 entries 8000 entries 16000 entries 32000 entries 1000 entries
Management nu nu Da Da nu
Montare in rack Nu Nu Da Da Nu
Multicast support — — Yes Yes —
Networking standards IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x — — IEEE 802.3u, IEEE 802.3x
Number of fans — — 3 fan(s) 3 fan(s) —
Operating relative humidity (H-H) 10 - 90% 10 - 90% 10 - 90% 10 - 90% 10 - 90%
Operating temperature (T-T) 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C
Package depth 196 mm 400 mm — — 139 mm
Package height 121 mm 80 mm — — 85 mm
Package type Box Box — — Box
Package weight 730 g 1.95 kg — — 240 g
Package width 131 mm 250 mm — — 100 mm
Packet buffer memory — — 12 MB 16 MB 2 MB
PoE Da Nu Da Da Nu
Port mirroring — — Yes Yes —
Porturi RJ 45 5-10 24-28 28+ 24-28 5-10
Porturi SFP N/A N/A 1-2 1-2 N/A
Power connector — DC-in jack AC-in jack — DC-in jack
Power consumption (max) 47.5 W 13.08 W 635.7 W 629.1 W 2.2 W
Power over Ethernet (PoE) Yes No Yes Yes No
Power over Ethernet plus (PoE+) ports quantity 4 — 48 16 —
Power source DC/PoE AC AC AC/PoE DC
Power supply included Yes Yes Yes Yes No
Quality of Service (QoS) support Yes Yes Yes Yes —
Quick start guide — — Yes Yes Yes
Rackable No No Yes Yes —
Rack mounting No Yes Yes Yes No
Rack mount kit — Yes — Yes —
Rate limiting — — Yes Yes —
Redundant PSU No Yes No Yes —
SFP module slots quantity — — 4 4 —
Spanning tree protocol — — Yes Yes —
SSH/SSL support — — Yes Yes —
Stackable No Yes No No No
Static port security — — Yes Yes —
Storage relative humidity (H-H) 5 - 90% 5 - 90% 5 - 90% 5 - 90% 5 - 95%
Storage temperature (T-T) -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C
Store-and-forward Yes Yes Yes Yes Yes
Supported network protocols — CSMA/CD, TCP/IP — — CSMA/CD, TCP/IP
Sustainability compliance Yes — — Yes Yes
Switching capacity 10 Gbit/s 48 Gbit/s 176 Gbit/s 200 Gbit/s 16 Gbit/s
Switch type Unmanaged Unmanaged Managed Managed Unmanaged
System event log — — Yes Yes —
Total Power over Ethernet (PoE) budget 40 W — 500 W 500 W —
Viteza transfer Gigabit Gigabit 10G+ 2.5G Fast Ethernet
VLAN support — — Yes Yes —
Web-based management — — Yes Yes —
Laptopuri - Caracteristici fizice 25.09
Adâncime 98 mm 180 mm 330 mm 330 mm 7.9 mm
Lățime 99.8 mm 294 mm — — 134.5 mm
Înălțime 25 mm 44 mm — — 22.5 mm
Laptopuri - Construcție
Culoare — Grey — — White
Laptopuri - Generale
Garanție comercială 60 60 60 24 36
Producător TP-LINK TP-LINK TP-LINK TP-LINK TP-LINK
Laptopuri - Tip laptop
Construcție laptop — — 1U 1U —

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

Numar porturi
5x RJ-45
Porturi
5x RJ-45
Viteza de transfer
10/100/1000 Mbps
Putere consumata
47.5 W
Alimentare
DC 48V
PoE
Da, 4 porturi PoE
Dimensiuni
99.8 x 98 x 25 mm
Specificații tehnice 62 caracteristici
10G support
No
Auto-negotiation
Yes
Auto MDI/MDI-X
Yes
Basic switching RJ-45 Ethernet ports type
5
Cable types supported
Cat3, Cat4, Cat5, Cat5e, Cat6
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
DC input voltage
53.5 V
Fanless
Yes
Flow control support
Yes
Forwarding rate
7.44 Mpps
Gigabit Ethernet (copper) ports quantity
5
Harmonized System (HS) code
85176990
Heat dissipation
161.98 BTU/h
IGMP snooping
Yes
Input current
0.81 A
Jumbo frames
16000
Jumbo frames support
Yes
LAN ports
5
LAN port type
Gigabit
Layer
Unmanaged
MAC address auto-aging supported
Yes
MAC address auto-learning supported
Yes
MAC address table
2000 entries
Management
nu
Maximum cable length
100 m
Montare in rack
Nu
Networking standards
IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Package depth
196 mm
Package height
121 mm
Package type
Box
Package weight
730 g
Package width
131 mm
PoE
Da
Porturi RJ 45
5-10
Porturi SFP
N/A
Power consumption (max)
47.5 W
Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
4
Power source
DC/PoE
Power supply included
Yes
Quality of Service (QoS) support
Yes
Rackable
No
Rack mounting
No
Redundant PSU
No
Stackable
No
Storage relative humidity (H-H)
5 - 90%
Storage temperature (T-T)
-40 - 70 °C
Store-and-forward
Yes
Sustainability compliance
Yes
Switching capacity
10 Gbit/s
Switch type
Unmanaged
Total Power over Ethernet (PoE) budget
40 W
Viteza transfer
Gigabit
Wall mountable
Yes
Adâncime
98 mm
Lățime
99.8 mm
Înălțime
25 mm
Garanție comercială
60
Producător
TP-LINK
