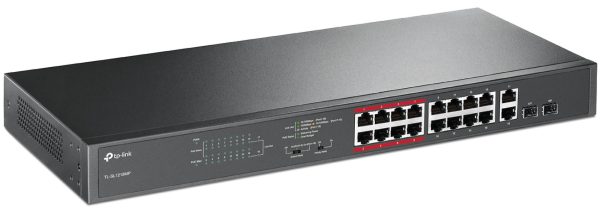

Switch TP-Link TL-SL1218MP, 16 port, 10/100/1000Mbps

Switchuri

Switch TP-Link TL-SL1218MP, 16 port, 10/100/1000Mbps

(0) În stoc
Vândut de RITC.ro Cod produs: TL-SL1218MP

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Switch TP-Link TL-SL1218MP, 16 port, 10/100/1000Mbps Switch TP-Link TL-SG1024D, 24 port, 10/100/1000 Mbps "JetStream™ 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch "JetStream™ 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch Switch TP-Link TL-SF1008D, 8 port, 10/100 Mbps
Alte caracteristici
10G support No No Yes Yes No
Access Control List (ACL) — — Yes Yes —
AC input frequency 50 - 60 Hz 50 - 60 Hz — — 50 - 60 Hz
ARP inspection — — Yes Yes —
Authentication — — Auto VLAN, Guest VLAN Guest VLAN, MAC-based authentication, Port-based authentication —
Auto-negotiation Yes Yes — — Yes
Auto MDI/MDI-X Yes Yes — — Yes
Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100) 24 48 24 Fast Ethernet (10/100)
BPDU filtering/protection — — Yes Yes —
Broadcast storm control — — Yes Yes —
Cables included LAN (RJ-45) AC AC AC —
Cloud-managed — — Yes Yes —
Compliance certificates — — — CE, Federal Communications Commission (FCC), RoHS CE, Federal Communications Commission (FCC), RoHS
Configuring Location Settings (CLI) — — Yes Yes —
Console port — — RJ-45/micro-USB RJ-45/micro-USB —
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T — — — 10BASE-T, 100BASE-TX
DHCP features — — DHCP client, DHCP relay, DHCP server DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping —
Fast Ethernet (copper) ports quantity 16 — — — 8
Flow control support Yes Yes Yes Yes Yes
Forwarding rate 5.36 Mpps 35.7 Mpps 130.9 Mpps 148.8 Mpps —
Full duplex — Yes — Yes Yes
Gigabit Ethernet (copper) ports quantity 2 24 — — —
Half duplex — — — Yes Yes
Harmonized System (HS) code 85176990 85176990 — — 85176990
Head-of-line (HOL) blocking — — Yes Yes —
Heat dissipation 741.15 BTU/h 44.63 BTU/h 2169.2 BTU/h 2153.45 BTU/h 6.99 BTU/h
IGMP snooping — — Yes Yes —
IP-MAC-Port binding — — Yes Yes —
Jumbo frames 10000 10000 9000 9000 —
Jumbo frames support Yes Yes Yes Yes —
LAN ports — 24 48 24 —
LAN port type — Gigabit Gigabit Gigabit FastEthernet
Layer — Unmanaged Layer-2 Layer-2 —
LED indicators LAN, PoE, Status Yes Yes Yes Yes
Link aggregation — — Yes Yes —
MAC address filtering Yes — Yes — —
MAC address table 8000 entries 8000 entries 16000 entries 32000 entries 1000 entries
Management nu nu Da Da nu
Montare in rack Da Nu Da Da Nu
Multicast support — — Yes Yes —
Networking standards IEEE 802.3af, IEEE 802.3at IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x — — IEEE 802.3u, IEEE 802.3x
Number of fans 2 fan(s) — 3 fan(s) 3 fan(s) —
Operating relative humidity (H-H) 10 - 90% 10 - 90% 10 - 90% 10 - 90% 10 - 90%
Operating temperature (T-T) 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C
Package depth 528 mm 400 mm — — 139 mm
Package height 80 mm 80 mm — — 85 mm
Package type Box Box — — Box
Package weight 2.96 kg 1.95 kg — — 240 g
Package width 250 mm 250 mm — — 100 mm
Packet buffer memory 4.1 MB — 12 MB 16 MB 2 MB
PoE Da Nu Da Da Nu
Port mirroring — — Yes Yes —
Porturi RJ 45 11-18 24-28 28+ 24-28 5-10
Porturi SFP 1-2 N/A 1-2 1-2 N/A
Power connector — DC-in jack AC-in jack — DC-in jack
Power consumption (max) 217.22 W 13.08 W 635.7 W 629.1 W 2.2 W
Power over Ethernet (PoE) Yes No Yes Yes No
Power over Ethernet (PoE) power per port 30 W — 30 W — —
Power over Ethernet plus (PoE+) ports quantity 16 — 48 16 —
Power source AC AC AC AC/PoE DC
Power supply included Yes Yes Yes Yes No
Quality of Service (QoS) support — Yes Yes Yes —
Quick start guide Yes — Yes Yes Yes
Rackable — No Yes Yes —
Rack mounting Yes Yes Yes Yes No
Rack mount kit — Yes — Yes —
Rate limiting — — Yes Yes —
Redundant PSU — Yes No Yes —
SFP module slots quantity — — 4 4 —
Spanning tree protocol — — Yes Yes —
SSH/SSL support — — Yes Yes —
Stackable No Yes No No No
Static port security — — Yes Yes —
Storage relative humidity (H-H) 5 - 90% 5 - 90% 5 - 90% 5 - 90% 5 - 95%
Storage temperature (T-T) -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C
Store-and-forward Yes Yes Yes Yes Yes
Supported network protocols — CSMA/CD, TCP/IP — — CSMA/CD, TCP/IP
Sustainability compliance — — — Yes Yes
Switching capacity 7.2 Gbit/s 48 Gbit/s 176 Gbit/s 200 Gbit/s 16 Gbit/s
Switch type Unmanaged Unmanaged Managed Managed Unmanaged
System event log — — Yes Yes —
Total Power over Ethernet (PoE) budget 192 W — 500 W 500 W —
User guide Yes Yes — — —
Viteza transfer Gigabit Gigabit 10G+ 2.5G Fast Ethernet
VLAN support — — Yes Yes —
Web-based management — — Yes Yes —
Laptopuri - Caracteristici fizice 25.09
Adâncime 180 mm 180 mm 330 mm 330 mm 7.9 mm
Lățime 440 mm 294 mm — — 134.5 mm
Înălțime 44 mm 44 mm — — 22.5 mm
Laptopuri - Construcție
Culoare Black Grey — — White
Laptopuri - Generale
Garanție comercială 60 60 60 24 36
Producător TP-LINK TP-LINK TP-LINK TP-LINK TP-LINK
Laptopuri - Tip laptop
Construcție laptop 1U — 1U 1U —

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

“16-Port 10/100 Mbps + 2-Port Gigabit Rackmount Switch with 16-Port PoE+ PORT: 16× 10/100 Mbps PoE+ Ports, 2× Gigabit Non-PoE Ports, 2× Combo Gigabit SFP Slots HARDWARE: 802.3at/af, 250 W PoE Power, 1U 19-inch Rack-mountable Steel Case FEATURE: Extend Mode for 250 m PoE Transmitting, Priority Mode for Port 1-8, Isolation Mode, Plug and Play”

Specificații tehnice 62 caracteristici
10G support
No
AC input frequency
50 - 60 Hz
Auto-negotiation
Yes
Auto MDI/MDI-X
Yes
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Cables included
LAN (RJ-45)
Combo SFP ports quantity
2
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Fast Ethernet (copper) ports quantity
16
Flow control support
Yes
Forwarding rate
5.36 Mpps
Gigabit Ethernet (copper) ports quantity
2
Harmonized System (HS) code
85176990
Heat dissipation
741.15 BTU/h
Jumbo frames
10000
Jumbo frames support
Yes
LED indicators
LAN, PoE, Status
MAC address auto-aging supported
Yes
MAC address auto-learning supported
Yes
MAC address filtering
Yes
MAC address table
8000 entries
Management
nu
Manual
Yes
Montare in rack
Da
Networking standards
IEEE 802.3af, IEEE 802.3at
Number of fans
2 fan(s)
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Package depth
528 mm
Package height
80 mm
Package type
Box
Package weight
2.96 kg
Package width
250 mm
Packet buffer memory
4.1 MB
PoE
Da
Porturi RJ 45
11-18
Porturi SFP
1-2
Power consumption (max)
217.22 W
Power consumption (typical)
187 W
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) power per port
30 W
Power over Ethernet plus (PoE+) ports quantity
16
Power source
AC
Power supply included
Yes
Quick start guide
Yes
Rack mounting
Yes
Stackable
No
Storage relative humidity (H-H)
5 - 90%
Storage temperature (T-T)
-40 - 70 °C
Store-and-forward
Yes
Switching capacity
7.2 Gbit/s
Switch type
Unmanaged
Total Power over Ethernet (PoE) budget
192 W
User guide
Yes
Viteza transfer
Gigabit
Adâncime
180 mm
Lățime
440 mm
Înălțime
44 mm
Culoare
Black
Garanție comercială
60
Producător
TP-LINK
Construcție laptop
1U
