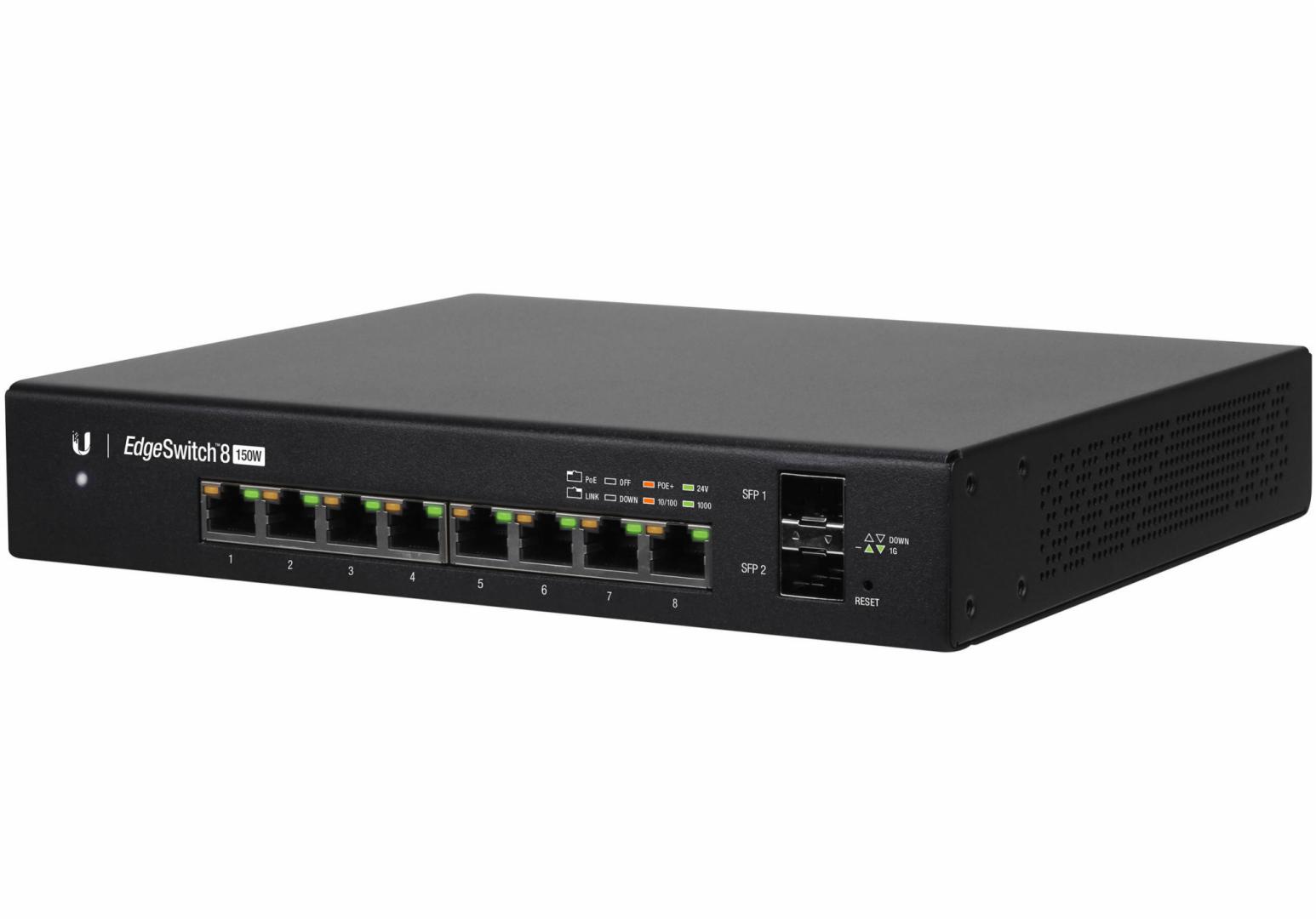

Switch Ubiquiti Gigabit EdgeSwitch ES-8-150W, 8 port, 10/100/1000 Mbps

Switchuri

Switch Ubiquiti Gigabit EdgeSwitch ES-8-150W, 8 port, 10/100/1000 Mbps

(0) Stoc epuizat
Vândut de RITC.ro Cod produs: ES-8-150W

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Switch Ubiquiti Gigabit EdgeSwitch ES-8-150W, 8 port, 10/100/1000 Mbps Switch Ubiquiti UniFi USW-24-POE, 24 port, 10/100/1000 Mbps Switch TP-Link TL-SG1024D, 24 port, 10/100/1000 Mbps "JetStream™ 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch "JetStream™ 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch
Alte caracteristici
10G support No — No Yes Yes
Access Control List (ACL) Yes — — Yes Yes
AC input frequency 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz — —
ARP inspection — — — Yes Yes
Authentication Guest VLAN, Port-based authentication — — Auto VLAN, Guest VLAN Guest VLAN, MAC-based authentication, Port-based authentication
Authentication type IEEE 802.1x, RADIUS IEEE 802.1x, RADIUS — — AAA, IEEE 802.1x, RADIUS, TACACS+
Auto MDI/MDI-X — Yes Yes — —
Basic switching RJ-45 Ethernet ports type 8 24 24 48 24
BPDU filtering/protection — — — Yes Yes
Broadcast storm control Yes — — Yes Yes
Cables included — — AC AC AC
Certification CE, FCC, IC CE, FCC, IC — — —
Cloud-managed — — — Yes Yes
Configuring Location Settings (CLI) Yes — — Yes Yes
Console port RJ-45 — — RJ-45/micro-USB RJ-45/micro-USB
DHCP features DHCP server — — DHCP client, DHCP relay, DHCP server DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Flow control support Yes Yes Yes Yes Yes
Forwarding rate 14.88 Mpps 38.69 Mpps 35.7 Mpps 130.9 Mpps 148.8 Mpps
Full duplex Yes Yes Yes — Yes
Gigabit Ethernet (copper) ports quantity 8 — 24 — —
Half duplex Yes — — — Yes
Harmonized System (HS) code 85176990 85176990 85176990 — —
Head-of-line (HOL) blocking — — — Yes Yes
Heat dissipation — — 44.63 BTU/h 2169.2 BTU/h 2153.45 BTU/h
IGMP snooping Yes — — Yes Yes
IP-MAC-Port binding — — — Yes Yes
Jumbo frames — — 10000 9000 9000
Jumbo frames support Yes Yes Yes Yes Yes
LAN ports — 24 24 48 24
LAN port type Gigabit 10Gigabit Gigabit Gigabit Gigabit
Layer — Layer-2 Unmanaged Layer-2 Layer-2
LED indicators Activity, LAN, Link, PoE, Speed Activity, Link, PoE, Speed, System Yes Yes Yes
Link aggregation Yes — — Yes Yes
MAC address filtering Yes — — Yes —
MAC address table 8000 entries — 8000 entries 16000 entries 32000 entries
Management Da Da nu Da Da
Montare in rack Da Da Nu Da Da
Multicast support Yes — — Yes Yes
Networking standards — IEEE 802.3af, IEEE 802.3at IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x — —
Number of fans — — — 3 fan(s) 3 fan(s)
Number of queues 8 — — — 8
Operating relative humidity (H-H) 5 - 95% 10 - 90% 10 - 90% 10 - 90% 10 - 90%
Operating temperature (T-T) -25 - 60 °C — 0 - 40 °C 0 - 40 °C 0 - 40 °C
Packet buffer memory — — — 12 MB 16 MB
PoE Nu Da Nu Da Da
Port mirroring Yes Yes — Yes Yes
Porturi RJ 45 5-10 24-28 24-28 28+ 24-28
Porturi SFP 1-2 1-2 N/A 1-2 1-2
Power connector DC-in jack — DC-in jack AC-in jack —
Power consumption (max) 150 W — 13.08 W 635.7 W 629.1 W
Power over Ethernet (PoE) Yes Yes No Yes Yes
Power over Ethernet (PoE) power per port 34.2 W 32 W — 30 W —
Power over Ethernet plus (PoE+) ports quantity 8 16 — 48 16
Power source — — AC AC AC/PoE
Power supply included Yes Yes Yes Yes Yes
Quality of Service (QoS) support Yes — Yes Yes Yes
Quick start guide — — — Yes Yes
Rackable — Yes No Yes Yes
Rack mounting No Yes Yes Yes Yes
Rack mount kit — — Yes — Yes
Rate limiting — — — Yes Yes
Redundant PSU — No Yes No Yes
Security algorithms SNMP, SSH, SSH-2 — — — HTTPS, SSH, SSH-2, SSL/TLS
SFP module slots quantity 2 2 — 4 4
Spanning tree protocol Yes Yes — Yes Yes
SSH/SSL support Yes — — Yes Yes
Stackable No Yes Yes No No
Static port security — — — Yes Yes
Static route Yes Yes — — Yes
Storage relative humidity (H-H) — — 5 - 90% 5 - 90% 5 - 90%
Storage temperature (T-T) — — -40 - 70 °C -40 - 70 °C -40 - 70 °C
Store-and-forward — — Yes Yes Yes
Switching capacity 20 Gbit/s 52 Gbit/s 48 Gbit/s 176 Gbit/s 200 Gbit/s
Switch type Managed Managed Unmanaged Managed Managed
System event log Yes — — Yes Yes
Throughput 14.88 Mpps 26000 Mpps — — —
Total Power over Ethernet (PoE) budget — 92 W — 500 W 500 W
Virtual LAN features Tagged VLAN, Port-based VLAN — — — MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Stacked VLAN, Tagged VLAN, Voice VLAN
Viteza transfer Gigabit Gigabit Gigabit 10G+ 2.5G
VLAN support Yes Yes — Yes Yes
Web-based management Yes — — Yes Yes
Caracteristici fizice
Greutate 1.72 kg 3 kg — — —
Laptopuri - Caracteristici fizice 25.09
Adâncime 235 mm 200 mm 180 mm 330 mm 330 mm
Lățime 204 mm 442.4 mm 294 mm — —
Înălțime 43 mm 43.7 mm 44 mm — —
Laptopuri - Conectivitate și porturi 25.09
Viteză rețea LAN 10,100,1000 Mbit/s — — — 10,100,1000,2500,10000 Mbit/s
Laptopuri - Construcție
Culoare Black Silver Grey — —
Laptopuri - Generale
Garanție comercială 24 24 60 60 24
Producător UBIQUITI UBIQUITI TP-LINK TP-LINK TP-LINK
Laptopuri - Tip laptop
Construcție laptop — 1U — 1U 1U

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

Numar porturi
8x RJ-45
Porturi
8x RJ45
2x SFP
1x Console
Viteza de transfer
10/100/1000 Mbps
Putere consumata
150 W
Alimentare
100-240V AC
PoE
Da
Dimensiuni
235 x 204 x 43 mm
Greutate
1.8 Kg
Functii LED
Serial / RJ45 / SFP
Adrese MAC
8K
Metoda forwarding
26.78 Mpps
Routing/Switch Fabric
36 Gbps
Standarde
IEEE802.3af, IEEE802.3at
Altele
1x SFP Gigabit Port
Specificații tehnice 77 caracteristici
10G support
No
Access Control List (ACL)
Yes
Access Control List (ACL) rules
100
AC input frequency
50 - 60 Hz
Active link detection
Yes
Authentication
Guest VLAN, Port-based authentication
Authentication type
IEEE 802.1x, RADIUS
Auto-sensing
Yes
Basic switching RJ-45 Ethernet ports type
8
Broadcast storm control
Yes
Certification
CE, FCC, IC
Configuring Location Settings (CLI)
Yes
Console port
RJ-45
Copper ethernet cabling technology
10BASE-T, 100BASE-T, 1000BASE-T
DHCP features
DHCP server
Flow control support
Yes
Forwarding rate
14.88 Mpps
Full duplex
Yes
Gigabit Ethernet (copper) ports quantity
8
Half duplex
Yes
Harmonized System (HS) code
85176990
IGMP snooping
Yes
Input voltage
42 - 56 V
Jumbo frames support
Yes
LAN port type
Gigabit
LED indicators
Activity, LAN, Link, PoE, Speed
Link aggregation
Yes
MAC address filtering
Yes
MAC address table
8000 entries
Management
Da
Management protocols
SNMP v1/v2/v3, Telnet
Montare in rack
Da
Mounting brackets included
Yes
Multicast support
Yes
Number of queues
8
Number of trunks
8
Number of VLANs
255
Operating relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
-25 - 60 °C
PoE
Nu
Port mirroring
Yes
Porturi RJ 45
5-10
Porturi SFP
1-2
Power connector
DC-in jack
Power consumption (max)
150 W
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) power per port
34.2 W
Power over Ethernet (PoE) type supported
Active PoE, Passive PoE
Power over Ethernet (PoE) voltage
50 - 75 V
Power over Ethernet plus (PoE+) ports quantity
8
Power supply included
Yes
Quality of Service (QoS) support
Yes
Rack mounting
No
Security algorithms
SNMP, SSH, SSH-2
SFP module slots quantity
2
Spanning tree protocol
Yes
SSH/SSL support
Yes
Stackable
No
Static route
Yes
Switching capacity
20 Gbit/s
Switch layer
L2+/L3
Switch type
Managed
System event log
Yes
Throughput
14.88 Mpps
Virtual LAN features
Tagged VLAN, Port-based VLAN
Viteza transfer
Gigabit
VLAN support
Yes
Wall mountable
Yes
Web-based management
Yes
Greutate
1.72 kg
Adâncime
235 mm
Lățime
204 mm
Înălțime
43 mm
Viteză rețea LAN
10,100,1000 Mbit/s
Culoare
Black
Garanție comercială
24
Producător
UBIQUITI
