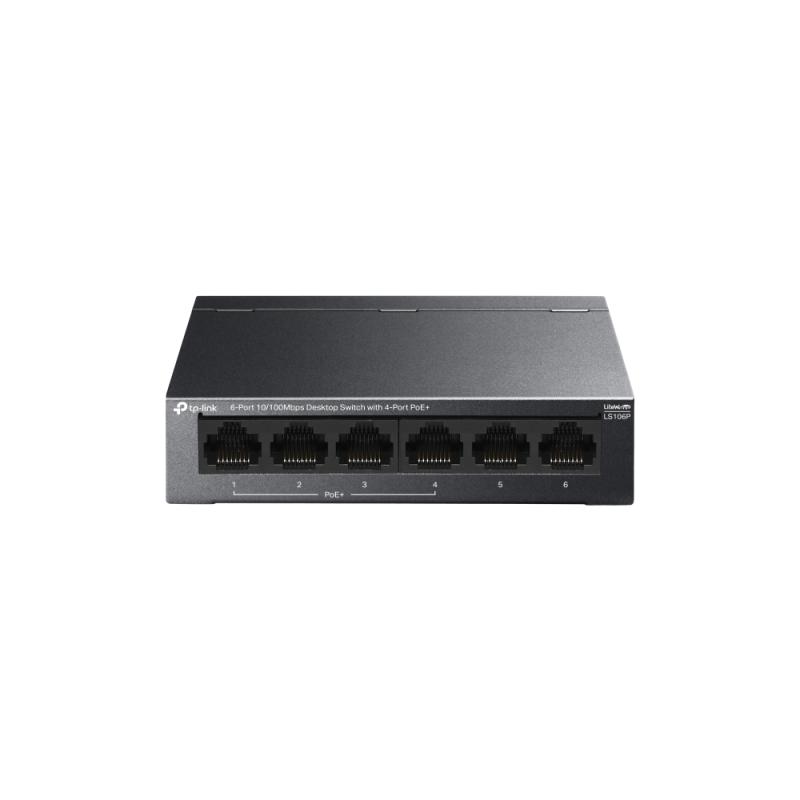

TP-LINK SWITCH LS106P, 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+,

Switchuri

TP-LINK SWITCH LS106P, 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+,

(0) În stoc
Vândut de RITC.ro Cod produs: LS106P

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică TP-LINK SWITCH LS106P, 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+, Switch TP-Link TL-SG1024D, 24 port, 10/100/1000 Mbps "JetStream™ 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch "JetStream™ 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch Switch TP-Link TL-SF1008D, 8 port, 10/100 Mbps
Alte caracteristici
10G support No No Yes Yes No
Access Control List (ACL) — — Yes Yes —
AC input frequency — 50 - 60 Hz — — 50 - 60 Hz
ARP inspection — — Yes Yes —
Authentication — — Auto VLAN, Guest VLAN Guest VLAN, MAC-based authentication, Port-based authentication —
Auto-negotiation — Yes — — Yes
Auto MDI/MDI-X — Yes — — Yes
Basic switching RJ-45 Ethernet ports type 6 24 48 24 Fast Ethernet (10/100)
BPDU filtering/protection — — Yes Yes —
Broadcast storm control — — Yes Yes —
Cables included — AC AC AC —
Cloud-managed — — Yes Yes —
Compliance certificates — — — CE, Federal Communications Commission (FCC), RoHS CE, Federal Communications Commission (FCC), RoHS
Configuring Location Settings (CLI) — — Yes Yes —
Console port — — RJ-45/micro-USB RJ-45/micro-USB —
DHCP features — — DHCP client, DHCP relay, DHCP server DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping —
Flow control support — Yes Yes Yes Yes
Forwarding rate 0.893 Mpps 35.7 Mpps 130.9 Mpps 148.8 Mpps —
Full duplex — Yes — Yes Yes
Half duplex — — — Yes Yes
Harmonized System (HS) code — 85176990 — — 85176990
Head-of-line (HOL) blocking — — Yes Yes —
Heat dissipation 226.19 BTU/h 44.63 BTU/h 2169.2 BTU/h 2153.45 BTU/h 6.99 BTU/h
IGMP snooping — — Yes Yes —
IP-MAC-Port binding — — Yes Yes —
Jumbo frames — 10000 9000 9000 —
Jumbo frames support Yes Yes Yes Yes —
LAN ports 5 24 48 24 —
LAN port type Gigabit Gigabit Gigabit Gigabit FastEthernet
Layer — Unmanaged Layer-2 Layer-2 —
LED indicators Power, PoE, Link Yes Yes Yes Yes
Link aggregation — — Yes Yes —
MAC address table 2000 entries 8000 entries 16000 entries 32000 entries 1000 entries
Management Unmanaged nu Da Da nu
Montare in rack Nu Nu Da Da Nu
Multicast support — — Yes Yes —
Networking standards IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x — — IEEE 802.3u, IEEE 802.3x
Number of fans — — 3 fan(s) 3 fan(s) —
Operating relative humidity (H-H) 10 - 90% 10 - 90% 10 - 90% 10 - 90% 10 - 90%
Operating temperature (T-T) 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C
Package depth — 400 mm — — 139 mm
Package height — 80 mm — — 85 mm
Package type — Box — — Box
Package weight — 1.95 kg — — 240 g
Package width — 250 mm — — 100 mm
Packet buffer memory 0.002048 MB — 12 MB 16 MB 2 MB
PoE No Nu Da Da Nu
Port mirroring — — Yes Yes —
Porturi RJ 45 5-10 24-28 28+ 24-28 5-10
Porturi SFP N/A N/A 1-2 1-2 N/A
Power connector — DC-in jack AC-in jack — DC-in jack
Power consumption (max) 66.53 W 13.08 W 635.7 W 629.1 W 2.2 W
Power over Ethernet (PoE) Yes No Yes Yes No
Power over Ethernet plus (PoE+) ports quantity — — 48 16 —
Power source DC AC AC AC/PoE DC
Power supply included Yes Yes Yes Yes No
Quality of Service (QoS) support — Yes Yes Yes —
Quick start guide — — Yes Yes Yes
Rackable No No Yes Yes —
Rack mounting No Yes Yes Yes No
Rack mount kit — Yes — Yes —
Rate limiting — — Yes Yes —
Redundant PSU No Yes No Yes —
SFP module slots quantity — — 4 4 —
Spanning tree protocol — — Yes Yes —
SSH/SSL support — — Yes Yes —
Stackable No Yes No No No
Static port security — — Yes Yes —
Storage relative humidity (H-H) 5 - 90% 5 - 90% 5 - 90% 5 - 90% 5 - 95%
Storage temperature (T-T) -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C
Store-and-forward — Yes Yes Yes Yes
Supported network protocols — CSMA/CD, TCP/IP — — CSMA/CD, TCP/IP
Sustainability compliance — — — Yes Yes
Switching capacity 1.2 Gbit/s 48 Gbit/s 176 Gbit/s 200 Gbit/s 16 Gbit/s
Switch type Unmanaged Unmanaged Managed Managed Unmanaged
System event log — — Yes Yes —
Total Power over Ethernet (PoE) budget 65 W — 500 W 500 W —
User guide Yes Yes — — —
Viteza transfer Fast Ethernet Gigabit 10G+ 2.5G Fast Ethernet
VLAN support — — Yes Yes —
Web-based management — — Yes Yes —
Laptopuri - Caracteristici fizice 25.09
Adâncime 98 mm 180 mm 330 mm 330 mm 7.9 mm
Lățime 99.8 mm 294 mm — — 134.5 mm
Înălțime 25 mm 44 mm — — 22.5 mm
Laptopuri - Construcție
Culoare Black Grey — — White
Laptopuri - Generale
Garanție comercială 60 60 60 24 36
Producător TP-LINK TP-LINK TP-LINK TP-LINK TP-LINK
Laptopuri - Tip laptop
Construcție laptop Desktop — 1U 1U —

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

TP-LINK SWITCH LS106P, 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+, 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m), 100BASE-TX: UTP category 5 or above cable (maximum 100m), power input 220~240V, 50/60Hz (NV)

Specificații tehnice 44 caracteristici
10G support
No
AC input voltage
220 - 240 V
Basic switching RJ-45 Ethernet ports type
6
Certification
CE, ROHS, KC, NTRA
Forwarding rate
0.893 Mpps
Heat dissipation
226.19 BTU/h
Jumbo frames support
Yes
LAN ports
5
LAN port type
Gigabit
LED indicators
Power, PoE, Link
MAC address table
2000 entries
Management
Unmanaged
Montare in rack
Nu
Networking standards
IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Packet buffer memory
0.002048 MB
PoE
No
Porturi RJ 45
5-10
Porturi SFP
N/A
Power consumption (max)
66.53 W
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
4
Power source
DC
Power supply included
Yes
Rackable
No
Rack mounting
No
Redundant PSU
No
Stackable
No
Storage relative humidity (H-H)
5 - 90%
Storage temperature (T-T)
-40 - 70 °C
Switching capacity
1.2 Gbit/s
Switch layer
L2
Switch type
Unmanaged
Total Power over Ethernet (PoE) budget
65 W
User guide
Yes
Viteza transfer
Fast Ethernet
Adâncime
98 mm
Lățime
99.8 mm
Înălțime
25 mm
Culoare
Black
Garanție comercială
60
Producător
TP-LINK
Construcție laptop
Desktop
