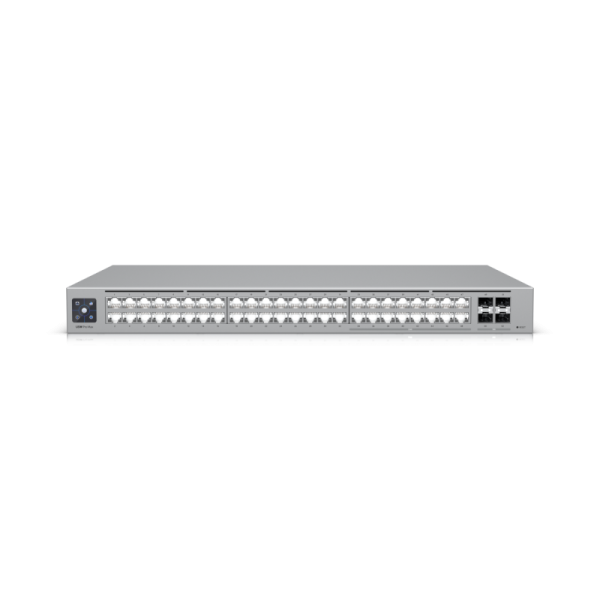

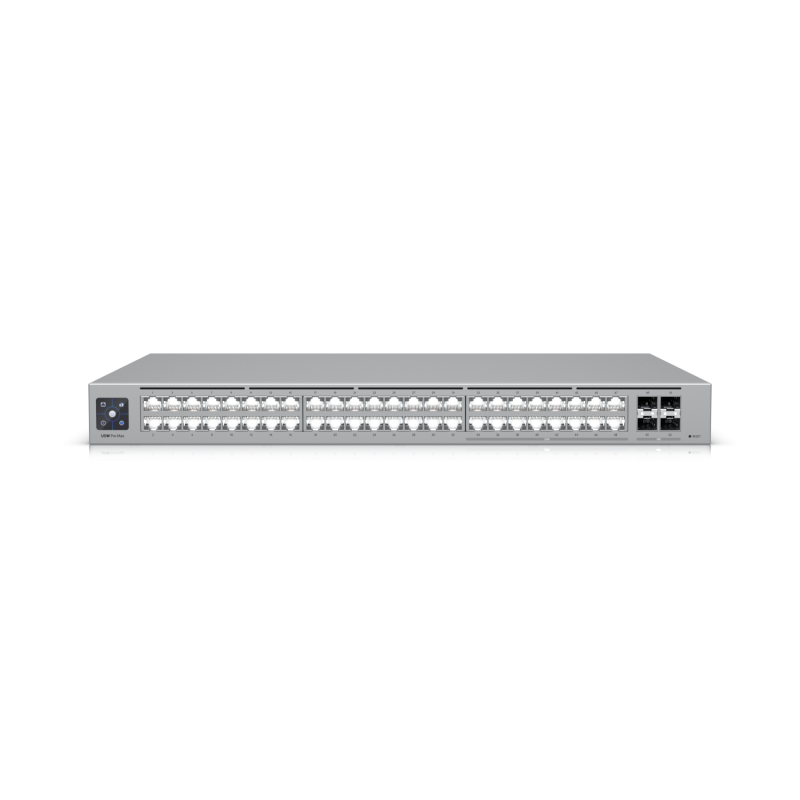

Ubiquiti Unifi Pro Max, Ethernet În-Band, (32) Porturi GbE RJ45,

Vândut de RITC.ro Cod produs: USW-PRO-MAX-48

Livrare și beneficii

Compară cu produse similare

Vezi comparația completă
Caracteristică Ubiquiti Unifi Pro Max, Ethernet În-Band, (32) Porturi GbE RJ45, Switch Ubiquiti UniFi USW-24-POE, 24 port, 10/100/1000 Mbps Switch TP-Link TL-SG1024D, 24 port, 10/100/1000 Mbps "JetStream™ 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch "JetStream™ 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch
Alte caracteristici
2.5G Ethernet (copper) ports quantity 16 — — — 24
10G support Yes — No Yes Yes
Access Control List (ACL) — — — Yes Yes
AC input frequency — 50 - 60 Hz 50 - 60 Hz — —
ARP inspection — — — Yes Yes
Authentication — — — Auto VLAN, Guest VLAN Guest VLAN, MAC-based authentication, Port-based authentication
Authentication type — IEEE 802.1x, RADIUS — — AAA, IEEE 802.1x, RADIUS, TACACS+
Auto MDI/MDI-X — Yes Yes — —
Basic switching RJ-45 Ethernet ports type 48 24 24 48 24
BPDU filtering/protection — — — Yes Yes
Broadcast storm control Yes — — Yes Yes
Cables included Power — AC AC AC
Cloud-managed — — — Yes Yes
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC) — — — CE, Federal Communications Commission (FCC), RoHS
Configuring Location Settings (CLI) — — — Yes Yes
Console port — — — RJ-45/micro-USB RJ-45/micro-USB
DHCP features DHCP relay, DHCP snooping — — DHCP client, DHCP relay, DHCP server DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Flow control support Yes Yes Yes Yes Yes
Forwarding rate 166.656 Mpps 38.69 Mpps 35.7 Mpps 130.9 Mpps 148.8 Mpps
Full duplex — Yes Yes — Yes
Gigabit Ethernet (copper) ports quantity 32 — 24 — —
Harmonized System (HS) code — 85176990 85176990 — —
Head-of-line (HOL) blocking — — — Yes Yes
Heat dissipation — — 44.63 BTU/h 2169.2 BTU/h 2153.45 BTU/h
IGMP snooping Yes — — Yes Yes
IP-MAC-Port binding — — — Yes Yes
Jumbo frames — — 10000 9000 9000
Jumbo frames support Yes Yes Yes Yes Yes
LAN ports 24 24 24 48 24
LAN port type Gigabit 10Gigabit Gigabit Gigabit Gigabit
Layer Layer-2 Layer-2 Unmanaged Layer-2 Layer-2
LED indicators Link, Network, Speed, Status Activity, Link, PoE, Speed, System Yes Yes Yes
Link aggregation — — — Yes Yes
Loop protection Yes — — — Yes
MAC address table — — 8000 entries 16000 entries 32000 entries
Management Da Da nu Da Da
Montare in rack Da Da Nu Da Da
Multicast support — — — Yes Yes
Networking standards IEEE 802.1x IEEE 802.3af, IEEE 802.3at IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x — —
Number of fans — — — 3 fan(s) 3 fan(s)
Operating relative humidity (H-H) 10 - 90% 10 - 90% 10 - 90% 10 - 90% 10 - 90%
Operating temperature (T-T) — — 0 - 40 °C 0 - 40 °C 0 - 40 °C
Packet buffer memory — — — 12 MB 16 MB
PoE Nu Da Nu Da Da
Port mirroring Yes Yes — Yes Yes
Porturi RJ 45 28+ 24-28 24-28 28+ 24-28
Porturi SFP 5-8 1-2 N/A 1-2 1-2
Power connector AC/DC — DC-in jack AC-in jack —
Power consumption (max) 100 W — 13.08 W 635.7 W 629.1 W
Power over Ethernet (PoE) No Yes No Yes Yes
Power over Ethernet (PoE) power per port — 32 W — 30 W —
Power over Ethernet plus (PoE+) ports quantity — 16 — 48 16
Power source AC/DC — AC AC AC/PoE
Power supply included Yes Yes Yes Yes Yes
Quality of Service (QoS) support — — Yes Yes Yes
Quick start guide — — — Yes Yes
Rackable Yes Yes No Yes Yes
Rack mounting Yes Yes Yes Yes Yes
Rack mount kit — — Yes — Yes
Rate limiting Yes — — Yes Yes
Redundant power supply (RPS) support Yes — — — Yes
Redundant PSU No No Yes No Yes
Reset button Yes — — Yes —
SFP module slots quantity 4 2 — 4 4
Spanning tree protocol — Yes — Yes Yes
SSH/SSL support — — — Yes Yes
Stackable Yes Yes Yes No No
Static port security — — — Yes Yes
Static route Yes Yes — — Yes
Storage relative humidity (H-H) — — 5 - 90% 5 - 90% 5 - 90%
Storage temperature (T-T) — — -40 - 70 °C -40 - 70 °C -40 - 70 °C
Store-and-forward — — Yes Yes Yes
Switching capacity 224 Gbit/s 52 Gbit/s 48 Gbit/s 176 Gbit/s 200 Gbit/s
Switch type — Managed Unmanaged Managed Managed
System event log — — — Yes Yes
Throughput 112 Gbit/s 26000 Mpps — — —
Total Power over Ethernet (PoE) budget — 92 W — 500 W 500 W
Virtual LAN features Voice VLAN — — — MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Stacked VLAN, Tagged VLAN, Voice VLAN
Viteza transfer 10G+ Gigabit Gigabit 10G+ 2.5G
VLAN support Yes Yes — Yes Yes
Web-based management — — — Yes Yes
Caracteristici fizice
Greutate 4.8 kg 3 kg — — —
Laptopuri - Caracteristici fizice 25.09
Adâncime 325 mm 200 mm 180 mm 330 mm 330 mm
Lățime 442.4 mm 442.4 mm 294 mm — —
Înălțime 43.7 mm 43.7 mm 44 mm — —
Laptopuri - Construcție
Culoare — Silver Grey — —
Laptopuri - Generale
Garanție comercială 24 24 60 60 24
Producător UBIQUITI UBIQUITI TP-LINK TP-LINK TP-LINK
Laptopuri - Tip laptop
Construcție laptop 1U 1U — 1U 1U

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

Ubiquiti Unifi Pro Max, Ethernet În-Band, (32) Porturi GbE RJ45, (16) Porturi 1/2,5 GbE RJ45, (4) Porturi 10G SFP+, 224 Gbps, sursa alimentare AC/DC, internă, 100W

Specificații tehnice 55 caracteristici
2.5G Ethernet (copper) ports quantity
16
10G support
Yes
Basic switching RJ-45 Ethernet ports type
48
Broadcast storm control
Yes
Cables included
Power
Compliance certificates
CE, Federal Communications Commission (FCC), Industry Canada (IC)
DHCP features
DHCP relay, DHCP snooping
Display type
LCM
Flow control support
Yes
Forwarding rate
166.656 Mpps
Gigabit Ethernet (copper) ports quantity
32
IGMP snooping
Yes
Jumbo frames support
Yes
LAN ports
24
LAN port type
Gigabit
Layer
Layer-2
LED indicators
Link, Network, Speed, Status
Loop protection
Yes
Management
Da
Montare in rack
Da
Mounting brackets included
Yes
Networking standards
IEEE 802.1x
Operating relative humidity (H-H)
10 - 90%
PoE
Nu
Port mirroring
Yes
Porturi RJ 45
28+
Porturi SFP
5-8
Power connector
AC/DC
Power consumption (max)
100 W
Power over Ethernet (PoE)
No
Power source
AC/DC
Power supply included
Yes
Rackable
Yes
Rack mounting
Yes
Rate limiting
Yes
Redundant power supply (RPS) support
Yes
Redundant PSU
No
Reset button
Yes
SFP module slots quantity
4
Stackable
Yes
Static route
Yes
Switching capacity
224 Gbit/s
Switch layer
L3
Throughput
112 Gbit/s
Virtual LAN features
Voice VLAN
Viteza transfer
10G+
VLAN support
Yes
Greutate
4.8 kg
Adâncime
325 mm
Lățime
442.4 mm
Material carcasă
SGCC
Înălțime
43.7 mm
Garanție comercială
24
Producător
UBIQUITI
Construcție laptop
1U
