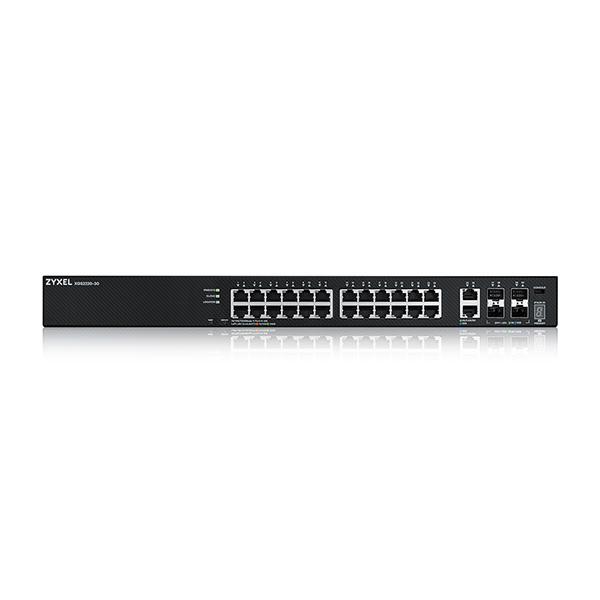

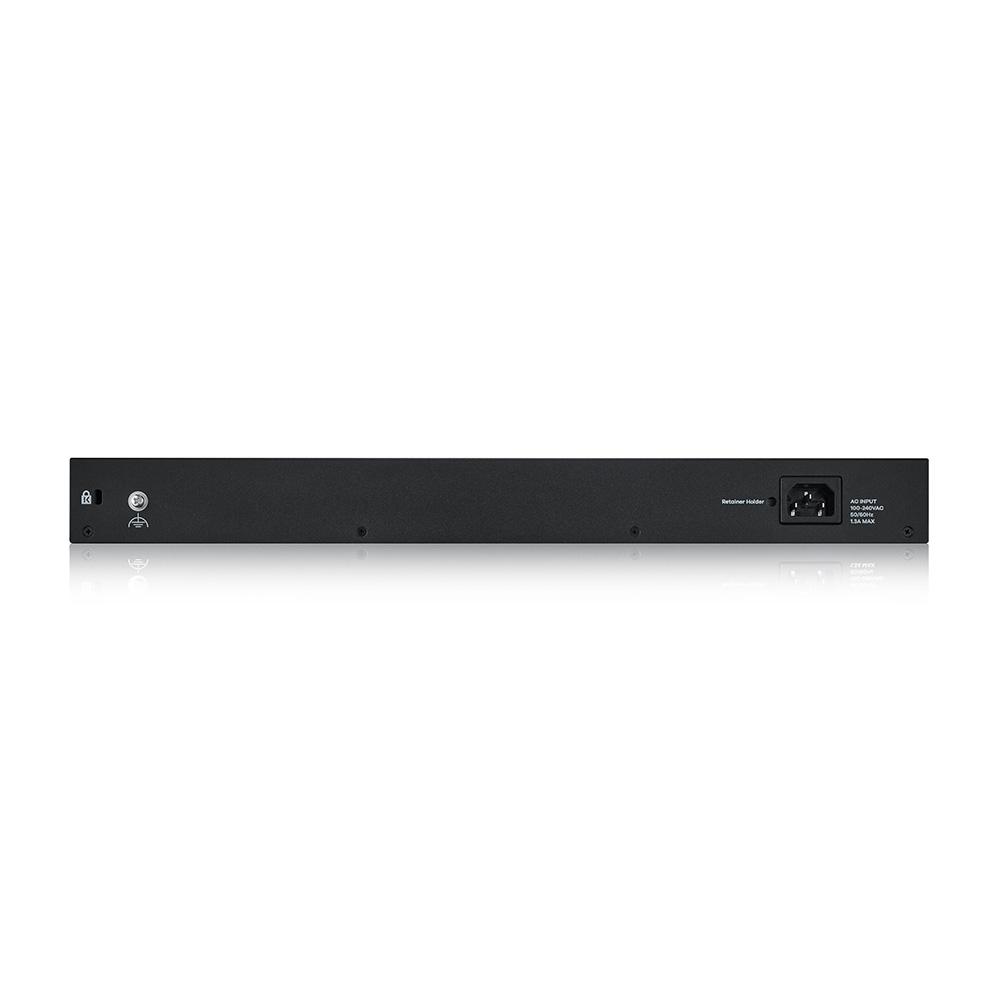

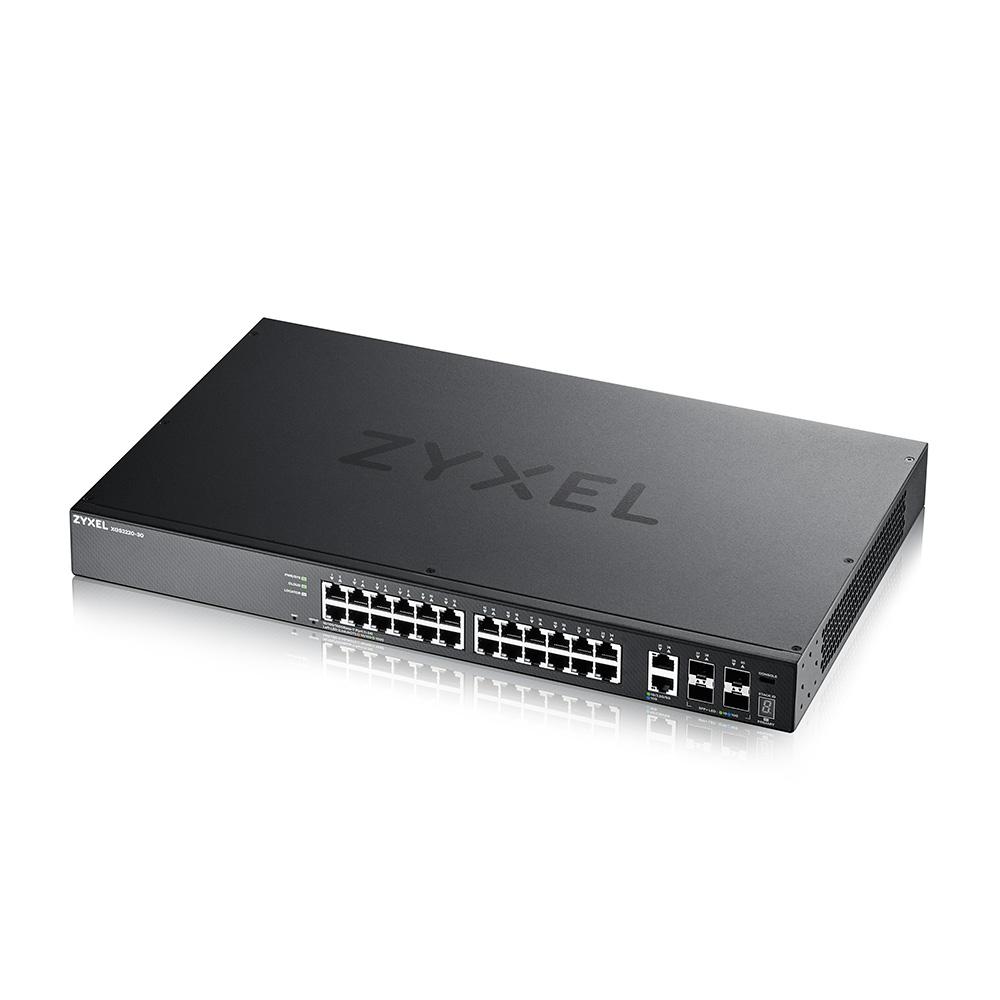

XGS2220-30, L3 Access Switch, 24x1G RJ45 2x10mG RJ45, 4x10G SFP+
2.827,00 lei
XGS2220-30, L3 Access Switch, 24x1G RJ45 2x10mG RJ45, 4x10G SFP+
(0)
Stoc epuizat
Vândut de RITC.ro
Cod produs: XGS2220-30-EU0101F
Livrare și beneficii
Compară cu produse similare
XGS2220-30, L3 Access Switch, 24x1G RJ45 2x10mG RJ45, 4x10G SFP+
Switch TP-Link TL-SG1024D, 24 port, 10/100/1000 Mbps
447,99 lei 658,99 lei
"JetStream™ 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch
4.328,99 lei 6.096,98 lei
"JetStream™ 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch
5.348,99 lei 7.487,99 lei
Extralink KRATOS PoE Switch 7x Gigabit PoE 1x
351,99 lei 702,99 lei
Vezi comparația completă
| Caracteristică | XGS2220-30, L3 Access Switch, 24x1G RJ45 2x10mG RJ45, 4x10G SFP+ | Switch TP-Link TL-SG1024D, 24 port, 10/100/1000 Mbps | "JetStream™ 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch | "JetStream™ 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch | Extralink KRATOS PoE Switch 7x Gigabit PoE 1x |
|---|---|---|---|---|---|
| Alte caracteristici | |||||
| 10G support | Yes | No | Yes | Yes | No |
| Access Control List (ACL) | — | — | Yes | Yes | — |
| AC input frequency | 50 - 60 Hz | 50 - 60 Hz | — | — | 50 - 60 Hz |
| ARP inspection | Yes | — | Yes | Yes | — |
| Authentication | — | — | Auto VLAN, Guest VLAN | Guest VLAN, MAC-based authentication, Port-based authentication | — |
| Authentication type | IEEE 802.1x, RADIUS, TACACS+ | — | — | AAA, IEEE 802.1x, RADIUS, TACACS+ | — |
| Auto-negotiation | — | Yes | — | — | Yes |
| Basic switching RJ-45 Ethernet ports type | 24 | 24 | 48 | 24 | 8 |
| BPDU filtering/protection | Yes | — | Yes | Yes | — |
| Broadcast storm control | — | — | Yes | Yes | — |
| Cables included | — | AC | AC | AC | — |
| Cable types supported | — | Cat3, Cat4, Cat5, Cat5e | — | — | Cat5, Cat5e, Cat6 |
| Cloud-managed | Yes | — | Yes | Yes | No |
| Compliance certificates | CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD), RoHS | — | — | CE, Federal Communications Commission (FCC), RoHS | — |
| Configuring Location Settings (CLI) | — | — | Yes | Yes | No |
| Console port | — | — | RJ-45/micro-USB | RJ-45/micro-USB | — |
| DHCP features | DHCP relay, DHCP server | — | DHCP client, DHCP relay, DHCP server | DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping | — |
| Flash memory | 64 MB | — | — | 32 MB | — |
| Flow control support | — | Yes | Yes | Yes | — |
| Forwarding rate | 125 Mpps | 35.7 Mpps | 130.9 Mpps | 148.8 Mpps | — |
| Full duplex | — | Yes | — | Yes | — |
| GARP VLAN Registration Protocol (GVRP) | Yes | — | — | Yes | — |
| Head-of-line (HOL) blocking | — | — | Yes | Yes | — |
| Heat dissipation | 128.28 BTU/h | 44.63 BTU/h | 2169.2 BTU/h | 2153.45 BTU/h | — |
| IGMP snooping | Yes | — | Yes | Yes | — |
| IP-MAC-Port binding | — | — | Yes | Yes | — |
| Jumbo frames | — | 10000 | 9000 | 9000 | — |
| Jumbo frames support | Yes | Yes | Yes | Yes | — |
| LAN ports | — | 24 | 48 | 24 | — |
| LAN port type | Gigabit | Gigabit | Gigabit | Gigabit | Gigabit |
| Layer | — | Unmanaged | Layer-2 | Layer-2 | — |
| LED indicators | Yes | Yes | Yes | Yes | Yes |
| Link aggregation | — | — | Yes | Yes | — |
| MAC address table | 32000 entries | 8000 entries | 16000 entries | 32000 entries | 4096 entries |
| Management | Da | nu | Da | Da | nu |
| Montare in rack | Nu | Nu | Da | Da | Nu |
| Multicast Listener Discovery (MLD) snooping | MLD v1/v2 | — | — | MLD v1/v2 | — |
| Multicast support | Yes | — | Yes | Yes | — |
| Networking standards | — | IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x | — | — | IEEE 802.3af |
| Number of fans | — | — | 3 fan(s) | 3 fan(s) | — |
| Operating relative humidity (H-H) | 10 - 95% | 10 - 90% | 10 - 90% | 10 - 90% | 10 - 80% |
| Operating temperature (T-T) | -20 - 50 °C | 0 - 40 °C | 0 - 40 °C | 0 - 40 °C | 0 - 40 °C |
| Package depth | 355 mm | 400 mm | — | — | — |
| Package height | 107 mm | 80 mm | — | — | — |
| Package weight | 4.73 kg | 1.95 kg | — | — | — |
| Package width | 616 mm | 250 mm | — | — | — |
| Packet buffer memory | 2 MB | — | 12 MB | 16 MB | — |
| PoE | Da | Nu | Da | Da | Da |
| Port mirroring | — | — | Yes | Yes | No |
| Porturi RJ 45 | 24-28 | 24-28 | 28+ | 24-28 | 5-10 |
| Porturi SFP | 3-4 | N/A | 1-2 | 1-2 | N/A |
| Power connector | — | DC-in jack | AC-in jack | — | DC-in jack |
| Power consumption (max) | 37.62 W | 13.08 W | 635.7 W | 629.1 W | — |
| Power over Ethernet (PoE) | No | No | Yes | Yes | Yes |
| Power over Ethernet (PoE) power per port | — | — | 30 W | — | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | — | — | 48 | 16 | — |
| Power source | AC | AC | AC | AC/PoE | AC |
| Power supply included | Yes | Yes | Yes | Yes | Yes |
| Quality of Service (QoS) support | Yes | Yes | Yes | Yes | No |
| Quick start guide | — | — | Yes | Yes | — |
| Rackable | — | No | Yes | Yes | — |
| Rack mounting | Yes | Yes | Yes | Yes | No |
| Rack mount kit | — | Yes | — | Yes | — |
| Rate limiting | — | — | Yes | Yes | — |
| Redundant fans support | — | — | — | Yes | No |
| Redundant PSU | — | Yes | No | Yes | — |
| Reset button | — | — | Yes | — | Yes |
| Security algorithms | SNMP, SNMPv2, SNMPv3 | — | — | HTTPS, SSH, SSH-2, SSL/TLS | — |
| SFP module slots quantity | — | — | 4 | 4 | — |
| Spanning tree protocol | — | — | Yes | Yes | — |
| SSH/SSL support | — | — | Yes | Yes | — |
| Stackable | — | Yes | No | No | No |
| Static port security | — | — | Yes | Yes | — |
| Static route | Yes | — | — | Yes | — |
| Storage relative humidity (H-H) | 10 - 90% | 5 - 90% | 5 - 90% | 5 - 90% | 5 - 90% |
| Storage temperature (T-T) | -40 - 70 °C | -40 - 70 °C | -40 - 70 °C | -40 - 70 °C | -40 - 70 °C |
| Store-and-forward | — | Yes | Yes | Yes | — |
| Switching capacity | 168 Gbit/s | 48 Gbit/s | 176 Gbit/s | 200 Gbit/s | 16 Gbit/s |
| Switch layer | L3 | — | — | — | L2 |
| Switch type | Managed | Unmanaged | Managed | Managed | Unmanaged |
| System event log | — | — | Yes | Yes | No |
| Total Power over Ethernet (PoE) budget | — | — | 500 W | 500 W | 60 W |
| Viteza transfer | 10G+ | Gigabit | 10G+ | 2.5G | Gigabit |
| VLAN support | — | — | Yes | Yes | — |
| Web-based management | Yes | — | Yes | Yes | No |
| Caracteristici fizice | |||||
| Greutate | 3.4 kg | — | — | — | 500 g |
| Laptopuri - Caracteristici fizice 25.09 | |||||
| Adâncime | 270 mm | 180 mm | 330 mm | 330 mm | 8.2 mm |
| Lățime | 441 mm | 294 mm | — | — | 192 mm |
| Înălțime | 44 mm | 44 mm | — | — | 27 mm |
| Laptopuri - Construcție | |||||
| Culoare | Black | Grey | — | — | Black |
| Laptopuri - Generale | |||||
| Garanție comercială | 60 | 60 | 60 | 24 | 60 |
| Producător | ZYXEL | TP-LINK | TP-LINK | TP-LINK | EXTRALINK |
| Laptopuri - Memorie | |||||
| Capacitate memorie RAM | 1024 MB | — | — | 256 MB | — |
| Laptopuri - Tip laptop | |||||
| Construcție laptop | — | — | 1U | 1U | 1U |
Analiză inteligentă a produsului
Descriere oficială
XGS2220-30, L3 Access Switch, 24x1G RJ45 2x10mG RJ45, 4x10G SFP+ Uplink, incl. 1 yr NebulaFlex Pro
Specificații tehnice 60 caracteristici ⌄
- 10G Ethernet (copper) ports quantity
- 2
- 10G support
- Yes
- AC input frequency
- 50 - 60 Hz
- ARP inspection
- Yes
- Authentication type
- IEEE 802.1x, RADIUS, TACACS+
- Basic switching RJ-45 Ethernet ports type
- 24
- BPDU filtering/protection
- Yes
- Cloud-managed
- Yes
- Compliance certificates
- CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD), RoHS
- DHCP features
- DHCP relay, DHCP server
- Flash memory
- 64 MB
- Forwarding rate
- 125 Mpps
- GARP VLAN Registration Protocol (GVRP)
- Yes
- Heat dissipation
- 128.28 BTU/h
- IGMP proxy
- Yes
- IGMP snooping
- Yes
- Installed SFP modules quantity
- 4
- Jumbo frames support
- Yes
- LAN port type
- Gigabit
- LED indicators
- Yes
- MAC address table
- 32000 entries
- Management
- Da
- Mean time between failures (MTBF)
- 520.185 h
- Montare in rack
- Nu
- Multicast Listener Discovery (MLD) snooping
- MLD v1/v2
- Multicast support
- Yes
- Operating relative humidity (H-H)
- 10 - 95%
- Operating temperature (T-T)
- -20 - 50 °C
- Package depth
- 355 mm
- Package height
- 107 mm
- Package weight
- 4.73 kg
- Package width
- 616 mm
- Packet buffer memory
- 2 MB
- PoE
- Da
- Porturi RJ 45
- 24-28
- Porturi SFP
- 3-4
- Power consumption (max)
- 37.62 W
- Power over Ethernet (PoE)
- No
- Power source
- AC
- Power supply included
- Yes
- Quality of Service (QoS) support
- Yes
- Rack mounting
- Yes
- Routing entries
- 64
- Security algorithms
- SNMP, SNMPv2, SNMPv3
- Static route
- Yes
- Storage relative humidity (H-H)
- 10 - 90%
- Storage temperature (T-T)
- -40 - 70 °C
- Switching capacity
- 168 Gbit/s
- Switch layer
- L3
- Switch type
- Managed
- Viteza transfer
- 10G+
- Web-based management
- Yes
- Greutate
- 3.4 kg
- Adâncime
- 270 mm
- Lățime
- 441 mm
- Înălțime
- 44 mm
- Culoare
- Black
- Garanție comercială
- 60
- Producător
- ZYXEL
- Capacitate memorie RAM
- 1024 MB
