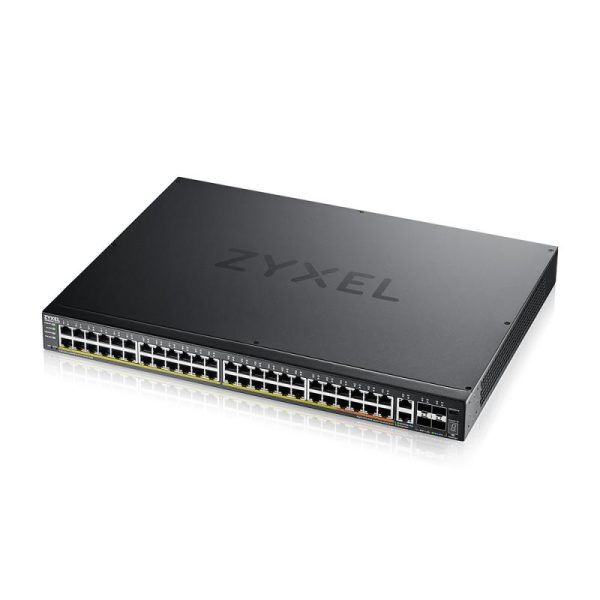

ZY XGS2220-54 48GBE 2x10mG 4x10G SW POE

Switchuri

ZY XGS2220-54 48GBE 2x10mG 4x10G SW POE

(0) În stoc
Vândut de RITC.ro Cod produs: XGS2220-54FP-EU0101F

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică ZY XGS2220-54 48GBE 2x10mG 4x10G SW POE ZYXEL GS1100-24ES 24PORT GBE UNMG SWITCH Switch TP-Link TL-SG1024D, 24 port, 10/100/1000 Mbps "JetStream™ 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch "JetStream™ 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch
Alte caracteristici
10G support Yes — No Yes Yes
Access Control List (ACL) — — — Yes Yes
AC input frequency 50 - 60 Hz — 50 - 60 Hz — —
ARP inspection Yes — — Yes Yes
Authentication — — — Auto VLAN, Guest VLAN Guest VLAN, MAC-based authentication, Port-based authentication
Authentication type IEEE 802.1x, RADIUS, TACACS+ — — — AAA, IEEE 802.1x, RADIUS, TACACS+
Basic switching RJ-45 Ethernet ports type 48 — 24 48 24
BPDU filtering/protection — — — Yes Yes
Broadcast storm control — — — Yes Yes
Cables included — — AC AC AC
Cloud-managed — — — Yes Yes
Configuring Location Settings (CLI) — — — Yes Yes
Console port — — — RJ-45/micro-USB RJ-45/micro-USB
Depth 330 mm — 180 mm 330 mm 330 mm
DHCP features DHCP relay, DHCP server — — DHCP client, DHCP relay, DHCP server DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Flash memory 64 MB — — — 32 MB
Flow control support — — Yes Yes Yes
Form factor — — — 1U 1U
Forwarding rate 161 Mpps 35.7 Mpps 35.7 Mpps 130.9 Mpps 148.8 Mpps
Full duplex — — Yes — Yes
GARP VLAN Registration Protocol (GVRP) Yes — — — Yes
Head-of-line (HOL) blocking — — — Yes Yes
Heat dissipation 195.43 BTU/h — 44.63 BTU/h 2169.2 BTU/h 2153.45 BTU/h
Height 44 mm — 44 mm — —
IGMP snooping Yes — — Yes Yes
IP-MAC-Port binding — — — Yes Yes
Jumbo frames — — 10000 9000 9000
Jumbo frames support Yes — Yes Yes Yes
LAN ports — 24 24 48 24
LAN port type Gigabit Gigabit Gigabit Gigabit Gigabit
Layer — Unmanaged Unmanaged Layer-2 Layer-2
LED indicators — — Yes Yes Yes
Link aggregation — — — Yes Yes
MAC address table 32000 entries — 8000 entries 16000 entries 32000 entries
Management Da Unmanaged nu Da Da
Montare in rack Da Da Nu Da Da
Multicast Listener Discovery (MLD) snooping MLD v1/v2 — — — MLD v1/v2
Multicast support — — — Yes Yes
Number of fans — — — 3 fan(s) 3 fan(s)
Operating relative humidity (H-H) 10 - 95% — 10 - 90% 10 - 90% 10 - 90%
Operating temperature (T-T) -20 - 50 °C — 0 - 40 °C 0 - 40 °C 0 - 40 °C
Packet buffer memory 2 MB — — 12 MB 16 MB
PoE Nu No Nu Da Da
Port mirroring — — — Yes Yes
Porturi RJ 45 28+ 24 24-28 28+ 24-28
Porturi SFP 3-4 1-2 N/A 1-2 1-2
Power connector — — DC-in jack AC-in jack —
Power consumption (max) 1161.6 W — 13.08 W 635.7 W 629.1 W
Power over Ethernet (PoE) Yes — No Yes Yes
Power over Ethernet plus (PoE+) ports quantity — — — 48 16
Power source AC — AC AC AC/PoE
Power supply included Yes — Yes Yes Yes
Quality of Service (QoS) support Yes — Yes Yes Yes
Quick start guide — — — Yes Yes
Rackable — Yes No Yes Yes
Rack mounting Yes — Yes Yes Yes
Rack mount kit — — Yes — Yes
Rate limiting — — — Yes Yes
Redundant PSU — No Yes No Yes
SFP module slots quantity — — — 4 4
Spanning tree protocol — — — Yes Yes
SSH/SSL support — — — Yes Yes
Stackable — No Yes No No
Static port security — — — Yes Yes
Storage relative humidity (H-H) 10 - 90% — 5 - 90% 5 - 90% 5 - 90%
Storage temperature (T-T) -40 - 70 °C — -40 - 70 °C -40 - 70 °C -40 - 70 °C
Store-and-forward — — Yes Yes Yes
Switching capacity 216 Gbit/s — 48 Gbit/s 176 Gbit/s 200 Gbit/s
Switch type Managed — Unmanaged Managed Managed
System event log — — — Yes Yes
Total Power over Ethernet (PoE) budget 960 W — — 500 W 500 W
Viteza transfer 10G+ Gigabit Gigabit 10G+ 2.5G
VLAN support — — — Yes Yes
Web-based management — — — Yes Yes
Width 441 mm — 294 mm — —
Laptopuri - Generale
Garanție comercială 60 60 60 60 24
Producător ZYXEL ZYXEL TP-LINK TP-LINK TP-LINK
Laptopuri - Memorie
Capacitate memorie RAM 1024 MB — — — 256 MB

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

ZY XGS2220-54 48GBE 2x10mG 4x10G SW POE

Specificații tehnice 49 caracteristici
10G Ethernet (copper) ports quantity
2
10G support
Yes
AC input frequency
50 - 60 Hz
ARP inspection
Yes
Authentication type
IEEE 802.1x, RADIUS, TACACS+
Basic switching RJ-45 Ethernet ports type
48
Depth
330 mm
DHCP features
DHCP relay, DHCP server
Flash memory
64 MB
Forwarding rate
161 Mpps
GARP VLAN Registration Protocol (GVRP)
Yes
Heat dissipation
195.43 BTU/h
Height
44 mm
IGMP proxy
Yes
IGMP snooping
Yes
Installed SFP modules quantity
4
Jumbo frames support
Yes
LAN port type
Gigabit
MAC address table
32000 entries
Management
Da
Mean time between failures (MTBF)
298.735 h
Montare in rack
Da
Multicast Listener Discovery (MLD) snooping
MLD v1/v2
Operating relative humidity (H-H)
10 - 95%
Operating temperature (T-T)
-20 - 50 °C
Packet buffer memory
2 MB
PoE
Nu
Porturi RJ 45
28+
Porturi SFP
3-4
Power consumption (max)
1161.6 W
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
50
Power source
AC
Power supply included
Yes
Quality of Service (QoS) support
Yes
Rack mounting
Yes
Routing entries
64
Storage relative humidity (H-H)
10 - 90%
Storage temperature (T-T)
-40 - 70 °C
Switching capacity
216 Gbit/s
Switch layer
L3
Switch type
Managed
Total Power over Ethernet (PoE) budget
960 W
Viteza transfer
10G+
Width
441 mm
Greutate
5 kg
Garanție comercială
60
Producător
ZYXEL
Capacitate memorie RAM
1024 MB
