Switch Dahua 18 porturi, gigabit, 2 porturi SFP, 16 porturi

Switchuri

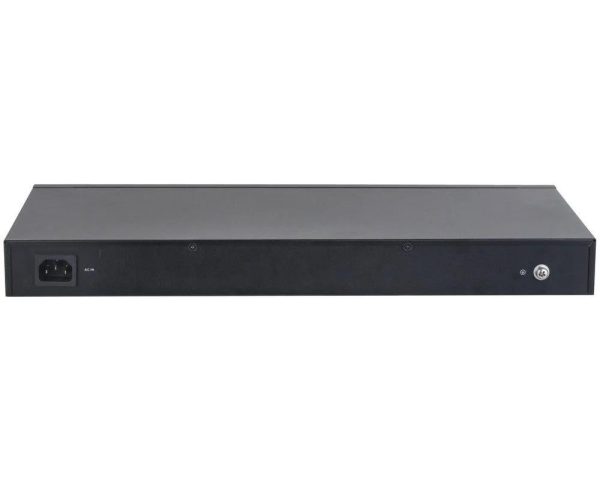

Switch Dahua 18 porturi, gigabit, 2 porturi SFP, 16 porturi

(0) Stoc epuizat
Vândut de RITC.ro Cod produs: CS4220-16GT-135

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Switch Dahua 18 porturi, gigabit, 2 porturi SFP, 16 porturi "JetStream™ 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch "JetStream™ 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch Switch ALLIED TELESIS GS950, 48 port, 10/100/1000 Mbps Switch Ubiquiti UniFi USW-24-POE, 24 port, 10/100/1000 Mbps
Alte caracteristici
10G support No Yes Yes No —
Access Control List (ACL) — Yes Yes — —
AC input frequency 47/63 Hz — — 50 - 60 Hz 50 - 60 Hz
ARP inspection — Yes Yes — —
Authentication — Auto VLAN, Guest VLAN Guest VLAN, MAC-based authentication, Port-based authentication — —
Authentication type — — AAA, IEEE 802.1x, RADIUS, TACACS+ — IEEE 802.1x, RADIUS
Auto MDI/MDI-X — — — Yes Yes
Basic switching RJ-45 Ethernet ports type 18 48 24 48 24
BPDU filtering/protection — Yes Yes — —
Broadcast storm control — Yes Yes Yes —
Cables included — AC AC — —
Certification — — — UL 1950, FCC/EN55022, VCCI, C-Tick, EN60950, EN55024, CE, CSA, CUL CE, FCC, IC
Cloud-managed Yes Yes Yes — —
Configuring Location Settings (CLI) — Yes Yes — —
Console port — RJ-45/micro-USB RJ-45/micro-USB RJ-45 —
DHCP features DHCP client DHCP client, DHCP relay, DHCP server DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping DHCP client —
Flash memory — — 32 MB 4 MB —
Flow control support Yes Yes Yes Yes Yes
Forwarding rate 29.76 Mpps 130.9 Mpps 148.8 Mpps — 38.69 Mpps
Full duplex — — Yes — Yes
Harmonized System (HS) code — — — 85176990 85176990
Head-of-line (HOL) blocking — Yes Yes Yes —
Heat dissipation — 2169.2 BTU/h 2153.45 BTU/h — —
IGMP snooping — Yes Yes Yes —
IP-MAC-Port binding — Yes Yes — —
Jumbo frames 15000 9000 9000 — —
Jumbo frames support Yes Yes Yes Yes Yes
LAN ports — 48 24 48 24
LAN port type — Gigabit Gigabit Gigabit 10Gigabit
Layer — Layer-2 Layer-2 Layer-2 Layer-2
LED indicators — Yes Yes Yes Activity, Link, PoE, Speed, System
Link aggregation — Yes Yes Yes —
MAC address filtering — Yes — Yes —
MAC address table 8000 entries 16000 entries 32000 entries 8000 entries —
Management Da Da Da Da Da
MIB support — — RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925 RFC 1213, RFC 1643, RFC 1493 —
Montare in rack Da Da Da Da Da
Multicast support — Yes Yes Yes —
Number of fans — 3 fan(s) 3 fan(s) — —
Operating relative humidity (H-H) 5 - 95% 10 - 90% 10 - 90% 5 - 90% 10 - 90%
Operating temperature (T-T) -10 - 55 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C —
Packet buffer memory 4 MB 12 MB 16 MB 6 MB —
PoE Da Da Da Nu Da
Port mirroring — Yes Yes Yes Yes
Porturi RJ 45 11-18 28+ 24-28 28+ 24-28
Porturi SFP 1-2 1-2 1-2 1-2 1-2
Power connector — AC-in jack — DC-in jack —
Power consumption (max) — 635.7 W 629.1 W — —
Power over Ethernet (PoE) Yes Yes Yes No Yes
Power over Ethernet (PoE) power per port — 30 W — — 32 W
Power over Ethernet plus (PoE+) ports quantity — 48 16 — 16
Power source AC AC AC/PoE — —
Power supply included — Yes Yes — Yes
Quality of Service (QoS) support — Yes Yes Yes —
Quick start guide — Yes Yes — —
Rackable — Yes Yes Yes Yes
Rack mounting Yes Yes Yes Yes Yes
Rate limiting — Yes Yes Yes —
Redundant PSU — No Yes No No
Reset button Yes Yes — — —
SFP module slots quantity 2 4 4 — 2
Spanning tree protocol — Yes Yes Yes Yes
SSH/SSL support — Yes Yes — —
Stackable — No No No Yes
Static port security — Yes Yes Yes —
Static route — — Yes — Yes
Storage relative humidity (H-H) 5 - 95% 5 - 90% 5 - 90% 5 - 95% —
Storage temperature (T-T) — -40 - 70 °C -40 - 70 °C -25 - 70 °C —
Store-and-forward — Yes Yes — —
Switching capacity 40 Gbit/s 176 Gbit/s 200 Gbit/s — 52 Gbit/s
Switch layer L2 — — L2 —
Switch type Managed Managed Managed Managed Managed
System event log — Yes Yes — —
Throughput — — — 14.88 Mpps 26000 Mpps
Total Power over Ethernet (PoE) budget 135 W 500 W 500 W — 92 W
Viteza transfer Gigabit 10G+ 2.5G Gigabit Gigabit
VLAN support Yes Yes Yes Yes Yes
Web-based management Yes Yes Yes Yes —
Caracteristici fizice
Greutate 2.26 kg — — 4.05 kg 3 kg
Laptopuri - Caracteristici fizice 25.09
Adâncime 220 mm 330 mm 330 mm 322 mm 200 mm
Lățime — — — 444 mm 442.4 mm
Înălțime — — — 43.5 mm 43.7 mm
Laptopuri - Conectivitate și porturi 25.09
Viteză rețea LAN 10,100,1000 Mbit/s — 10,100,1000,2500,10000 Mbit/s — —
Laptopuri - Construcție
Culoare — — — Grey Silver
Laptopuri - Generale
Garanție comercială 36 60 24 24 24
Producător DAHUA TP-LINK TP-LINK ALLIED TELESIS UBIQUITI
Laptopuri - Memorie
Capacitate memorie RAM — — 256 MB 32 MB —
Laptopuri - Tip laptop
Construcție laptop — 1U 1U 1U 1U

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

Switch Dahua 18 porturi, gigabit, 2 porturi SFP, 16 porturi PoE, 135W, management, porturi : Portul 1-16: 16 × RJ-45 10/100/1000 Mbps (POE); Port 17-18: 2 × RJ-45 10/100/1000 Mbps (legatura in sus); Portul 19-20: 2 × SFP 1000 Mbps (legatura in sus)

Specificații tehnice 46 caracteristici
10G support
No
AC input frequency
47/63 Hz
Basic switching RJ-45 Ethernet ports type
18
Cloud-managed
Yes
DHCP features
DHCP client
Flow control support
Yes
Forwarding rate
29.76 Mpps
Gigabit Ethernet (copper) ports quantity
18
Input current
3 A
Jumbo frames
15000
Jumbo frames support
Yes
MAC address table
8000 entries
Management
Da
Montare in rack
Da
Number of VLANs
32
Operating relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
-10 - 55 °C
Package depth
342 mm
Package height
90 mm
Package weight
29.1 kg
Package width
540 mm
Packet buffer memory
4 MB
PoE
Da
Porturi RJ 45
11-18
Porturi SFP
1-2
Power consumption (typical)
154 W
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
16
Power source
AC
Rack mounting
Yes
Reset button
Yes
SFP module slots quantity
2
Storage relative humidity (H-H)
5 - 95%
Switching capacity
40 Gbit/s
Switch layer
L2
Switch type
Managed
Total Power over Ethernet (PoE) budget
135 W
Viteza transfer
Gigabit
VLAN support
Yes
Web-based management
Yes
Greutate
2.26 kg
Adâncime
220 mm
Material carcasă
Metal
Viteză rețea LAN
10,100,1000 Mbit/s
Garanție comercială
36
Producător
DAHUA
