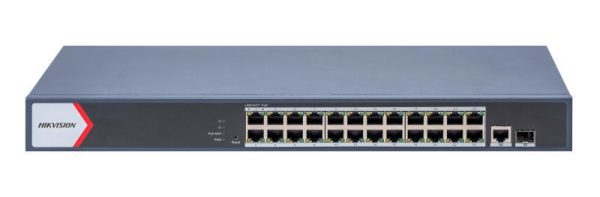

Switch PoE Hikvision SWITCH 24+2 GIGABIT POE: 24 × Gigabit

Switchuri

Switch PoE Hikvision SWITCH 24+2 GIGABIT POE: 24 × Gigabit

(0) Stoc epuizat
Vândut de RITC.ro Cod produs: DS-3E1526P-EIV2

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Switch PoE Hikvision SWITCH 24+2 GIGABIT POE: 24 × Gigabit "JetStream™ 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch "JetStream™ 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch Switch TP-Link TL-SF1016, 16 port, 10/100 Mbps Switch ALLIED TELESIS GS950, 48 port, 10/100/1000 Mbps
Alte caracteristici
10G support No Yes Yes No No
Access Control List (ACL) — Yes Yes — —
AC input frequency — — — 50 - 60 Hz 50 - 60 Hz
ARP inspection — Yes Yes — —
Authentication — Auto VLAN, Guest VLAN Guest VLAN, MAC-based authentication, Port-based authentication — —
Auto MDI/MDI-X — — — Yes Yes
Basic switching RJ-45 Ethernet ports type 25 48 24 Fast Ethernet (10/100) 48
BPDU filtering/protection — Yes Yes — —
Broadcast storm control — Yes Yes — Yes
Cables included — AC AC AC —
Certification CB;CE-EMC;CE-LVD;CE-RoHS;IC-VoC;KC;RCM — — — UL 1950, FCC/EN55022, VCCI, C-Tick, EN60950, EN55024, CE, CSA, CUL
Cloud-managed — Yes Yes — —
Compliance certificates CB, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD), REACH, RoHS, UL, WEEE — CE, Federal Communications Commission (FCC), RoHS CE, Federal Communications Commission (FCC), RoHS —
Configuring Location Settings (CLI) — Yes Yes — —
Console port — RJ-45/micro-USB RJ-45/micro-USB — RJ-45
Copper ethernet cabling technology — — — 10BASE-T, 100BASE-TX 1000BASE-T, 100BASE-TX
Depth 220.8 mm 330 mm 330 mm 180 mm 322 mm
DHCP features DHCP client DHCP client, DHCP relay, DHCP server DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping — DHCP client
Ethernet LAN data rates — — 10,100,1000,2500,10000 Mbit/s 10,100 Mbit/s —
Fast Ethernet (copper) ports quantity 25 — — 16 —
Flash memory — — 32 MB — 4 MB
Flow control support — Yes Yes Yes Yes
Forwarding rate 41.66 Mpps 130.9 Mpps 148.8 Mpps 2.38 Mpps —
Harmonized System (HS) code 301802749 — — 85176990 85176990
Head-of-line (HOL) blocking — Yes Yes — Yes
Heat dissipation — 2169.2 BTU/h 2153.45 BTU/h 7.03 BTU/h —
Height 44 mm — — 44 mm 43.5 mm
Housing material Metal — — Metal —
IGMP snooping — Yes Yes — Yes
IP-MAC-Port binding — Yes Yes — —
Jumbo frames — 9000 9000 — —
Jumbo frames support — Yes Yes — Yes
LAN ports — 48 24 — 48
LAN port type — Gigabit Gigabit FastEthernet Gigabit
Layer — Layer-2 Layer-2 — Layer-2
LED indicators — Yes Yes Yes Yes
Link aggregation Yes Yes Yes — Yes
Loop protection Yes — Yes — —
MAC address filtering — Yes — — Yes
MAC address table 8000 entries 16000 entries 32000 entries 8000 entries 8000 entries
Management Managed Da Da nu Da
MIB support — — RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925 — RFC 1213, RFC 1643, RFC 1493
Montare in rack Da Da Da Nu Da
Multicast support — Yes Yes — Yes
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1w, IEEE 802.3af, IEEE 802.3at — — IEEE 802.3i, IEEE 802.3u, IEEE 802.3x —
Number of fans — 3 fan(s) 3 fan(s) — —
Operating relative humidity (H-H) 5 - 95% 10 - 90% 10 - 90% 10 - 90% 5 - 90%
Operating temperature (T-T) 0 - 45 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C
Package depth 528 mm — — 528 mm —
Package weight 3.77 kg — — 2.28 kg —
Package width 309 mm — — 250 mm —
Packet buffer memory 4.1 MB 12 MB 16 MB 2 MB 6 MB
PoE Da Da Da Nu Nu
Port mirroring Yes Yes Yes — Yes
Porturi RJ 45 24-28 28+ 24-28 11-18 28+
Porturi SFP 1-2 1-2 1-2 N/A 1-2
Power connector AC-in jack AC-in jack — DC-in jack DC-in jack
Power consumption (max) 400 W 635.7 W 629.1 W 2.23 W —
Power over Ethernet (PoE) Yes Yes Yes No No
Power over Ethernet (PoE) power per port 30 W 30 W — — —
Power over Ethernet plus (PoE+) ports quantity — 48 16 — —
Power source AC/PoE AC AC/PoE AC —
Power supply included — Yes Yes Yes —
Quality of Service (QoS) support — Yes Yes — Yes
Quick start guide — Yes Yes — —
Rackable — Yes Yes — Yes
Rack mounting Yes Yes Yes Yes Yes
Rack mount kit — — Yes Yes —
Rate limiting — Yes Yes — Yes
Redundant PSU — No Yes — No
SFP module slots quantity 1 4 4 — —
Spanning tree protocol — Yes Yes — Yes
SSH/SSL support — Yes Yes — —
Stackable — No No No No
Static port security — Yes Yes — Yes
Storage relative humidity (H-H) 5 - 95% 5 - 90% 5 - 90% 5 - 90% 5 - 95%
Storage temperature (T-T) -40 - 85 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C -25 - 70 °C
Store-and-forward — Yes Yes Yes —
Sustainability compliance Yes — Yes Yes —
Switching capacity 56 Gbit/s 176 Gbit/s 200 Gbit/s 32 Gbit/s —
Switch type Managed Managed Managed Unmanaged Managed
System event log — Yes Yes — —
Total Power over Ethernet (PoE) budget 370 W 500 W 500 W — —
Viteza transfer Gigabit 10G+ 2.5G Fast Ethernet Gigabit
VLAN support Yes Yes Yes — Yes
Web-based management — Yes Yes — Yes
Width 440 mm — — 440 mm 444 mm
Laptopuri - Construcție
Culoare Grey — — Black Grey
Greutate 21.9 kg — — — 4.05 kg
Laptopuri - Generale
Garanție comercială 36 60 24 36 24
Producător HIKVISION TP-LINK TP-LINK TP-LINK ALLIED TELESIS
Laptopuri - Memorie
Capacitate memorie RAM — — 256 MB — 32 MB
Laptopuri - Tip laptop
Construcție laptop — 1U 1U 1U 1U

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

Switch PoE Hikvision SWITCH 24+2 GIGABIT POE: 24 × Gigabit PoE port,1 × Gigabit RJ45 port,1 × Gigabit fiber optical port, standard: IEEE 802.3af,IEEE 802.3at, buget PoE 370W, tensiune alimentara: 100~240 V AC, 50/60 Hz, Max. 6.3 A, dimensiuni: 440.0 mm × 220.8 mm × 44.0 mm, greutate: 3.1kg.

Specificații tehnice 55 caracteristici
10G support
No
Basic switching RJ-45 Ethernet ports type
25
Cable length detection
Yes
Certification
CB;CE-EMC;CE-LVD;CE-RoHS;IC-VoC;KC;RCM
Compliance certificates
CB, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD), REACH, RoHS, UL, WEEE
Depth
220.8 mm
DHCP features
DHCP client
Fast Ethernet (copper) ports quantity
25
Forwarding rate
41.66 Mpps
Harmonized System (HS) code
301802749
Height
44 mm
Housing material
Metal
Input current
6.3 A
Link aggregation
Yes
Loop protection
Yes
MAC address table
8000 entries
Management
Managed
Montare in rack
Da
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1w, IEEE 802.3af, IEEE 802.3at
Number of VLANs
32
Operating relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
0 - 45 °C
Package depth
528 mm
Package height
89 mm
Package weight
3.77 kg
Package width
309 mm
Packet buffer memory
4.1 MB
PoE
Da
Port mirroring
Yes
Porturi RJ 45
24-28
Porturi SFP
1-2
Power connector
AC-in jack
Power consumption (max)
400 W
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
24
Power over Ethernet (PoE) power per port
30 W
Power protection features
Surge protection
Power source
AC/PoE
Rack mounting
Yes
SFP module slots quantity
1
Storage relative humidity (H-H)
5 - 95%
Storage temperature (T-T)
-40 - 85 °C
Surge protection
Yes
Surge protection voltage
6 kV
Sustainability compliance
Yes
Switching capacity
56 Gbit/s
Switch type
Managed
Total Power over Ethernet (PoE) budget
370 W
Viteza transfer
Gigabit
VLAN support
Yes
Width
440 mm
Culoare
Grey
Greutate
21.9 kg
Garanție comercială
36
Producător
HIKVISION
